Brand NameNoneModel NumberICM522-A9OriginMainland ChinaCertificationCECertificationULSmart home platformOtherSmart home platformAliyunMeasurement unitpiece/piecesEach pack1Frequencyhigh frequencyCard reading distanceMAX:7CM1 399,97 ₽1 399,97 ₽Add to CartBuy now1 399,97 ₽loader

Description

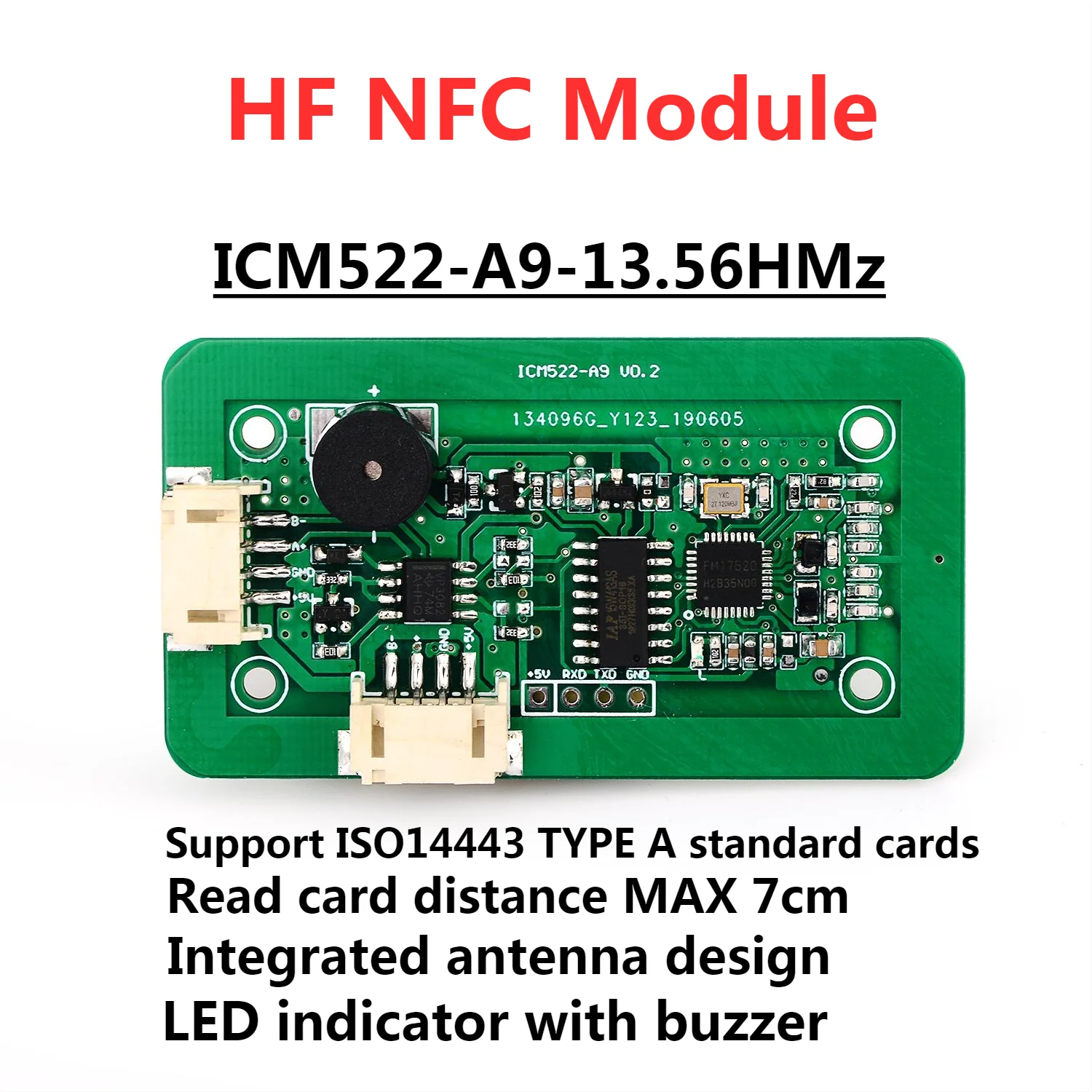

1. product features

High integrated reading and write chip is used as the RF base station
Support for ISO14443 TYPE A standards, Mifare standard cards,
The module integrates automatic card search, read, write, and initialize the electronic wallet
3. Using value-added, impairment, balance inquiry and other instructions, users use the command set;
Integrated antenna design
Ultra-low static power consumption: ≤ 30uA
Serial port protocol RS 485: serial port bit data (8), check bit (no), stop bit (1), Baud rate: 19200
Ultra-small volume, 62mm×34.5mm only
Read card distance, maximum 7CM(standard card test)
With a buzzer, a LED indicator lamp
Module software extension function is very strong, and you can customize the personalized modules according to the user requirements
Bring your own watchdog

2. Application

Electronic class card
Intelligent water, electricity, gas three meters
Traffic one-card reader and writer, desktop card issuer
Access control attendance reading and writer
Hotel readers and writers, card issuers
Hotel, home door locks
Car electronic sensor lock matching
Safety control of the office / mall / bath center storage boxes
Various anti-counterfeiting systems and production process control

3.Product profile

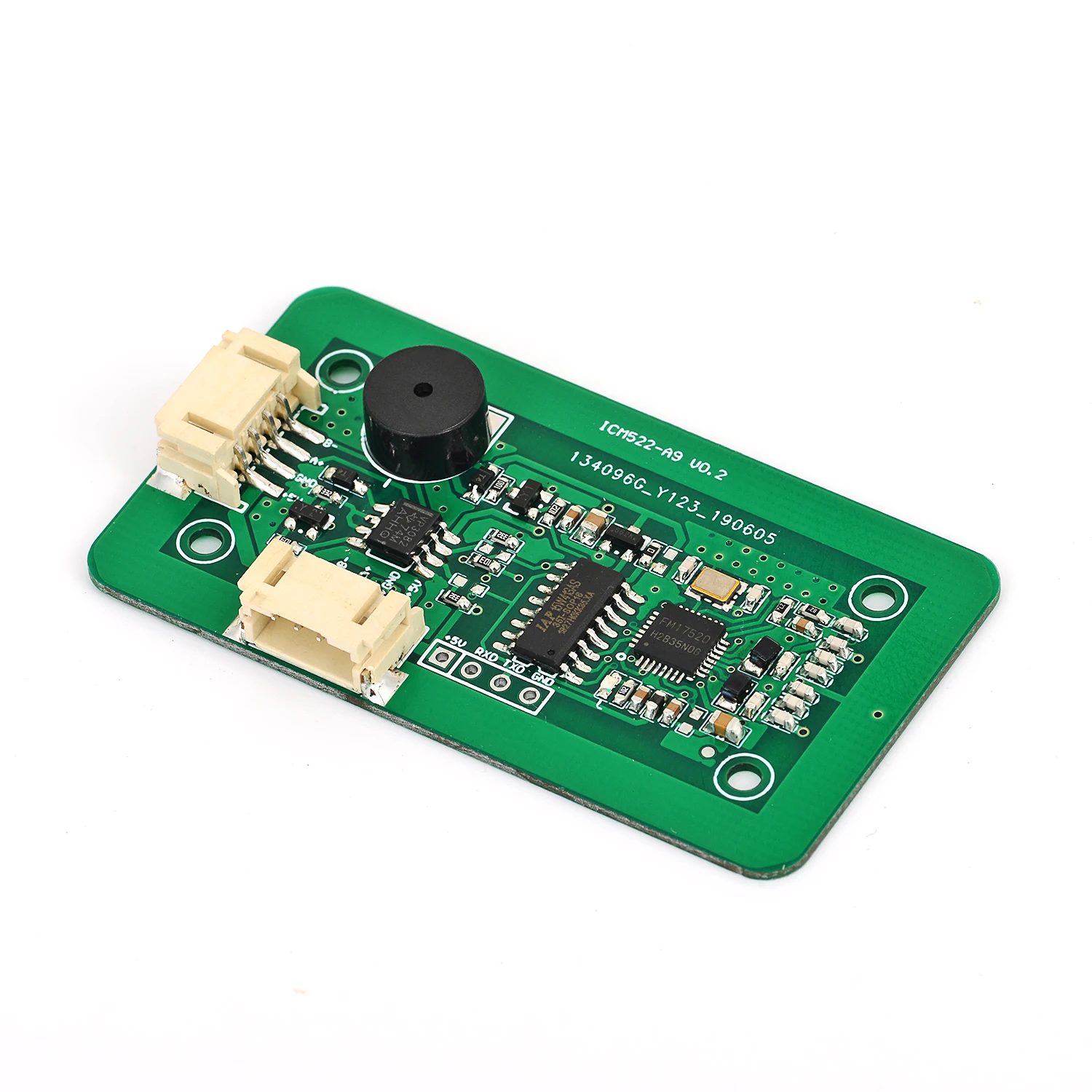

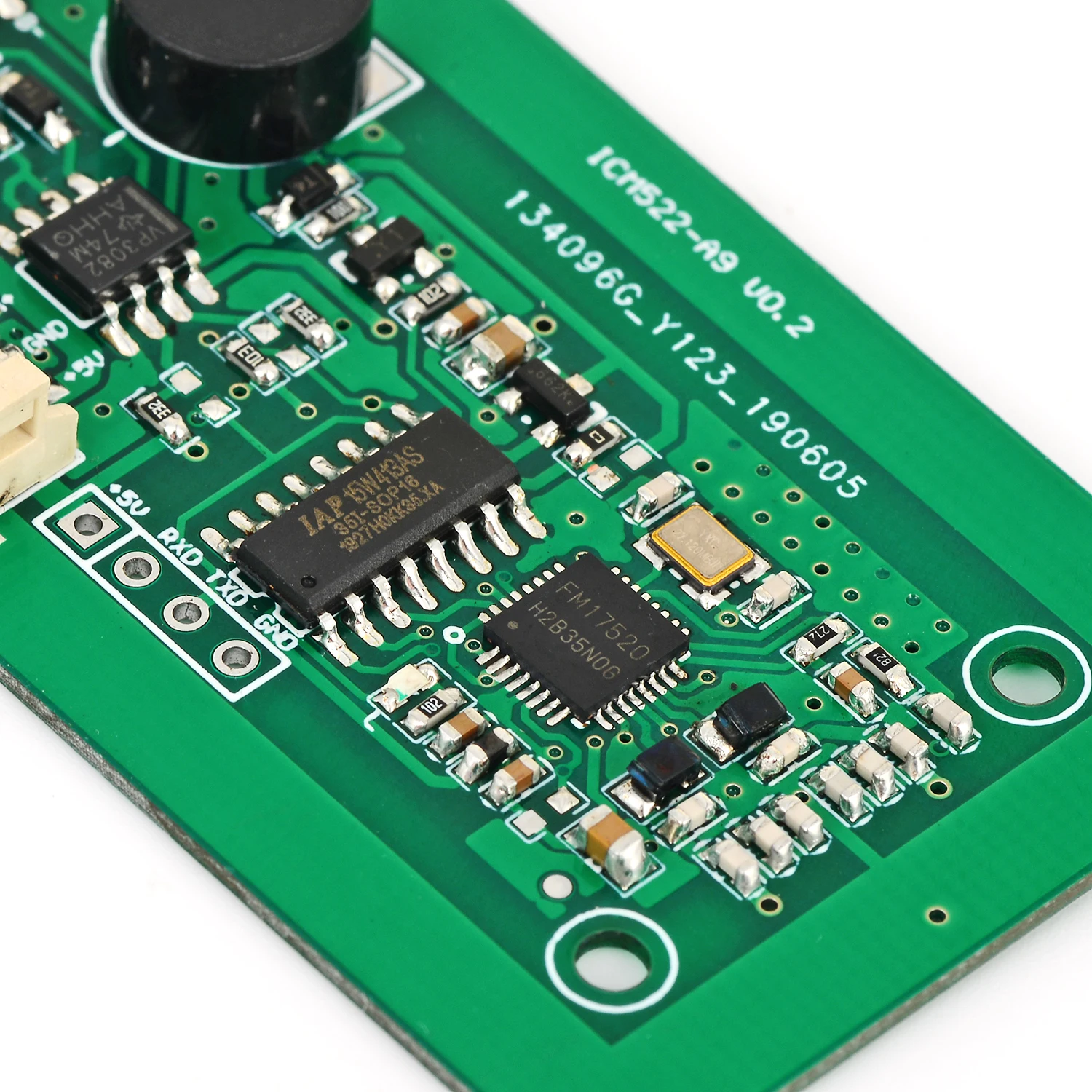

The ICM522-A 9-CPU reading and write module adopts 13.56MHZ contactless RF technology, with an embedded high integrated reading and write chip as the RF base station. Users can achieve complete operation on the card simply by sending a command with simple instructions. This series of read and write modules support
M F1:S50, S70, FM11RF08;
MF0: Ultralight, Ultralight C, NTAG203, NTAG213;
CPU: FM1208
And its compatible cardsICM522-A 9-CPU module software and hardware extension functions are very strong, which can be customized to the personalized module according to user requirements

5. Product selection

5. Product selection
6. technical parameters
7. pin function.
