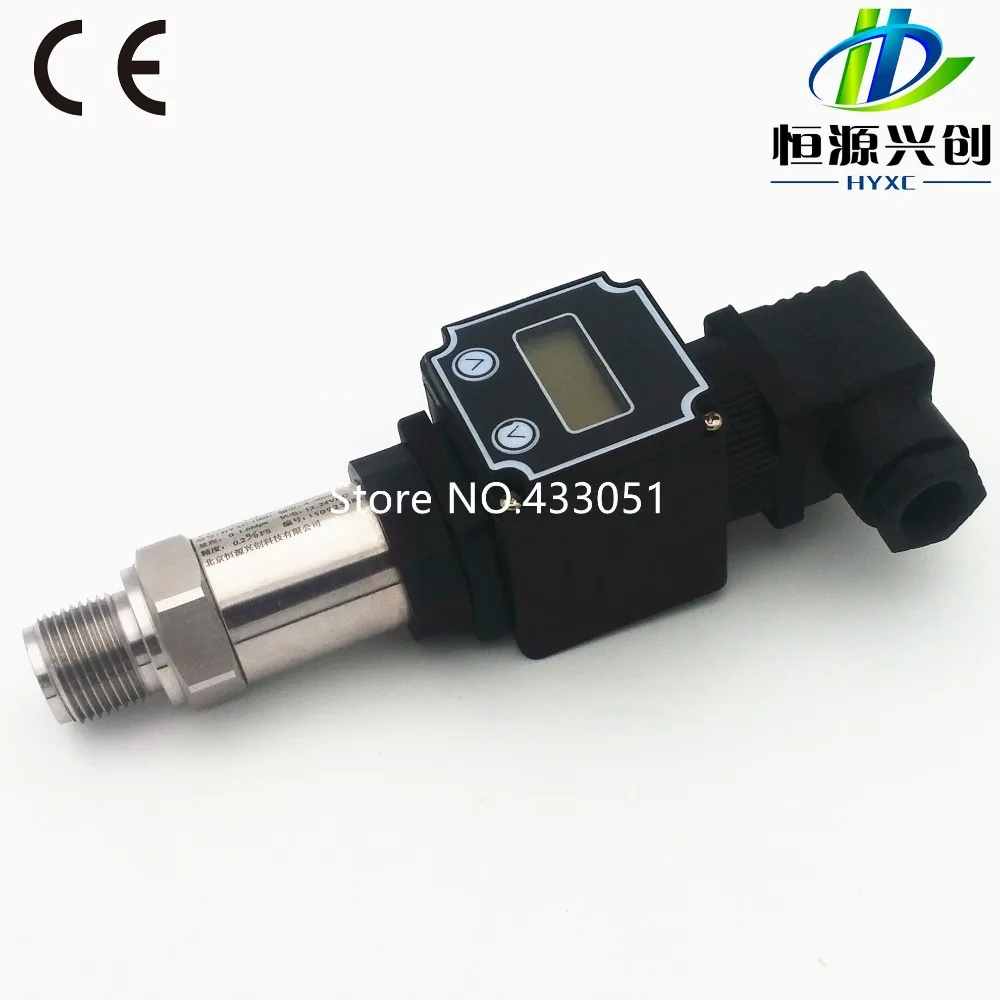

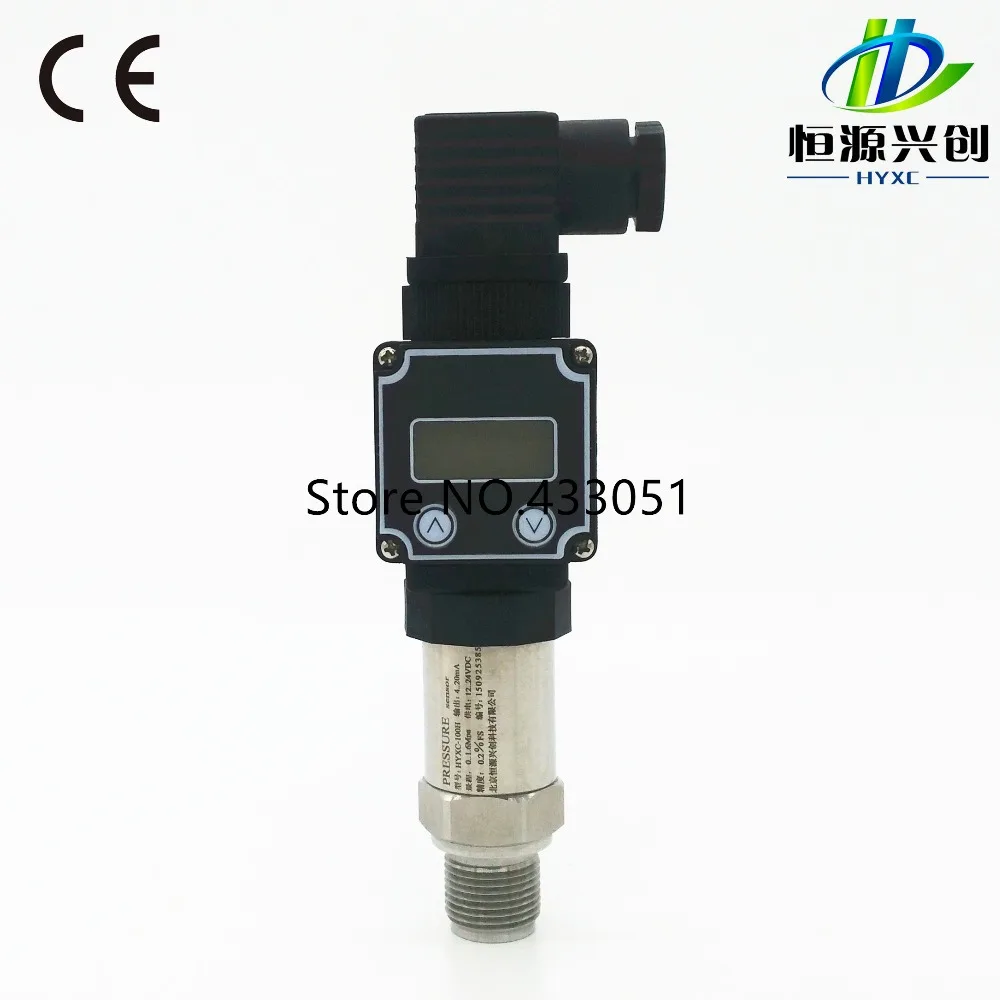

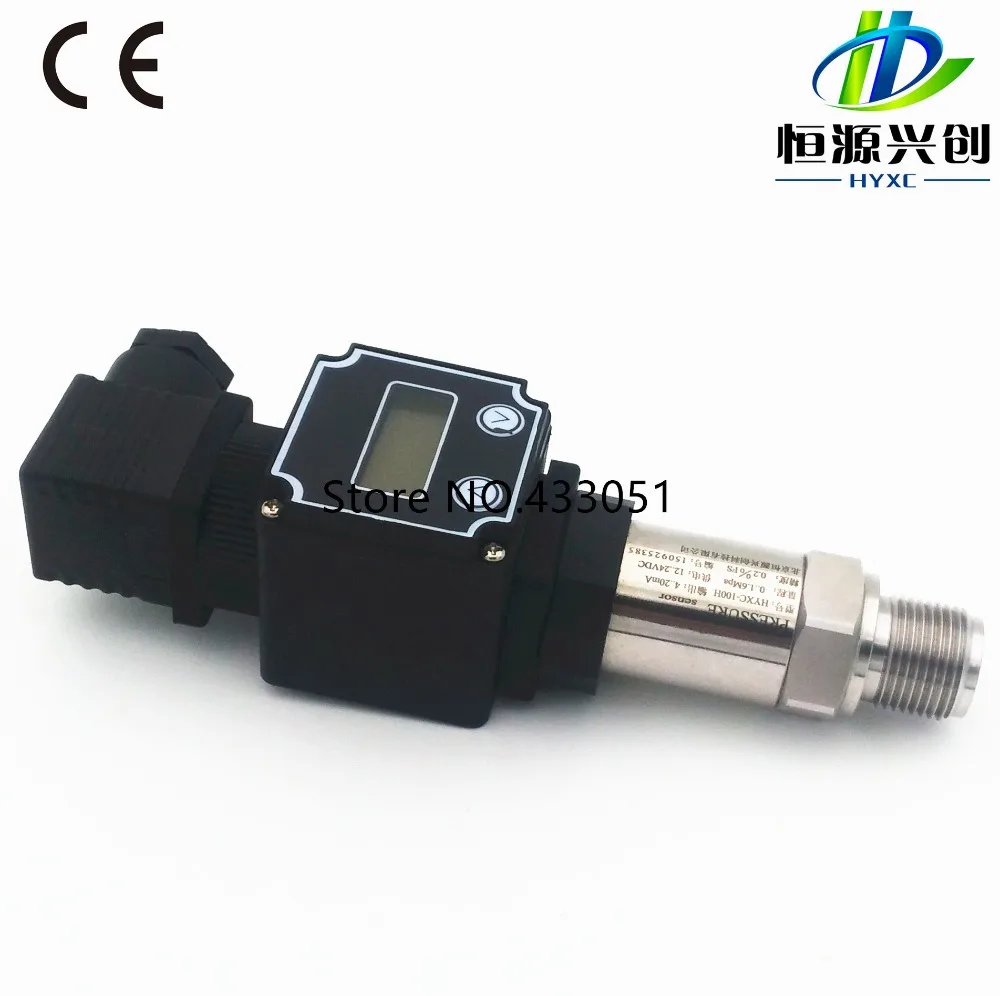

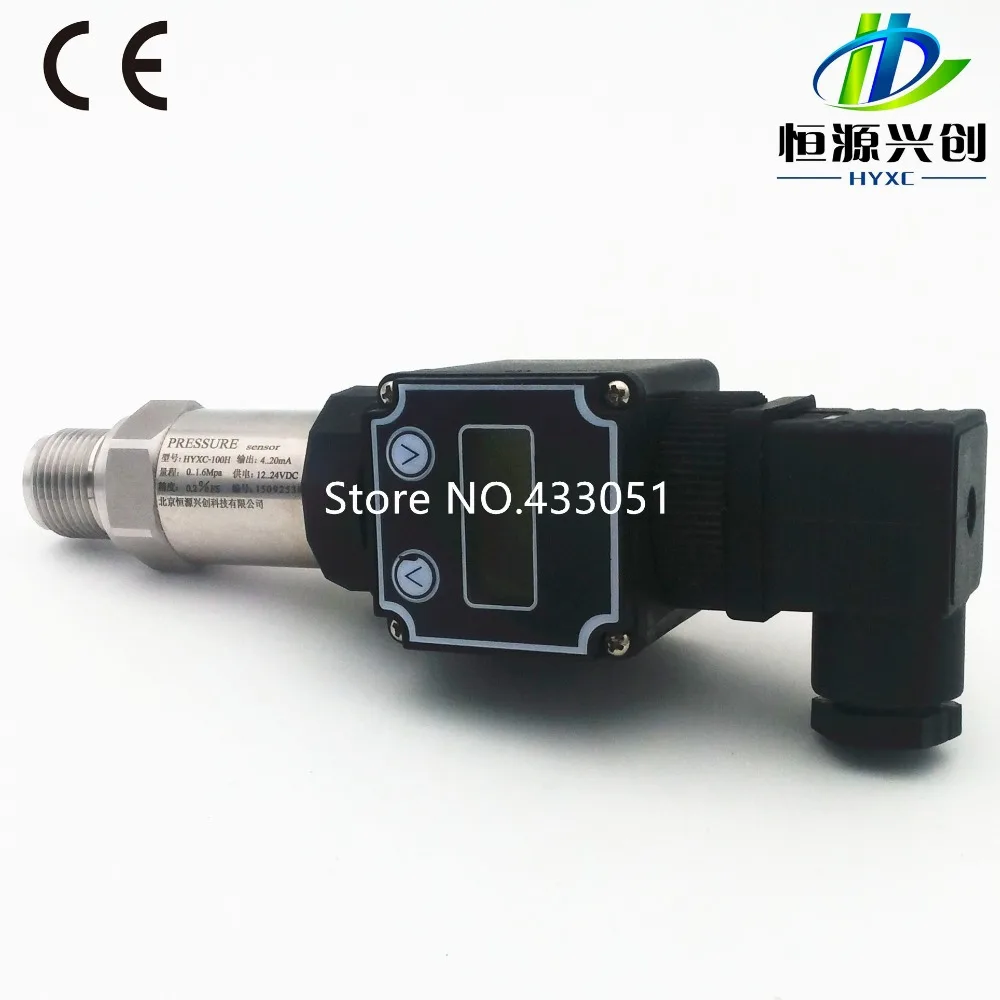

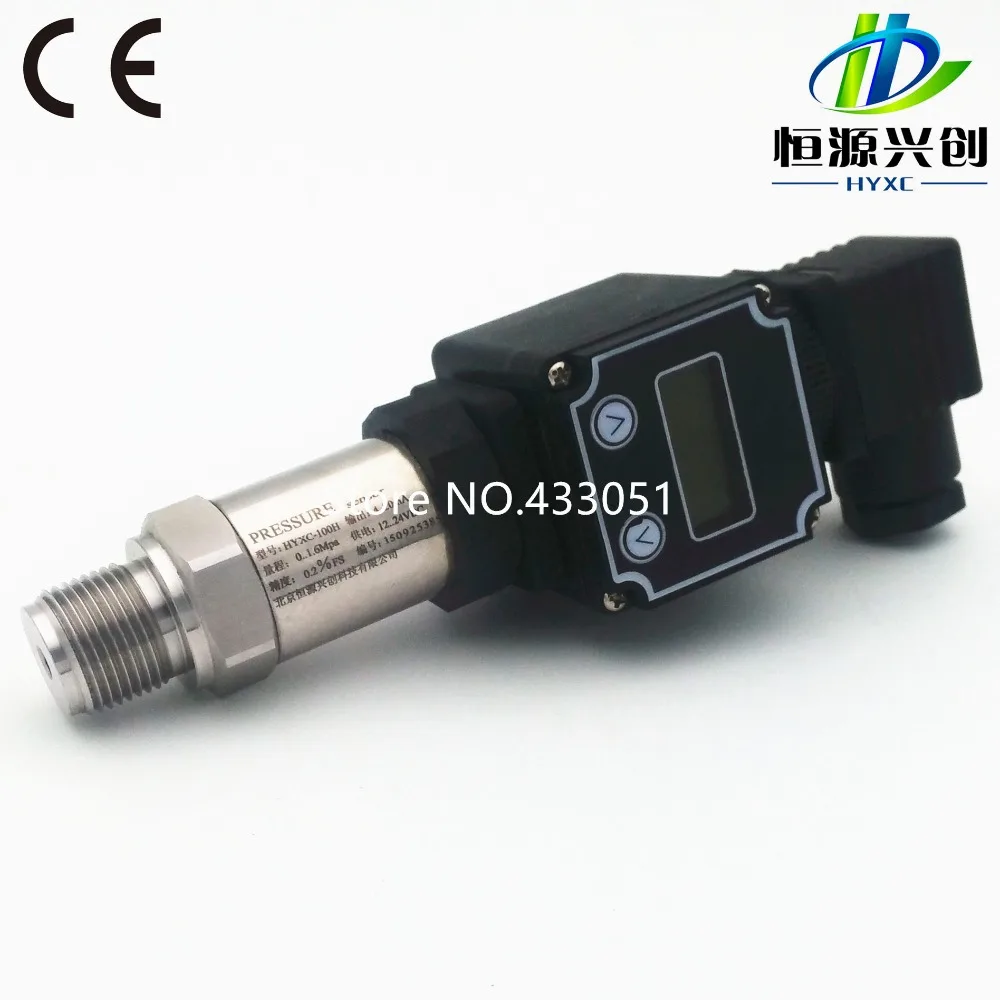

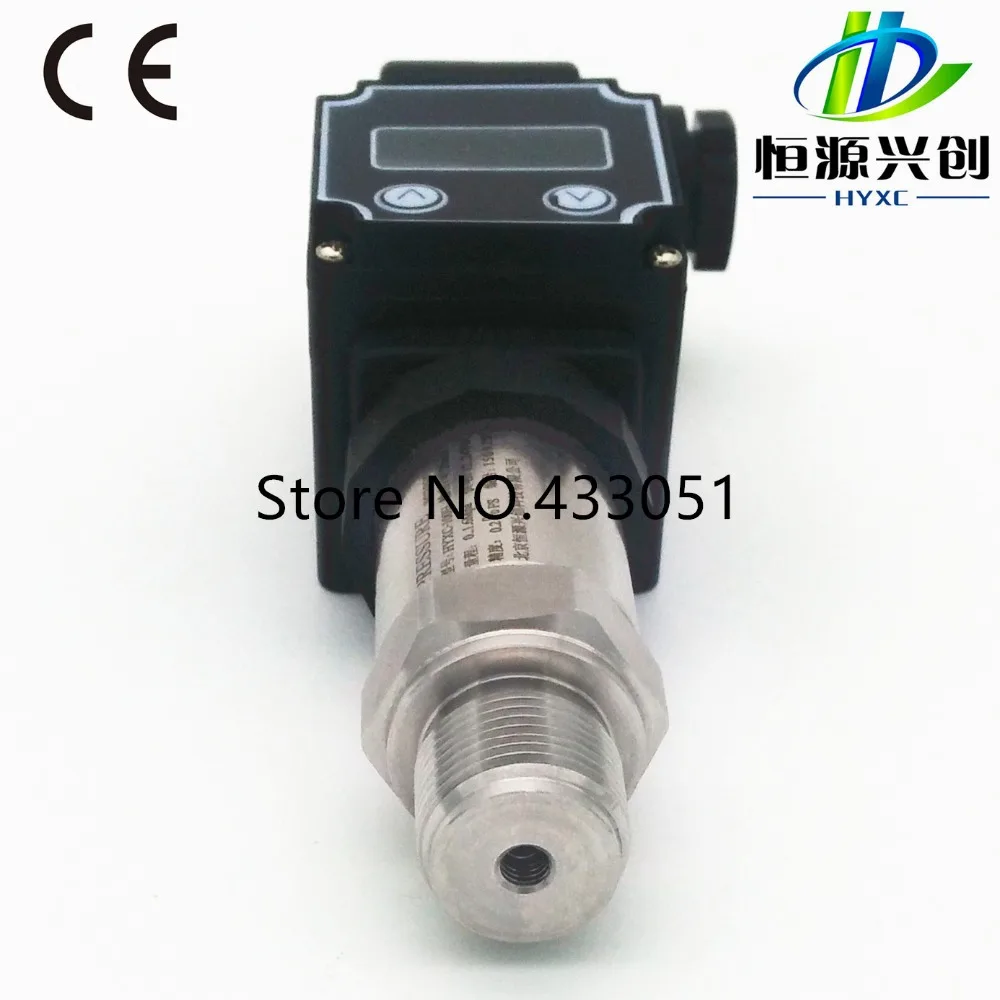

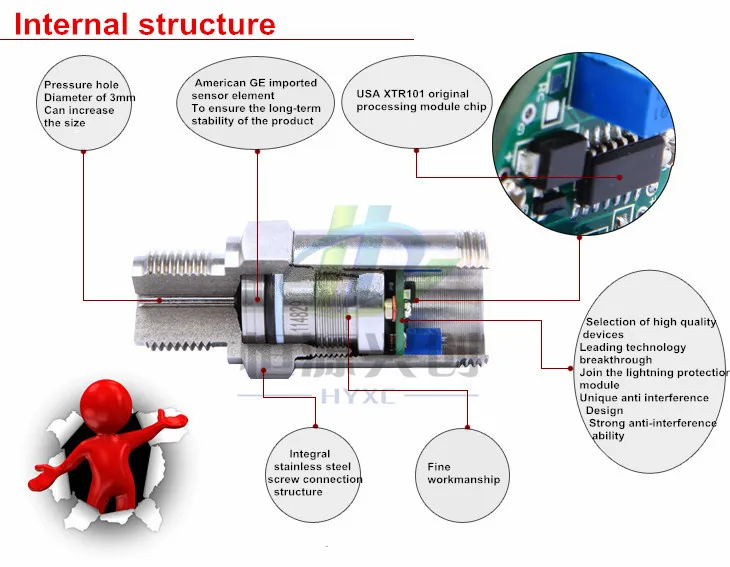

  HYXCPEX pressure transmitter has reliable performance and competitive price. Imported diffusion silicon chip, chip circuit adopts signal isolation amplifier, cutoff frequency interference design, (strong anti-jamming capability, lightning protection), over voltage protection, current limiting protection, impact resistant

Overall dimensions:

Application:

Aerospace, electric power, sewage treatment, water supply system, petroleum chemical industry, pharmaceutical industry, power units, air conditioning units, refrigeration units, compressor unit, laboratory pressure detection and efficacy, industrial process control, internal combustion engine, engine, hydraulic and pneumatic system, constant pressure water supply system in sectors such as liquid, gas measurement and control,

Technical parameters:

Measuring medium: Gas, Liquid (To stainless steel without corrosive gas or liquid)

Measuring range: 0~1.6MPa (Default);

                                       -0.1~100MPa (can choose any range)

Pressure type: Gauge pressure

Accuracy : 0.2%F.S

Thread size: M20×1.5(Default),

                          G1/2(4''),G1/4(2''),G1/8(1''),ZG1/4(R1/4),NPT1/2, NPT1/4,NPT1/8,( Non-standard custom-made according to customer requirements)

Long term stability: ±0.1％ FS/Year

Temperature drift: ±0.01％ FS/℃

Power supply: 24V DC
Output signal: 4 ~ 20mA(Default) ,

                                0 ~ 5 VDC, 0 ~ 10 VDC
Medium temperature: -40℃～85℃

Environmental temperature: -40℃～85℃

Overload pressure: 200％

Protection grade: IP65

Frequency: ≤2ms

Probe material: 316S

Load capacity: Current type:250～1425Ω      Voltage type: ≥2KΩ

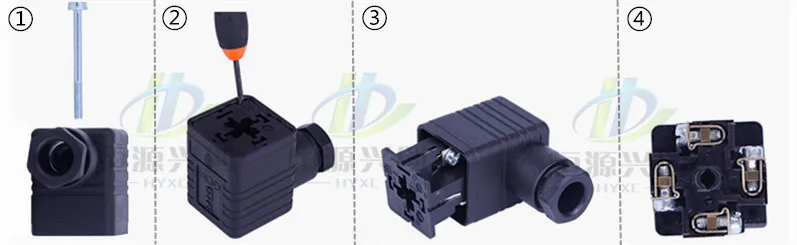

Disassembly diagram:

Wiring Diagram:

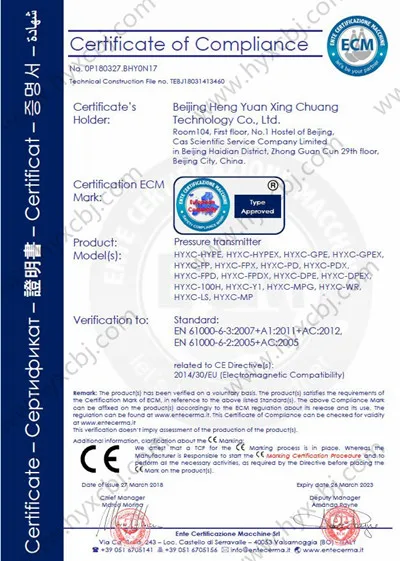

Product certificate
