The initiated one for WIFI wireless cluster controller on the field of LED display screen!
The latest project and product must lead the market once again.

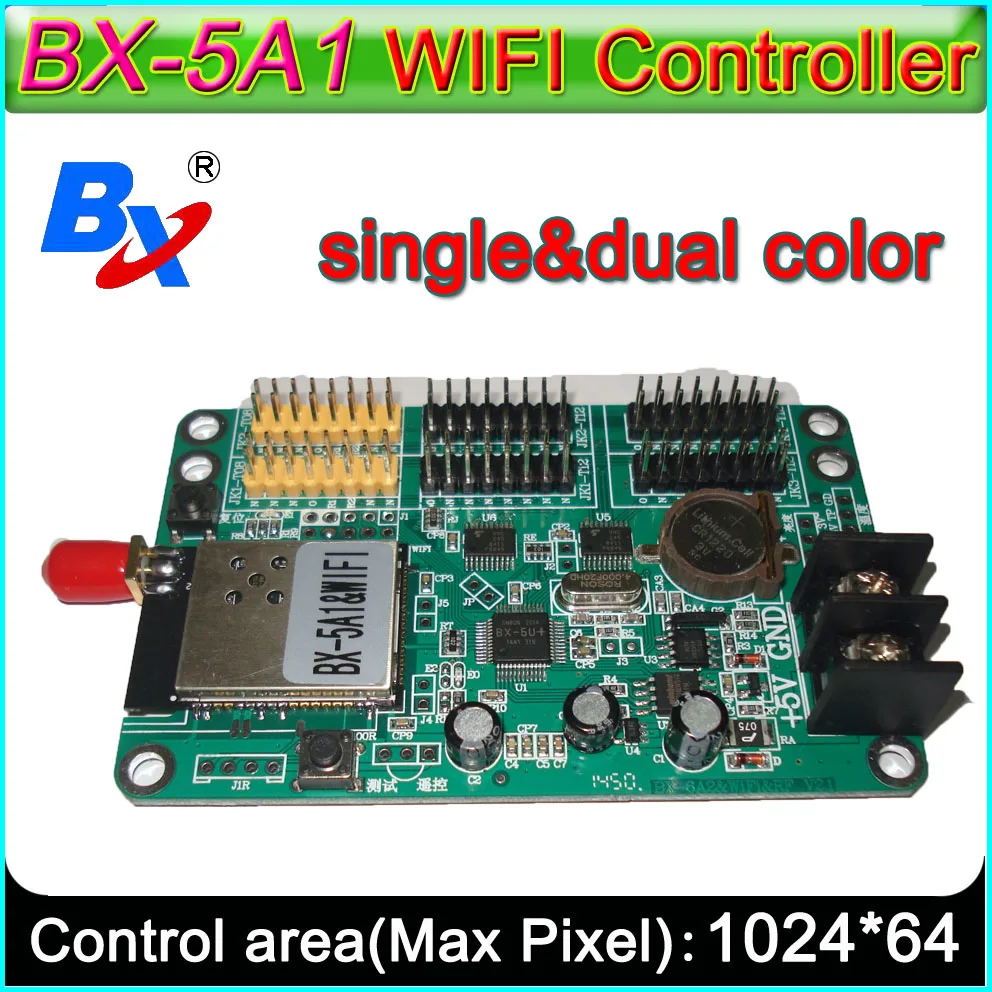

BX-5A1&WIFI wireless cluster LED controller is perfectly clustered with BX-5A1 and BX-WIFI wireless communication module.With stable performance and convenient structure installation. Absolutely, it will promote and lead the field of LED display screen WIFI wireless network techniques to get a speed development by it's good performance,best quality and prices.

Features
Best techniques and quality;
Anti terrible environment; Support wide work temperature: -30~70;
Support firmware update online;

Advantages
1. Support 100M Ethernet, easy to install and use;
2. Fast speed of data transferring, which is stable and reliable;
3. Wide applied range:
(1) Laptop worked within 100M; Desktop could work by wireless router connecting with BX-5A1&WIFI wireless controller communication.
(2) All places covered well by wireless WIFI signal like: airports, high-speed-train stations, intelligent building and so on.

Technique parameters
Product name: BX-5A1&WIFI wireless controller
Recommend index:
Product status: Being brought to market in March 2012, always in stores;
Performance index: Controlling performance parameters are equal to BX-5A1;

Main functions: Data wireless transparent transmitting;
Support 100M Ethernet;
Support TCP/IP/UDP network
Support wireless router/bridge connection model network structure;
Support 802.11b/g/n wireless standard;
Support heartbeat signal, WIFI connecting indication;
Maximum power: ≤2.5W
Receiving sensitivity: (802.11b:-89dBm,802.11g:-81dBm,802.11n:-71dBm)
Maximum transferring distance : ≤200M ( Suggesting the distance: ≤100M
Wireless standard: 802.11 b/g/n
Work RF: 2.412GHz-2.484GHz

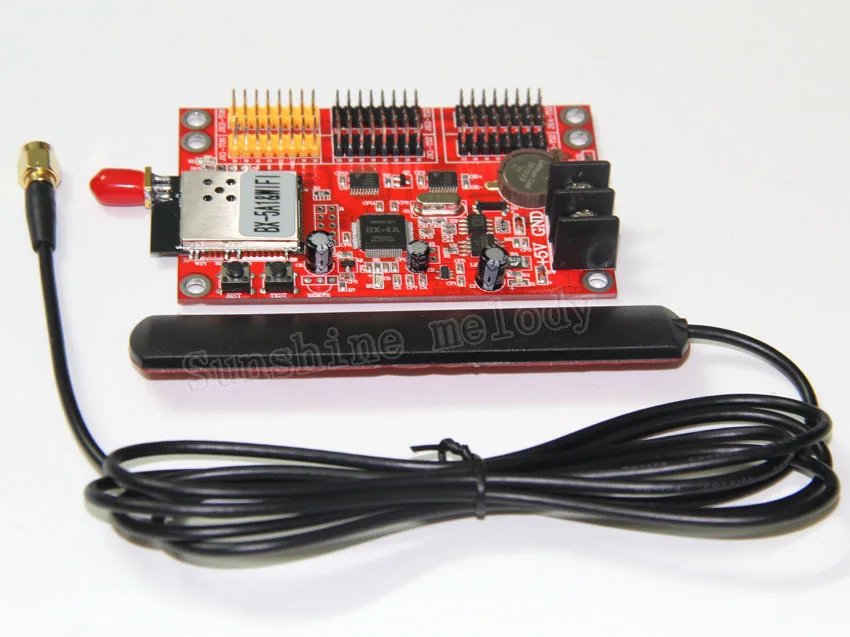

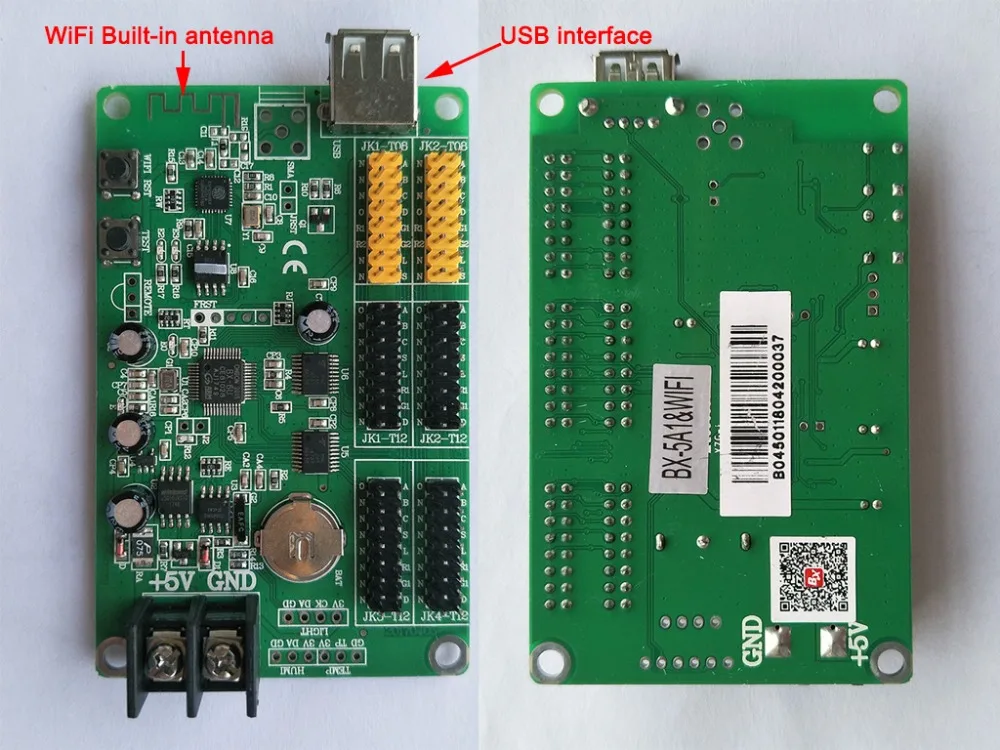

Antenna: 2.4GHz standard flake antenna
Work voltage: 5V (3.5V-6V)
Work temperature: -30~70

Application Specification
1. The latest product with high performance price; Compact structure, exquisite workmanship, simple and fast to installation;
2. Users should better adopt a proper waterproof protection when in the outdoor;
3. Pay more attention to the place for antenna, for the flake antenna of BX-5A1&WIFI controller is supposed to install to the outside of LED display screen;

Software download link:

http://www.onboncloud.com/upload/download/LedshowTW2018(V18.9.6.0).rar

http://www.onboncloud.com/download/166.html







Basic parameters and Link:

onbon Single and double color control card series
Product model	Control Area	Display Mode	HUB Interface
BX-5UT/BX-5AT	Single Color 16K	1024*16 512*32	1 groups T08 2 groups T12
	Double colors 8K	512*16 256*32
BX-5U0	Single Color 32K	2048*16 1024*32 672*48 512*64	2 groups T08 4 groups T12
	Double colors 16K	768*16 512*32 256*48 192*64
BX-5U1	Single Color 64K	3200*16 2048*32 1344*48 1024*64	2 groups T08 4 groups T12
	Double colors 32K	1024*16 768*32 512*48 384*64
BX-5U2	Single Color 100K	3200*32 2112*48 1600*64	2 groups T08 4 groups T12
	Double colors 48K	2048*16 1024*32 672*48 512*64
BX-5U3	Single Color 128K	3200*32 2048*64 1344*96 1024*128	1 nos 50 PIN 128 lines
	Double colors 64K	3200*16 1024*64 768*96 512*128
BX-5U4	Single Color 128K	2048*64 1024*128 672*192 512*256	1 nos 50 PIN 128 lines
	Double colors 64K	2048*32 1024*64 512*128 256*256
BX-5U	Single Color 128K	512*256 Maximum width: 512 pixels	1 nos 50 PIN 128 lines
	Double colors 32K	256*128 168*192 128*256
BX-5A(Serial)	Single Color 64K	1024*64 512*128 320*192 256*256	1 nos 50 PIN 128 lines
	Double colors 32K	512*64 256*128 160*192 128*256
BX-5M1  Ethernet+USB	Single Color 32K	2048*16 1024*32 672*48 512*64	2 groups T08 4 groups T12
	Double colors 16K	1024*16 512*32 336*48 256*64
BX-5M2  Ethernet+USB	Single Color 128K	3200*16 3200*32 2688*48 2048*64	2 groups T08 4 groups T12
	Double colors 64K	3200*16 2048*32 1344*48 1024*64
BX-5M3 Ethernet+USB	Single Color 128K	3200*32 2048*64 1344*96 1024*128	1 nos 50 PIN 128 lines
	Double colors 64K	2048*32 1024*64 672*96 512*128
BX-5M4 Ethernet+USB	Single Color 128K	2048*64 1024*128 672*192 512*256	1 nos 50 PIN 128 lines
	Double colors 64K	1024*64 512*128 336*192 256*256
BX-5E1 Ethernet+USB	Double colors 256K	2048*128 1344*192 1024*256	1 nos 50 PIN 128 lines
BX-5E2 Ethernet+USB	Double colors 512K	4096*128 2048*256	1 nos 50 PIN 128 lines
BX-5E3 Ethernet+Serial+USB	Double colors 1024K	8192*128 4096*256 2048*512	1 nos 50 PIN 128 lines
BX-5A1&WIFI	Single Color 32K	2048*16 1024*32 672*48 512*64	2 groups T08 4 groups T12
	Double colors 16K	1024*16 512*32 336*48 256*64
BX-5A2&WIFI	Single Color 64K	3200*16 2048*32 1344*48 1024*64	2 groups T08 4 groups T12
	Double colors 32K	2048*16 1024*32 672*48 512*64
BX-5A4&WIFI	Single Color 128K	2048*64 1024*128 672*192 512*256	1 nos 50 PIN 128 lines
	Double colors 64K	1024*64 512*128 336*192 256*256
BX-5A2&G	Single Color 64K	3200*16 2048*32 1344*48 1024*64	2 groups T08 4 groups T12
	Double colors 32K	2048*16 1024*32 672*48 512*64
BX-5A2&RF	Single Color 64K	3200*16 2048*32 1344*48 1024*64	2 groups T08 4 groups T12
	Double colors 32K	2048*16 1024*32 672*48 512*64
