Y-SOLAR Store
Магазина Y-SOLAR Store работает с 16.01.2014. его рейтинг составлет 91.71 баллов из 100. В избранное добавили 19828 покупателя. Средний рейтинг торваров продавца 4.7 в продаже представленно 213 наименований товаров, успешно доставлено 6018 заказов. 5174 покупателей оставили отзывы о продавце.
Характеристики
Новый солнечный контроллер зарядки NEW MPPT T30 30A 12V 24V автоматический с LCD дисплеем сертифицированный CE возможностью установки двух таймеров и управления освещением настройкой напряжения.
История изменения цены
*Текущая стоимость 2968.94 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-17-2026 | 3532.96 руб. | 3709.82 руб. | 3620.5 руб. |
| Feb-17-2026 | 3502.85 руб. | 3677.35 руб. | 3589.5 руб. |
| Jan-17-2026 | 2938.25 руб. | 3085.86 руб. | 3011.5 руб. |
| Dec-17-2025 | 3443.74 руб. | 3615.34 руб. | 3529 руб. |
| Nov-17-2025 | 2998.34 руб. | 3148.47 руб. | 3073 руб. |
| Oct-17-2025 | 3384.62 руб. | 3553.78 руб. | 3468.5 руб. |
| Sep-17-2025 | 3354.16 руб. | 3522.47 руб. | 3438 руб. |
| Aug-17-2025 | 3324.87 руб. | 3490.5 руб. | 3407 руб. |
| Jul-17-2025 | 3294.10 руб. | 3459.56 руб. | 3376.5 руб. |
Описание товара
Brand NamePowMrModel NumberMPPT T 30OriginMainland Chinais_customizedYesCertificationCEApplicationSolar System ControllerMaximum Current30AMeasurement unitpiece/piecesEach pack1Work forsolar panel systemMax input power360W(12V) 720W(24V)Installation Lin(mm2)10mm2Installation Line(AWG)7(AWG)IndicatorLCD displayLoad Control modeDual TimerBattery float voltage13.8V(12V system)/27.6V(24V system)Battery (under voltage) protection10.6V(12V system)/21.2V(24V system)Battery (under voltage) recovery voltage12.6V(12V system)/25.2V(24V system)Voltage12V 24V auto work3 192,29 ₽-7%3 192,29 ₽-7%2 968,94 ₽2 968,94 ₽there are seller's coupons
Delivery to Moskva g
15 Jul - FreeDelivery to a Post office
09 Jul - FreeSelf-pickup
90-Day Buyer ProtectionReviews
4,5
2 reviews11000All stars
Description
NEW MPPT T30 Solar Charger Controller 30A 12V 24V Auto LCD Display CE Certificated Light and Dual Timer Control Voltage Settable
30A T30 Solar Charge Controller Dual timer
The MPPT T30 is upgrades of MPPT30. It is the second generation MPPT30.The biggest difference between the two model solar controllers is that the MPPT T30 is light and dual timer control.
This is a three-time controller into the evening working time,an interval of rest of pause time,Dawn working time(morning light function), the user can according to their needs,set a different time.
A:time(evening working) B:time(pause working) C:time(dawn working)
This is a compatible MPPT charge controller PWM intelligent / efficient / energy saving, he not only has efficient MPPT controller charging function to automatically track the maximum power point, 10% -30% higher than the ordinary controller charging efficiency, also has standby energy saving, more than 30% energy than ordinary controller, the standby power consumption of only 10mA-15mA.LCD screen display | Battery reverse discharge protection |
Easy operation interface | Battery reverse polarity protection |
MPPT+ PWM charging mode | Battery under voltage protection |
Parameter user can reset Overload | Short-circuit protection |
A key to restore the factory settings | USB 5V charging (for 500mA) for mobile phone(Only for M30) |
A key to open and close the load | Automatic temperature compensation function |
For Wholesale,please feel free to contact us via aliexpress message!!!(
)
Package Include
1. 1x 30A solar controller T30
2. 1x user manual
3. 1x temp sensor

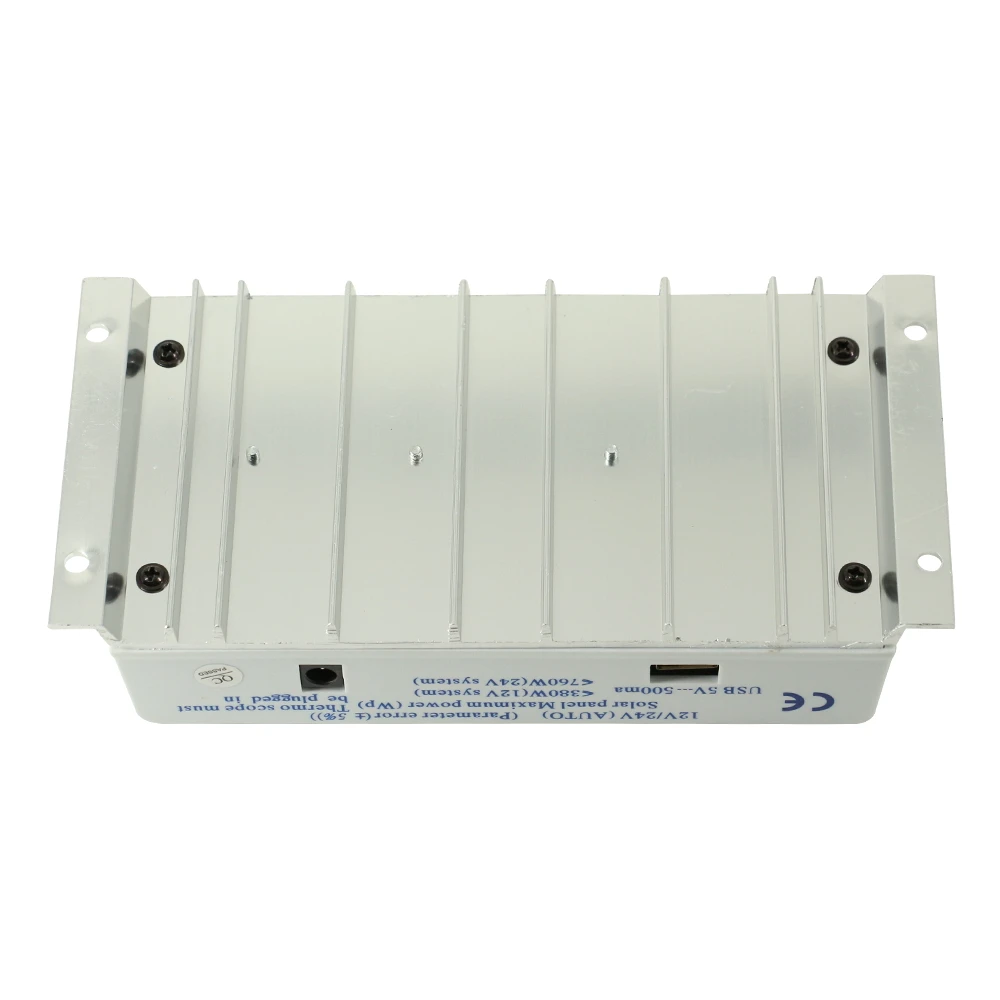

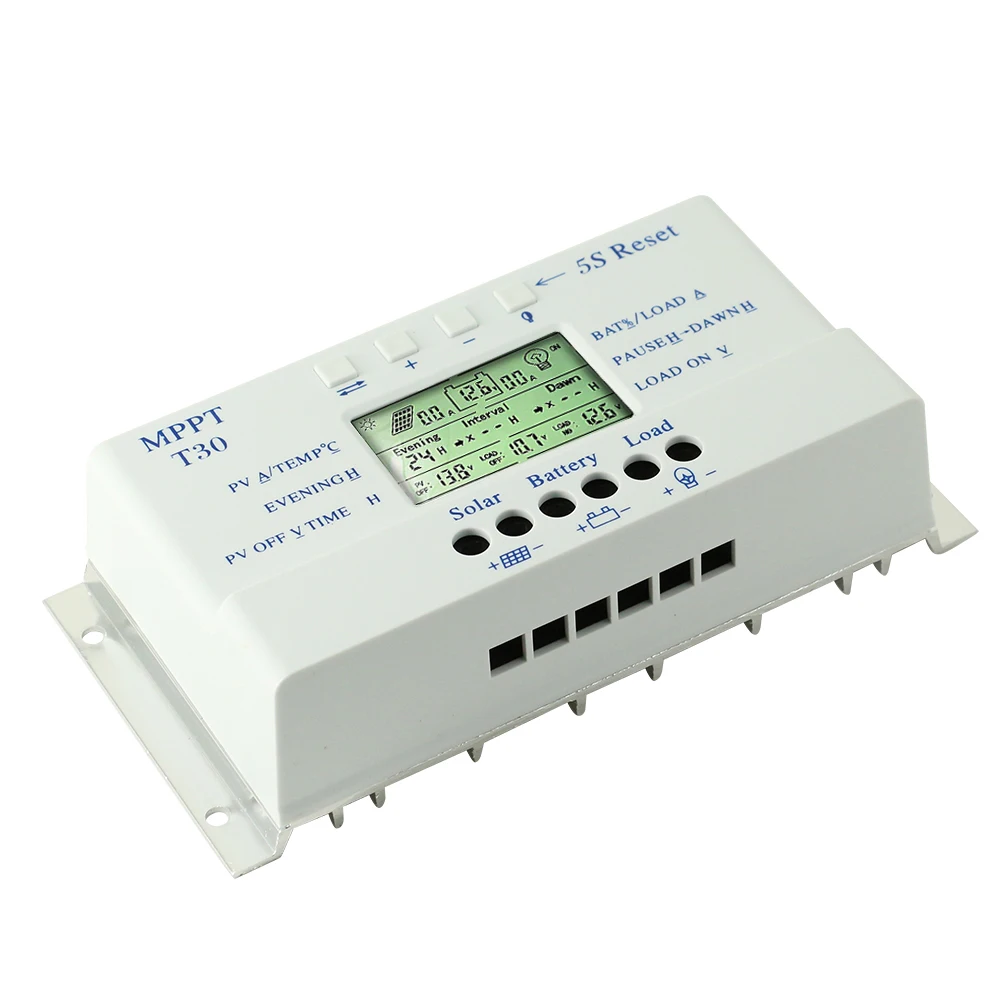

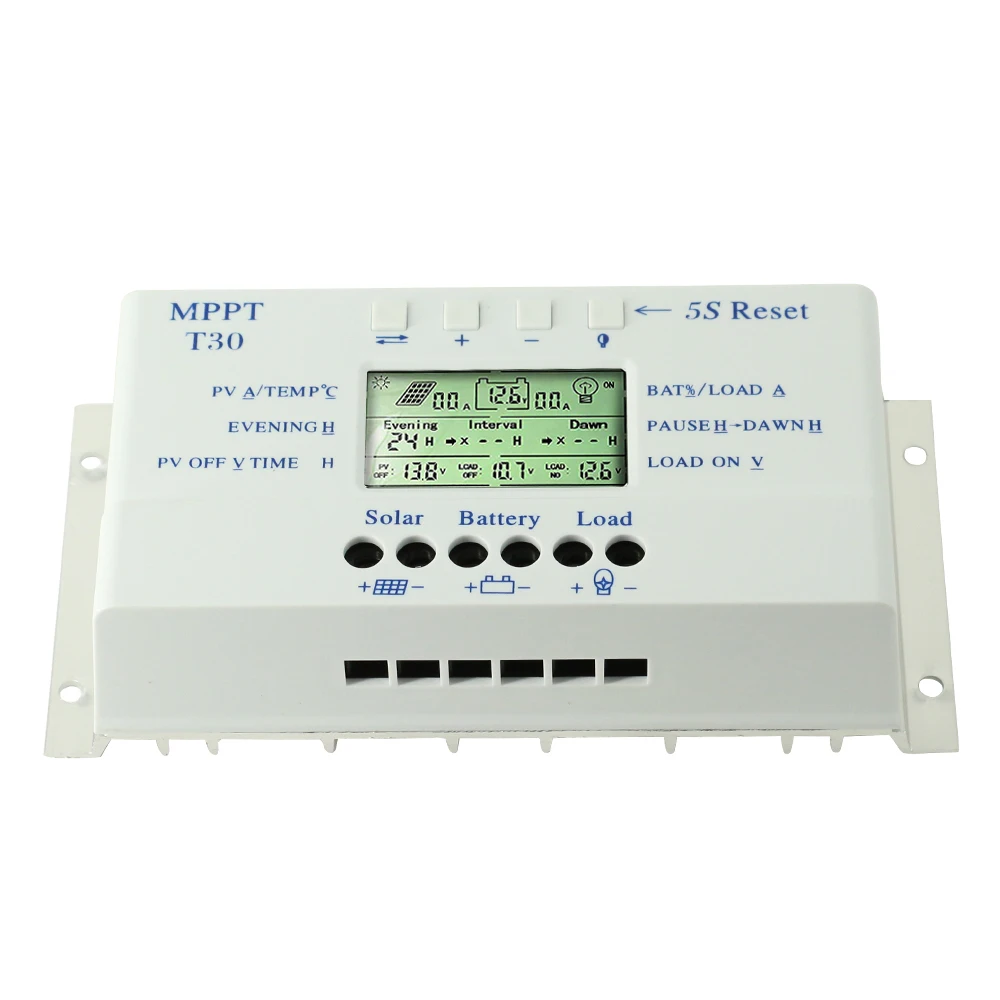

Product Pictures
Parameters / Model | T10 | T20 | T30 | T40 | ||
Maximum power current | 12A | 20A | 30A | 40A | ||
Installation Lin(mm2) | 4mm2 | 8mm2 | 10mm2 | 12mm2 | ||
Installation Line(AWG) | 10(AWG) | 8(AWG) | 7(AWG) | 6(AWG) | ||
Weight | 280g | 300g | 475g | 480 | ||
Dimensions | 143×89×46(mm) | 187*97*61(mm) | ||||
System load loss | ≤13mA | |||||
Loop Buck | ≤100mV | |||||
Battery float voltage | 13.8V(12V system)/27.6V(24V system) | |||||
Battery (under voltage) protection | 10.6V(12V system)/21.2V(24V system) | |||||
Battery (under voltage) recovery voltage | 12.6V(12V system)/25.2V(24V system) | |||||
Charge mode | MPPT+PWM MODE | |||||
Operating Temperature | -10°C~60°C | |||||
Storage Temperature | -30°C~70°C | |||||
Humidity requirements | ≤90%, No condensation | |||||
Temperature compensation | -4mV/Cell/°C | |||||
Temperature Probe (built components) | NTC 100K thermistats | |||||
Maximum open circuit voltage of the solar panel | 18V-24V(12V system)36V-48V(24V system) | |||||
Solar panels maximum open circuit voltage (V) | ≤48V | |||||
(Cases) 12V system standard configuration
Model | T10 | T20 | T30 | T40 |
The peak voltage of the solar cell panel | 18V-25V | 18V-25V | 18V-25V | 18V-25V |
Peak power of solar cell panel | 50W-130W | 100W-260W | 200W-380W | ≤500W |
Battery standard voltage | 12V | 12V | 12V | 12V |
Battery capacity | ≥100AH | ≥200AH | ≥300AH | ≥400AH |
Installation Lin(mm2) | 4mm2 | 8mm2 | 10mm2 | 12mm2 |
Installation Line(AWG) | 10(AWG) | 8(AWG) | 7(AWG) | 6(AWG) |
