Описание товара

24V DC 100mm 4 inches stroke 900N 90KG 198LBS load 6mm/sec 0.24inch/sec speed mini heavy duty linear actuator LA10 type | Обустройство24V DC 100mm 4 inches stroke 900N 90KG 198LBS load 6mm/sec 0.24inch/sec speed mini heavy duty linear actuator LA10 type | Обустройство24V DC 100mm 4 inches stroke 900N 90KG 198LBS load 6mm/sec 0.24inch/sec speed mini heavy duty linear actuator LA10 type | Обустройство24V DC 100mm 4 inches stroke 900N 90KG 198LBS load 6mm/sec 0.24inch/sec speed mini heavy duty linear actuator LA10 type | Обустройство24V DC 100mm 4 inches stroke 900N 90KG 198LBS load 6mm/sec 0.24inch/sec speed mini heavy duty linear actuator LA10 type | Обустройство24V DC 100mm 4 inches stroke 900N 90KG 198LBS load 6mm/sec 0.24inch/sec speed mini heavy duty linear actuator LA10 type | Обустройство

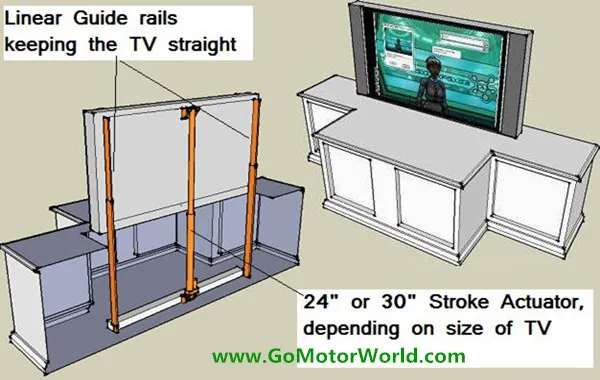

GoMotorWorld LA10 mini linear actuator used in TV lift.jpg

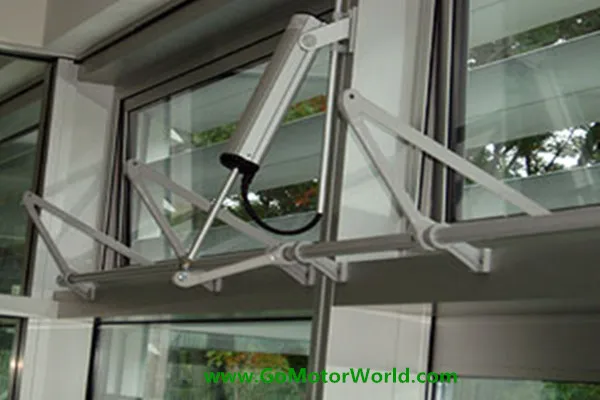

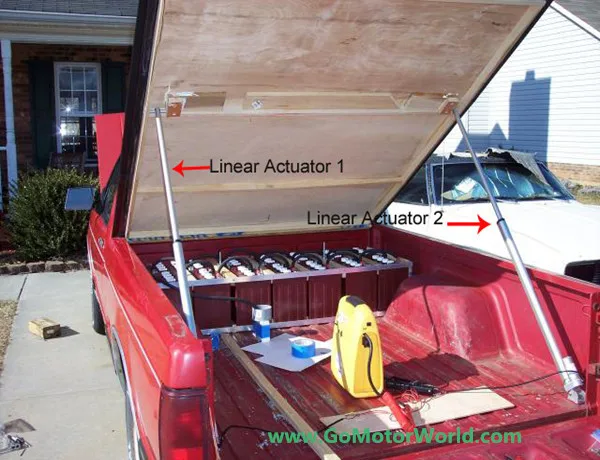

GoMotorWorld LA10 mini linear actuator used in window system.jpgGoMotorWorld LA10 mini linear actuator used in car.jpg

DC 24V 100mm stroke mini linear actuator

Best linear actuator

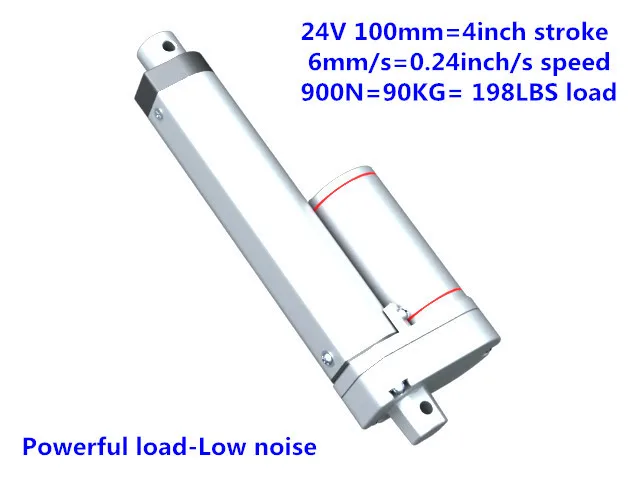

24V DC 900N=90KG=198LBS load 6mm/sec=0.24inch/sec speed 100mm=4 inches stroke mini linear actuator LA10 type



 1    Type     LA10

 2    Input                        24V DC

 3    Load                          900N=90KG=198LBS

 4    Speed                        6mm/sec=0.24mm/sec

 5    Limited  switch           With

 6    Duty cycle                  10%

 7    House material            Aluminum Alloy

 8    Inner tube material      Aluminum Alloy

 9    Stroke length               100mm=4inch

10   Color                             Silver

11    Operation temperature   -26 ~ +65 degree

12    IP Class    IP54

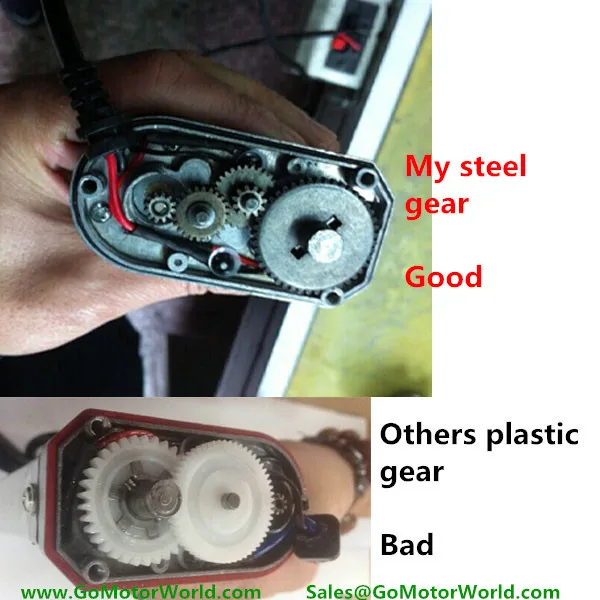

GoMotorWorld LA10 mini linear actuator spare parts.jpg

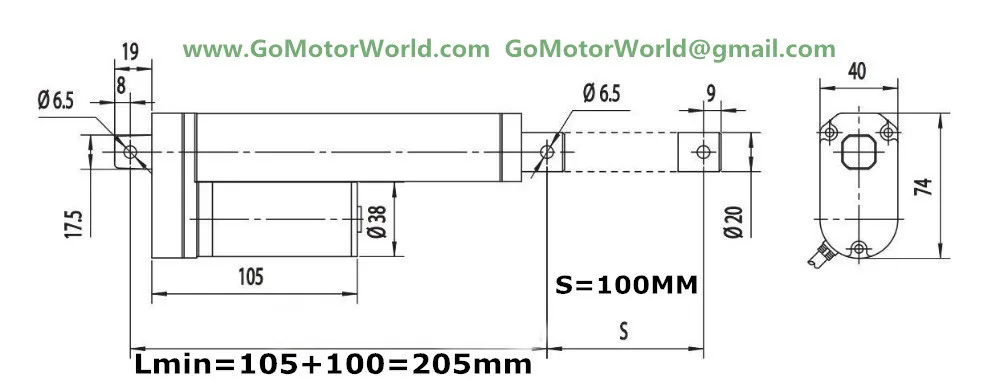

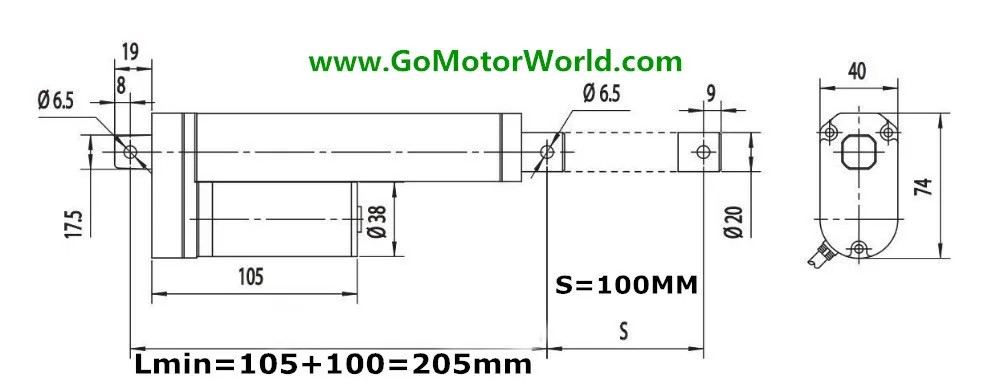

Drawing:

GoMotorWorld LA10 mini linear actuator drawing.jpg

1.  Retracted length=Lmin=105+Stroke=105+100=205mm=8.2inch

Lmin means the length when linear actuator 100% fully retracts, meanwhile,it will touch the tail limited switch and stop automatically.

2.  Stroke means the movement length of linear actuator.

3.  Lmax=Lmin+Stroke=205+100=305mm=12.2inch

Lmax means the length when linear actuator 100% fully extends, meanwhile,it will touch the head limited switch and stop automatically.

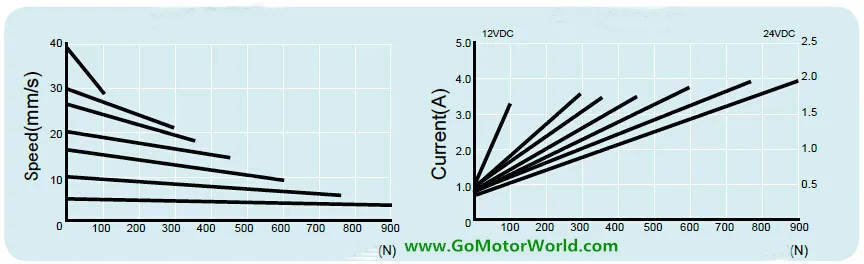

GoMotorWorld LA10 mini linear actuator current and speed.jpg

If you do not find suitable linear actuator, contact with seller, my engineer will offer customized product for you.

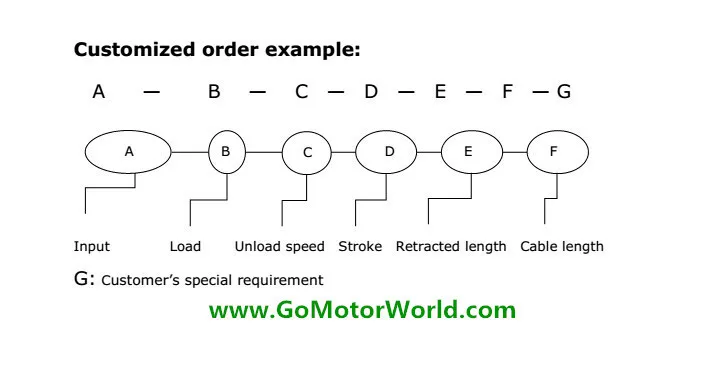

order GoMotorWorld LA10 mini linear actuator.jpg

1. Input : 12V or 24V

2. Load : 100N or 100KG or 220LBS and so on

3. Speed : 5mm/sec or 10mm/sec or 1inch/sec or 4inch/sec and so on

4. Stroke : 50mm or 200mm or 4inch or 16inch and so on

5. Rectracted Length=Lmin : The 100% fully retracted length

6. Cable length : 1m or 2m or 20inch or 40inch and so on

7. G: Customer’s special requirement

Thank you.



Warranty

1. If you do not receive product, we will full refund you.

2. If the product has quality problem, we will full refund you.

3. If the product is damaged by express company, we will full refund you.

Payment

1. We accept paypal, Escrow,Western union and bank transfer.

Shipping

1. Order will be delivered within 2~3 days.

2. Please make sure your address and phone is correct.

Thanks for visiting my store. Any help,please contact with seller.

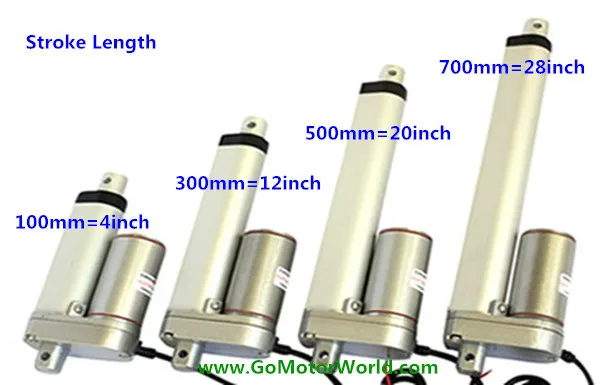

GoMotorWorld LA10 mini linear actuator range.jpg



For the video,please visit

//www.youtube.com/user/GoMotorWorld
