 RFID ID Reader+Keyfob Access Control Kit Electric Strike Door Lock Magnetic Lock

Description:

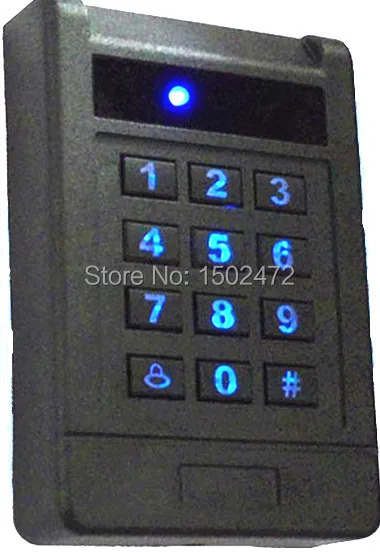

• This RFID Proximity access controller using proximity system is one of the modern access control systems. It is powerful and can open the door using proximity cards, passwords, or the hybrid
• The access controller can provide users with more convenience by connecting to terminals, including the button for opening the door, doorbell, and electric lock that is normally open or closed
• This product offers a method for controlling access safely and automatically, qualifying it as an ideal equipment for businesses, offices, factories, and communities

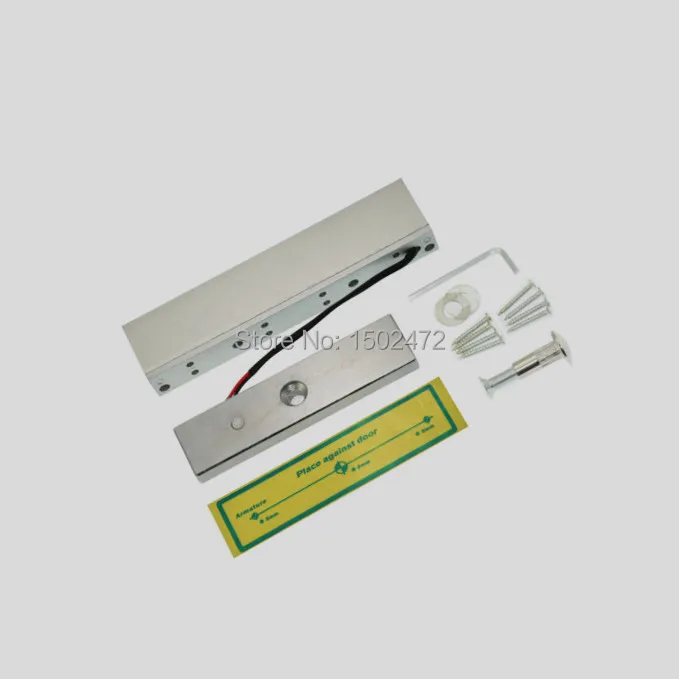

Door Access Control System:

• Armature plate: 130*33*11(mm)
• Lock Size: 170*40*21(mm)
• Holding Force: 180kg(350Lbs)
• Mode: NC (locked whilst power supply is operating), fail safe mode
• Voltage: DC12V
• Current Draw: 0.15A~0.45A
• Safety function: Built-in voltage spike suppressor
• Opening Mode: 90 degree swinging door
• Suitable For: Wooden Door, Glass Door, Metal Door, Fire Proof Door, etc.
• Weight: 980g

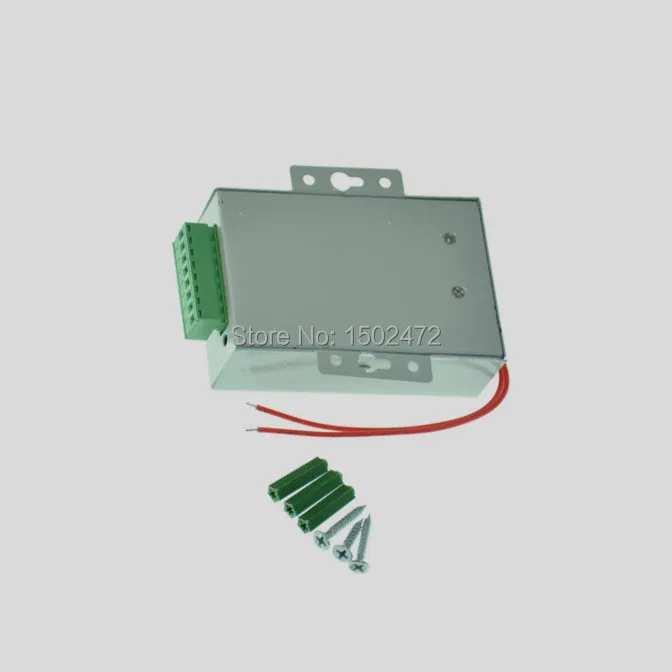

Power Supply Specifications:

• Small and exquisite, easy installation.
• Advantages: Voltage range input regularly from 100V-240V, compatible with world voltage, light weight, convenient transportation, small disturbance, output voltage fluctuation is only ±1% from no-load to full load, lock temperature rising reduces greatly (compared with power frequency supply).
• AC input: Standard AC100V-240V 50-60HZ 36W.
• DC output: Stabilizator DC12V/ 3 A.
• It controls electric lock directly. It can set time lapse control circuit and unlocking time can be in 0-15 seconds(it is arbitrarily adjustable).
• Automatic protection function: It will protect automatical and no voltage output when short circuit happening in the circumferential circuit.
• Outside iron shell dimension:115mm*90 mm*33mm
• Set NC / NO outputs, can control various types of electric locks
• 9.Note: Opening time must set to 0 second when connecting with electric controlled lock. Otherwise electric bolt lock would be Burned Down.
• Weight:330g

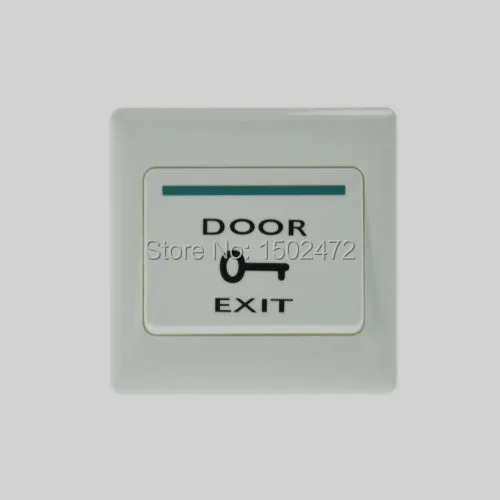

Push Release Button Exit Switch:

• Dimensions: 85Lx85Wx30H(mm)
• Current Rating: 3A@36VDC Max
• Suitable for Door: Hollow Door
• Operating temp: 10- ~ +55 degrees Celsius(14-131F)
• Operating Humidity: 0-95% (non- condensing)
• Panel Material: Fireproof Material
• Weight:60g

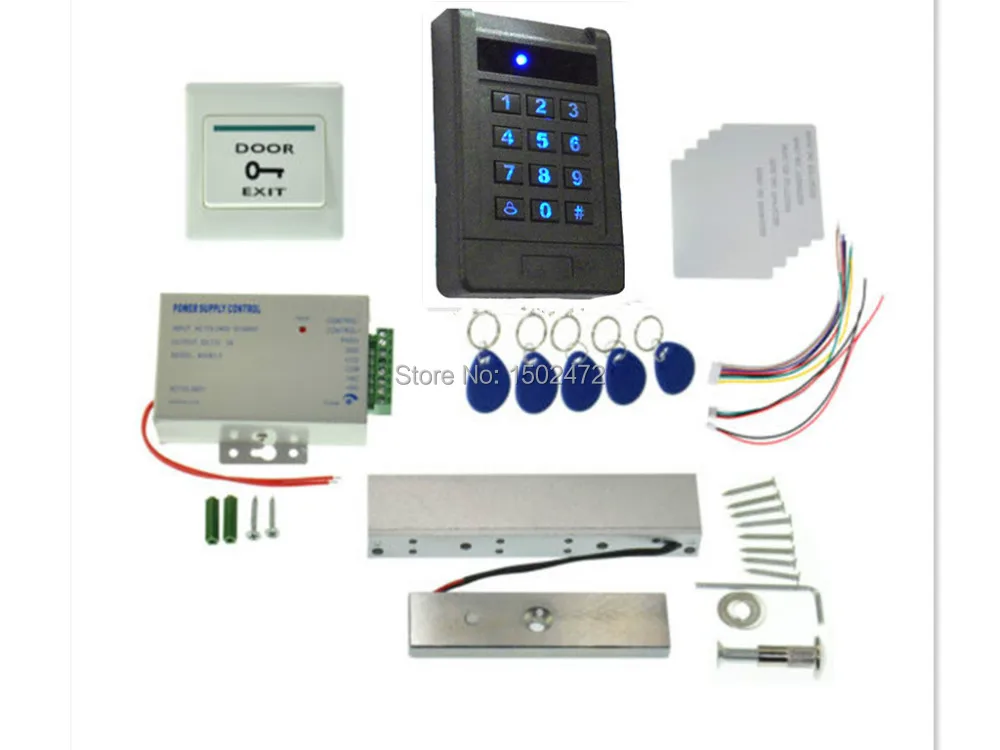

Package Includes  (1 Set Door Access Control):

• 1 x FRID Door Access Control
• 5 x FRID cards
• 5 x FRID Keys
• 3 Cables
• 1 x 3A Power Supply
• 1 x Exit Button
• 1 x 180kg Magnetic Lock
•

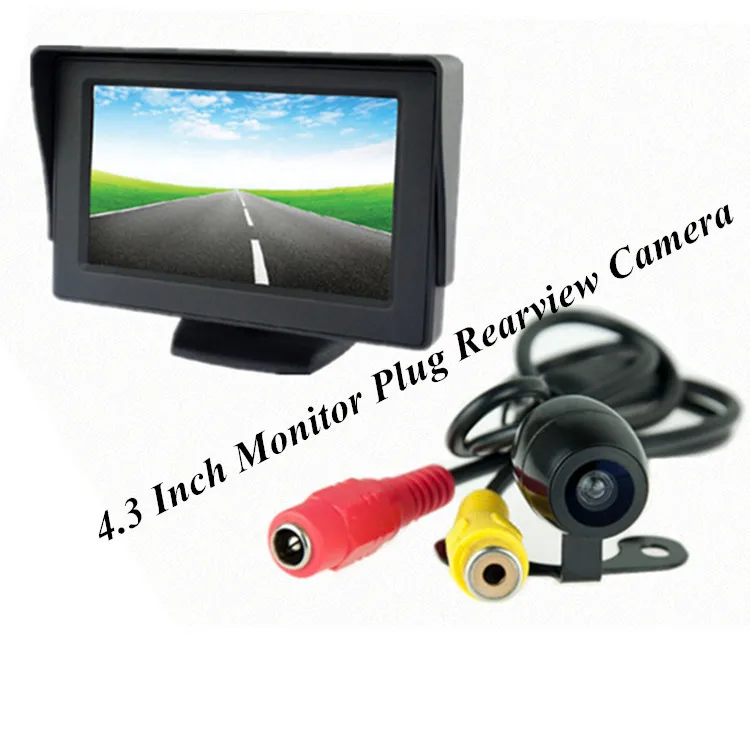

  HD Car Rear View System 4.3" LCD Monitor With Reverse Car Camera US$ 29.98/piece

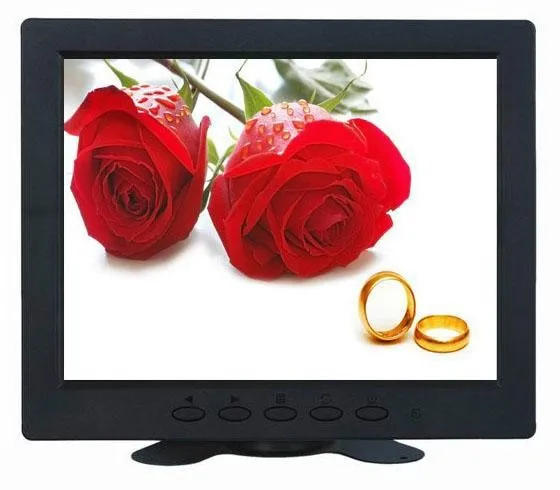

  Multi-Functional 8" TFT LCD Monitor For CCTV Surveillance Camera AV And VGA Connector For Computer And CCTV Camera US$ 88.00/piece

  5-inch high-definition digital 640 * 480 car rearview mirror Reversing Car rear view monitor US$ 59.98/piece

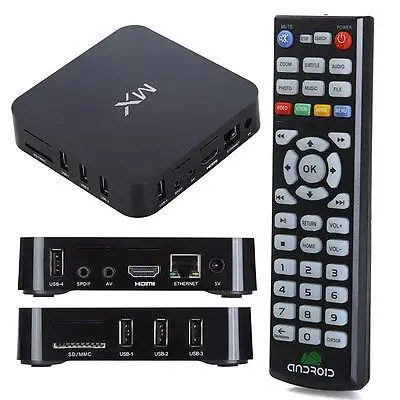

  CS838 MX2 AM6 Android 4.2 Amlogic AML8726-MX Dual Core TV Box AV LAN 1G/8G 1080P US$ 69.98/piece
