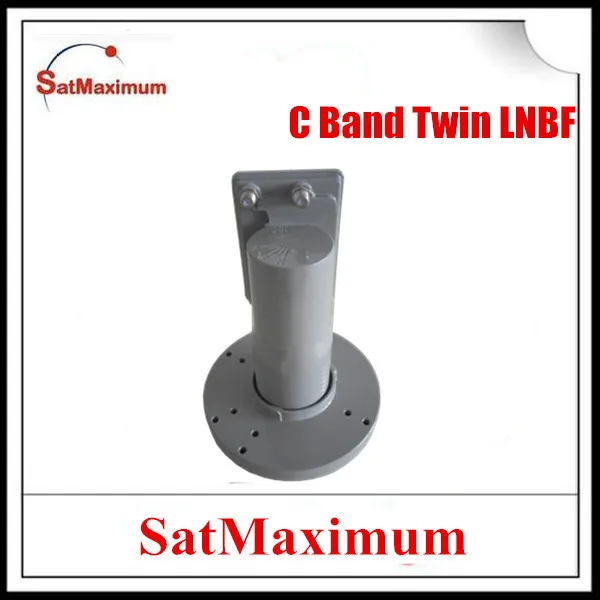

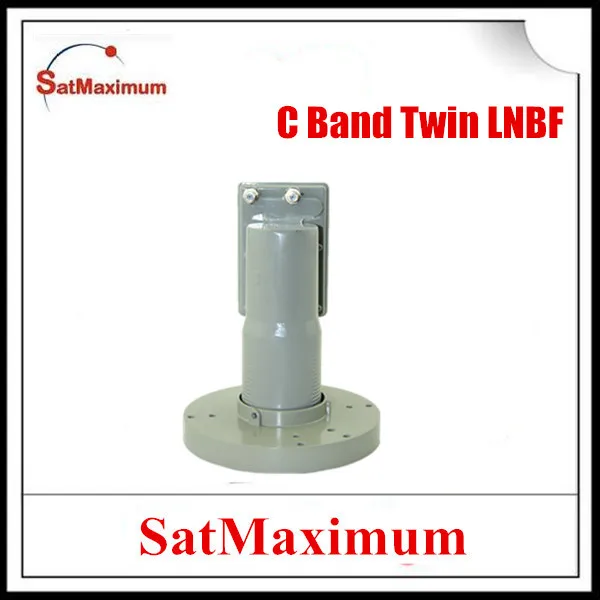

Dual(2) output C band LNBF L.O 5150/5750MHz gain 65dB LNB with scalar ring | Электроника

Dual(2) output C band LNBF L.O 5150/5750MHz gain 65dB LNB with scalar ring | Электроника

Features:

• One cable Solution with Twin output reception
• Super low noise
• Digital ready
• High gain output
• Easy installation
• Weather Proof

Specification:

Input Freq: 3.7-4.2 GHz

L.O Freq. H: 5.15GHz, V: 5.75 GHz

Freq Stability: ±1MHz ( Max.) @ +25 °C , ±2 MHz ( Max.) @ -30 °C to 70°C

Local Leakage Input: -45dBm

Output Freq: H 950-1450MHz, V: 1550-2050MHz

Conversion Gain: 65dB(Typ.)

Gain Flatness: ± 1dB/36MHz

Output VSWR: 2.5: 1( Max.)

Output Spurious: -60dB

Noise Figure: 17°K ( Typ.)

Power Supply: 10-20V DC 150mA(Max.)

Image Rejection: 40dB ( Min.)

Output Power: 0dBM ( Min.)  (at 1dB Gain compression)

Output Compression: F type Female

Connector Type : 75Ω Female Connector

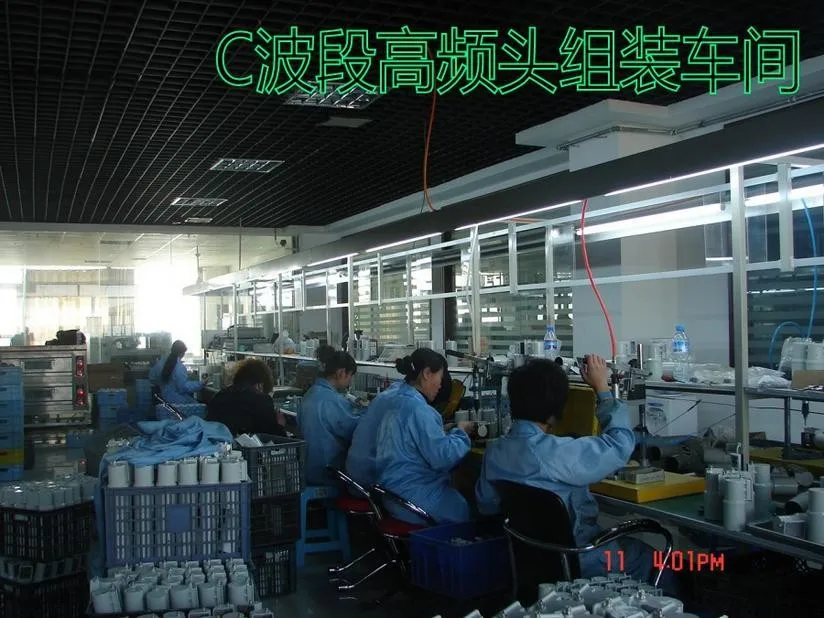

Factory show:
