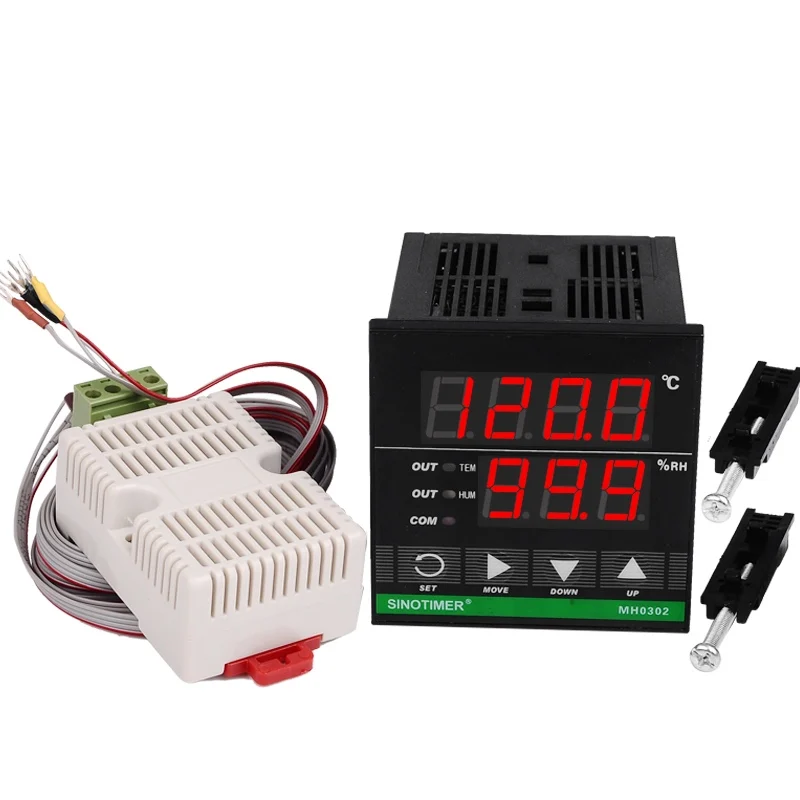

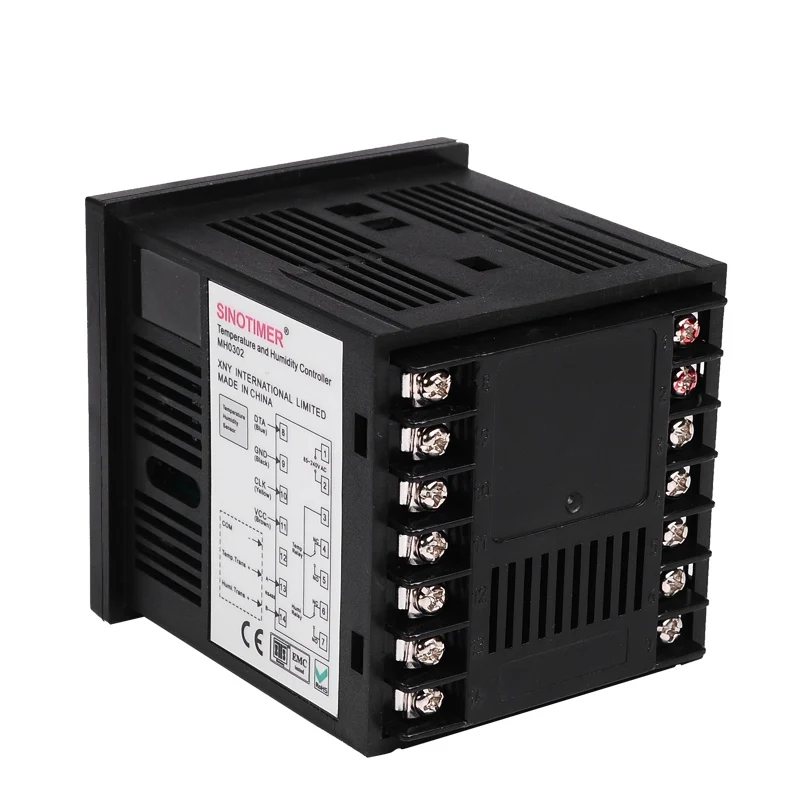

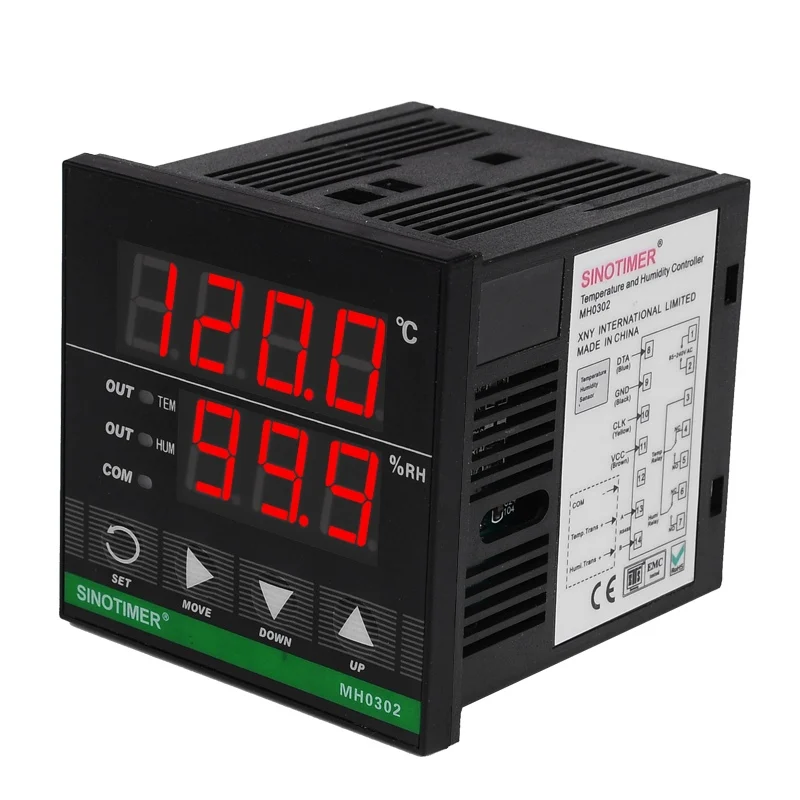

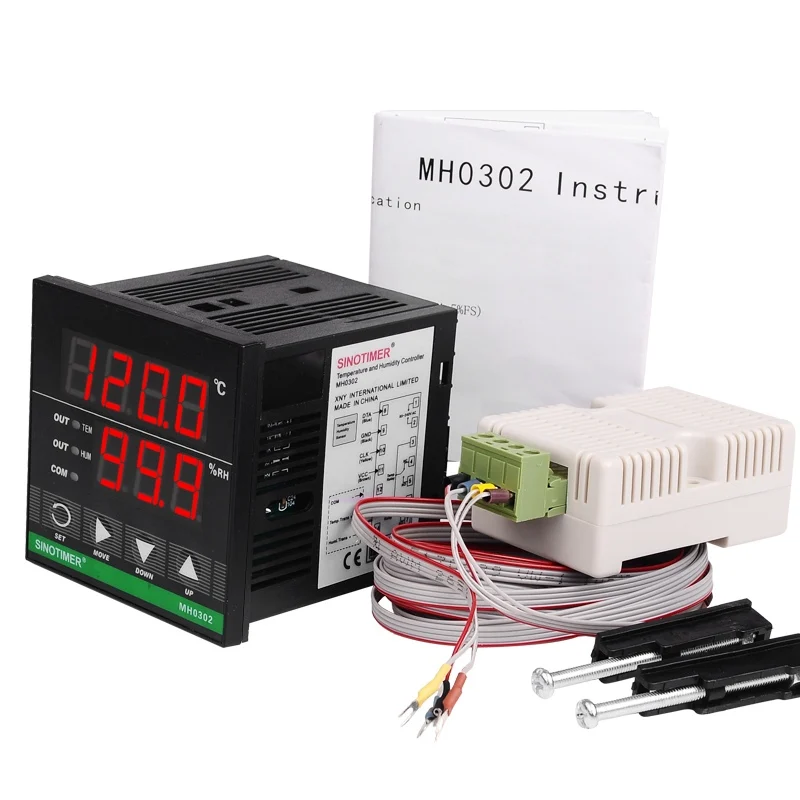

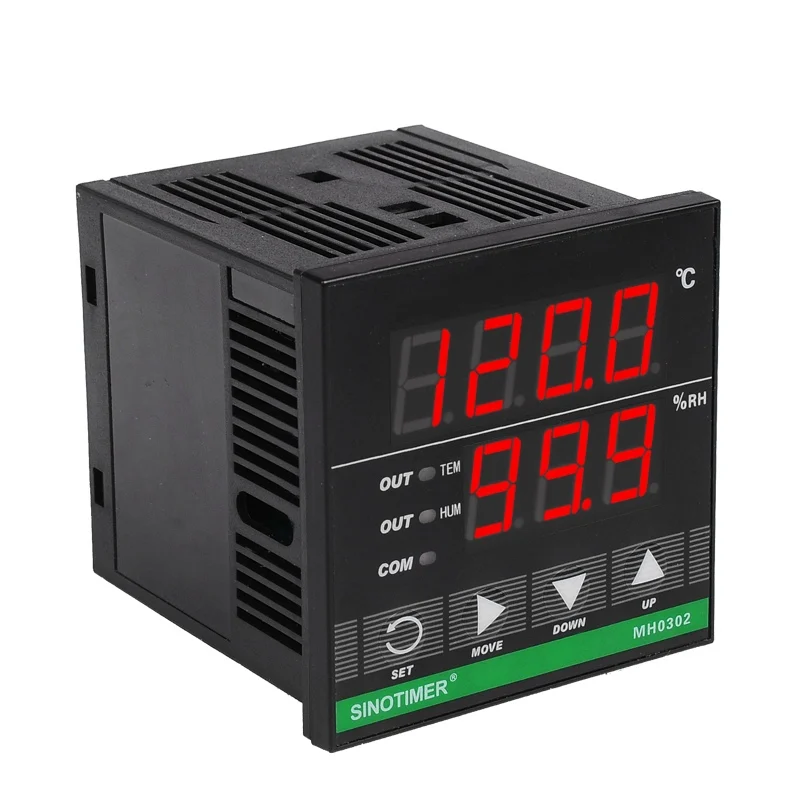

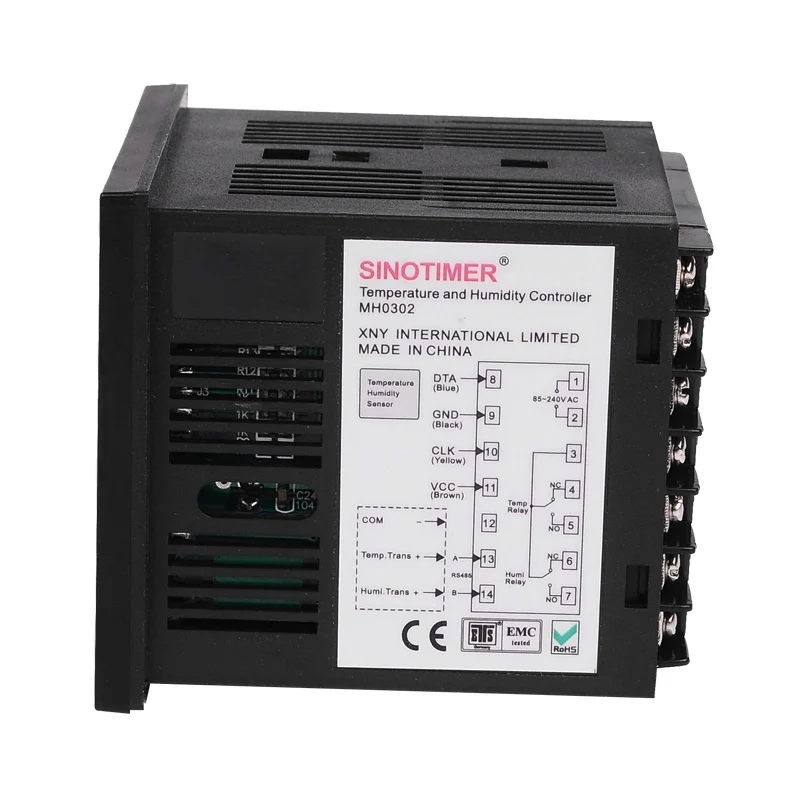

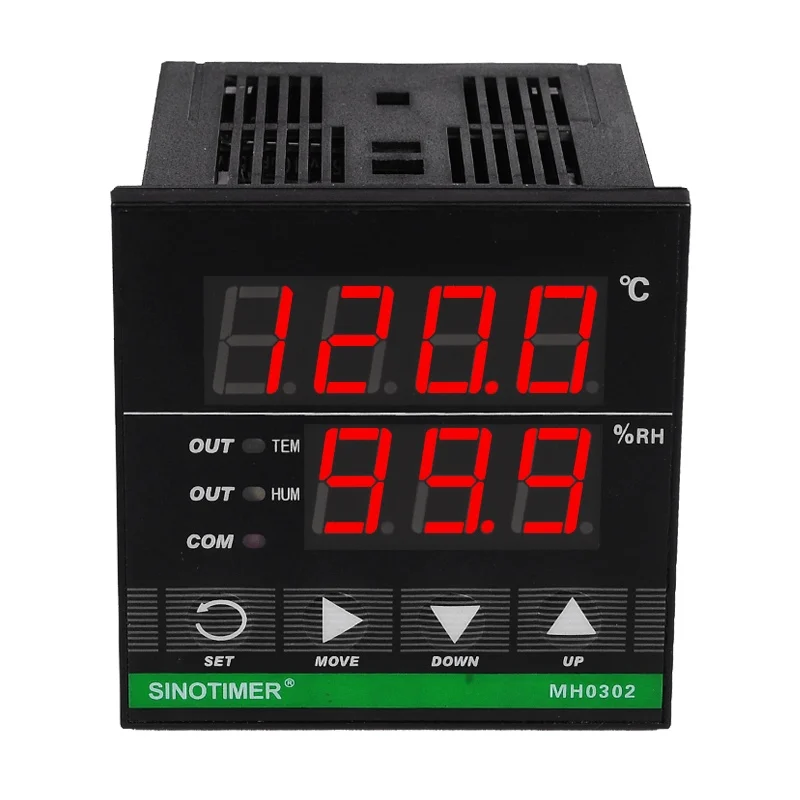

72*72mm Digital Temperature and Humidity Controller

Application :

• it is suitable for granary ,warehouse, computer room ,farm, incubation room, textile industry and other heating /cooling  humidification / dehumidification place
• Outdoor terminal box, power distribution box (automatic heating and dehumidification), prevent creepage caused by a variety of misoperation accident
• automatic heating and dehumidification high-voltage power distribution unit and the high-pressure switch mechanism box indoor, automatic heating in low environment, prevent switch to stopping working because of low temperature



Features:

Display temperature and humidity,you can use different model to control output of the change of temperature and humidity, and the function of  RS485. High-performance, high-precision, durable,Temperature Sensor can work for a long time in different place     Model    MH0302 Supply    85~250VAC,50-60HZ Power consumption    ≤2W Resolution ratio    0.1 Control output    3A,250VAC(Resistance Load)                            1 x Temperature and 1 x Humidity Display    LED Temperature set range    -40-120°C Humidity set range    0-99.9%RH Turn difference set    Temperature 0-9C, Humidity 1-9%RH Accuracy Temperature    +-1C, Humidity +-5%RH Ambient Temperature    -10C to 50C  Ambient Humidity    45 to 85%RH Mechanical Life    At least 3000,000 times Weight    About 300g Size    72*72*80mm Installation Mode    Panel mode, tapping size 67.5*67.5mm

Output mode setting value	001	002	003	004
Output mode type	Heating,           humididication	Heating,          dehumididication	Cooling,                                               humididication	Cooling,                                                     dehumididication
