Описание товара

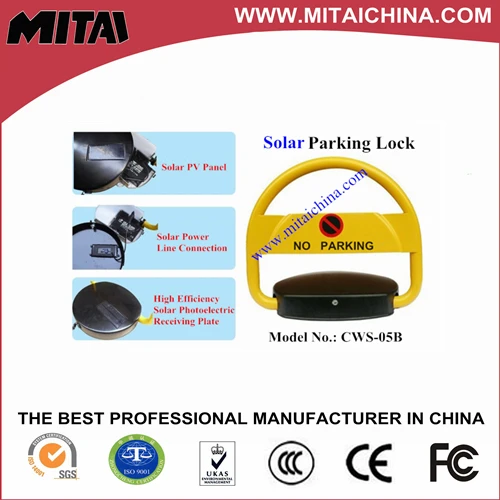

Remote Control Automatic Car Parking Lock (MITAI-CWS-05B ) |Remote Control Automatic Car Parking Lock (MITAI-CWS-05B ) |


GENERAL:

The series of parking lock developed by our company is featured by nice appearance ,novel structure ,easy control ,strong function and high security and reliability,etc.The parking lock can effectively avoid the misusing or occupation of the parking lock and is a good assistant for parking lock managements of the top-grade residential areas,shopping centers,hotels ,offices and airports,etc.



TECHNOLOGY PARAMETERS



Model No

CWS-05B

Dimension

 460*460*75mm

Weight resistance

 ≤5 ton

Up height

 420mm

Down height

 75mm

Outdoor Protection

 IP67

Finish

 Spraying plastic coating  plus gold oil

Material

 2.50mm steel rolling

Up and down time

3s -6s

Remote distance

  ≤50m

Rechargeable Battery

 Half a year

Input voltage

 DC 6V or AC110/220V

Working power

 DC6V 12AH

Static Current

 ≤0.85Ah

Environment Temperature

 -40~+70 °c

Package dimension

 480*480*100mm (1 set in a carton)

Weight

 9.5KG (G.W) / 9KG (N.W)

Humidity

 10%-95%









FUNCTIONS :

  1. Pressure resistance

The parking lock shall endure a pressure of 500kg without damage under declining condition.

  1. Self locking

The parking lock can not be distorted permanently by external force except by the owner

  1. Manual Operation

Handily operate the rocker up and down to take out the battery for recharging or replacing.

4.Sealing

The IP protection grade is 65,which can fully prevent the dust and the lock can be rinsed with water without causing any damage

5.Power-off on resistance

The power will be automatic switch off on external forces unaffordable in the lifting /declining of parking lock to protect the electrical motor from being damaged

6.Power shortage indication

When the power storage is not enough to start the parking lock ,the luminotron on the parking lock will flicker for tree times to remind the people to recharge the battery in time.

7.Reset after the alarm on external force

If the parking lock is forced to decline in the lifting status ,the front/back angle of the rocker will change under the external force ,and the parking lock will alarm to remind the external force applier to remove external force or remind the managerial staff to make treatment . The rocker will reset automatically after 5~10 seconds.

Remark: Do not keep the alarm long under alarming mode,or the control panel shall be damaged easily.

8.Reset after the removal of external force

 When the external force is removed ,the internal mechanism will reset the rocker declined by external force automatically and quickly .So please mind the safety.

9.Theft protection

The position of the foundation for parking lock and ground installation shall be out of the large external cover.The cover can be opened with key by users only.Thus the theft protection method is applied
