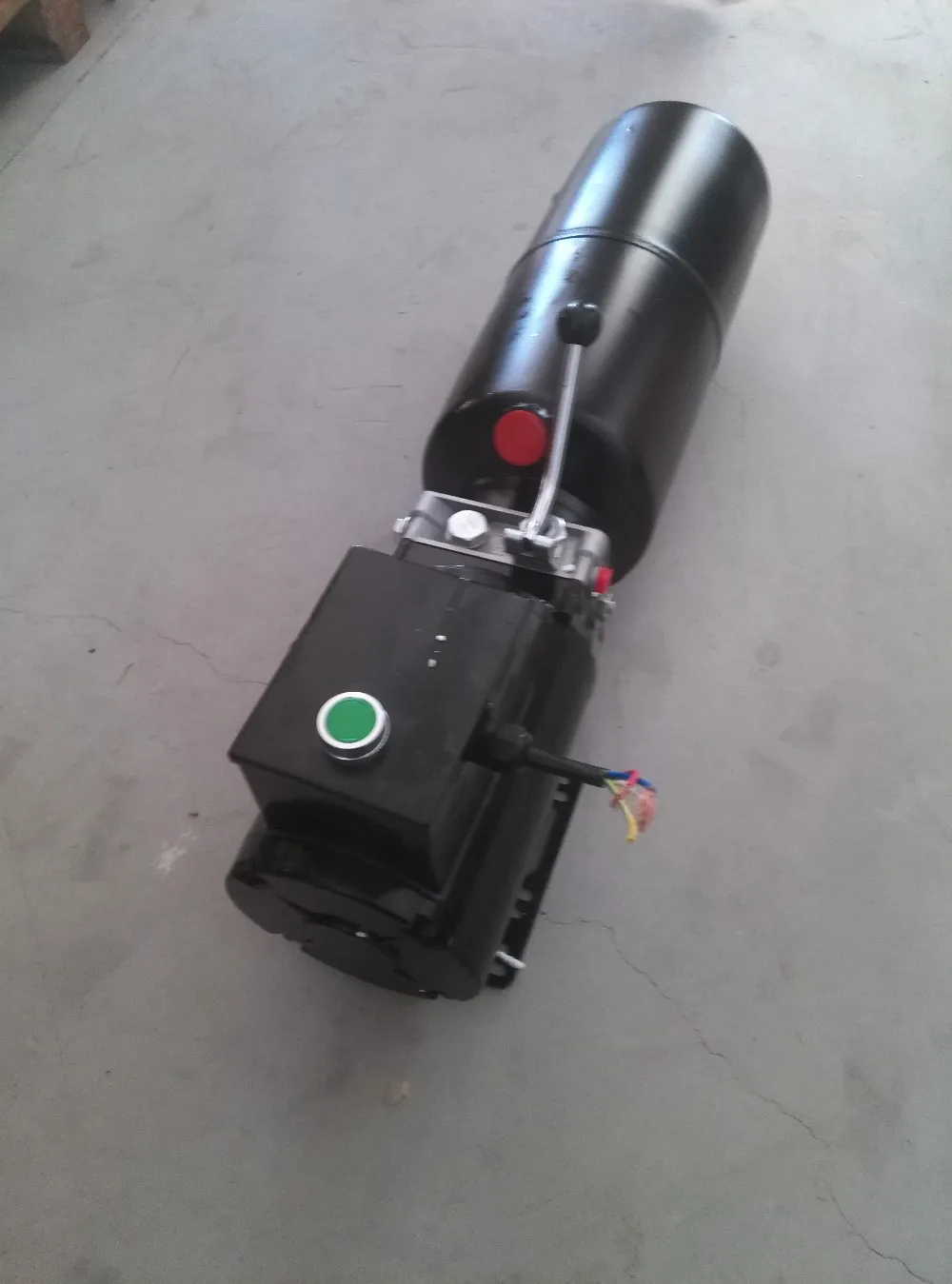

Auto hoist power unit

General Description

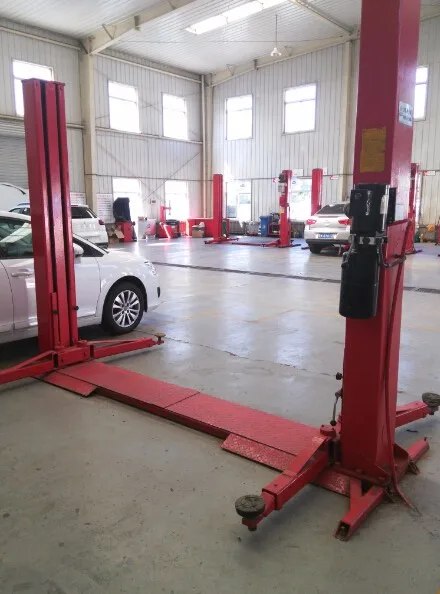

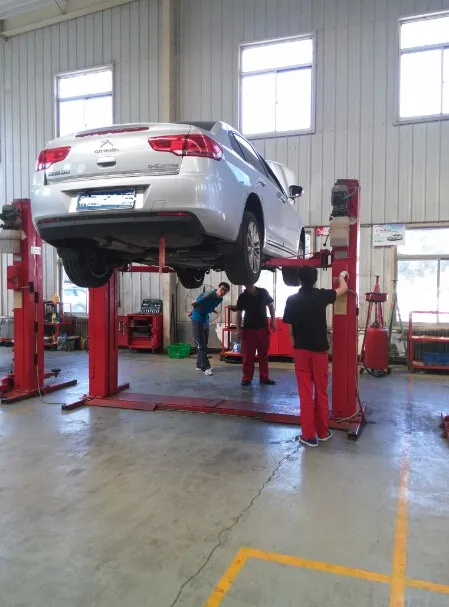

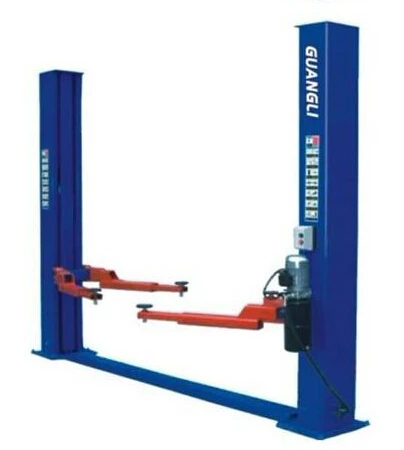

As one part of our PU series power unit family, this power unit is widely used in 2-post auto hoist. Push the start button on the motor to lift the machine. The lowering movement is activated by the manual release valve, with the lowering speed controlled by the throttle valve in the return line. The power unit also applies to different kinds of hydraulic fork lift and scissors lift.

Hydraulic Schematic

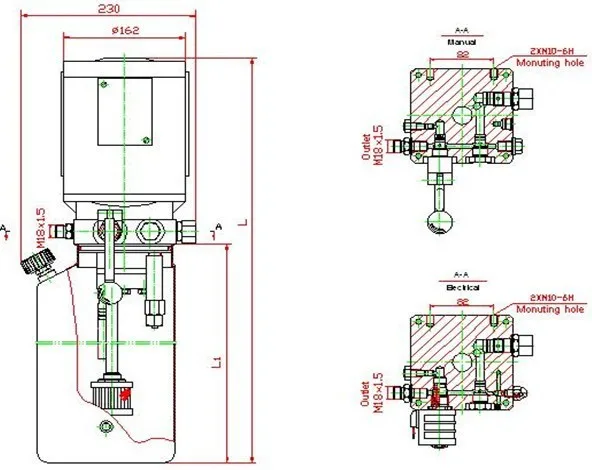

Dimension

Model Specifications

Model Motor Volt Motor Power Displacement System Pressure Rated Speed Tank Capacity Length (mm)

L1 L

PU-E2D3H1/1 220V 2.2KW 2ml/r 16MPa 2830 RPM 10L 440 724

PU-E3B3H1/1 3ml/r 6L 300 584

PU-E2C3H1/1 2ml/r 8L 370 654

PU-E2D4H1/1 380V 10L 440 724

PU-E2B4H1/1 6L 300 584

PU-E2C4H1/1 8L 370 654

PU-E3D4H1/3 3 ml/r 10L 440 724

PU-E3E4H1/1 12L 540 824

PU-E3D4H1/1 380V 3KW 3ml/r 20MPa 10L 440 724

PU-F2.1C3G1/1 220V 1.5KW 2.1ml/r 8L 370 654

PU-F2.5D4H1/1 380V 2.2KW 2.5ml/r 10L 440 724

Special Notes

1. The power unit is of S3 duty, which can only be worked intermittently, i.e., 1minute on and 9 minutes off.

2. Clean all the hydraulic parts concerned before mounting the power unit.

3. Viscosity of the oil should be 15~68 cst, which should be clean and free of impurities. N46 hydraulic oil is recommended.

4. Mount the power unit horizontally.

5. Check the oil level in the tank after the first star of the power unit.

6. Oil changing is required after the initial 100 operation hours, afterwards once every 3000 hours.
