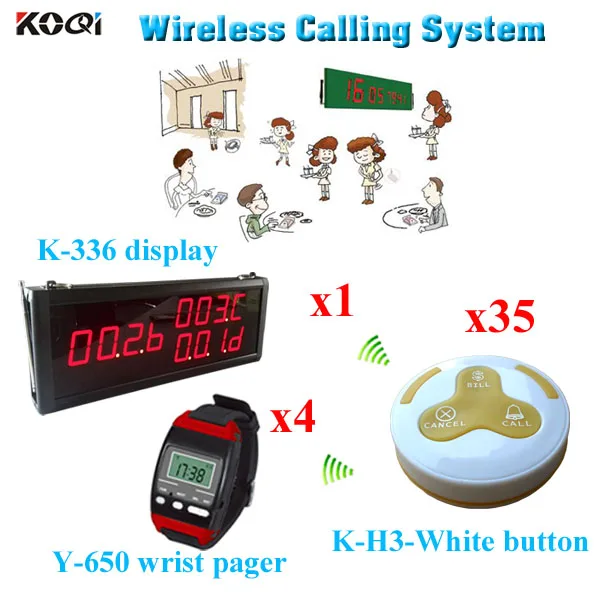

wireless table calling system For Restaurant with factory price 1 led display + 4 watch pager + 35 call button

1 set  wireless table calling system including:

1 x K-336 led dispaly receiver

4 x Y-650 Wrist Watch

35 x K-H3-Grey waterproof call button ( Call, Bill, Cancel )

( we have any colors for your selection, if you need other colors contact me any time)

Wireless table calling system is widely used in service area. It consist of table button for guest use and signal receiver of watch for waiter or waitress use. When the guest needs any service, he or she just press the button near him or her, his or her desk number will show on the RECEIVER with alert music or sound. So the waiters could offer service very timely.

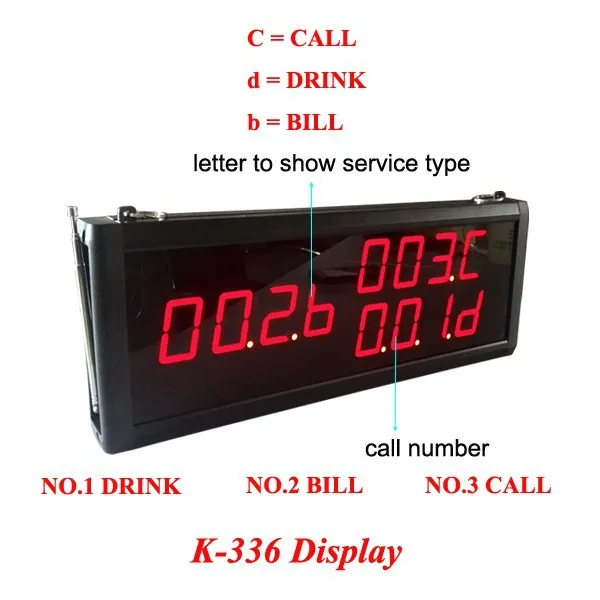

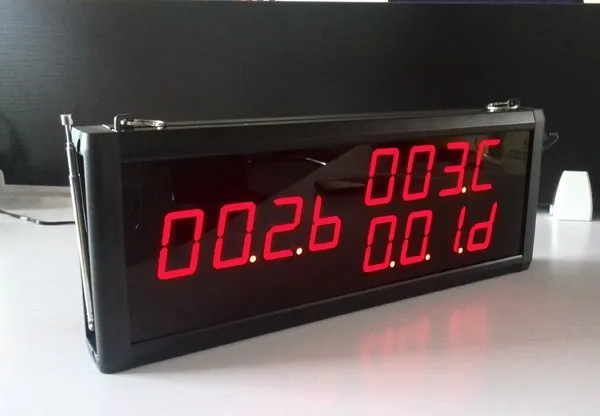

Specification of led dispaly receiver K-336:

1 With high strength aluminum alloy shell,durable in use

2 Use digital code technology and the function is steady and reliable
3 wall mounted
4 It show 3-digit number and work with 999pcs 1-key or multi-kesy call buttons in max
5 show different service type ,C for call;b for bill;d for drink
6 It can show 3 groups of number at the same time

7. Improve service level restaurant server for wireless calling system

Technical parameters

*Working voltage: DC12V~18V

*Working current: <20mA

*Working Frequency: 433.92mhz

*Dimension: 410*160*40mm

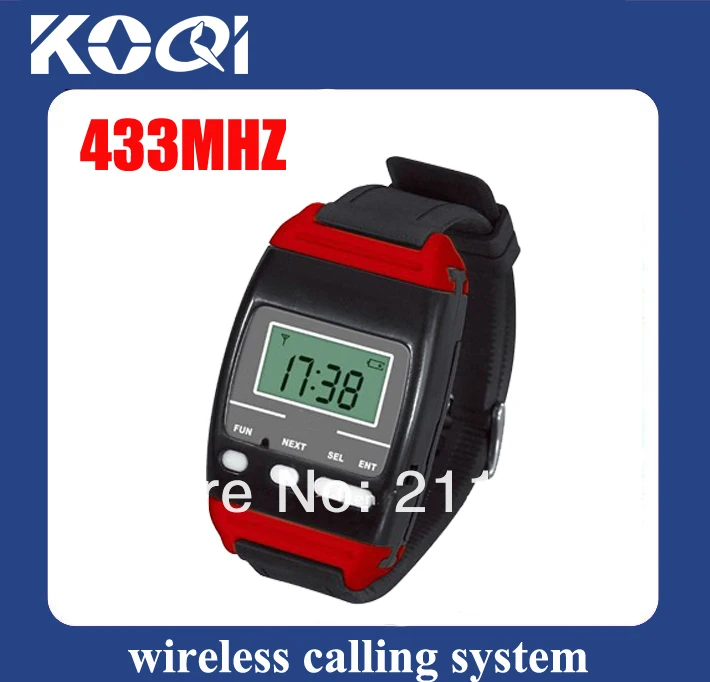

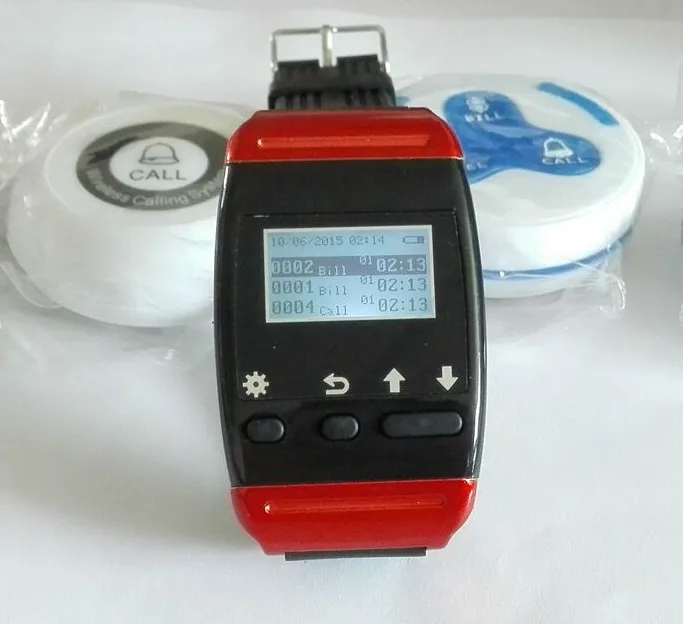

Specification of wrist pager receiver Y-650:

1 Use SCM digital encoding technology with stable performance, No wired involved ,Easy to operate

2 High brightness LCD display with voice prompts ,vibrator, and both voice and vibrator are optional

3 it can work with single-key and multi-keys transmitter at the same time

4 1pc Y-650 can work with 200 pcs buttons in max,and can restore last 10 calls

5 Y-650 shows current time when it is in standby, with 3 kinds of display modes:symbol,text,both symbol and text

6 Save test technology automatically,avoid repeating encoding

Technical parameters:

Working Voltage: 3.7V

Static Working Voltage: 12mA

Use Frequency:433MHz

Receiver Sensitivity:85dB

Dimension: 65*44*19mm

Y-650 For Waiters Wear:

1. 100% Water-proof

2. Work with our receiver to combined the wireless calling system

3. Can be installed on each table, when the customer need help only press the button, the calling no will be shown on the screen, so everyone can easy to know who is calling.

4. 3-key button: Call, Bill, Cancel

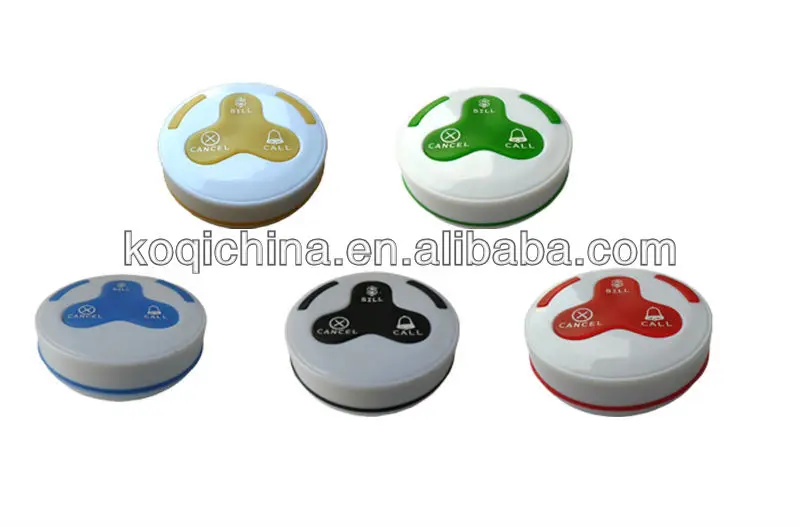

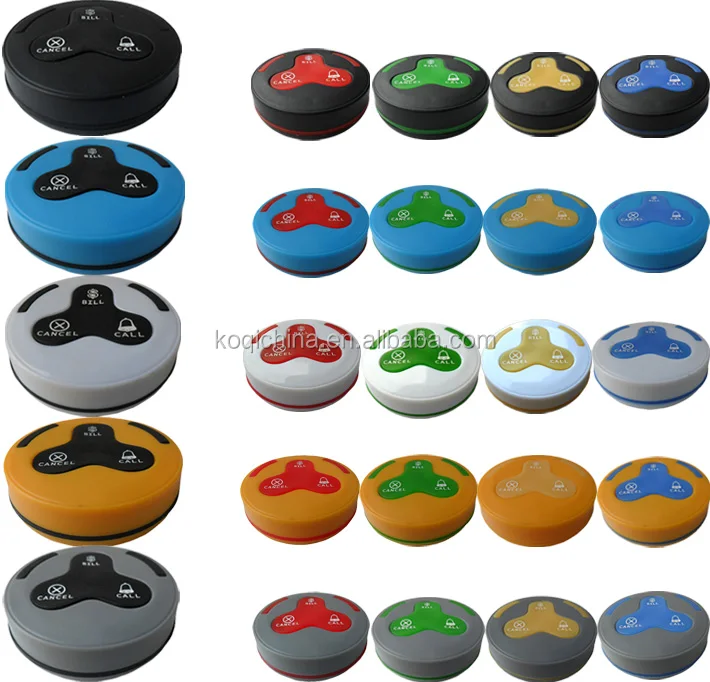

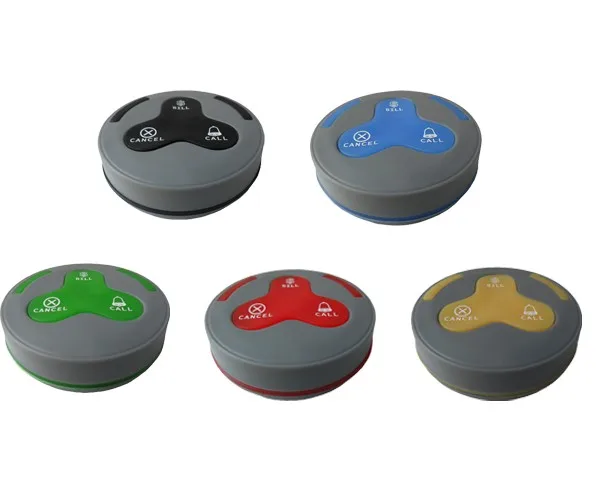

5. Color:  5 colors: blue; white,yellow, grey,black for case

                5 color: blue; green; yellow; red; black for silicon dioxide

Technical Parameter:

Working voltage: DC12V

Working current: ≤35mA

Use Frequency: 433.92mhz

Transmitted Power: ≤10mW

Transmitted Distance: >300m in open area

Size: 60*60*22mm

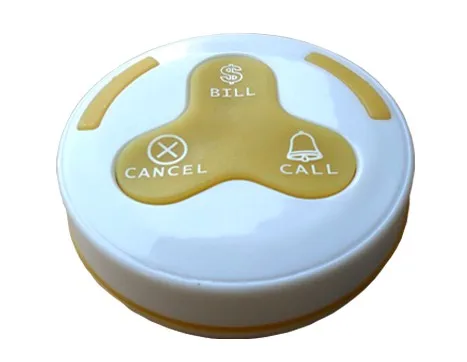

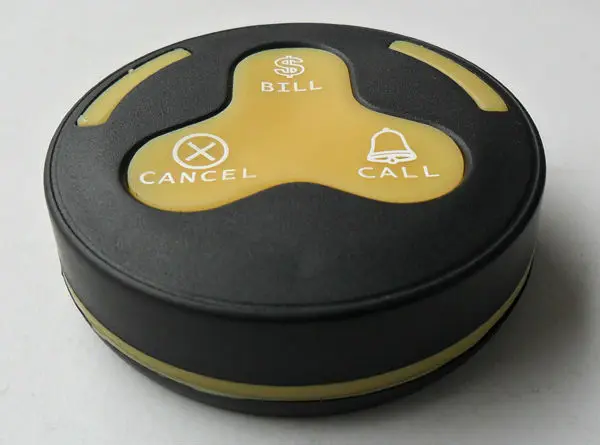

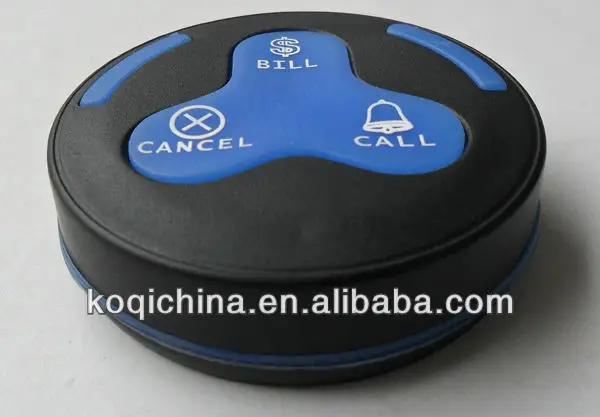

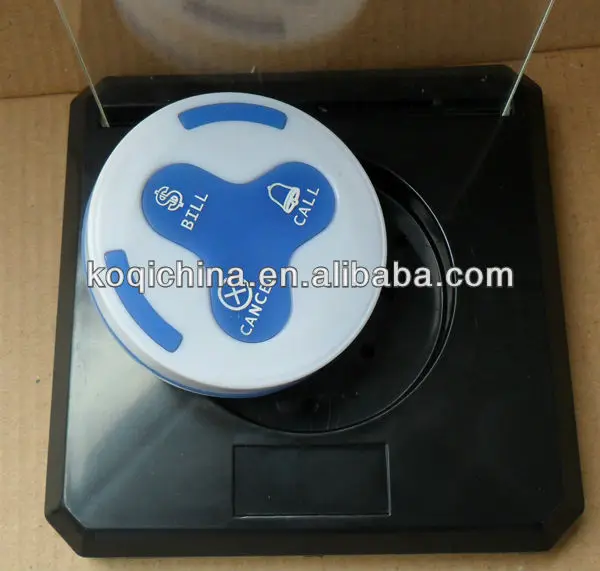

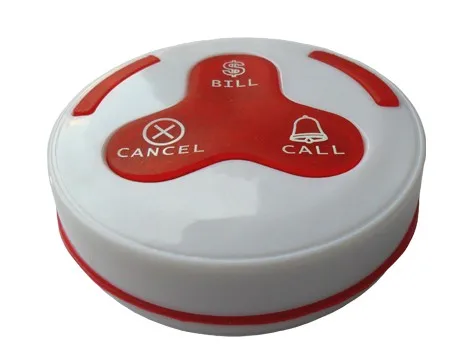

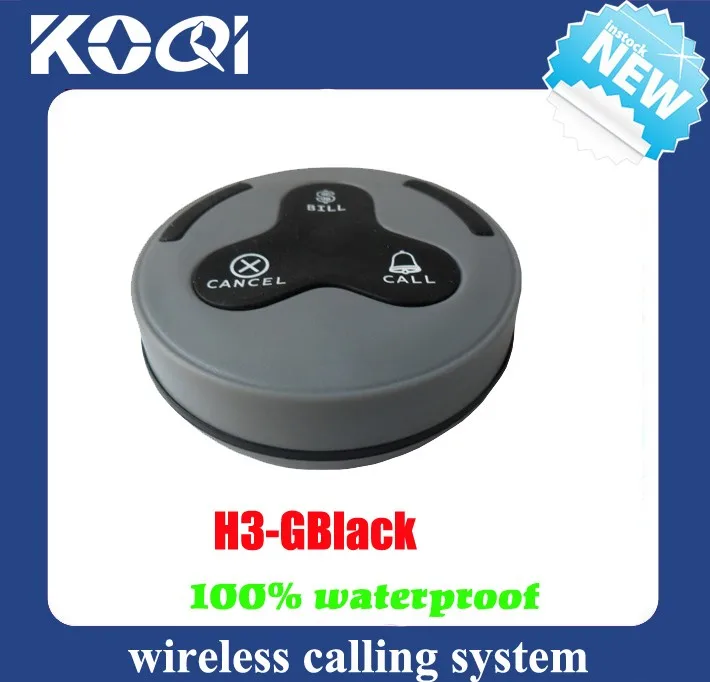

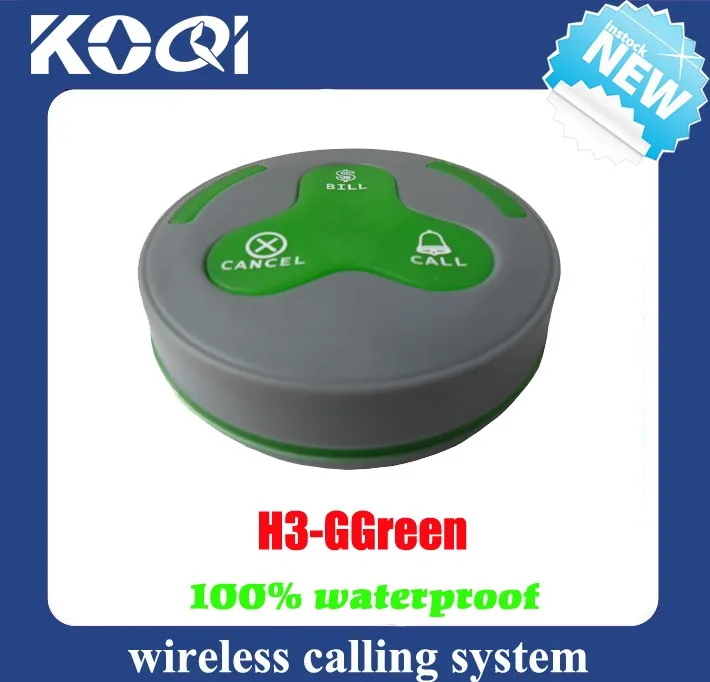

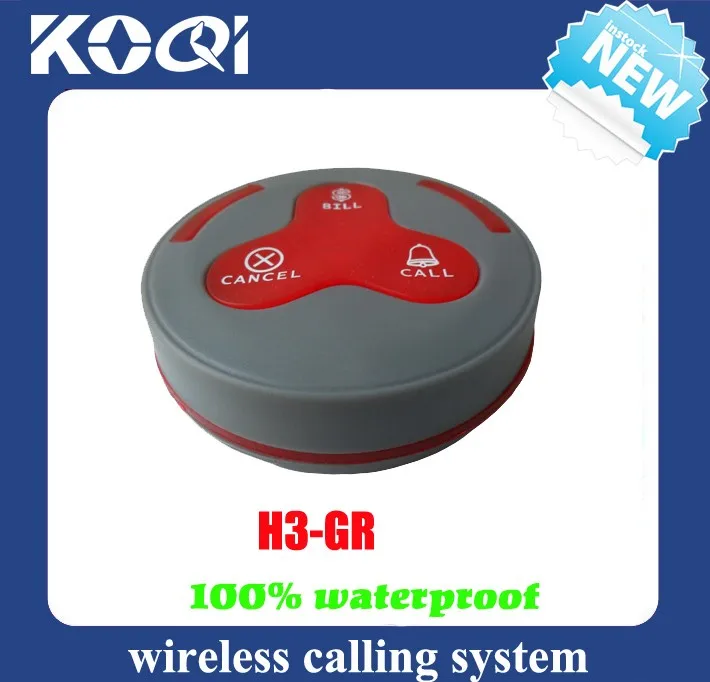

K-H3 Call Button For Customer :

About K-H3 call button:

FAQ

Applications

Wireless calling system can be used in restaurants, hotels, hospitals, tea house, coffee shops, health clubs, beauty salon, spa center, bars, swimming pool, beach, etc

What are the components of the wireless calling system?

1. Wireless receiver, installed on the count

2. Call button, installed on each table

3. Signal repeater (optional), enhance the signal

How does the system works?

1. After your customer gets seated the waiter informs them that when they require service, all they need to do is press the button sitting on their table.

2. When the customer presses the call button on their table, their table number will appear on the reciever of watch or display with ringing sound or vibration. Waiters then head over to the table to take the order of the customer promptly and quickly.

The wireless table calling system more picture:

If you are interested in any of our wireless table calling system, please feel free to contact me. I will reply to you in 24 hours, thank you!
