4 Ports Serial to Ethernet Network Converter RS232 RS485 RJ45 RS422 IP Lan Server Module Support Modbus RTU To TCP USR-N540 |

For Brazil customers, please offer us your CPF number, Then it goes faster through custom.

For Russain customers, you need to offer us your full name(3 words) when you pay or change your ID information on aliexpress, so that you can get your parcel easier,or you may pay to the post office or the parcel  will return to us.thank you very  much.

If you are not very clear about the product, please contact our customer service, we will give you the detailed data.

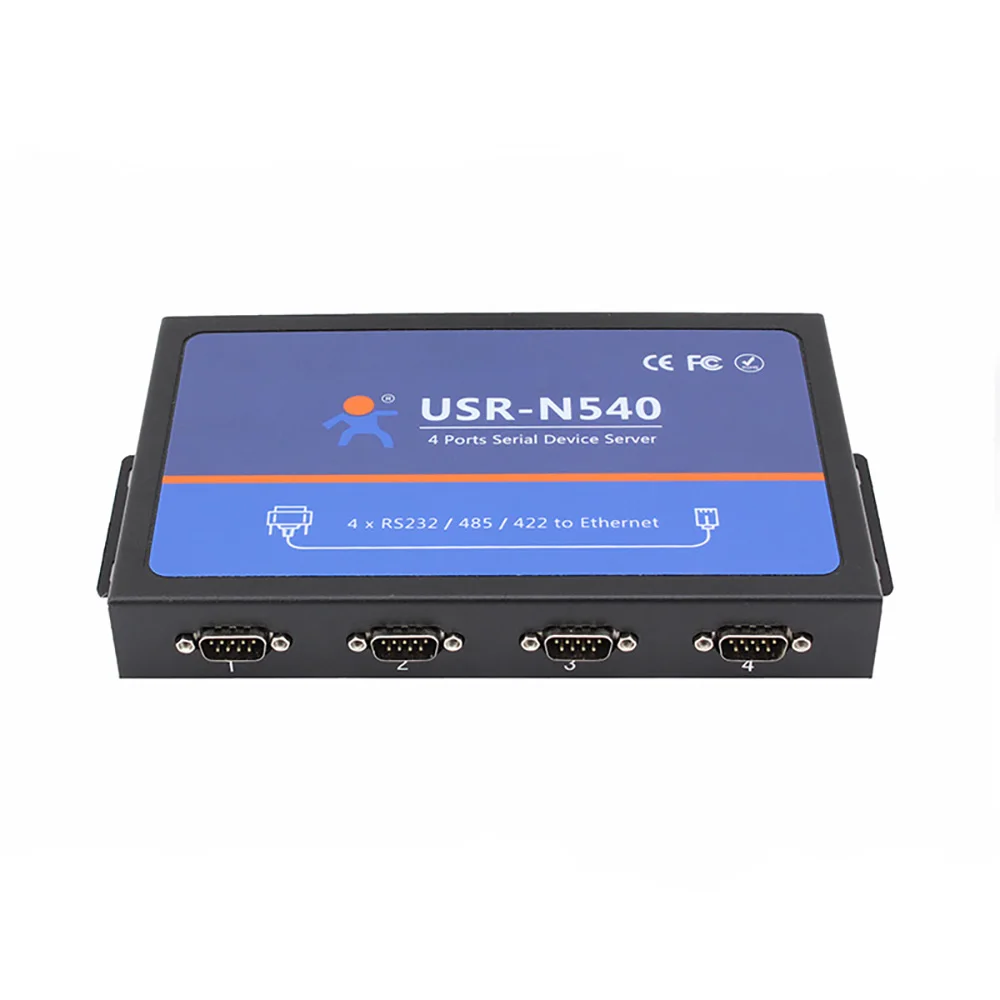

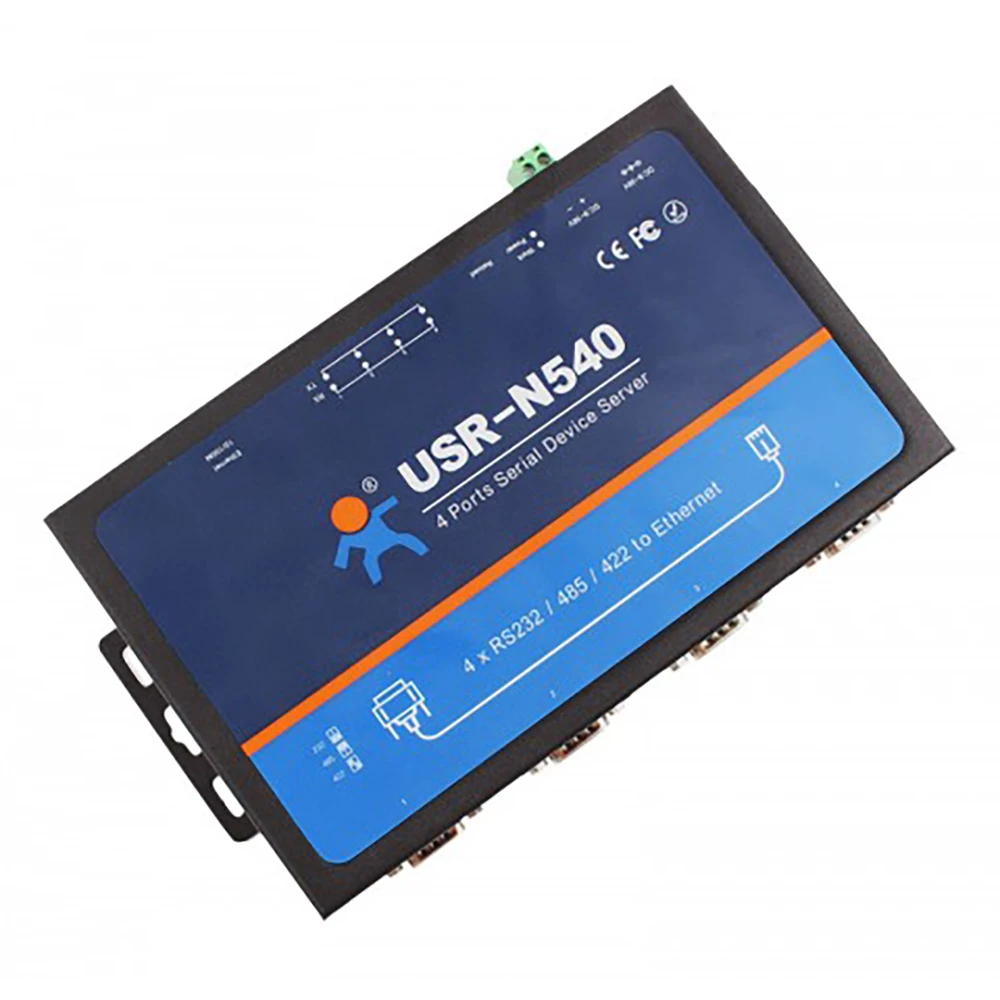

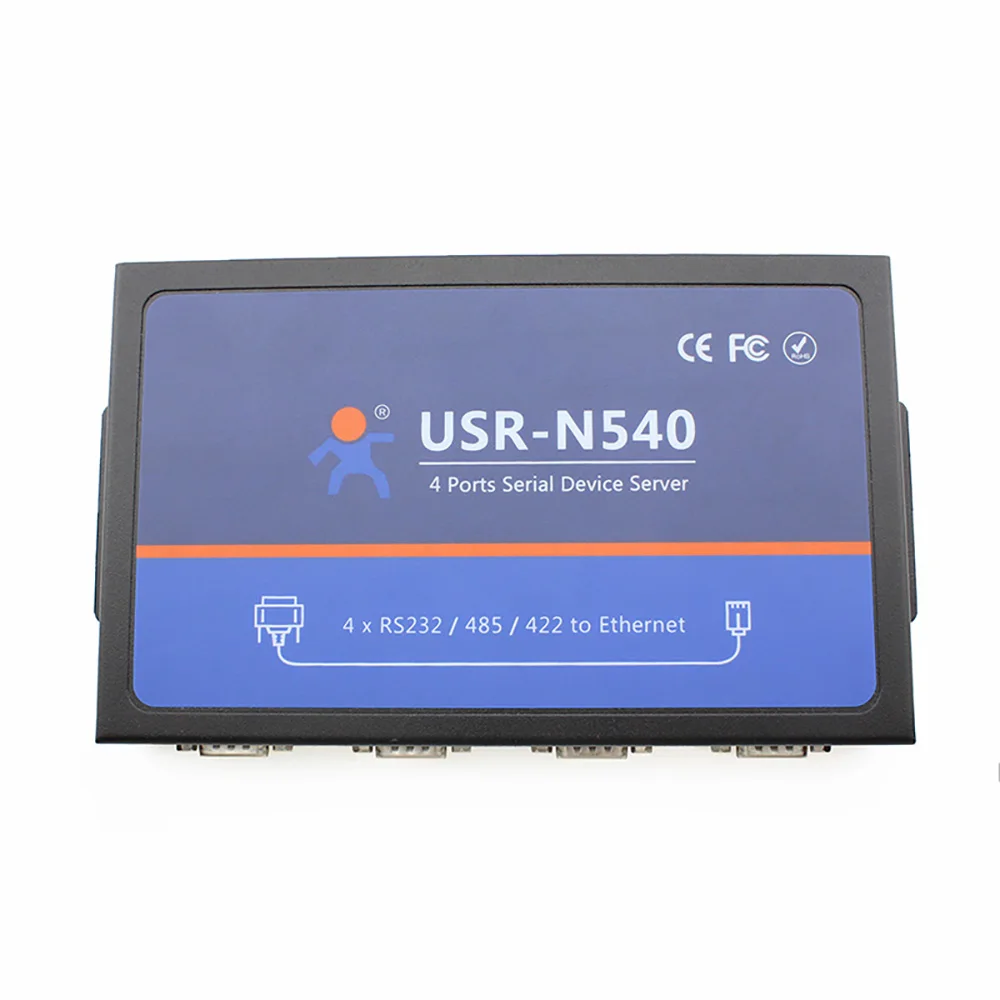

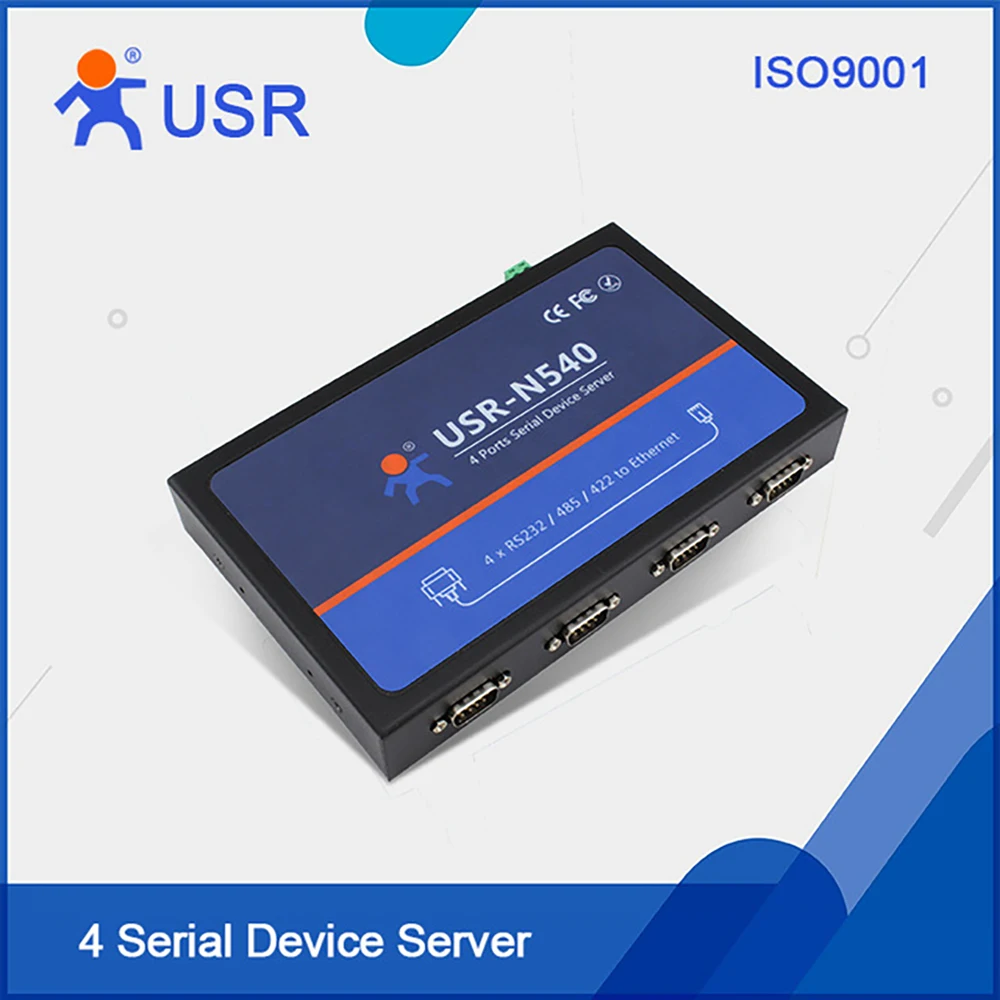

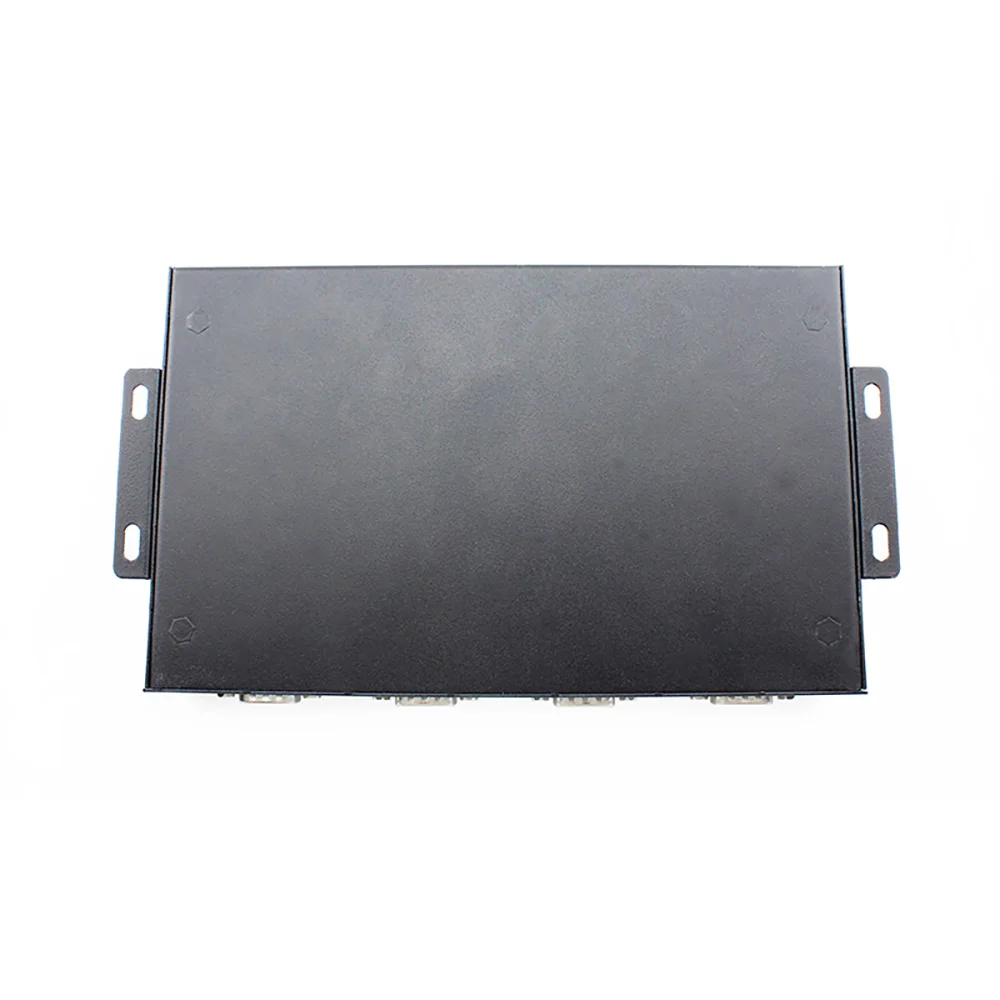

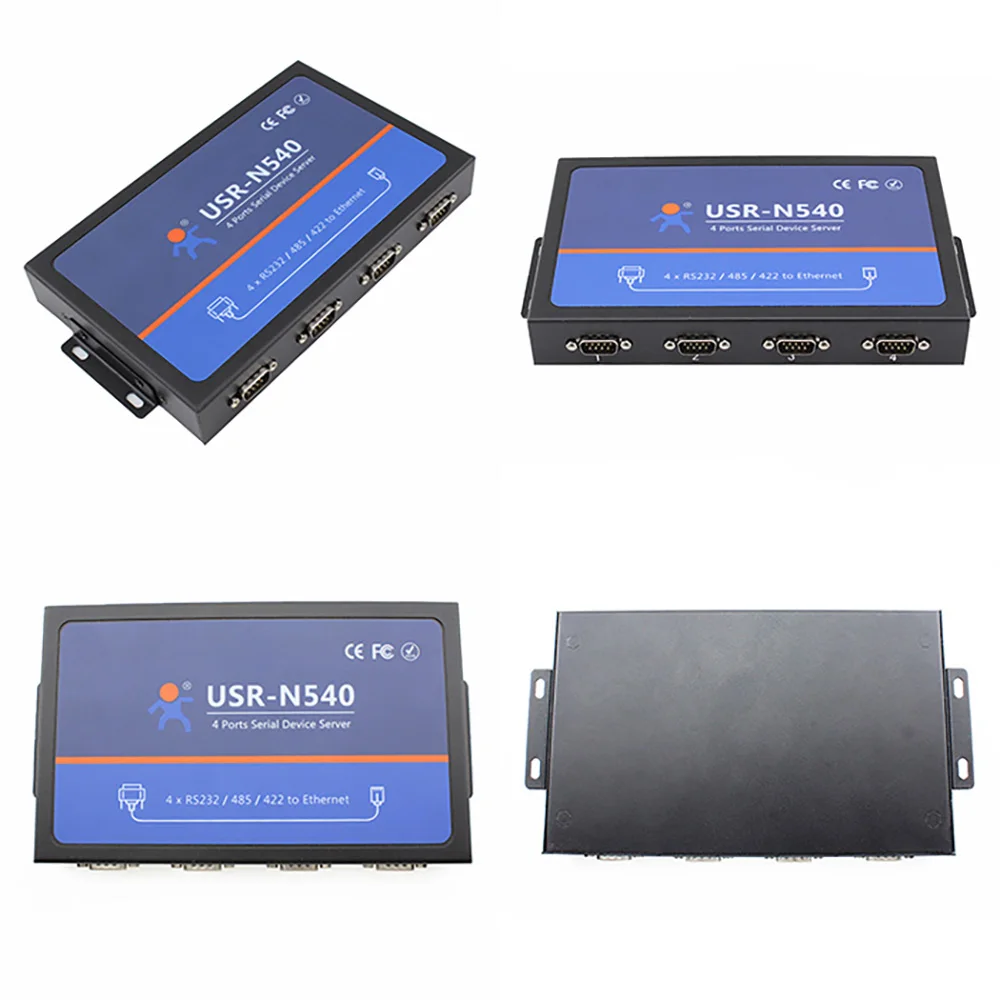

USR-N540 is a 4 Ports Serial to Ethernet Converter. It supports Modbus RTU to Modbus TCP, Can realize transparent transmission between TCP/UDP data package and RS232/RS485/RS422 interface.

• 4 serial port: RS-232/422/485 which works independently at the same time
• Power 5V~36V, anti-reverse connection, anti-surge, anti-pulse
• ESD 8KV Protection on Serial/Etherent port

Feature of 4 ports Serial Ethernet Converter

• TI Cortex-M4 kernel,industrial working temperature range and TCPIP protocol stack.
• Auto-MDI/MDIX,RJ45 port with 10/100Mbps
• TCP Server,TCP Client,UDP Client,UDP Server and HTTPD Client work mode
• 4 ports can work independently at the same time
• Can distinguish which serial port connects to the device via port number
• Support virtual serial port and provide corresponding software USR-VCOM
• Serial baud rate from 600bps to 230.4K bps
• DNS and DHCP supported
• Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS
• Built-in webpage;also can customize webpage for users
• The global unique MAC address bought from IEEE (begin with D8-B0-4C);user can define MAC address
• Support upgrade firmware via network
• Support keepalive,rapidly detect dead links
• Support account and password,can be used to page login and network settings
• Support one channel Websocket,realize bidirectional transparent transmission between webpage and serial 0
• Support Modbus RTU to Modbus TCP
• Support UDP broadcast function
• Each serial can work as rs232,rs485 or rs422; Default port is RS232 BD9 male port
• Four channel serial communication indicator: TX/RX, CTS/RTS, XON/XOFF
• Support DC adapter and 5.08-2 terminal power supply
• Reload button,one key to restore default settings
• RJ45 with Link/Data indicator light,built-in isolation transformer and 2 KV electromagnetic isolation

Serial Port of  Serial Ethernet Converter (Default Port: RS232 DB9 male port)
