WQScosea Q8S-115 AC 110V 220V Self-lock Delay Timing Cycle Timer Relay Trigger Time Switch PLC Home Automation Module - Таймер с задержкой Self-lock Delay Timing Cycle на реле, питание AC 110V 220V, модуль автоматизации дома PLC.

---

Brand NameWQScoseaTypeIndustrial Computer AccessoriesPackageYesMeasurement unitpiece/piecesSold insell_by_pieceEach pack1Package weight0.055Package size - length (cm)10Package size - width (cm)10Package size - height (cm)5Products StatusStock477,63 ₽477,63 ₽Add to CartBuy now477,63 ₽

Delivery to Moskva g

16 Jul - 363,66 ₽

Delivery to a Post office

10 Jul - 363,66 ₽

Self-pickup

90-Day Buyer Protection

Reviews

5,0

2 reviews20000Top reviewsWith photosFrom Russia

All stars

All starsAdditional

• Miloss K.5 May 2023
  Show more
• Miloss K.11 July 2022
  Show more

Open 2 reviews

Description

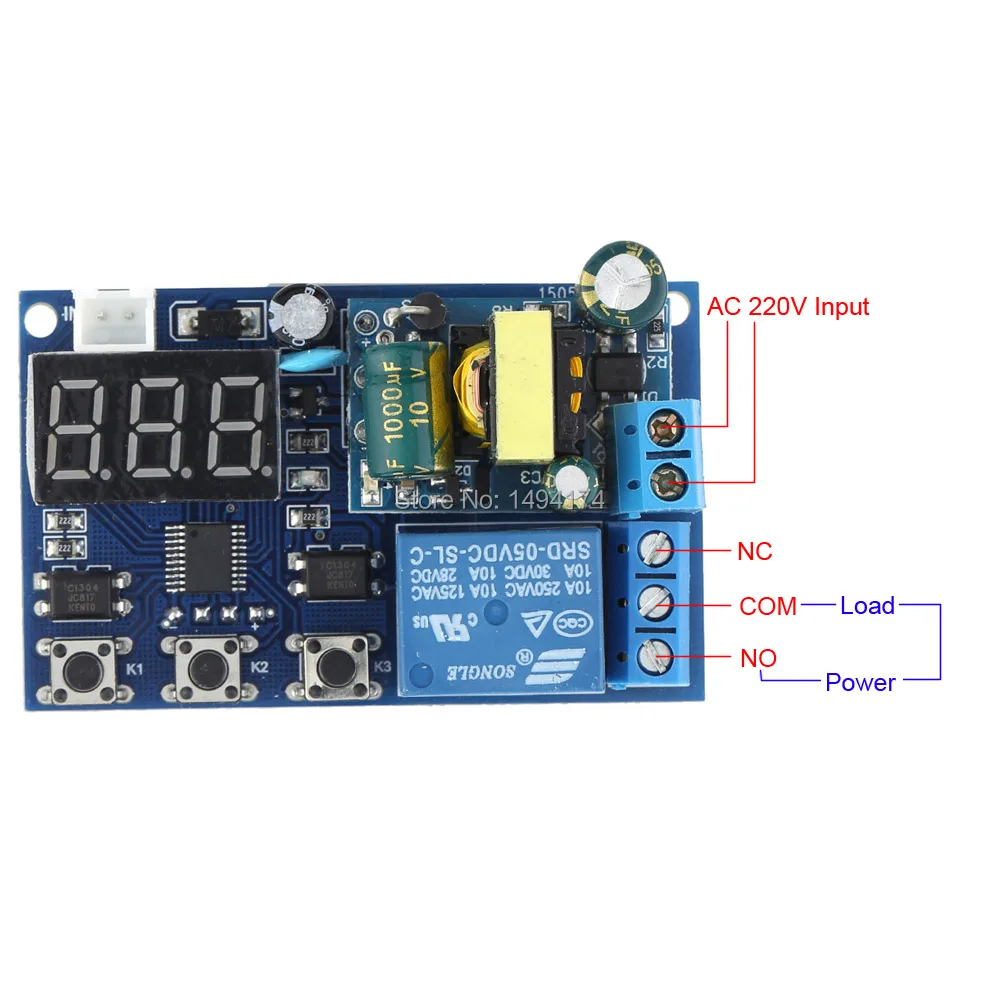

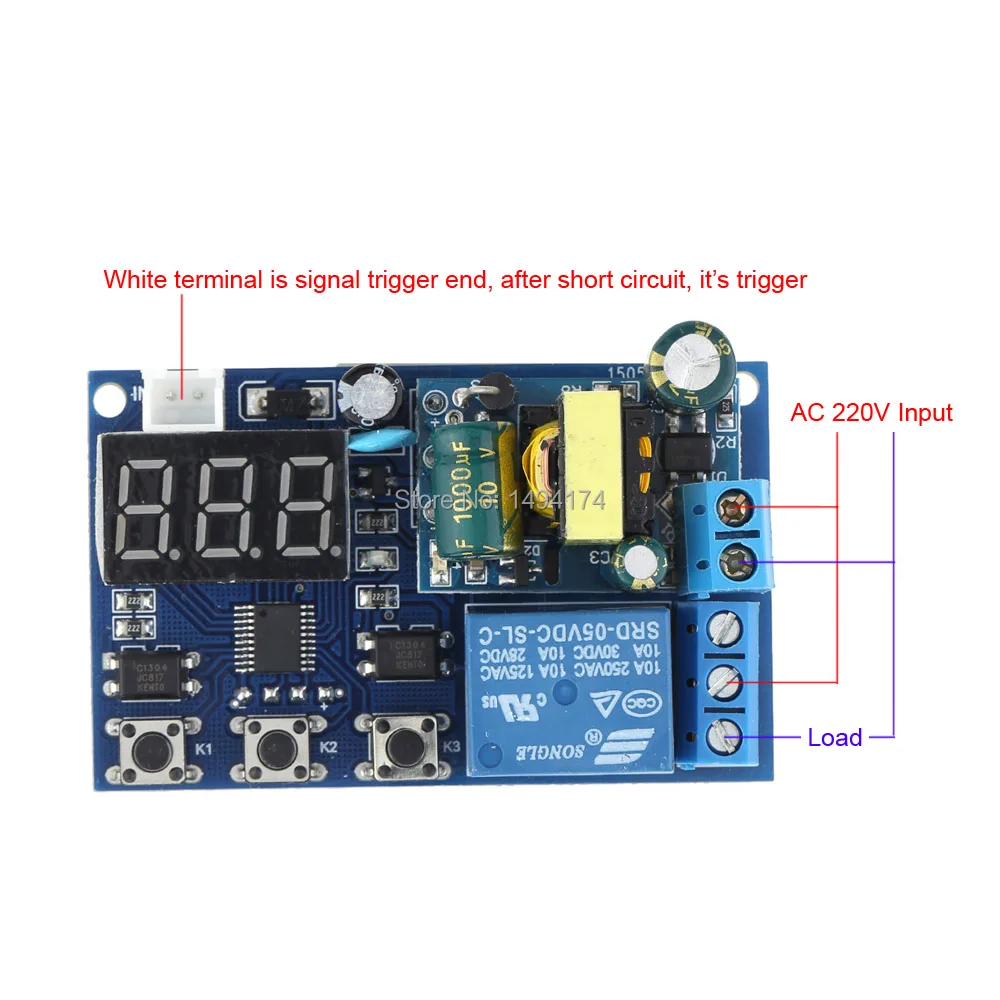

Features:  New upgrades to simplify, meeting the users' needs.  Increase the power supply anti-reverse function.  The use of opto isolated input and output, enhanced anti-jamming capability and consumption.  The setting parameters can be memorized after power off.  Signal terminal voltage signal can be maintained for a long time.  To ensure stability, industrial grade PCB board.   Notice:  Relay output is passive contact without charge output, and it control the on and off of the line.       Specifications:  Display: LED Digital Display  Timing Range(Settable): 0.1~99.9 seconds; 1~999 seconds; 1~999 minutes  Working Voltage: AC 110V-250V   Signal Source: Low Level Efficient  Output Capacity: Can Control the Load within DC 30V 5A or AC 220V 5A  Static Current: 20mA  Working Current: 50mA  Working Temperature: -40-85°C  PCB Size: 64 * 38 * 18mm / 2.52 * 1.5 * 0.7in (L * W * H)     Function list:   P-1: signal trigger relay pull, the time is up, the relay is disconnected, during the delay period A: Failed again again B: Trigger again again Timer C: Trigger relay reset again again P-2: Signal start start time T1, time to relay pull-in time T2 OFF (reset) A: Invalid again trigger B: Trigger again again Chronograph C: Start delay without triggering power on P-3: Recycling: Turn on T1, turn off T2, infinite loop. T1 and T2, the time is adjustable If a parameter is turned on or off to 0, can be achieved when the power-on delay or power-on delay power is not loop A: The relay is switched on immediately after power-on B: The relay is turned off and then on again P-4: there is a signal, the relay pull, keep the pull, the signal disappears, start timing, the time is up, the relay is disconnected, during the delay, again to the signal, delay cancellation, relay to keep the signal disappear,     Keyset settings:   K1: Function selection key: long press K1 for 2 Seconds, appear P-*. Short press K1 to select mode, press K2 to enter mode.   K2: Shift key: Press to adjust the position of the digital tube flicker, which digital tube flicker, K3 adjusts the number of flickering digital tube. Until the press of K2, the digital tube no longer flickers, set the time to complete, automatically save the set time and power off memory     K3: When digital tube flicker, K3 adjust the decimal point position      Decimal point in a single bit , It said 0 To 999 Minutes       In ten Bit,it said 0 To 99.9 second      There is no decimal point,,it said 0 To 999 Seconds; choose a good time, this time set up.   Note 1: After choosing the working mode, short press K1 , you can enter to switch the function of A, B, C , digital tube will not show A or B or C.You know default is A ,only after  short press K1 and  the signal trigger test    Note 2: Functional P-2 and P-3 have two groups of time to need adjust. Press K2 six times for a cycle, the first three times for a time, the last three times for another time. (Blue light indicates means the setting time of relay suction, and blue light indicates the setting time of relay disconnection.)     Working modes selection: after power on, long press K1 for 2s, later into the selection of modes: P1~4; K2 to enter the mode.  P-1: Monostable trigger delay, a signal to trigger relay, time is up, the relay disconnect;  P-2: A signal trigger and countdown begins, T1 seconds after, the relay open T2 seconds, then close;  P-3: Open T1 seconds, disconnect T2 seconds, infinite loop. Users can set the relay time T1 and T2;  P-4: The relay opens when a signal triggers, when the trigger signal disappears, digital countdown begins, and the relay closes when the time is up.     Package inlcuded: 1 PCS * AC 110V 220V Multifunction Self-lock Delay Timing Cycle Timer Relay Trigger Delay Time PLC Home Automation Module Adjustable

---
