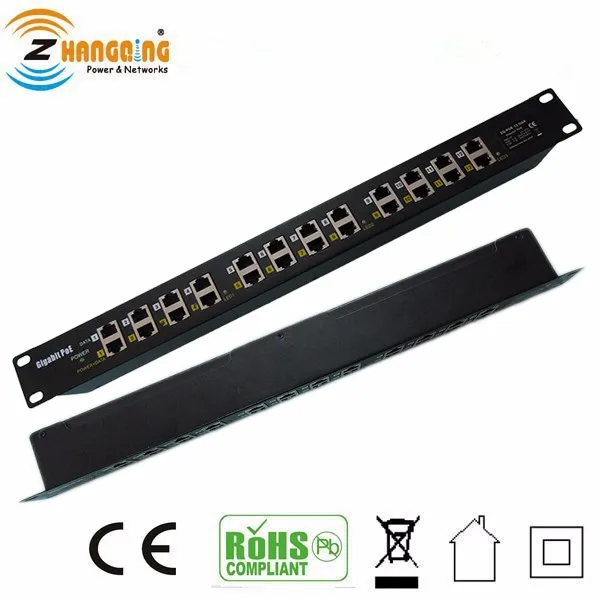

ZQPOEG12 Gigabit POE Injector 12 Port 1U Multiport

Rack Mount POE Patch Panel 100/1000Mbps

Gigabit, Mode A&B, rack mount 12 Port Injector without a power supply

Power an IP camera, desktop phone, WiFi access point, or other low voltage devices through a network data cable using this Power over Ethernet (PoE) injector. The PoE Injector takes power from a DC power source (power supply sold separately) and adds it to your Ethernet data cable (Cat5, Cat5e, Cat6) to your device.

Save big on network upgrades and device installations Power over Ethernet delivers power 328 feet from the PoE Injector, eliminating the expense and hassle of installing AC power near your powered device. With this PoE Injector, you can add power to your data cable for a fraction of the cost of upgrading to a PoE capable network switch.

Passive PoE means versatility . A Passive PoE injector always delivers the same voltage as its power source. Pair this injector with a 48 volt DC power supply to power devices labeled “802.3af”, or you can use a 24 volt power supply with 24-volt passive PoE devices like Access Points from Mikrotik, Ubiquiti, and many more.

Specification

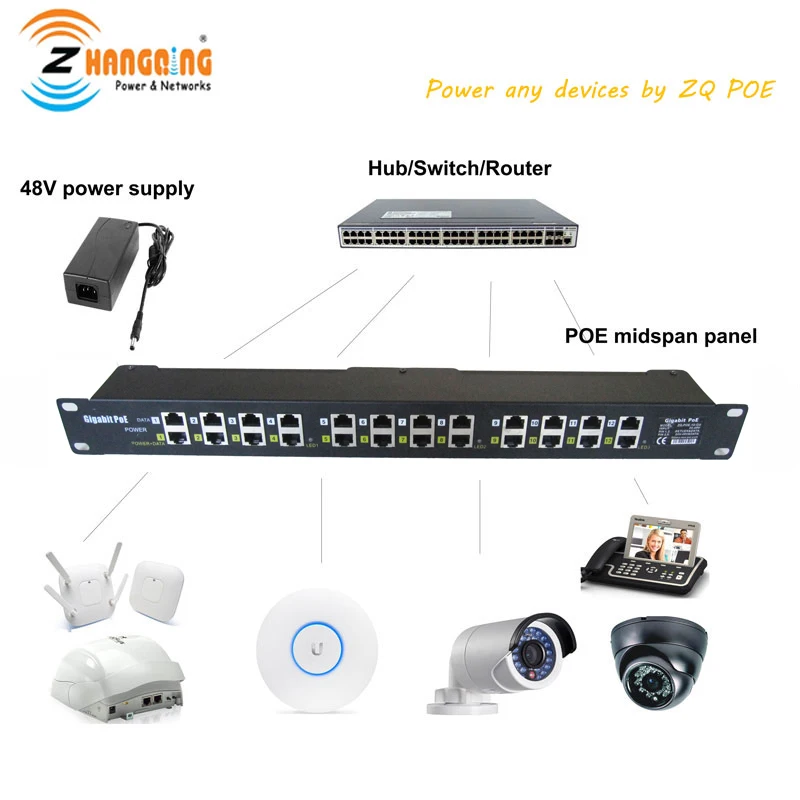

POE injector---Adding Gigabit POE function to any Switch/Router/Hub

DC plug input, 12 Lan port, 12 POE port, shielded

For IP camera, IP phone, WiFi, Access point, etc.

19'' 1U Rack-mountable

DC input, 12V 24V 48V 56V

DC output, 12V 24V 48V 56V

10/100/1000Mbps data rate

Over current, over voltage, short-circuit protection.

FCC CE RoHS certified.

LED indicator

Features

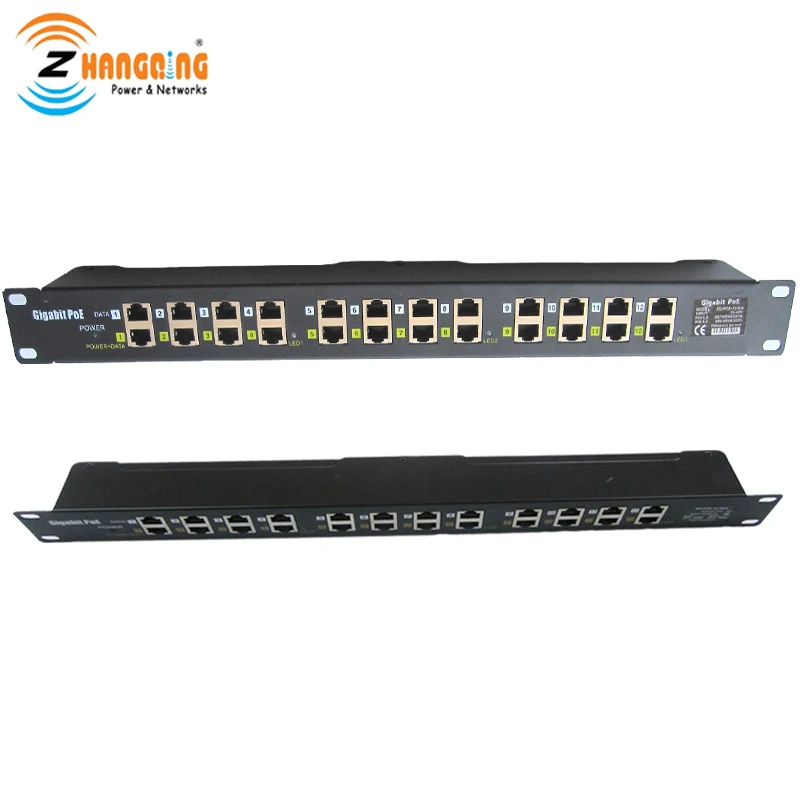

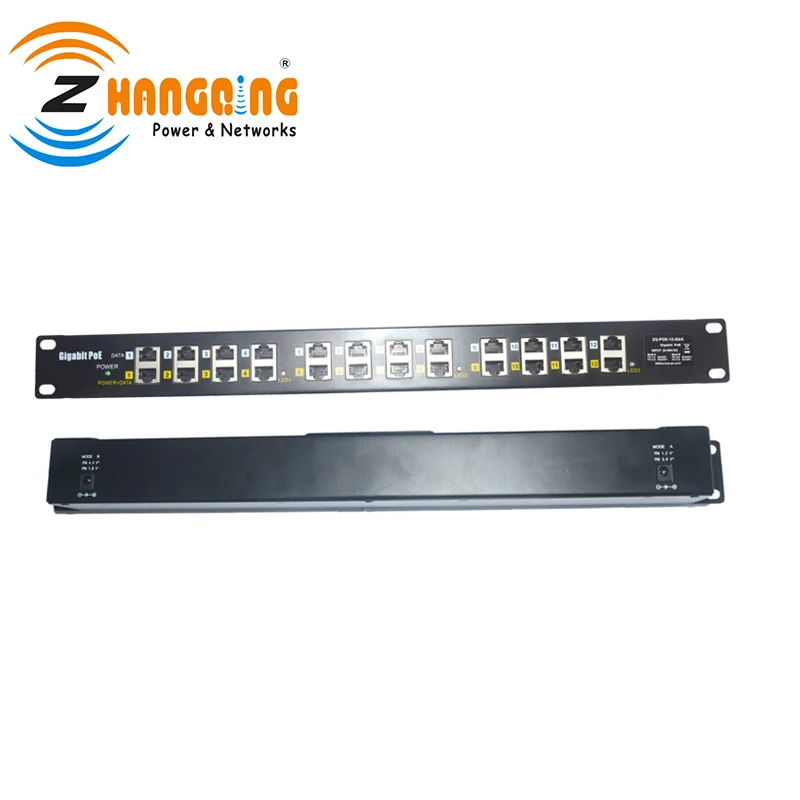

·         12 port Rack-mountable 1U POE Power Injector Panel

·         12 LAN ports, 12 LAN+Power(POE) ports, shielded

·         31 watt max each port, resettable fuse on each port

·         Power VOIP phones, IP Cameras, WiFi Access Points, and more PDs

·         Same voltage to all ports

·         2.1mm x 5.5mm for DC plug

·         LED power light indicator

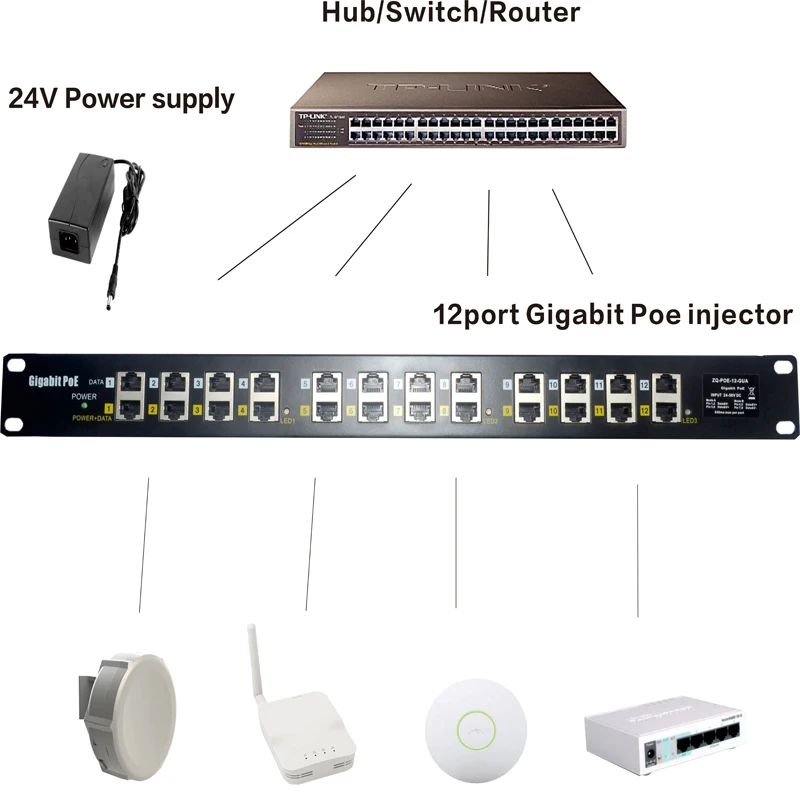

·         Works with any ethernet switch or router, add POE to any switch or router

·         Use any power supply to 48 volts, 24 volt, 12 volt, according to your need

·         Plastic outside box

Category Pins:

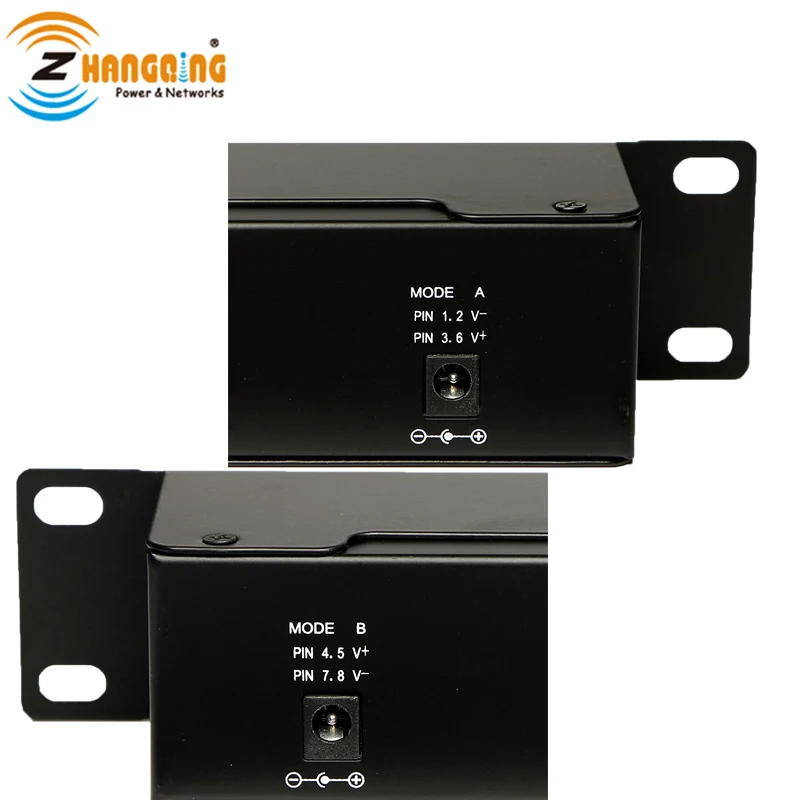

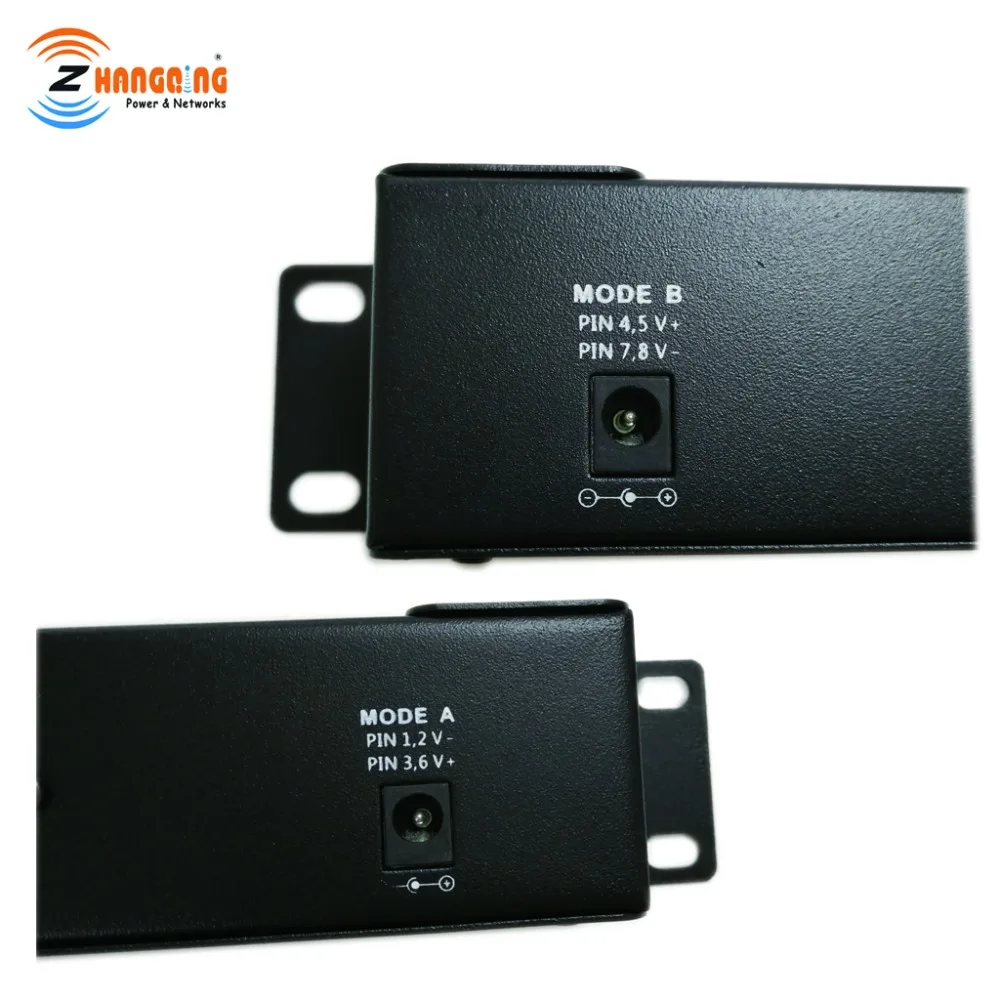

·         Pins 1/2 & 3/6 for data and power(Mode A) for CCTV camera, IP phone and 802.3af/at Access Point

·         Pins 4/5 & 7/8 for power(Mode B) for MikroTik and 24V UBNT

·         Data rate: 100/1000 Mbps TIA/EIA 568B-2

·         Connector: RJ-45

·         Input Voltage:12V-57V

·         Current Output:0.1-0.65A

·         Operating Temperature:-40°C~50°C

·         Storage Temperature:-40°C~70°C

·         Operating Humidity:10%~80%RH

As your know, POE injector+normal switch=POE switch, which share the same function, but POE injector+normal switch are more economical.

This gigabit PoE injector panel, whis a simple, cost-saving and convenient equipment for IP camera, IP phone, WiFi Access point, powered onver Ethernet cable.

The gigabit PoE injector panel can power PDs 100 meters far away from power source with safety, low-cost and easy installation.

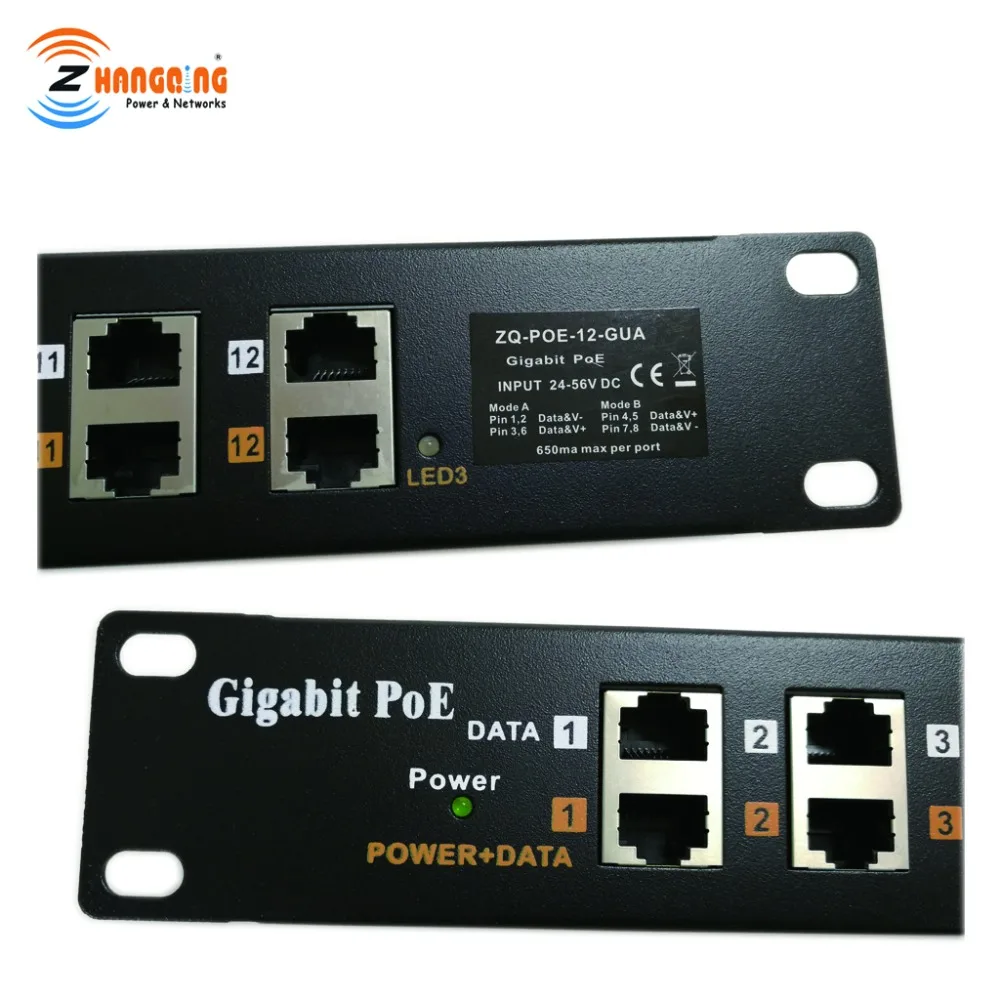

This gigabit PoE injector is passive PoE but compatible with all IEEE802.3af/at powered devices, while power pins 4/5(V+), 7/8(V-) Mode B and power pins 1,2(V+), 3,6(V-)Mode A. Because 802.3af/at standards support power pins 4/5V+, 7/8V- and 1/2V-, 3/6V+.
