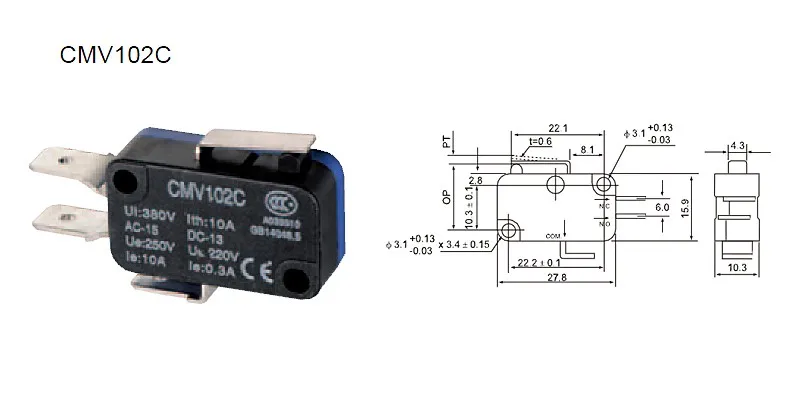

CMV102C limit switch china manufacture micro | Обустройство дома

---



Rating

Item Spec.	Rated voltage	Noninductive Load (A)				Inductive Load (A)				Inrush Current
		Resistance Load		Lamp Load		Inductive Load		Motor Load
		NC	NO	NC	NO	NC	NO	NC	NO	NC	NO
10A	250VAC 8VDC 30VDC 125VDC 250VDC	10 10 6 0.3 0.3		1.5 3 3 0.1 0.05		6 6 6 0.6 0.3		2 3 3 0.1 0.05		24 max.
16A	250VAC 8VDC 30VDC 125VDC 250VDC	16 16 10 0.6 0.3		2 4 4 0.1 0.05		10 10 10 0.6 0.3		3 6 4 0.1 0.05		40 max.
21A	250VAC 8VDC 30VDC 125VDC 250VDC	21 21 14 0.6 0.3		3 5 5 0.1 0.05		12 12 12 0.6 0.3		4 7 5 0.1 0.05		50 max.



Model Designation



Item	Code	Description
Rated Current	10 16 21	10A 16A 21A
Actuator	0 1 2 3 4 5 6	Button type  Long handle type Short shank type  Long pulley type Short pulley type  Longer handle type  Crank type
Terminal specifications	C D	#250 #250 terminal #187 #187 terminal



Characteristic

Item		CMV 10	CMV 16	CMV 21
Operation speed		0.1mm~1m/s( Button type)
Operating frequency		Mechanical 240 operations/min Electrical20 operations/min
Insulation resistance		100mΩ above(at 500VDC)
Contact resistance		15mΩmax. (initial value)
Withstand voltage	Non-continuous terminals	1,000VAC, 50/60Hz 1minute
	current-carrying and non-current-carrying metal parts, Between terminal and earthing	1,500VAC, 50/60Hz 1minute	2,000VAC, 50/60Hz 1minute
Vibration	Misoperation	10 to 55Hz,1.5mm pairs swing
Shock	Durable	max1,000m/S2(about100G)
	Misoperation	max200m/S2 (about100G)	max300m/S2(about100G)
Life	Mechanical	more than10000000
	Electrical	300000times	100000times
Temperature		-10~+65
Humidity		85%RH(+5~+35)
