48V 350W motor brushless controller 3 Phase Line + Throttle twist grip electric bike scooter speed control box

Note: The item are included 48V 350W brushless controller and throttle. The controller is used for DC 48V 350W the brushless motor three phase lines, not used for the brushed motor 2 wire, The brushless motor has 3 phase motor lines. Please make sure that your application when you place the order. When you want to know the Specifications of the controller, please contact us freely, thanks!

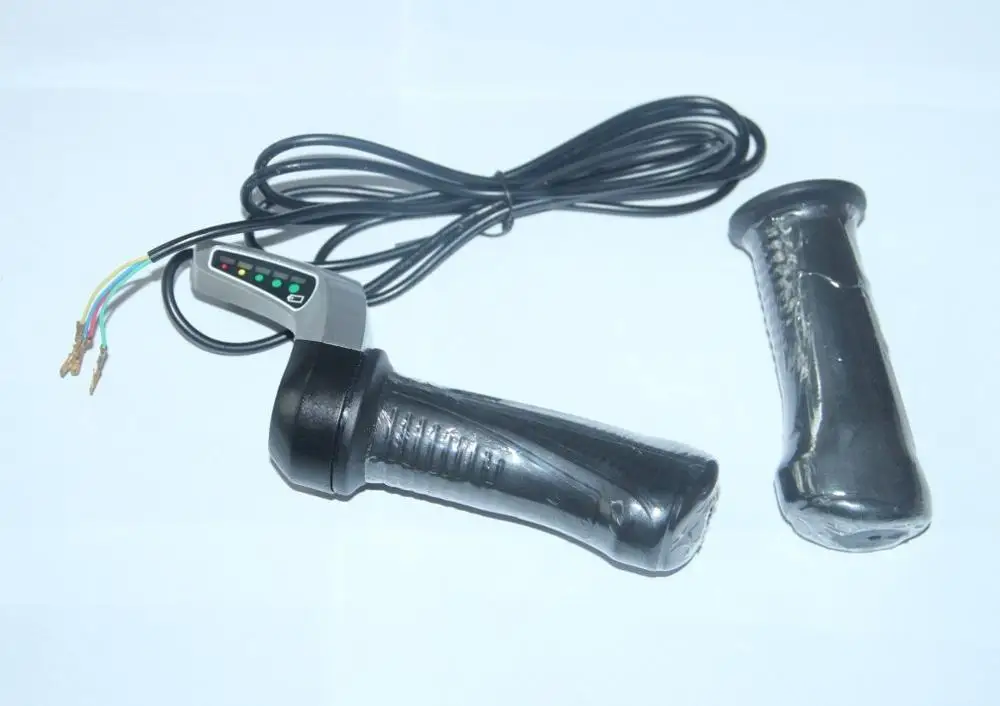

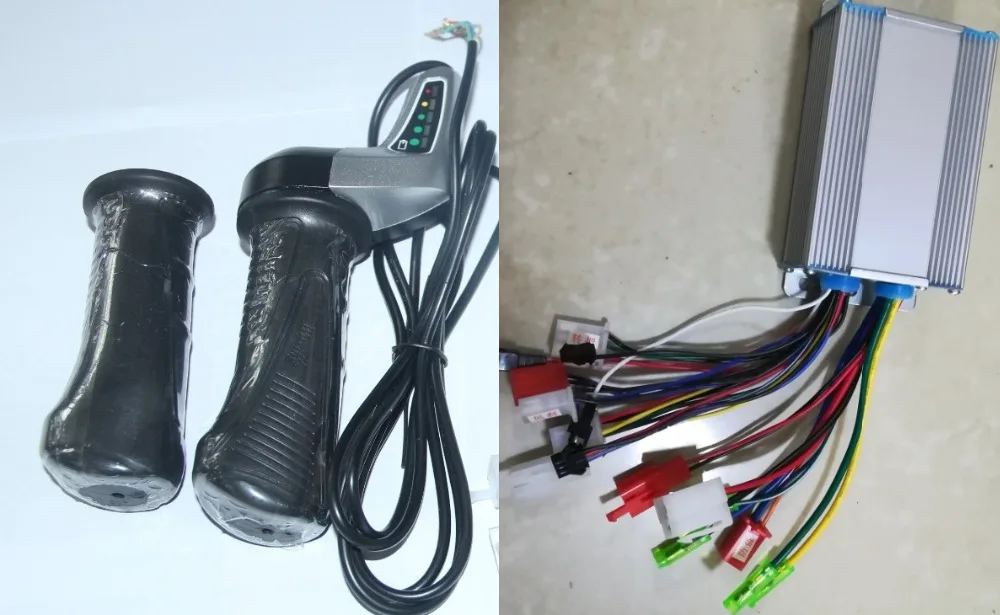

Package include: 1pcs 48V 350W controller and 1 pcs throttle grip

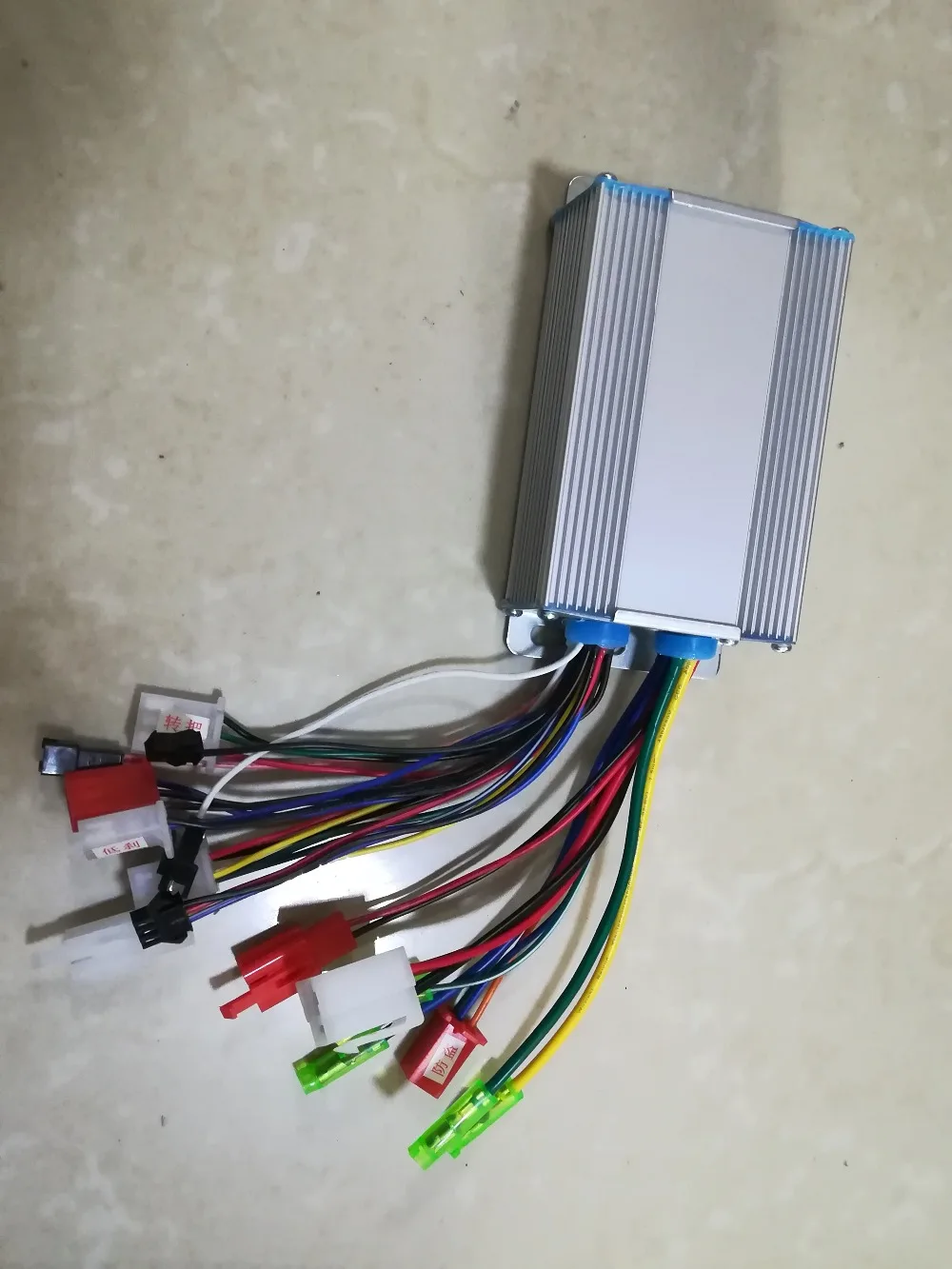

Controller Features :

Matching motor: brushless motor 3 phase lines

Rated voltage: 36 V

Rated current : 18A

Rated power: 350 W

Under Voltage Protection:31V

Throttle voltage: 1V to 4.2V

Dimensions::10.5cm(L)x7cm(W)x3.5cm(H)

Operation Notice:

Connect power, motor, and throttle, and power lock, but not connect the Hall lines. Connect the adaptive learning wire

Switch on the power lock, roll the throttle. If the motor works well, connect the Hall lines

If the motor rolling reversely, disconnect the adaptive learning wire and check the motor again, before connecting the Hall wire.

Wires Interface Definition

Battery : Thick Black (Power Negative) /Thick Red (Power Positive)

Power Lock: Thin Red(power lock)

Motor : Thick Green(Phase lines) /Thick Yellow (Phase lines) /Thick Blue (Phase lines)

Motor Hall lines: Red(+5V)/Black(Negative) /thin Yellow(Hall lines) /thin blue(Hall lines) /thin green(Hall)

Adaptive Learning: Thin white /Thin white, connect  together

Brake(High): Thin yellow(Brake signal)

Brake(Low) and Throttle:Thin Purple(Brake signal)/ Thin Red(Throttle Positive) / Thin Black(Throttle negative)/ Thin Green(Throttle signal)

Instrument: Thin Green(Instrument signal)

Cruise: Thin Blue(Cruise Signal)/Thin Black(Cruise negative)

Speed : Thin Brown(Low Speed signal)/Thin Black(Speed Signal input)/Thin Blue(High Speed Signal)

Antitheft power: Thin Black (Power Negative) /Thin Red (Power Positive)

Antitheft Signal: Thin Orange(Signal) / Thin Blue(Signal)/ Thin Green(Signal)
