BGA169/BGA153 programming adatapter is an easy use tool to connect chip and PC. Just like a U disk!

Includes size limiter: 12x18mm

It is designed for test, debug, validation, data recovery and programming of eMMC.

It provides a compact test solution for eMMC used in applications such as mobile, data recorder, the Internet of things, etc.

1) Test, debug, validation, and programming of eMMC devices.

2) Failure analysis / System and wafer test.

3) Package and Chip qualification.

4) Production prototype / Data recovery.

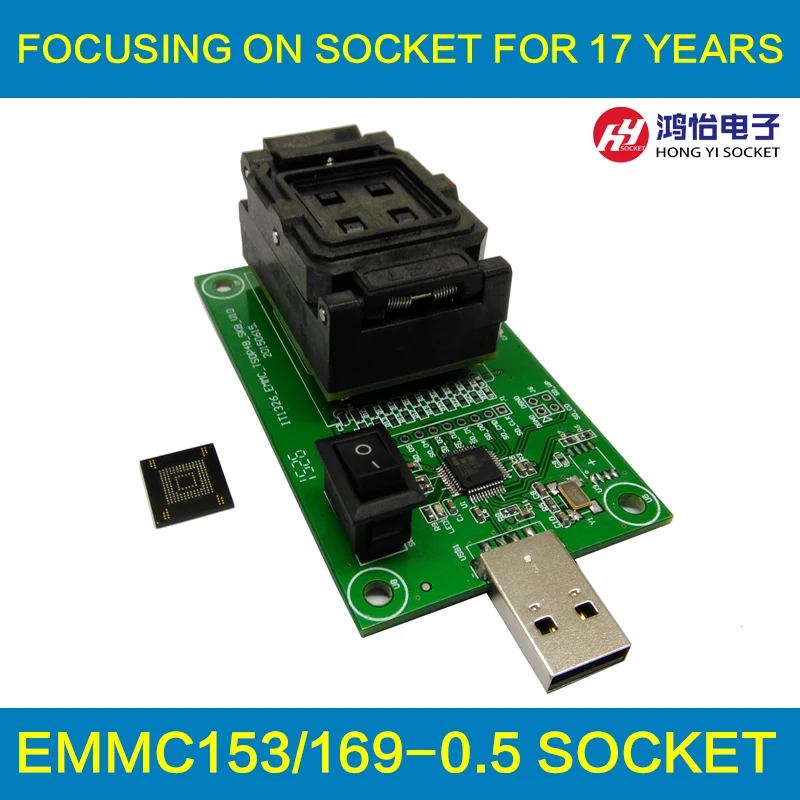

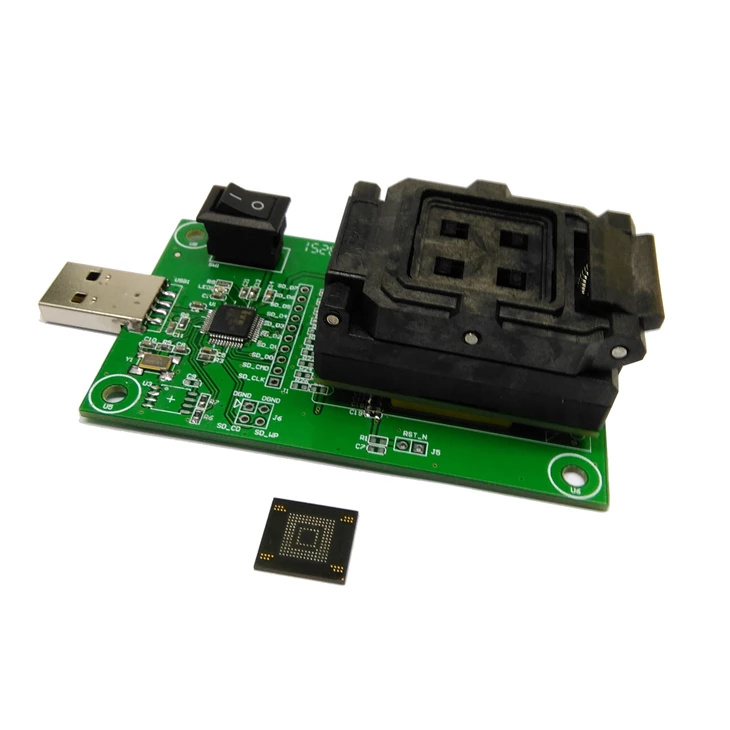

1) This eMMC socket is for BGA 169 and BGA 153 testing.

2) The main control chip is ITE IT1327, which is a USB 2.0 with multi partition of SD/MMC card reader controller, T1327 built-in SD/MMC card power supply. It also integrates 5v to 3.3v voltage regulator, high speed USB 2.0 interface and downward compatible with USB 1.1.

3) Support hot swap and a separate power supply switch.

4) Apply to eMMC of Samsung, Sandisk, Toshiba, Hynix, Micron, HTC, MTK and Intel.

5) eMMC data could be read and written fastly.

6) With 30 pins and pin pictch 0.5mm.

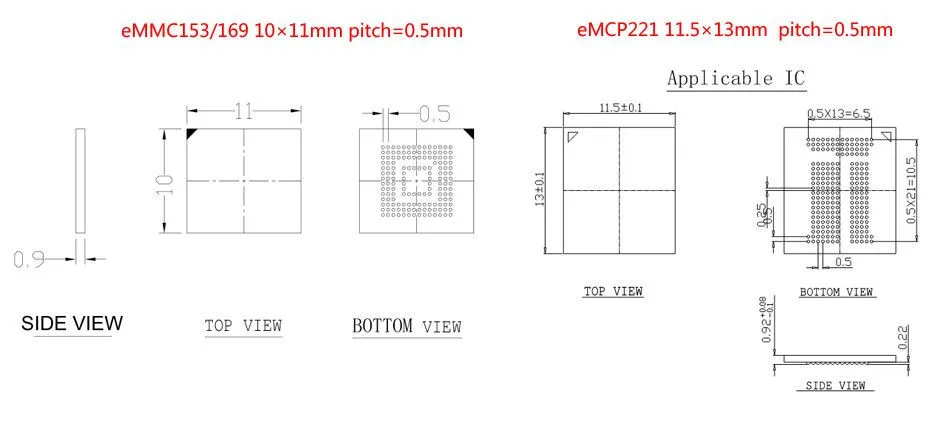

7) eMMC size of this product is 12x18mm , we also provide size 11.5x13mm ,12x16mm , 14x18mm , please see more products in our store .

8) Apply to eMMC thickness of 0.8mm and 1.5mm.

9) Just insert the USB into your PC, it is easy use.

10) Accurate positioning on flat bottom pad and solder of eMMC.

11) Life cycle is around 25,000 times.

12) We provide one frame guide for each fixture , If you need more, please pay another $10 for per standard size plate.

This adapter includes one piece of adapter and size limiter(s) of 12x18mm.

Applicable borders limiter / frame guider link as below :

wy-plugin-start

Hot Commodity

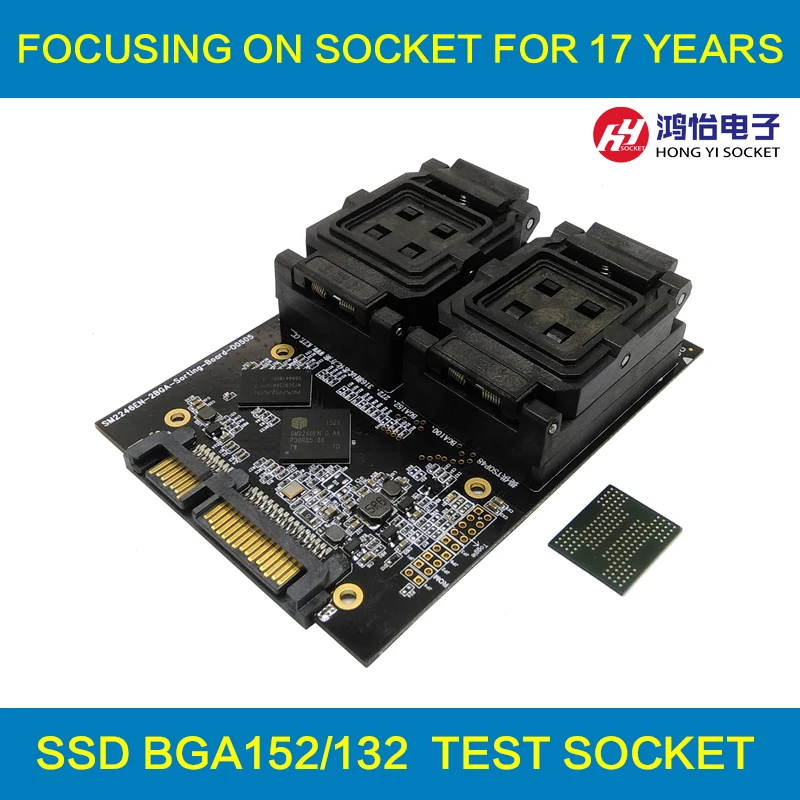

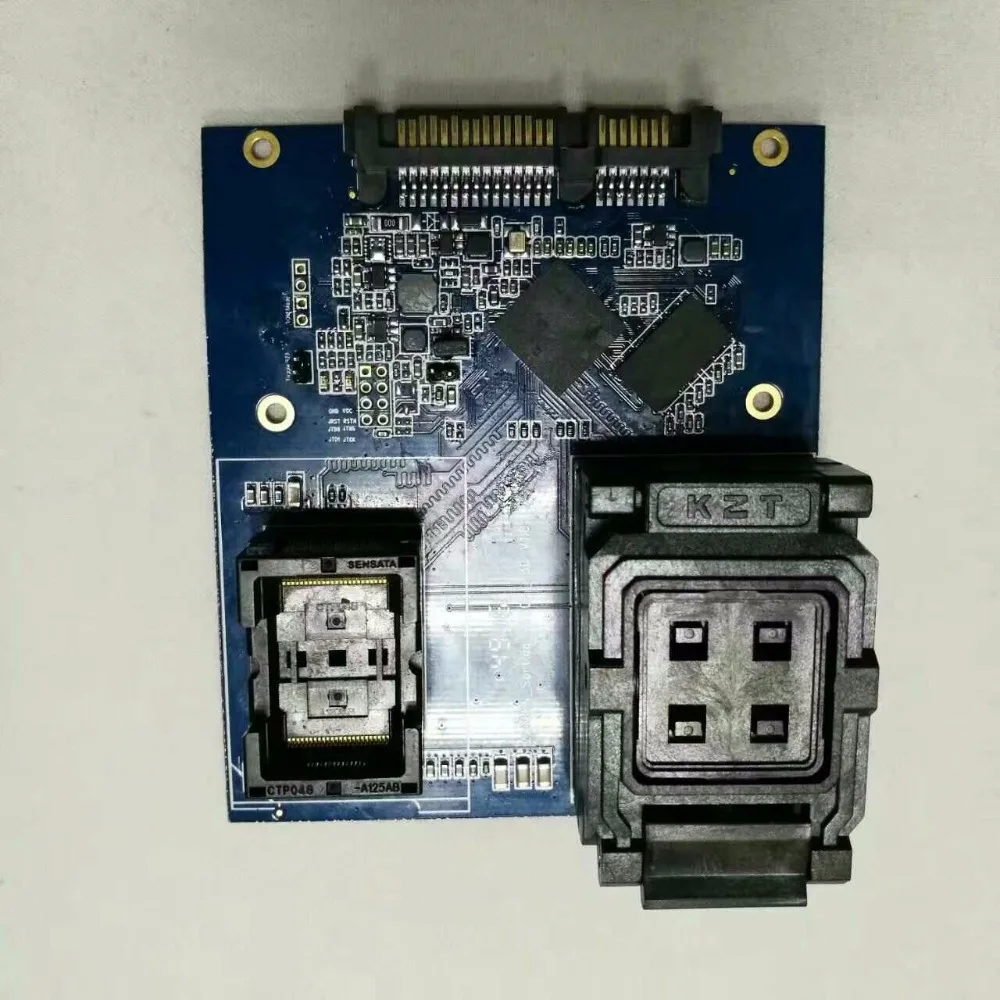

BGA132/BGA152/BGA88/BGA136 to DIP48 Adapter IC Test Socket Burn in Socket Programmer Socket With Board Clamshell Structure $69.8	KZT SSD SM2246EN bga132/152/88 flash test jig Test Socket Clamshell Structure SATA Interface Excellent Quality $58.8	Flash chip batch tester for U disk flash clearance second-class or recyle chips BGA152 BGA132 BGA100 BGA88 LGA52 TSOP48 $88	BGA132/BGA152 Test Socket to DIP96 adapter for SSD 8CE test ClamShell socket BGA152 Flash Memory Burn In Test IC Size optional $105.8

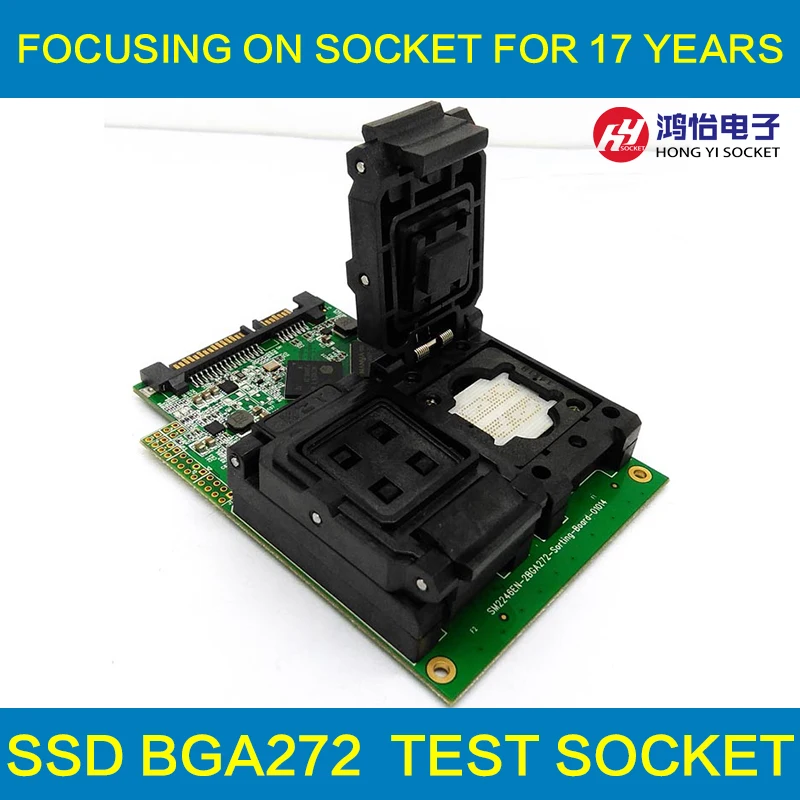

BGA272 Test Fixture SSD Flash Test Solution SM2246EN Two In One Test Board For Smart Phone Date Recovery $170	SSD 2 in 1 Multiple Function Test Board BGA152/132/100/88 TSOP48 NAND Flash Test Circuit SM2258H Controller Flash Memory $45	BGA316 TSOP48 to DIP48 clamshell test fixture with SM2256K main controller for test SSD chips and open Card $218	BGA316 TSOP48 to DIP48 test solution SM2256K main controller for test SSD chips and open Card $348
