WD-LD3000 life detector manufacturers video inspection camera | Инструменты

WD-LD3000 life detector manufacturers video inspection camera | Инструменты

Welcome to know our WD-LD3000 life detector

1> Visualization is a detector of life in collapsed buildings and in confined spaces, for the rescue team to search for victims of the special tools, enabling rescue teams more quickly and more safely to take action.

2> As long as the rescue workers and equipment will be put on the whole body, wearing headphones, holding his left hand rocker, the right hand according to the control handle, and rocker on display will be able to clearly show the front image; detector probe to install the camera automatically rotate, Once the rescue and dim light, you can open the lights.

3> The command detector allows detection of the first informed of the danger.

The WD-LD3000 search and rescue cameras are designed to function locates the victims trapped in collapsed buildings.However,it is important to remember that the camera is precise instrument and can be damaged if not cared for properly.

The following precautions should be adhered to in order to prevent damage from misuse:

1. Avoid moving the articulating joint manually. It should only be moved by the control switch on the control grip.Repeated manual movement of the camera head may damage the servo.

2. Avoid collisions the camera head in sharp objects.Damage will occur if the camera was fierce collision.When in doubt,stop and examine the situation carefully.Always avoid stress to the camera head.

3. The entire equipment is not waterproof.Do not intentionally immerse the equipment in water. LD3000 search and rescue cameras are not designed for underwater search operations.

4. When connecting the battery,always take the time to line up the connector index keys.No amount of force will allow the connection to be made until the index keys are aligned.

5. Always store the equipment with the battery disconnected. If the battery is left connected during storage, the battery will be deep discharged causing battery damage.

Life detector Specification:

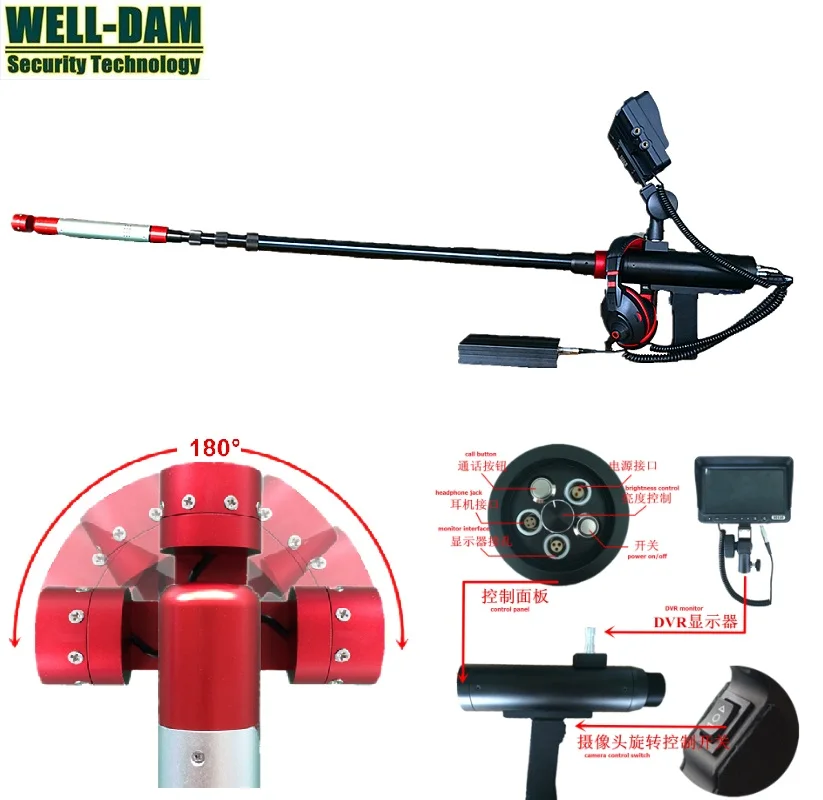

1> WD-LD3000 control box

The WD-LD3000 control box is the main control center for all whole cameras.
All controls and connections are located on the box of the control console.

12 pieces LED white lights provide the high brightness.
The LED intensity can be adjusted for day or night-time use.
Press the button 6 on the control box to adjust the brightness.

5> Talkbacl between Rescuers and Victims

6>  Battery

Equipped with two pieces rechargeable battery. Each unit Li Battery 10000mAh capacity and support 5-8 working hours.

When need to charge, just need insert the standard equipped 12V charger to refresh the battery built inside the box.

The light on thechargers surface will turn from red to green when it is full charged.

The tube sets are combined by 4 sets aluminium probe.
The spring lock can tight the connections of the rods.

Can be expand to 3.5meter.

8>  Set Up Plugs Usage

For example:

1. Push the connector into the place until it locks.
2. To remove the cable, grasp the knurled section of the plug and slide it straight back. The knurled section will pull back slightly and release the lock. Do not twist.Use red mark to align to key slot Slide knurled section of plug straight back to remove.

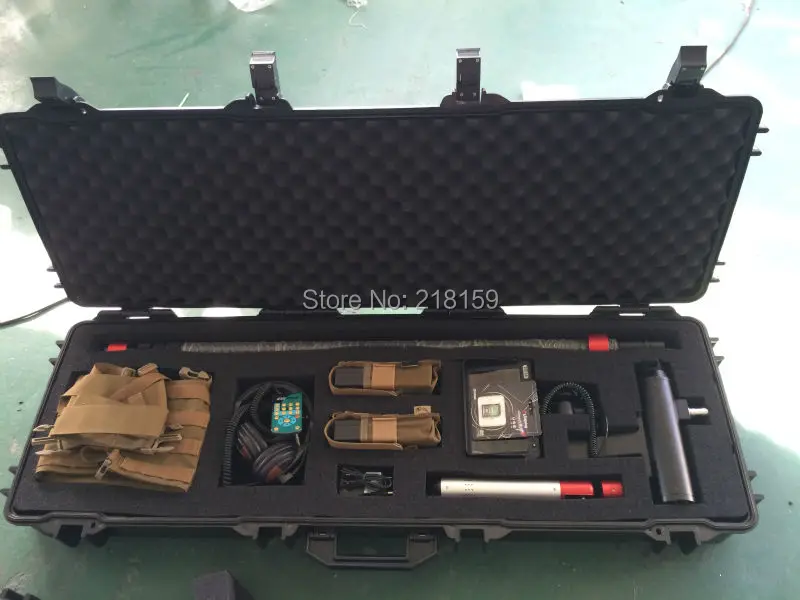

9> The WD-LD3000 camera is shipped in a protective transport case.

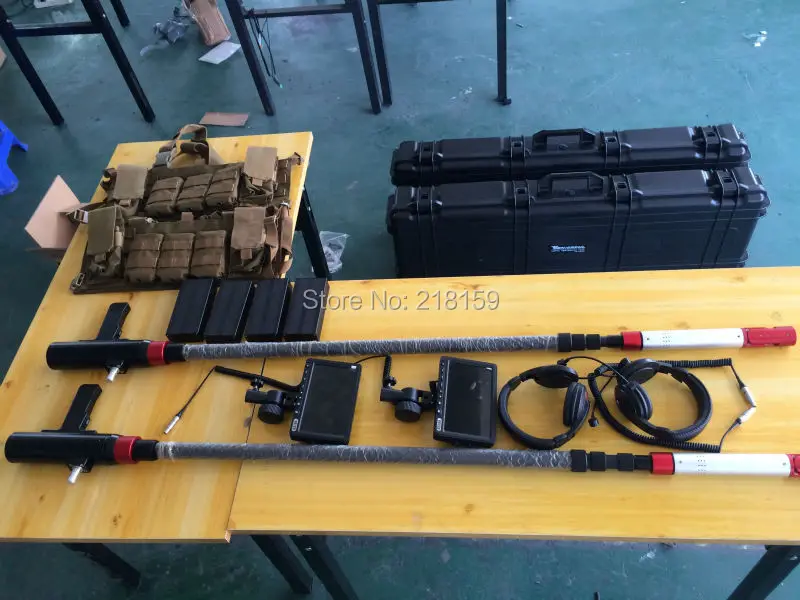

The kit includes all of the following:

1. Tube Set*1pcs
2. Battery*1pcs
3. Battery*1pcs
4. 7’’ digital screen TFT LCD color monitor*1pcs
5. Control box
6. Camera*1pcs
7. Vest *1pcs
8. ABS water tight case

10> We've passed the patent certification.

ShenZhen Well-Dam Technology Co., Ltd. was founded in 2012, is a professional metal detector manufacturer and dedicated to the development, production, sales and service of security products. Our products main include UVIS(under vehicle inspection system), Metal detector, Walk through metal detector,Visual and Video life detector, Ground search metal detector. Widely used in such places: Government agencies, courts, prisons, airports, wharf, customhouse, exhibition halls, other workplace safety inspection and factory anti-theft check.

As a manufacturer, we can offer professional security technical support and sales service for the worldwide customers. We attach importance to the products R&D and quality, and work out a set of our own management system, strictly control each process to ensure provide customers with best quality products.

We also have many other models metal detector, welcome to our factory ~
