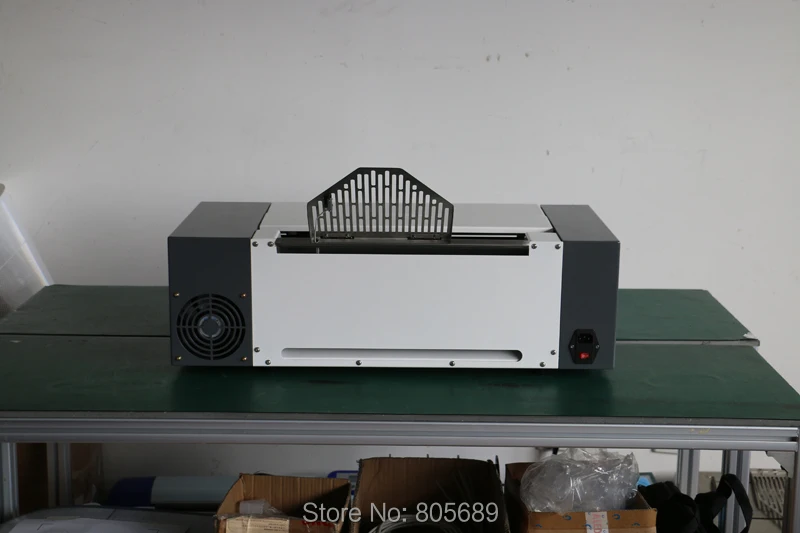

High Precision Auto Feeding Contour Cut Label Cutter NEW in sale automatic feeding paper die cut cutting plotter | Компьютеры и офис
US $1,699.00
Характеристики
Vicsign 64" HWF1600 Vinyl Cutting Plotter Machine Step Motor Segment Graphic Sign Contour Crafts Heavy Duty Cutter | Компьютеры и
История изменения цены
*Текущая стоимость US $955.00 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-18-2026 | 1213.82 руб. | 1237.29 руб. | 1225 руб. |
| Jan-18-2026 | 984.2 руб. | 1004.89 руб. | 994 руб. |
| Dec-18-2025 | 1194.27 руб. | 1218.54 руб. | 1206 руб. |
| Nov-18-2025 | 1184.85 руб. | 1208.79 руб. | 1196 руб. |
| Oct-18-2025 | 945.4 руб. | 964.58 руб. | 954.5 руб. |
| Sep-18-2025 | 1165.71 руб. | 1188.67 руб. | 1176.5 руб. |
| Aug-18-2025 | 1156.81 руб. | 1179.7 руб. | 1167.5 руб. |
| Jul-18-2025 | 1146.6 руб. | 1169.47 руб. | 1157.5 руб. |
Описание товара
HWF Segment Cutting Funtion Youtube Vido link
//www.youtube.com/watch?v=_dvMCxXImT4
//www.youtube.com/watch?v=pbYGtC24hWI
 |
| Model |
HWF1600 |
| Operation Method |
Roller-Type |
| Max.Cutting Width |
1600mm〔63inch〕 |
| Max.Cutting Length |
20meter〔79inch〕 |

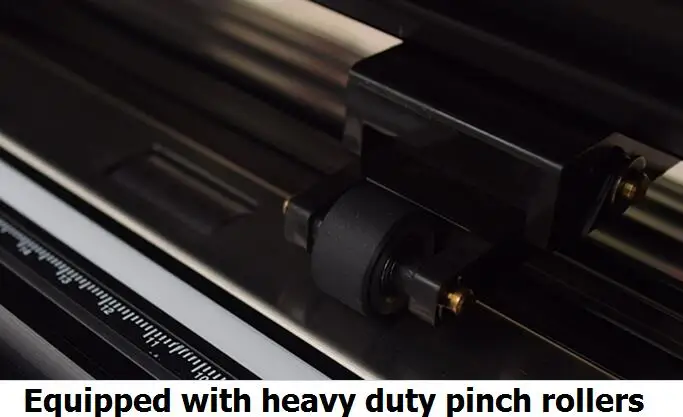

| Number of Pinch Rollers |
5Piece |
| Acceptable Material Thickness |
0.8mm (0.03" - Paper and cardboard 350g） |
| Drive Motor |
Stepper motor |
| Cutting Force |
10-1000g adjustable |
| Max.Cutting Speed |
650mm/sec |
| Offset |
1.00mm（with an increase of 0.025mm） |

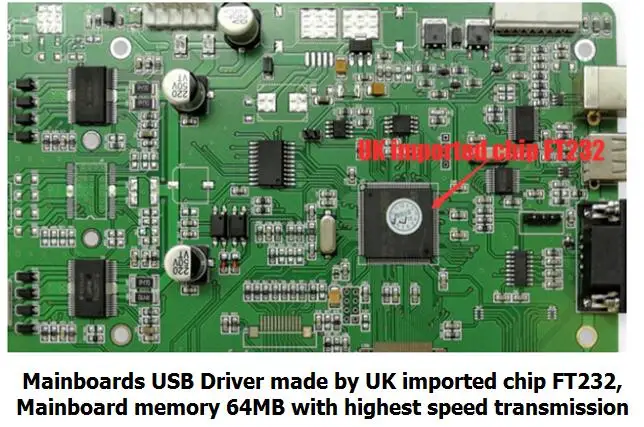

| Memory Buffer |
8MB |
|
|
|
| Type of Command |
HP-GL HP-GL/2 |
| Mechnical Resolution |
0.05mm |
| Software Resolution |
0.025mm |
| Repeatability |
±0.1mm |

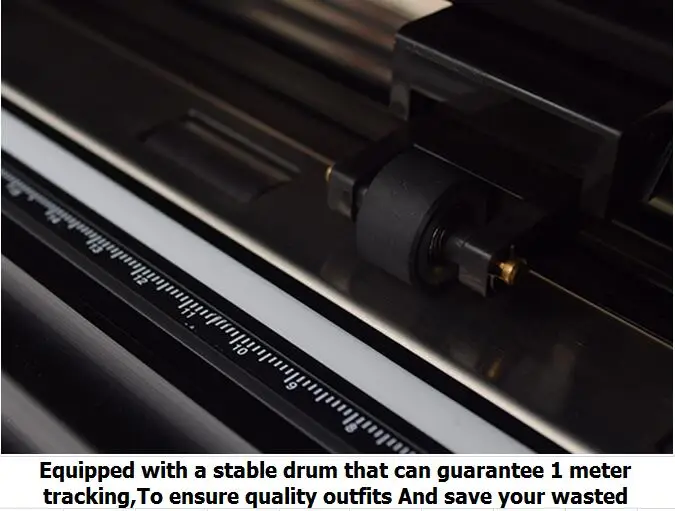

| Guaranteed Tracking |
1M |
| Curve & Arc Smoothing |
Yes |
| Test Cut capability |
Yes |
| Diameter of Blade |
2.5 mm |

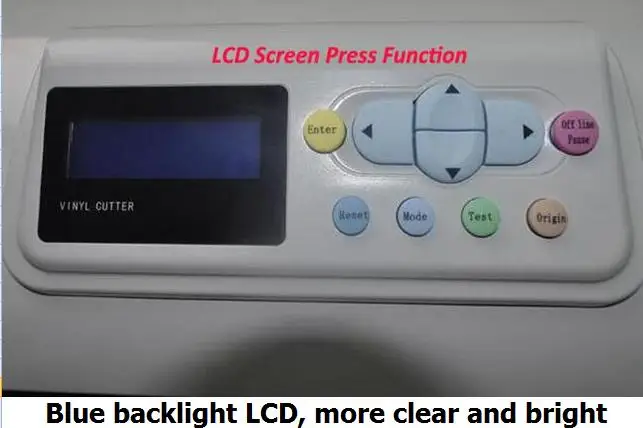

| Control Keys |
10 Control keys and 2 LED |
| Power Supply |
AC110v/220v ±10% 50Hz/60Hz |
| Power Consumption |
65.5 watts |
- Compatible with Windows 10 and above & MAC OS X 10.6 and above.
- (*add extra 15USD dollar to change the mainboard”） to work with Mac OS.)
- The specification and data sheet may vary with different materials used. In order to obtain the best output quality,
- please maintain the machine regularly and properly.
- VICSIGN reserves the right to change the specifications at any time without notice.
- The above listed specification values are effective only when operated with media certified by VICSIGN.
- Support Coreldraw Software X2 X3 X4 X5 X6 X7 X8 image output

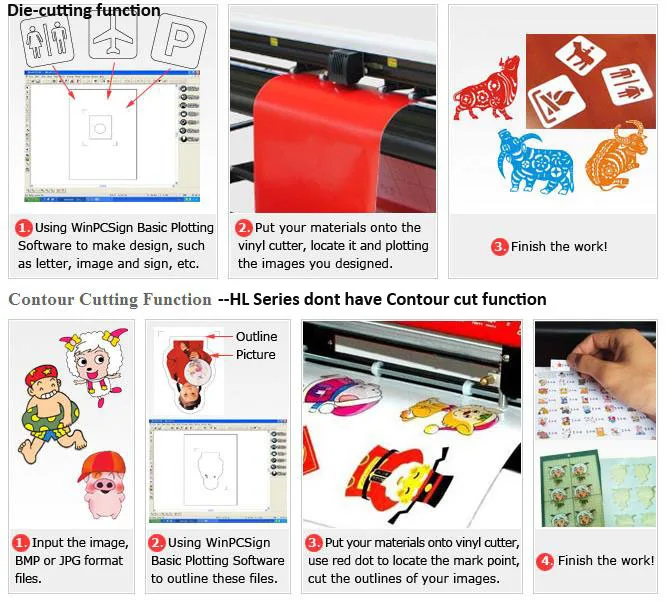

HWQF series is equipped with ARMS (Automatic Registration Mark Sensor) technology which allows for automatic contour cutting.
In conjunction with proper software this allows the machine to scan media, align with registration marks automatically,
-
and then contour cut around the design.,hereby list picture for your clear fully understand this function:
![234520170301142147]()
Section Cutting Section cutting divides the long plot data into sectional output jobs to gain higher cutting quality and increase precision. HWQF series scan registration mark of section 1 and cut the plot data in section 1, and then it scan registration mark of section 2 and cut the plot data in section 2, and so on.
![QQ20170518095547]()
![RXIISegmental]()
SOFTWARE
YOUTUBE LINK:
(1) Installation link: //www.youtube.com/watch?v=USJ6bEWgvNM
(2) Signmaster operation: //www.youtube.com/watch?v=lLqgu2QTkx4
(3)no need to set original point://www.youtube.com/watch?v=KzqSxeIJQ3A
(4) Cut thicker material ://www.youtube.com/watch?v=-wFIPSiHc88

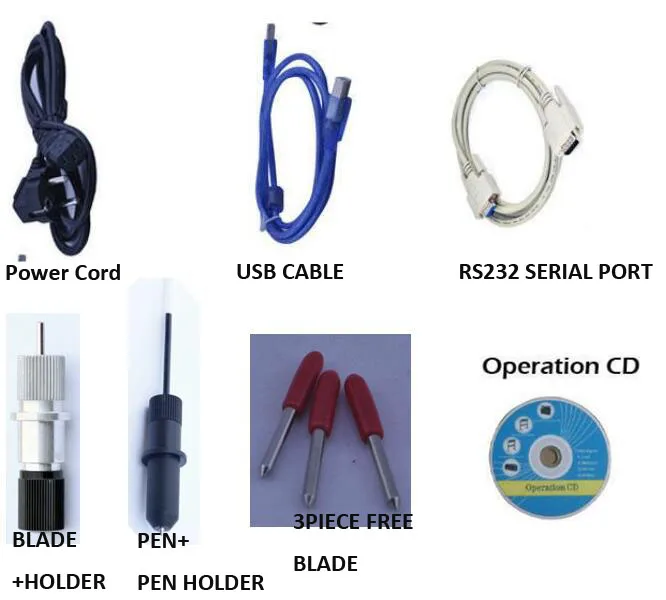

ACCESSORIES:

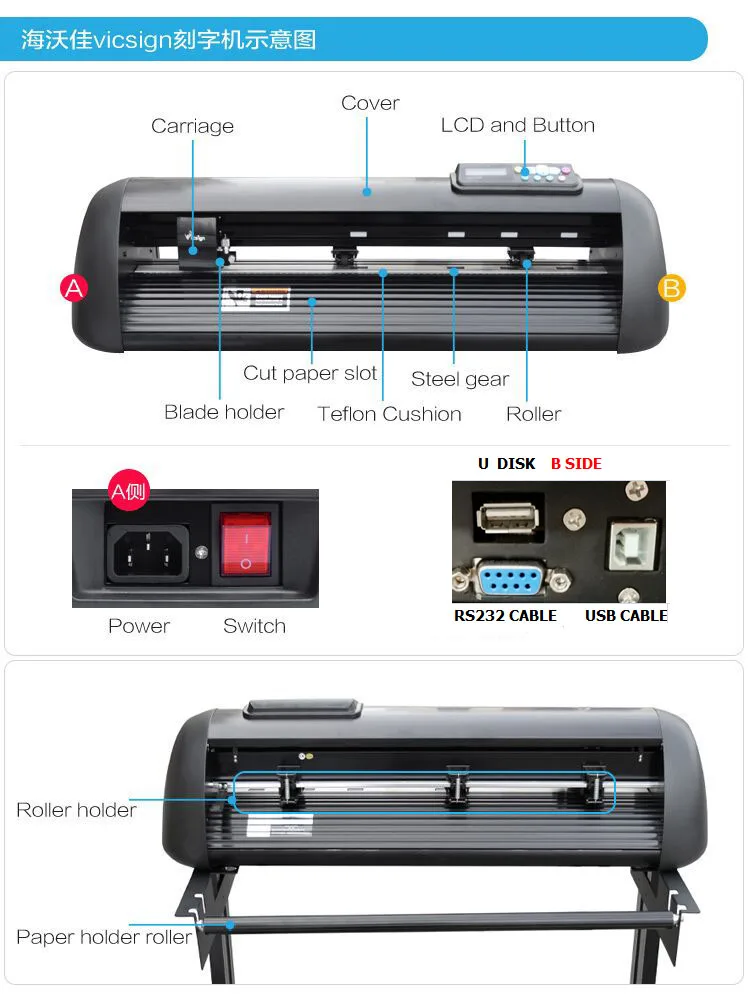

PLOTTER FUNCTION
APPLICATION USAGE:
OUR SERVICES:
(1) two year warranty on whole machine/parts.
(2) Professional service before and after sale.
(3) Supply training video and user's manual in English.
(4) Lifetime detailed technical services (include online training and technology solution)

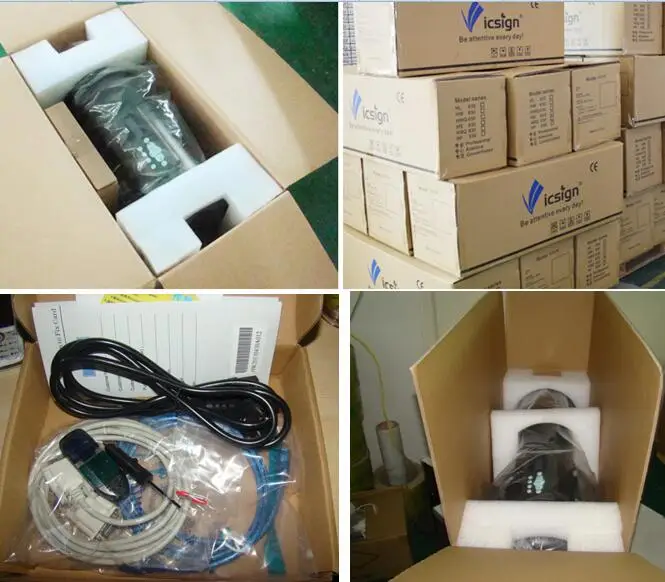

PACKAGING

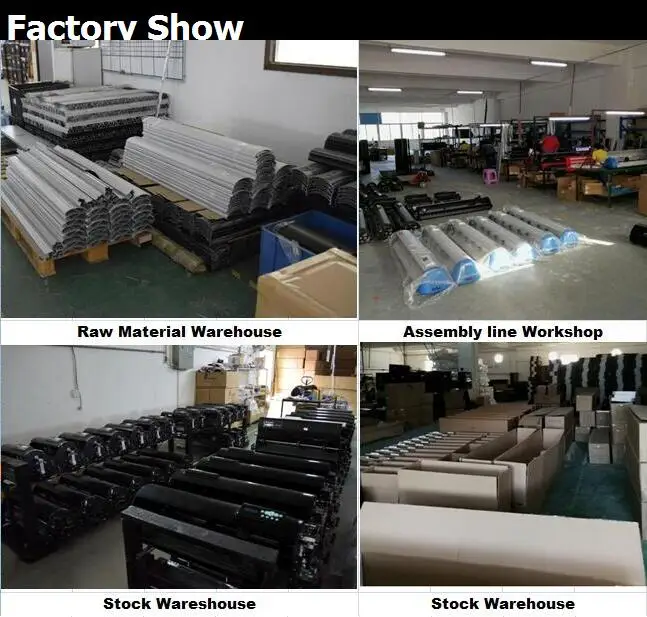

FACTORY SHOW:

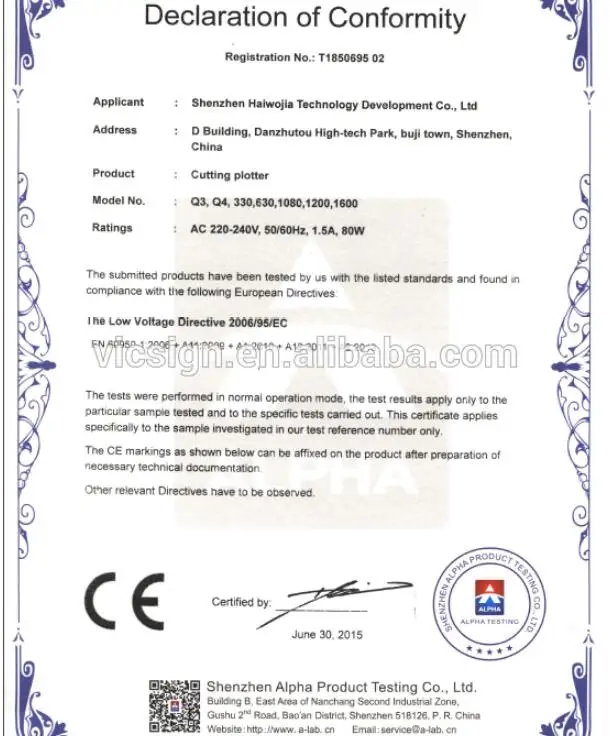

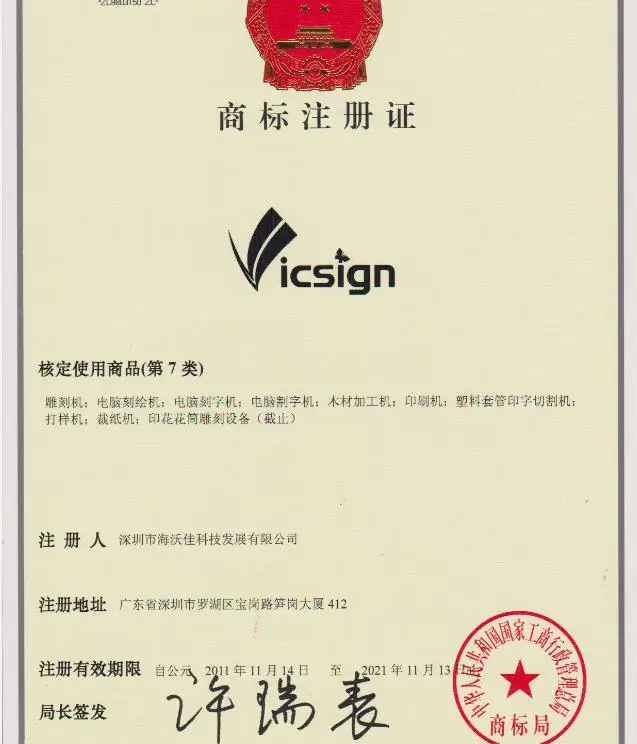

CERTIFICATE
