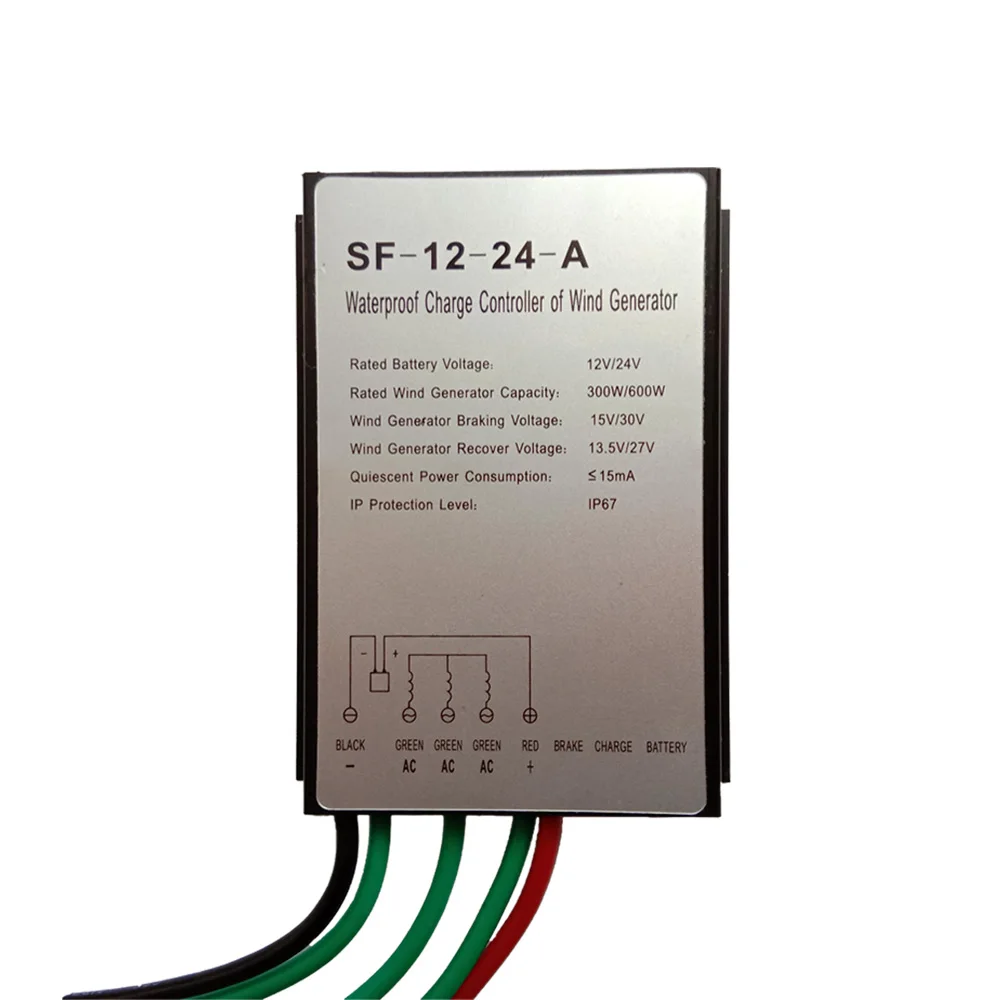

2022 Лидер продаж 100 Вт/200 Вт/300 Вт/400 Вт/500 Вт/600 Вт 12 В/24 В автоматический
1 214,14 - 1 677,87 руб.
Умный контроллер для водонагревателя SR288 солнечный коллектор и управление
8 891,40 руб.
Программируемый цифровой контроллер заряда аккумулятора 6-60 В постоянного тока
579,47 руб.
96V 1.3KW 2.6KW 3.9KW Ветер солнечный гибридный контроллер MPPT Boost Функция CE
28 458,61 - 37 215,11 руб.
Контроллер заряда солнечных батарей 60 А 50 40 30 20 10 12 В 24 ШИМ регулятор батареи
Солнечный контроллер для 12 В 260 Вт 24 520 mppt системы работы Tracer2210CN с USB кабелем
4 978,42 руб.
2019 Solar Charge Controller 12V 24V LCD Display Autoswitch Charger Regulator + 5 Pairs M/F Cable Connectors | Обустройство дома
Характеристики

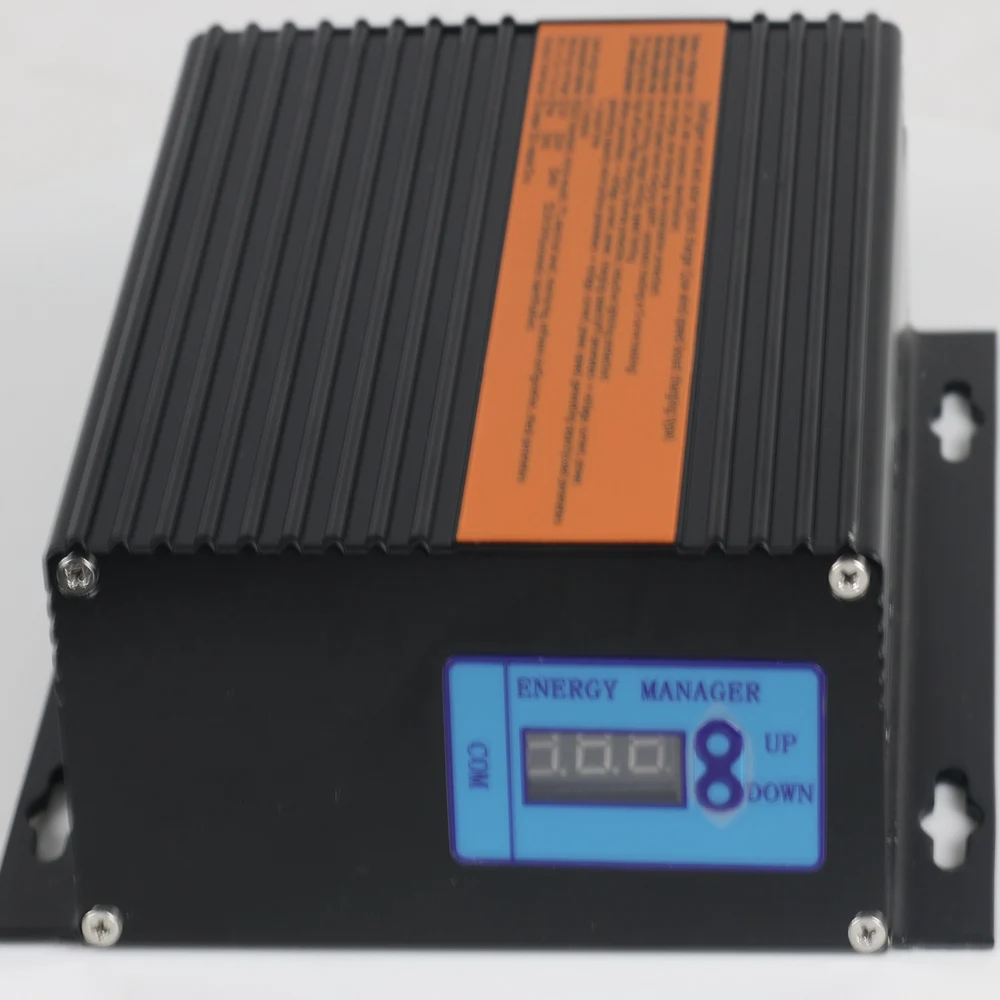

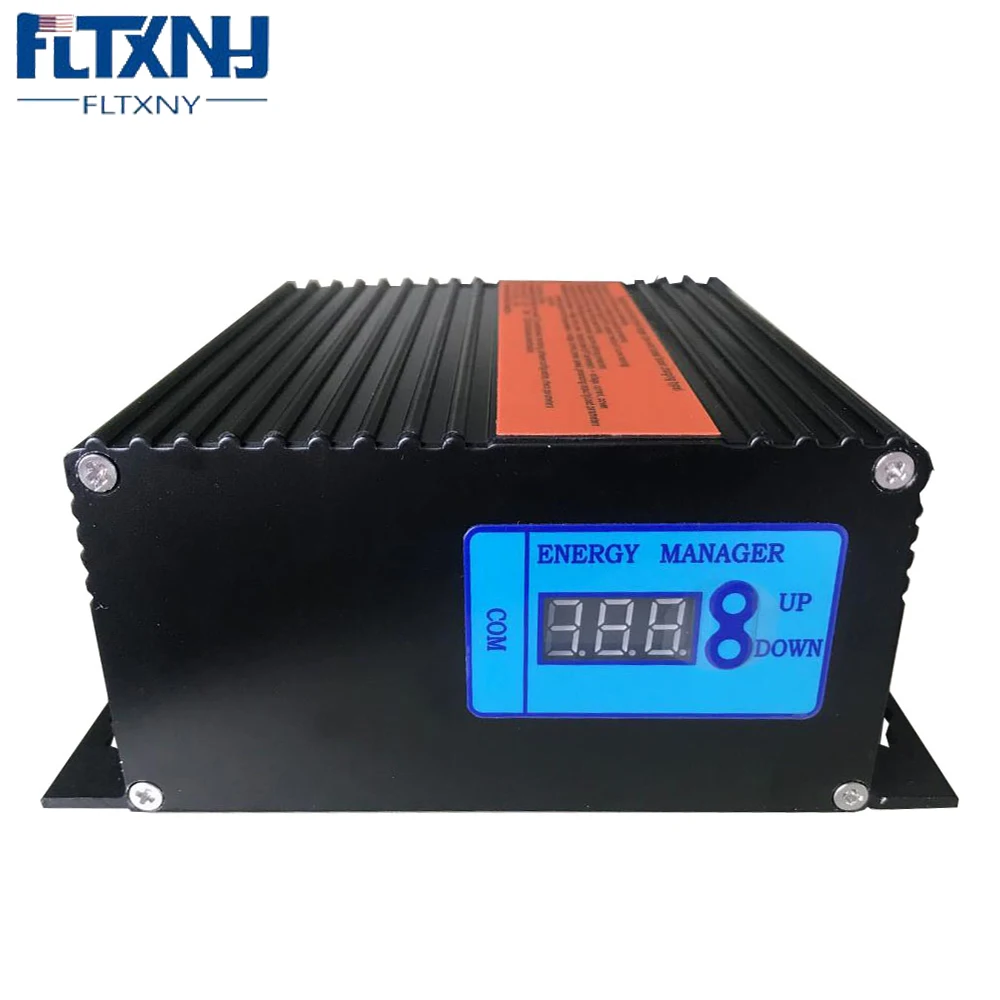

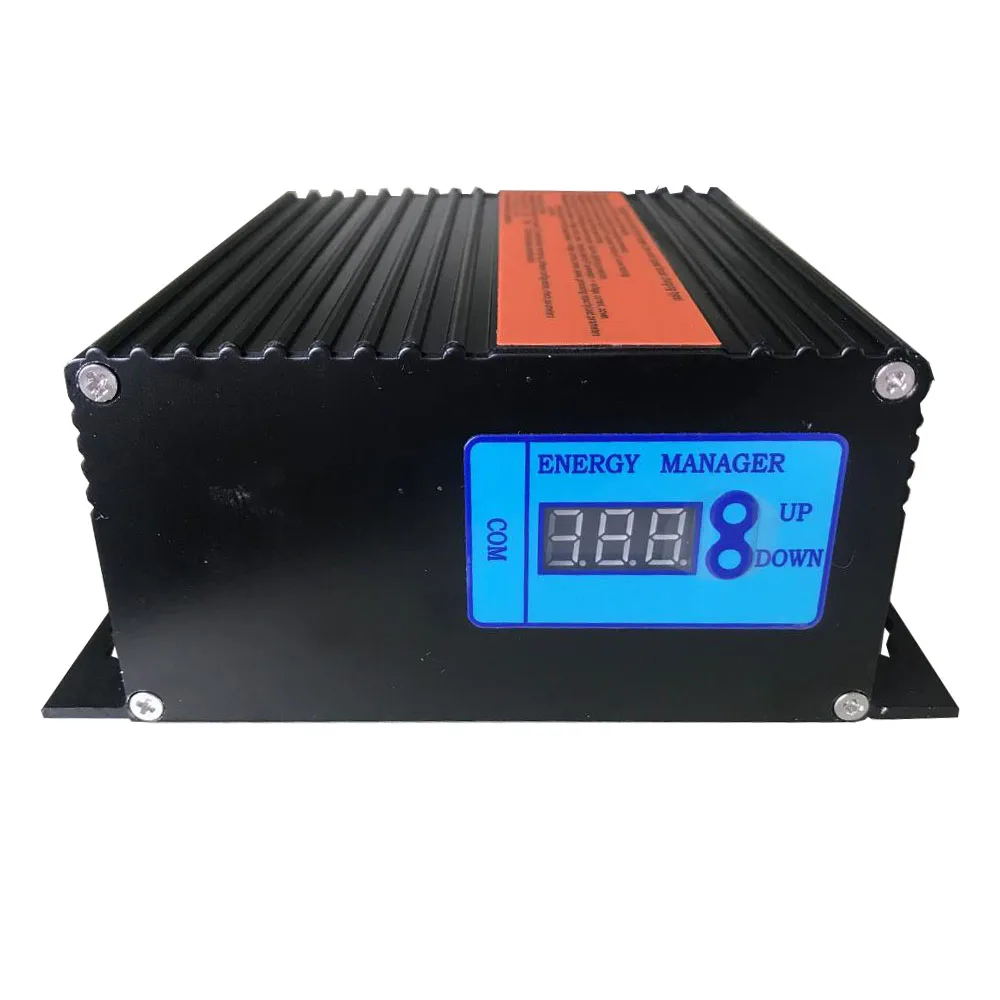

Wind Solar Hybrid Controller LED Display 300W 400w 500w 600w Mppt 12v 24v 48V Auto Low Voltage Booster | Обустройство дома
История изменения цены
*Текущая стоимость US $77.00 - 108.50 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-18-2026 | 98.79 руб. | 100.52 руб. | 99 руб. |
| Jan-18-2026 | 79.84 руб. | 81.74 руб. | 80 руб. |
| Dec-18-2025 | 96.22 руб. | 98.94 руб. | 97 руб. |
| Nov-18-2025 | 95.0 руб. | 97.17 руб. | 96 руб. |
| Oct-18-2025 | 76.56 руб. | 78.32 руб. | 77 руб. |
| Sep-18-2025 | 94.71 руб. | 96.99 руб. | 95 руб. |
| Aug-18-2025 | 93.3 руб. | 95.68 руб. | 94 руб. |
| Jul-18-2025 | 92.16 руб. | 94.51 руб. | 93 руб. |
Описание товара
FEATURES
1. Waterproof. Waterproof, anti-corrossion, insulated protections are specially designed for circuit board. The housing is also waterproof.
2. Optional TTL232 communication. Standard TTL232 communicationmicro-port make it easy to monitor the system on a computer. (RS485, short distance wireless optional), with USB to RS232 cable, it’s very convenient to exchange data between controller and computer.
3. No damage would happen while solar power input is reverse-connected sustainedly. Controller willgo on working after correcting the reversed connection.
4. Boost MPPT input technolog.The controller provides automatic wind turbine MPPT(input maximum power tracking) mode, or 5-segment matching curve input configuration mode (RPM vs input current curve, or input voltage vs input current curve), which could maximize the power generation efficience under low wind speed.
For 12V battery, start charging voltage 6V; For 24V battery, start charging voltage 12V.
5. multiple output modes. The controller provides a variety of output modes(light control, time control, morning light) feasible for various applications.
6. The controller could calculate cumulative power generated, remaining power, RPM, current, temperature and other data.
The controller displays not only conventional data such as output current/voltage/power of wind turbine/solar panel/battery, but also the cumulative power generated by wind/solar, remained battery power and RPM.
Wind: input voltage/current/power/cumulative power/RPM/unloading current
Solar: input voltage/current/power/cumulative power
Battery:Voltage/charging curent/power/cumulative power
7. Protections:
Wind: Over speed protection,over current protection, induced lightning strike protection
Solar: Reverse connection protection
Battery: Reverse polarity protection(fuse burn-out）, over voltage protection, low voltage protection(for street lights)
Insulation Grade: IP41
Specifications
Battery Parameters | ||
Rated Voltage | 12V/24V Auto Recognition/48v | |
Protection | reverse polarity protection(fuse burn-out), over voltage protection, low voltage protection(for street lights) | |
Over voltage protection point | 29.0V±0.2V（14.5V±0.2V) | |
Over voltage protection recover point | 27.5V±0.2V（13.7V±0.2V） | |
Low voltage protection point | 21.0V±0.2V(10.5V±0.2V） | |
Low voltage protection recover point | 23.0V±0.2V(11.5V±0.2V） | |
Wind input parameters | ||
Rated wind power | 300W/12V,600W/24V/48v | |
Start charging voltage | 6V(12V system) /12V(24V system) | |
Rated input current | 20A DC(after rectification) | |
Maximum input current | 25A DC(after rectification) | |
Default rotation speed limit | 500 Rpm (adjustable) | |
Default input current limit | 20A (adjustable) | |
Protection | Over speed protection，over current protection，induced lightning strike protection | |
Unloading method | PWM highfriquency smooth unloading (build-in) & Manual brake | |
MPPT mode | Boost MPPT(MPPT or 5-segment curve input tracking) | |
MPPT channal input current | 5A default | |
PV input parameters | ||
Rated Power | Standard 300W/12V, 600W/24V | |
(Optional 500W/12V, 1000W/24V) | ||
Rated input current | Standard 15A, (Optional 30A) | |
Voltage drop when charging | <0.2V | |
PV protection | Reverse connection protection | |
Unloading method | Open circuit | |
Load output parameters | ||
Output way | 2 ways | |
Output current/way | 12A | |
Output mode | Light control, time control, morning light, permanent output. | |
Other parameters | ||
Display | three-digit numeric LEDdisplay | |
Communication | Standard TTL232(5V voltage level) | |
(Optional RS485/short distance wireless RF) | ||
Contents | Wind: input voltage/current/power/cumulative power/RPM/unloading current | |
Solar: input voltage/current/power/cumulative power | ||
Battery:Voltage/charging curent/power/cumulative power charge/battery status info | ||
standby power consumption(screen backlight off) | About 17ma /24V | |
Operation | 2 buttons | |
Working temperature & humidity | -40~+80℃/20~85%RH (no condensation ) | |
Protection grade | IP41 | |
Dimension | 158mm*113mm *60mm | |
Net weight | 0.8KG | |

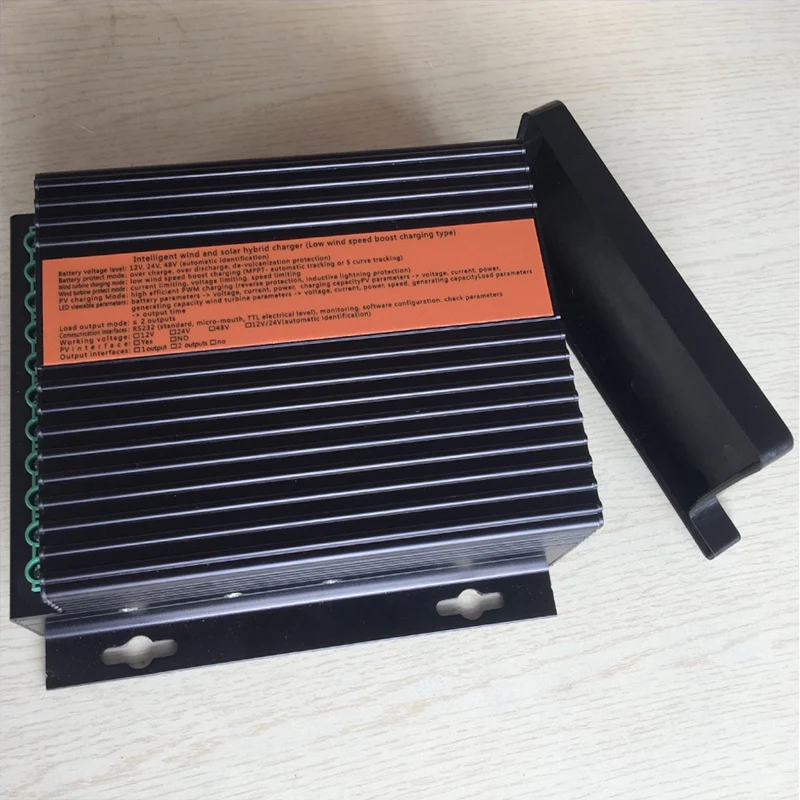

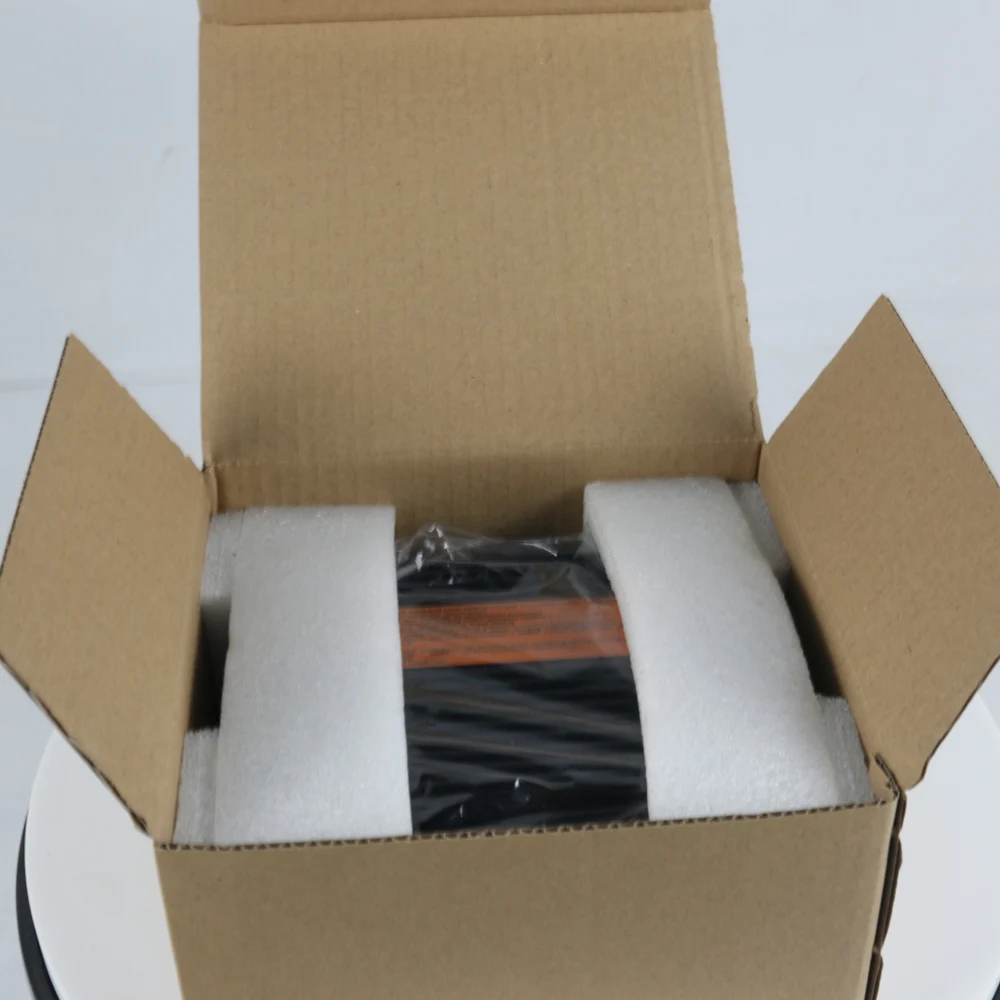

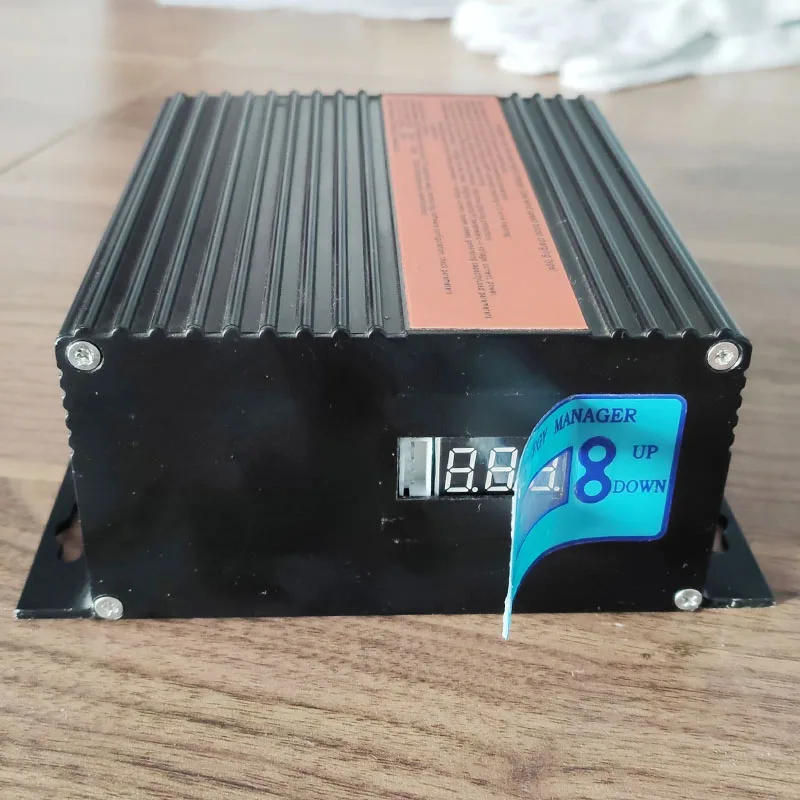

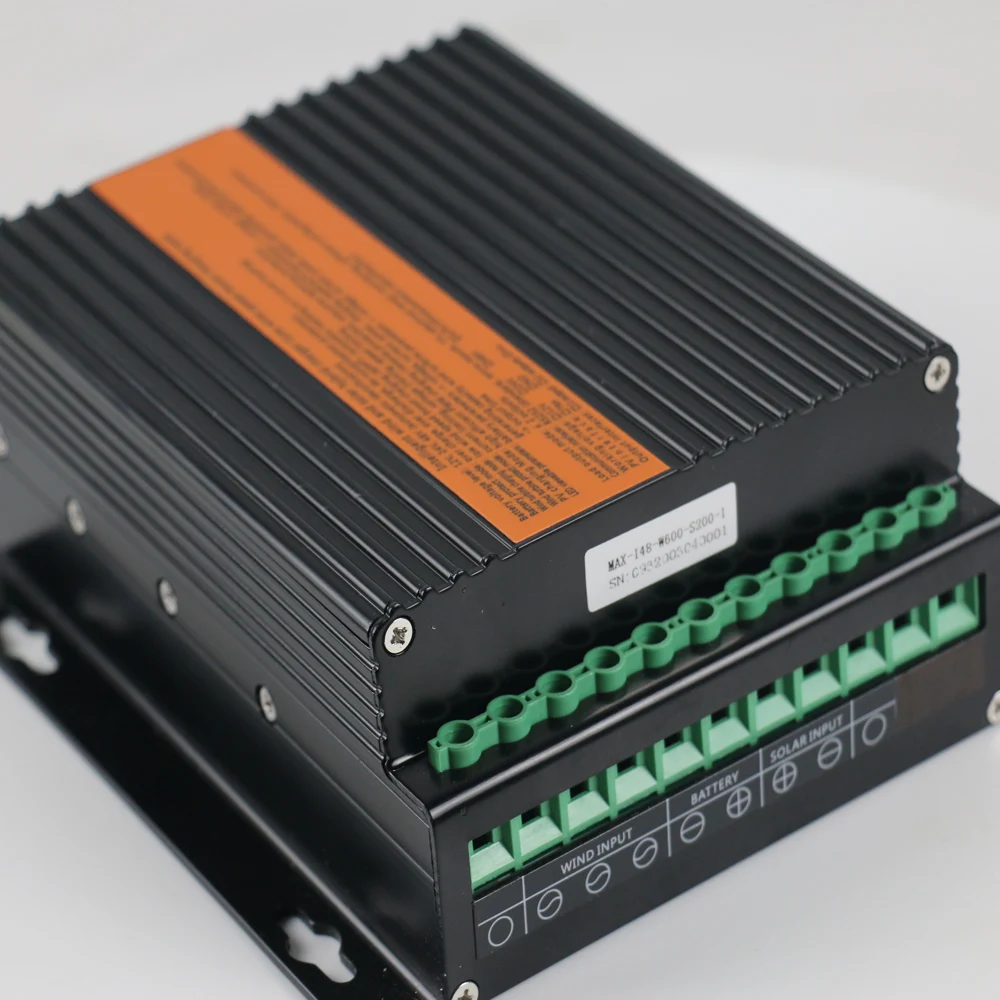

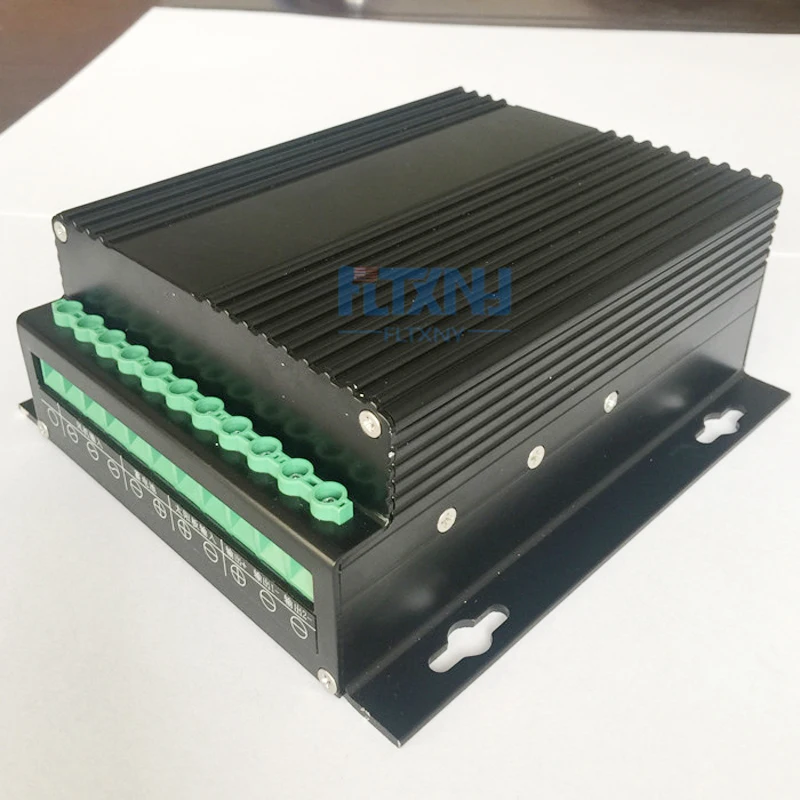

MPPT controller pictures
