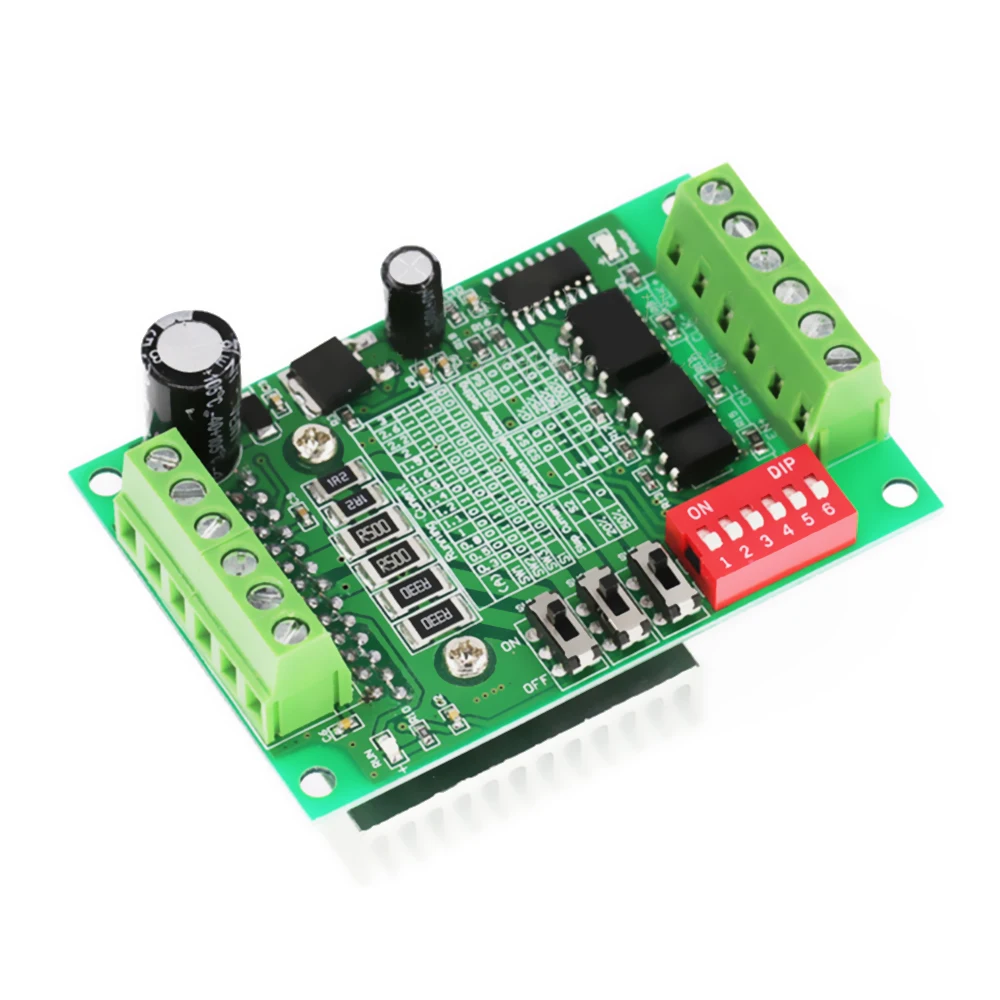

TB6560 3A 10V-35V Драйвер шагового двигателя контрольная плата ЧПУ управление
1 035,23 руб.
Плата драйвера двигателя L298N модуль L298 для шагового arduino умного автомобиля робота

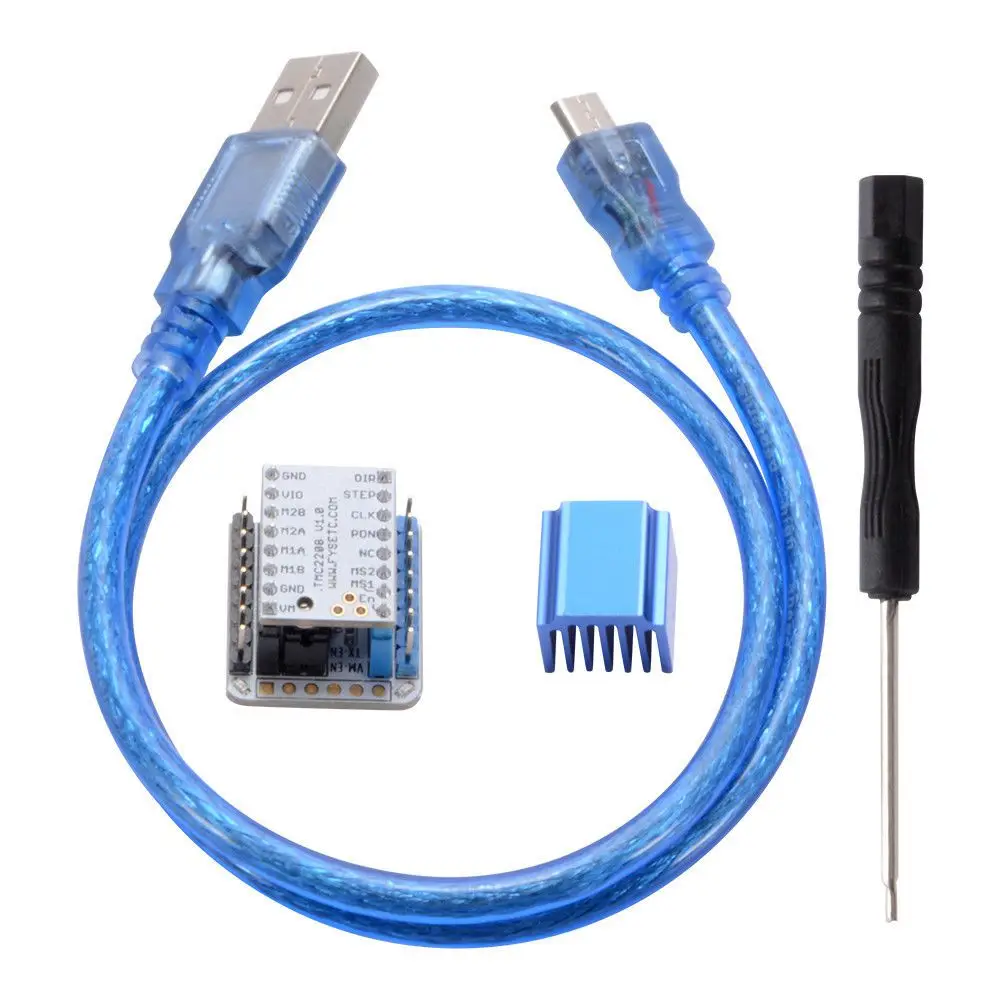

(Drop shipping) TMC2208 V1.0 Stepper Motor Driver + Tester Module With Stackable Headers | Обустройство дома
Характеристики
Stepper Driver Leadshine M415B work 24V-40 VDC output 0.21A to1.5A Fit NEMA 16 or NEMA17Stepper motor 0.3NM | Обустройство дома
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 0.73 руб. | 0.31 руб. | 0 руб. |
| Feb-18-2026 | 0.84 руб. | 0.18 руб. | 0 руб. |
| Jan-18-2026 | 0.22 руб. | 0.23 руб. | 0 руб. |
| Dec-18-2025 | 0.12 руб. | 0.13 руб. | 0 руб. |
| Nov-18-2025 | 0.32 руб. | 0.62 руб. | 0 руб. |
| Oct-18-2025 | 0.16 руб. | 0.58 руб. | 0 руб. |
| Sep-18-2025 | 0.53 руб. | 0.76 руб. | 0 руб. |
| Aug-18-2025 | 0.38 руб. | 0.58 руб. | 0 руб. |
| Jul-18-2025 | 0.45 руб. | 0.9 руб. | 0 руб. |
Описание товара

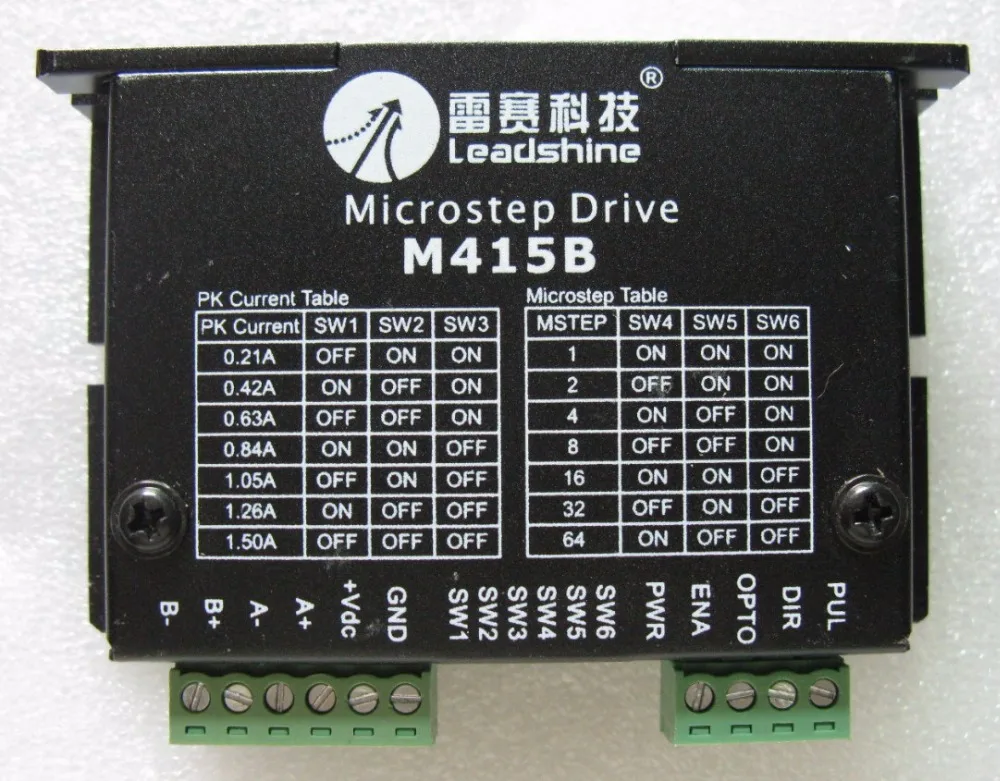

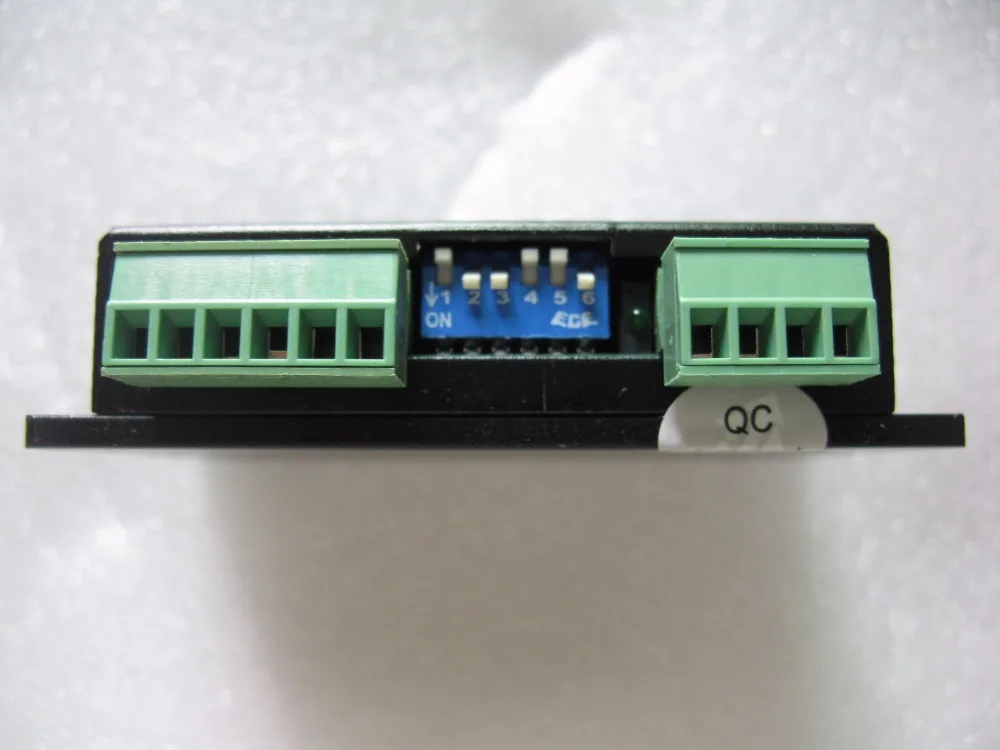

New Leadshine M415B Stepper Drives work 24V-40 VDC out 0.21A to 1.5A Fit for Setpper motor NEMA 16or 17 size model 39HS02/42HS02
Features:
- High performance, low cost
- Supply voltage up to +40VDC
- Output current up to 1.5A
- Inaudible 20 KHz chopping frequency
- TTL compatible and optically isolated input signals
- Automatic idle-current reduction
- Mixed-decay current control for less motor heating

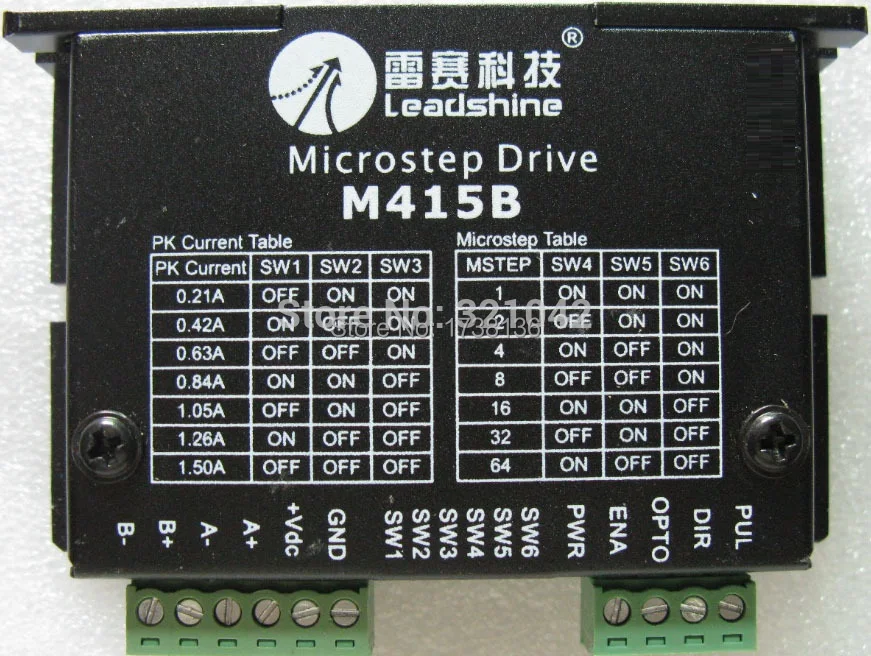

- 7 selectable microstep resolutions: 1, 2, 4, 8, 16, 32, 64
- Suitable for 2-phase and 4-phase motors
- Protection against power leads(+, -)reversal
- Small size: 86*55*20mm (3.386*2.165*0.787Inch)
Introduction :
The M415B is a very small size high performance microstepping drive based on one of the most advanced technologies in the world today. It's suitable for driving any 2-phase and 4-phase hybrid stepping motors. By using advanced bipolar constant-current chopping technique, it can output more speed and power from the same motor, compared with traditional drives such as L/R drives.
Specifications :
General :
Electrical Specifications (Tj = 25oC/77oF)
| Parameters | M415B |
| Supply voltage | +15 to 40 VDC |
| Typical supply voltage | +24-+36 VDC |
| Output current (Peak) | 0.21 to 1.5 A |
| Microstep resolutions | 1, 2, 4, 8, 16, 32, 64. |
Connector P1 Configurations
| Pin Function | Details |
| PUL | Pulse signal: This input represents pulse signal, effective for each rising edge; 4-5V when PUL-HIGH, 0-0.5V when PUL-LOW. For reliable response, pulse width should be longer than 1.5ms. Series connect resistors for current-limiting when +12V or +24V used. |
| DIR | Direction signal: HIGH/LOW level signal, correlative to motor rotation direction. For reliable response, DIR must be ahead of PUL by 5ms at least. 4-5V when DIR- HIGH, 0-0.5V when DIR-LOW. Motor rotation direction also depends upon the connection of the motor windings, exchange any motor phase can reverse motor rotation direction. |
| OPTO | Opto-coupler power supply, and the typical voltage is +5V. |
| ENA | Enable signal: This signal is used for enabling/disabling drive. High level for enabling drive and low level for disabling drive. Usually left unconnected (enabled). |
Connector P2 Configurations
| Pin Function | Details |
| Gnd | DC power ground |
| +V | DC power supply, 15~40VDC, Including voltage fluctuation and EMF voltage. |
| A+, A- | Motor Phase A |
| B+, B- | Motor Phase B |
