Описание товара
Hantek 6212BE USB Digital virual Oscilloscope 200MHz 250MS/s , instead of DSO5200 DSO5200A
Hantek6000BE Series
Bandwidth: 200MHz; Sample Rate: 250MSa/s;
Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.
Standard USBXI (TM) interface, easyly inserts into USBXI (TM) housing to make up a combination instrument.
Features
-
Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.
-
Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.
-
USB2.0 interface, no external power source required, easy to use.
-
Be suitable for notebook computer, product line maintenance, be used easily on business.
-
Dimensions (mm):205(L) x120(W) x35(H), be carried easily.
-
High performance, 250MS/s real-time sampling, 20MHz-80MHz bandwidth.
-
Operating System: Windows 7, Windows NT, Windows 2000, Windows XP, VISTA.
-
23 measurement functions, PASS/FAIL Check, be suitable for technical application.
-
Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
-
Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
-
FFT
-
One computer can connect many DSO, extend channel easily.
-
Labview\VB\VC Second Design instance.
Parameters:
Model |
Hantek6102BE(Click here) |
Hantek6212BE |
|
Channel |
2 Channels |
||
Bandwidth |
100MHz |
200MHz |
|
Input Impedance |
1MΩ 25pF |
||
Max. Sample rate |
250MS/s |
||
Coupling |
AC/DC/GND |
||
Vertical resolution |
8Bit |
||
Gain range |
10mV-5V, 9Steps |
||
DC accuracy |
±3% |
||
Timebase range |
4ns-1h, 38 Steps |
|
|
Vertical adjustable |
Yes |
||
Input protection |
Diode clamping |
||
X-Y |
Yes |
||
EXT. input |
Yes |
|
|
Trigger Mode |
Auto, Normal and Single |
||
Trigger Slope |
+/- |
||
Trigger level adjustable |
Yes |
||
Trigger Type |
Rising edge, falling edge |
||
Trigger Source |
CH1, CH2, EXT |
|
|
Pre/Post trigger |
0-100% |
||
Buffer size |
1M |
|
|
Sampling selection |
Yes |
||
Waveform Display |
port/line, waveform average, persistence, intensity |
||
Network |
Open/Close |
||
Vertical mode |
CH1, CH2, Dual, ADD |
||
Cursor measurement |
Yes |
||
Math |
FFT, addition, subtraction, multiplication, division. |
||
Cursor |
Frequency, Voltage |
||
Accessories |

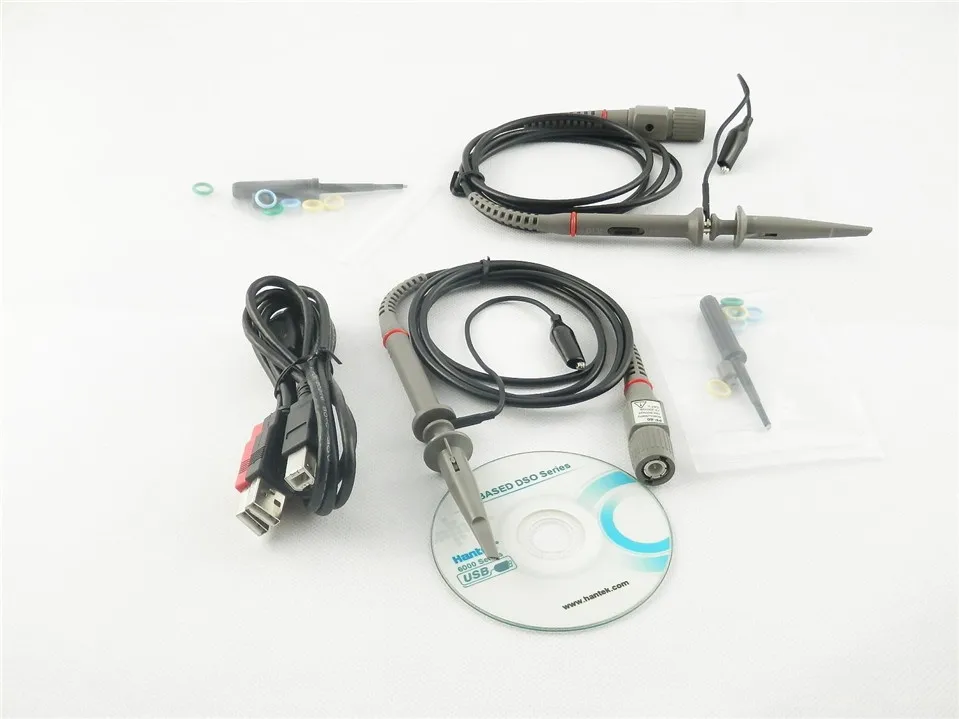

S/W CD, probes, manual, USB cord |
||
