Jeatone 7 Inch Video Door Phone HD 1200TVL IR Night Vision Outdoor Camera Doorbell Hands-Free Monitor Motion Detection Alarm |

Notice: Our Product Just Works Well With Our Own Intercom System. At Present. We Could Not Guarantee It Could Be Compatible With Other Brand Indoor Monitor/Outdoor Camera. If You Need To Connect Other System ,Please Contact Us For Technical Support Before Buying.

With JeaTone 7”Touch Screen Wired Video Door Phone System, Visitor Can Use Call Panel Calls, Then You Use Indoor Monitor Unlocking, Monitoring, Taking Pictures And Recording Video.

Wide Viewing Angle

See More Area With 100 Degree Angle With The 2.8mm Lens Outdoor Camera, Protect Your House Safety.

Due To The Perspective Characteristics, Wide Angle Lens Will Have Certain Deformation (Near The Center Lens Deformation Is Small, Marginal Deformation More Serious), Distance From The Camera When The Subject Is Close, Body Image Deformation Will Be Larger.

Multi-languages OSD Menu

The System Supports Six Different  Languages: English, Russian, French, Arabic, Spanish, Japanese.

Clock & Date Mode

With This New Function, You Can Consider The Indoor Monitor as a Clock Hanging On The Wall. It Always Shows The Time As Long As You Plug In Power For The Monitor.

Touch Screen Monitor

Unique Touch Screen Design, OSD Menu, Brushed Metal Panel, Stylish And Elegant.Dual-way Intercom, Call Transfer Among Monitors

This Item Is Hands-free And Available For Dual-way Communication. It Supports Communication Between Indoor Monitor And Outdoor Camera, But Also Supports Communication Between Monitor And Monitor.

Adjust Lock Time, Compatible With All Electronic Lock (Not Included)

Support To Connect a Delay Function Electronic Lock To This System. With This Function, You Just Need To Press The Unlock Button On Monitor. Support Adjusting The Time Between Lock And Unlock. So, It Makes Your Home More Safety.

Support Electronic Lock, Analog Camera, PIR (Not Included)

Our 7" Video Door Phone Set Supports Connecting With PIR Detector, Analog Camera And Electronic Lock. It Can Protect Your Home And Property In All Aspects.

​Please Notes:

PIR Installation Separately Can Be For Alarm Prompt only, Work With Camera Together Can Alarm And Video Recording.

Video or Picture Record, SD Card Supported (Not Included)

When Someone Rings The Doorbell, The Monitor Inserted With SD Card Will Record Picture or Video Automatically. If The SD Card Doesn't Applied, The Monitor Will Just Only Record Picture. The Built-in Memory Could Save 86 Pictures, With SD Card, You Can Set The Recording Mode To Video. When The SD Card Is Fulled, The Earliest Recorded Video Will Be Deleted Automatically.

IP65 Waterproof, Anti-thunderstorm Design

The Outdoor Camera Is Equipped With Rubber Gasket Ring, There Is No Way To Leak. It Also Can Works Well Even In Bad Weather.

Fashionable Appearance ♦1200TVL Camera ♦3pcs 940 Nanometer IR LEDs For Night Vision ♦Adjustable Intercom Volume ♦Dual-way Intercom ♦IR Sensor, Turn On/off IR LEDs Automatically ♦Easy To Install And DIY Installation ♦Rust-proof Aluminium Alloy Anti Vandal Panel ♦IP65 Weatherproof

Excellent Performance ♦7"TFT High Resolution Color Screen ♦Wire Drawing Aluminum Case  ♦Touch Sensor Button ♦Room to Room Intercom ♦Door Answering, Monitoring And Unlocking ♦Adjustable Color, Brightness and volume ♦Built-in Memory Can Save 86 Pictures, Support External Max.32GB SD Card ♦12 Ringtone For Choice

Package

Please Notes：

The Extension Cable(5m,15m,25m) Is Not Included, You Need To Buy It Separately According To Your Needs.(Input:100V-240V)

  We Will Send Applicative Power Adapter To Your According To Your States

Installation Method

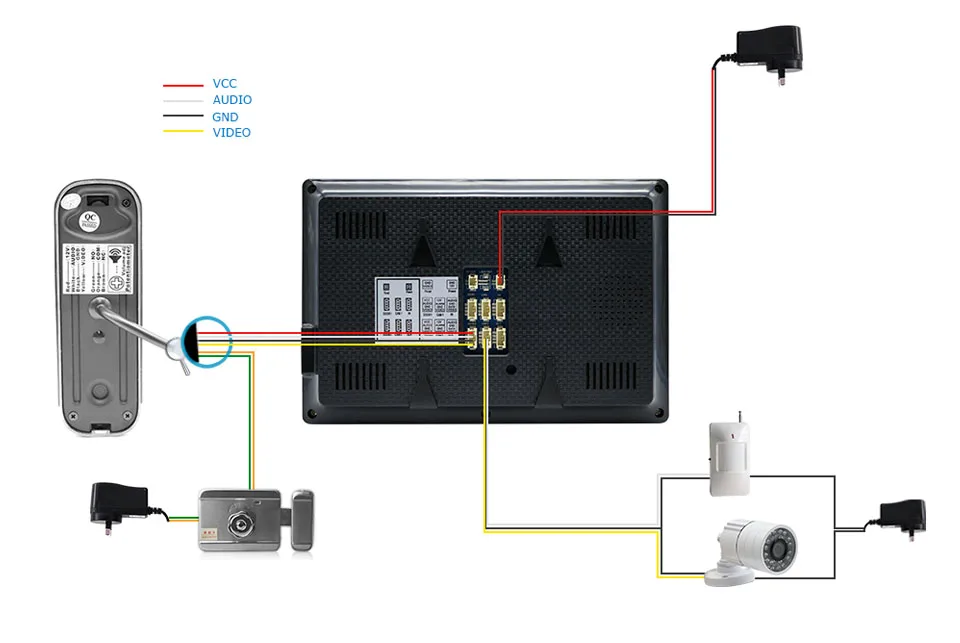

Connection Diagram

PIR Sensor And CCTV Camera Installed To Work Together Can Alarm and Video Recording (Camera with individual power).

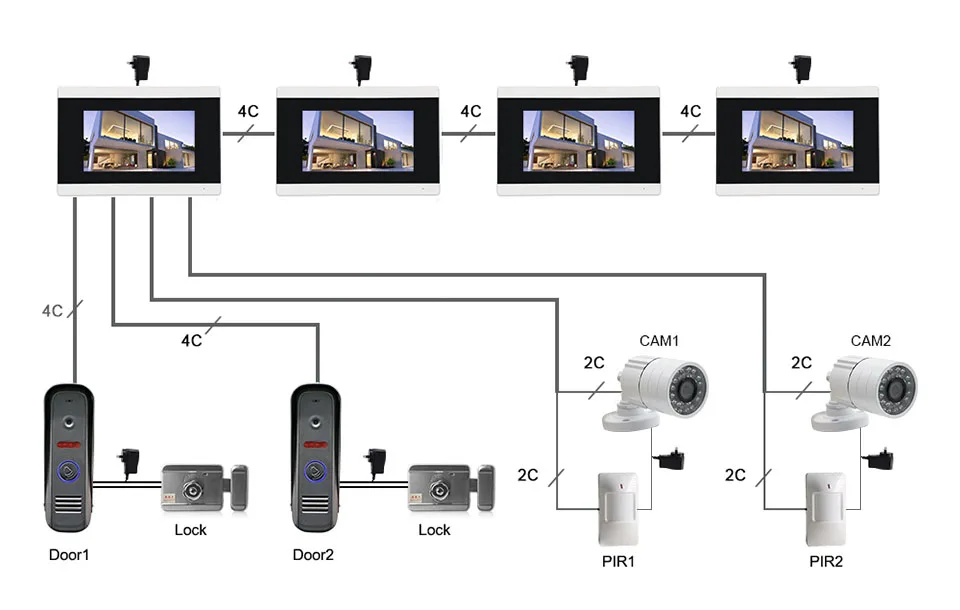

Villa Intercom System
