512Hz зонд и приемник под водой 50м канализационной камеры обнаружения оборудования для инспекции трубопроводов с счетчиком.

512Hz зонд и приемник под водой 50м канализационной камеры обнаружения оборудования для инспекции трубопроводов с счетчиком.

Wall BracketCeilingNetwork InterfaceNoneTypeVideo CameraTechnologyOtherBrand NamePipeCamModel NumberV8-1288TCColorBlackis_customizedYesSpecial FeaturesWaterproof / WeatherproofSensorCMOSStyleBullet CameraHigh Definition480P(SD)ConnectivityClosed System/CCTV WiredLens (mm)OtherViewing Angle 120°Supported Operating SystemsNoPower Supply(V)DC12V/AC110-240VDimensions (L x W x D)(mm)29mm x 89mmAudio Output1CH BNCStorage8GPower SupplyNormalMeasurement unitpiece/piecesEach pack1Cable length 50mCamera DiameterDia.29mm x89mmDVR control boxYesKeyboardYesABS case colorBlack/OrangeScreen size8 inch color displayMeter counteryes512hz transmitteryesShips FromSHENZHENViewing Angle (Degree)120 degree

Unavailable in

Description

512Hz sonde and receiver underwater 50m sewerage pipe borehole inspection camera with meter counter

8 inch Color Display

DVR recording function

Dia.29mm waterproof self level camera head

With 512hz transmitter/Sonde

15pcs high light LEDs

50m fiberglass cable reel

With Meter counter function

Keyboard  real time typewriting

Product main specifications:

29mm self level camera head

• Camera head size Φ29 x 85mm with 512Hz transmitter
•  700TVL 1/4’’ CMOS self-levelling  camera
•  Camera head casing material stainless stee
• Total Pixels PAL 720X576   NTSC 720X 48
• Field of view 120°,IP68 waterproo
• 15 pcs high intensity white LED
• Built in 512hz transmitter
• 2 size camera skids included ( Dia.50mm and Dia.150mm)

8 inch Color LCD monitor

• 8 inch TFT LCD monitor
• 800x600 pixels
• 4:3 display mode
• Brightness:400cd/m2
• Sun shield and remote control included

DVR control box

• DVR control button
• SD card (max 64G) jack,keyboard jack
• LED brightness adjusting knob
• A / V & photo selection available
• On/off microphone control button
• Battery level indicator lights
• Video / audio output to another screen

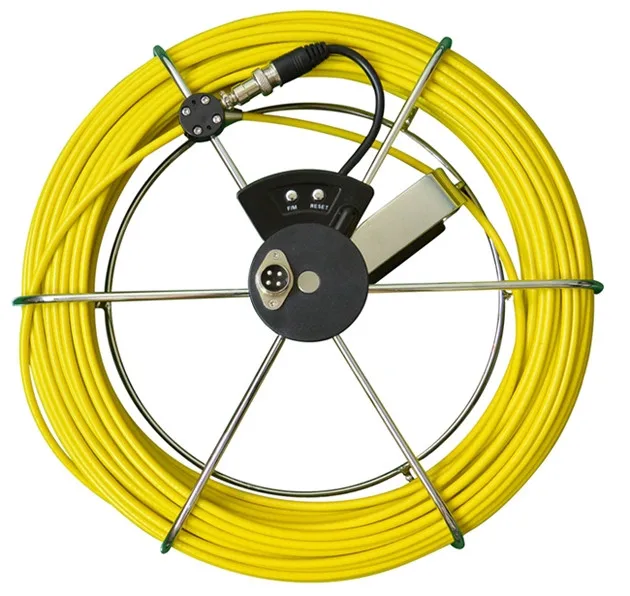

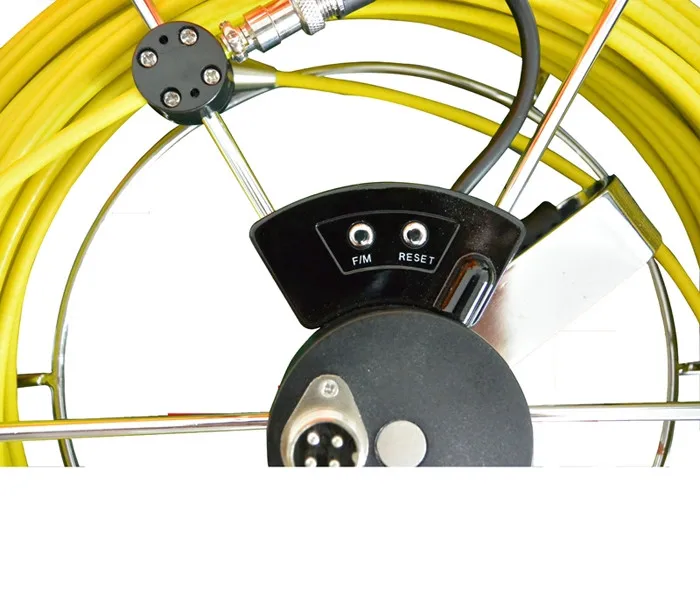

Cable Reel

• Fibreglass push rod cable with meter counter
• F/M buttom toswitch"feet/meter"
• Cable diameter Φ5.2mm
• Cable length from 20m to 50 optional
• Reel size Φ 320 x 110mm

Battery pack & Charger

• 6600mA li-ion battery
• AC110V-240V 1.5A power charge
• Charging time 5 hours, working time 6 hours

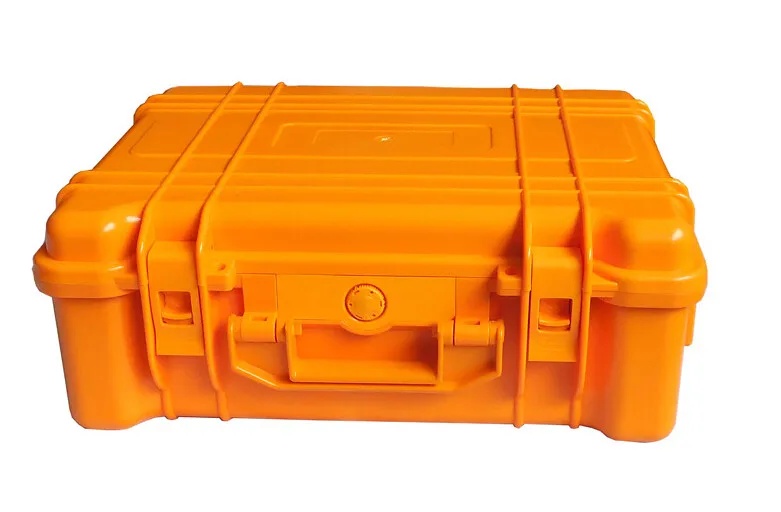

ABS Engineer Case

• Case size:  520 x 435 x 200mm
•  Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
•  Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximun

DVR control box button

Charge for battery

Meter Counter Display  on Screen

Sewer pipe locating 512hz receiver  Locator for Pipe Inspection

Specification:
