   Welcome to our store choose more products:  http:/store/536506

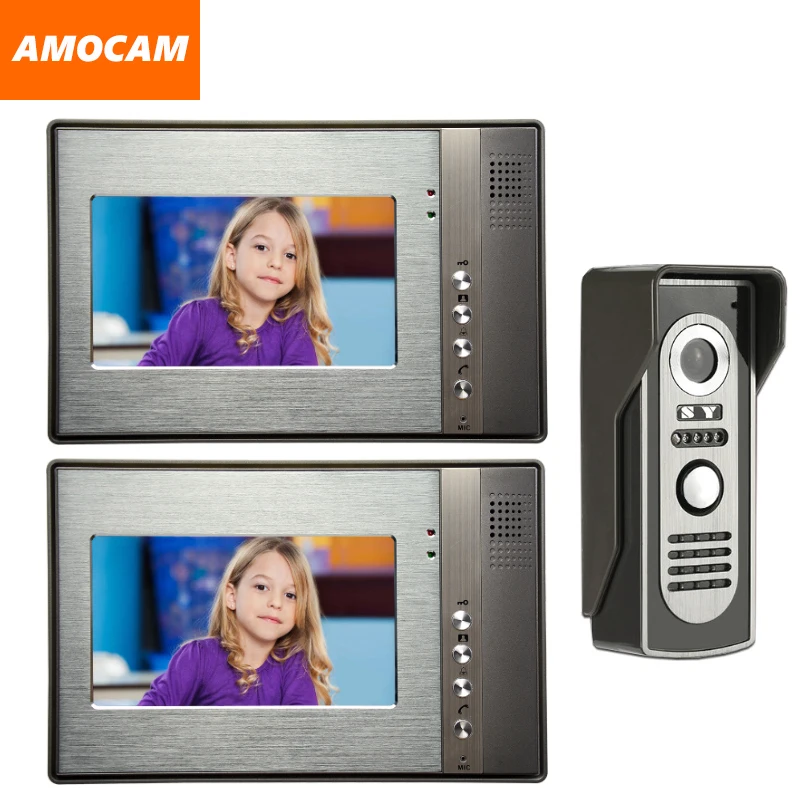

7 Inch Color LCD Video Door Phone with 1 Camera + 2 Monitor

It is a door phone which can show you what is going on outside doors on a clearly 7" full color screen of which The Volume, brightness and chroma can be adjusted to meet your need. It can function as a monitor, Press the button of Response/Monitoring, the screen will show you the picture outside doors, which makes you kown the outside world staying in the house.

​

Features

1. With micro-processing technology, auto-remote control, excellent performance and high reliability
2. The TFT 7 inch digital color LCD for monitor
3. Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking remote & ID & Password controlling etc
4. Additional monitor available up to 6(optional) and 3 outdoor cameras at most
5. TFT color screen with low power consumption, no radiation and high definition
6. Hands-free intercommunication
7. Brightness, chroma and volume adjustable
8. 16-chord melody rings for option
9. Cabling: 4-core connection cable

 Specifications

1. Type: Wired Video Doorphone & LCD Wired Indoor Monitor
2. Wiring requirements: 30 meters: RVV4 x 0.5mm;50 meters: RVV4 x 0.75mm;100 meters: RVV4 x 1.0mm
3. Monitor: 7-inch TFT-LCD 800 x480
4. Imaging Sensor: 1/3 CMOS
5. Illumination: 0 Lux
6. Working temperature: -15-55 degrees
7. Relative humidity: 10 % ~ 90%(RH)
8. Dissipation: stand-by <0.5W working <10W
9. Talk time delay: 60 seconds
10. Monitor time delay: 60 second
11. Power Source : Adapter input voltage: AC100-240V 50Hz-60Hz
12. Adapter output voltage current: DC15V 1500mA

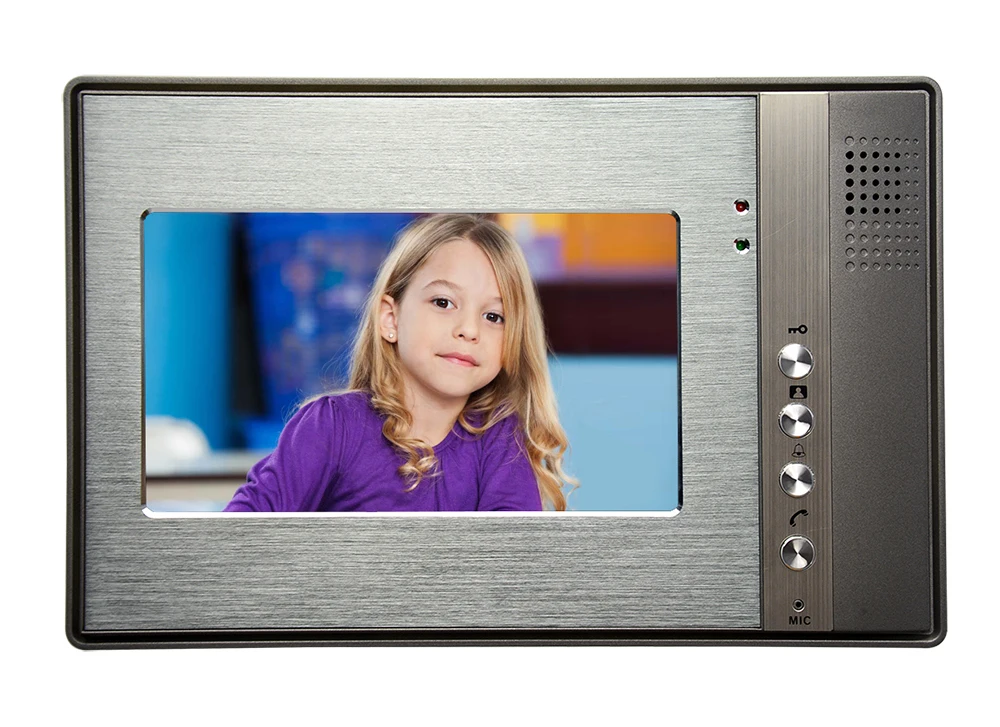

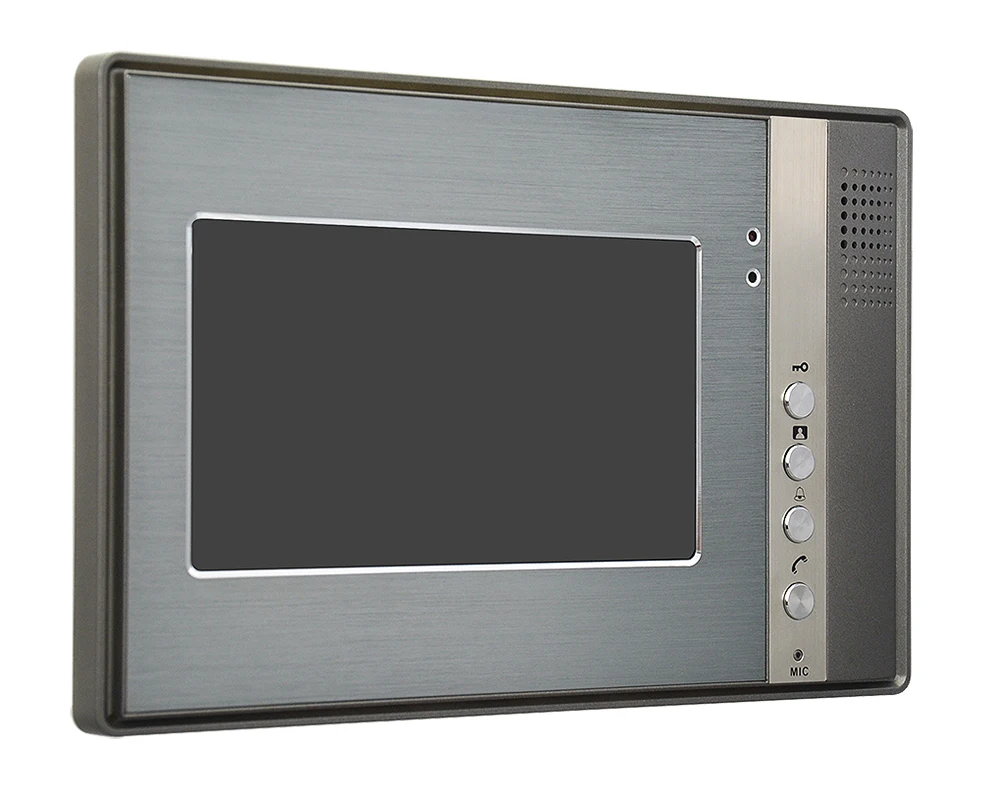

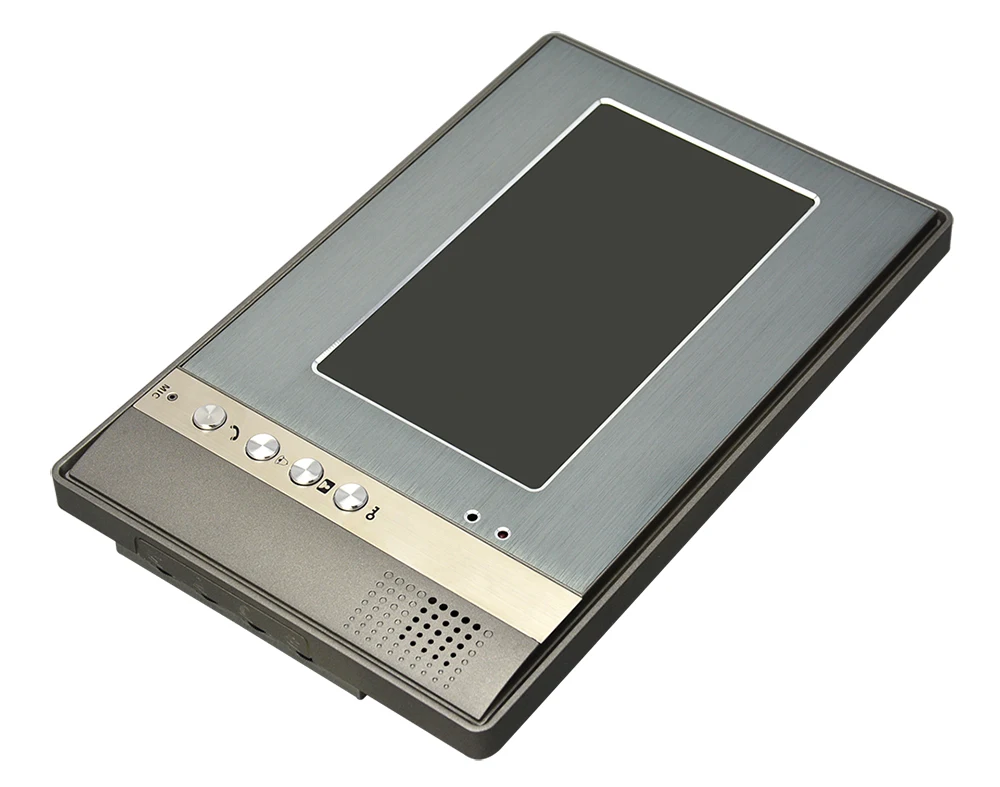

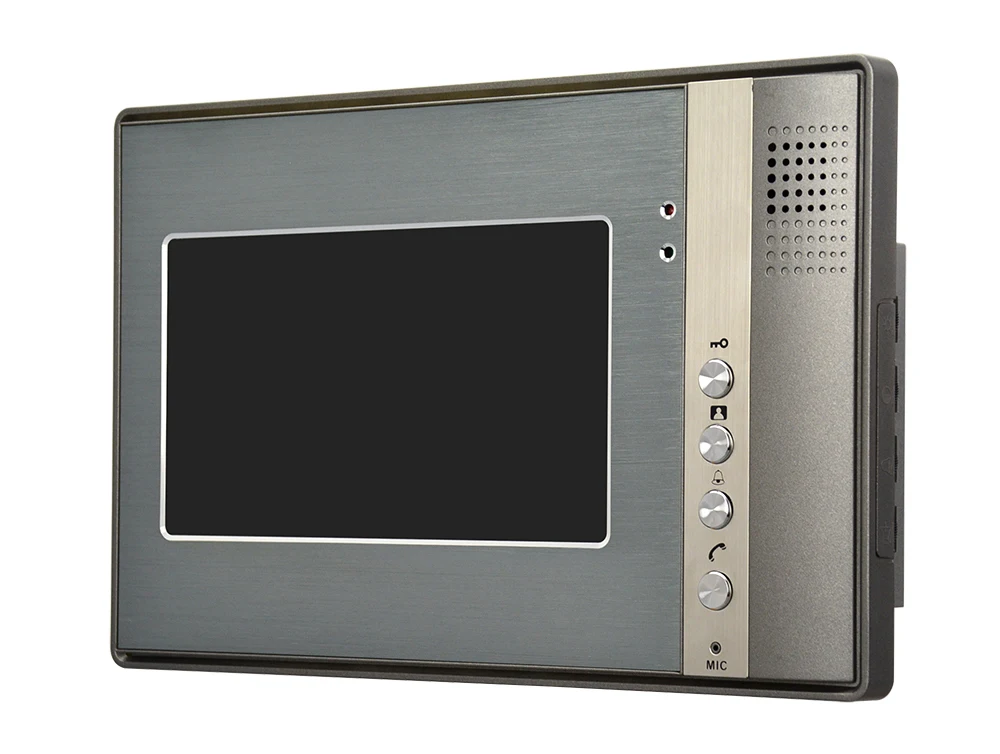

1. Display: 7 inch TFT LCD (16:9 display)
2. Resolution: 800 x 480
3. Charger: Adapter input voltage: AC100-240V 50Hz-60Hz
4. Adapter output voltage current: DC15V 1500mA
5. Case: ABS Engineering Plastics
6. Installation: Surface mounting

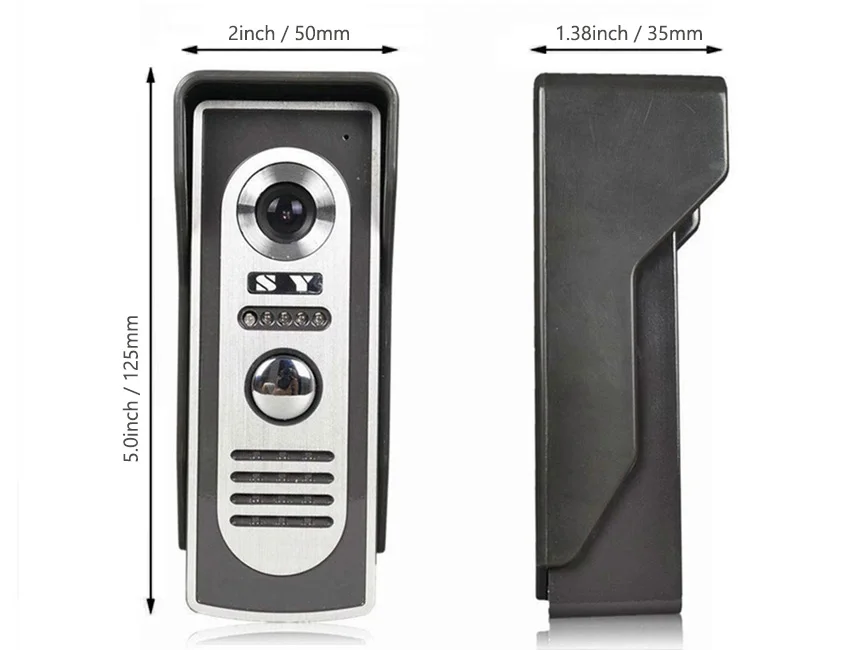

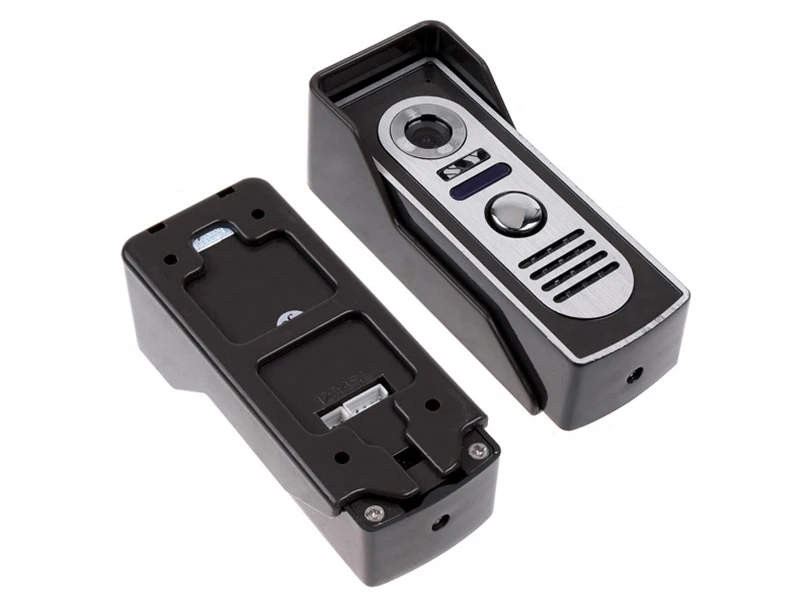

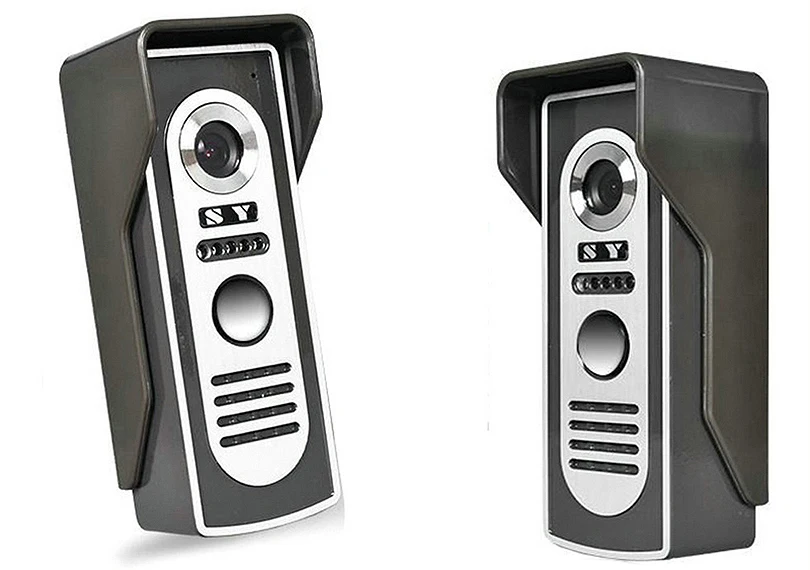

1. Camera resolution: 700line.
2. Illumination: 0 Lux.
3. Night vision illumination distance; 1 meter,WLED.
4. Power Adapter: Shared indoor unit.
5. Viewing angle: 92 degrees.
6. Case: Aluminum alloy.
7. Camera: 1/3 CMOS.
8. Installation: Surface Mounting.

​

Packing includes

• 1x Outdoor Camera
• 2 x Indoor Monitor
• 2 x Hanging plate
• 2 x Power Adapter
• 1 x Bag Screws
• 1 x Manual

Note:

• We provide 4-core or 5-core or 6-cables.(please see the packaging contents.)
• The cables are very easy to be found in your local market as they are international standard.

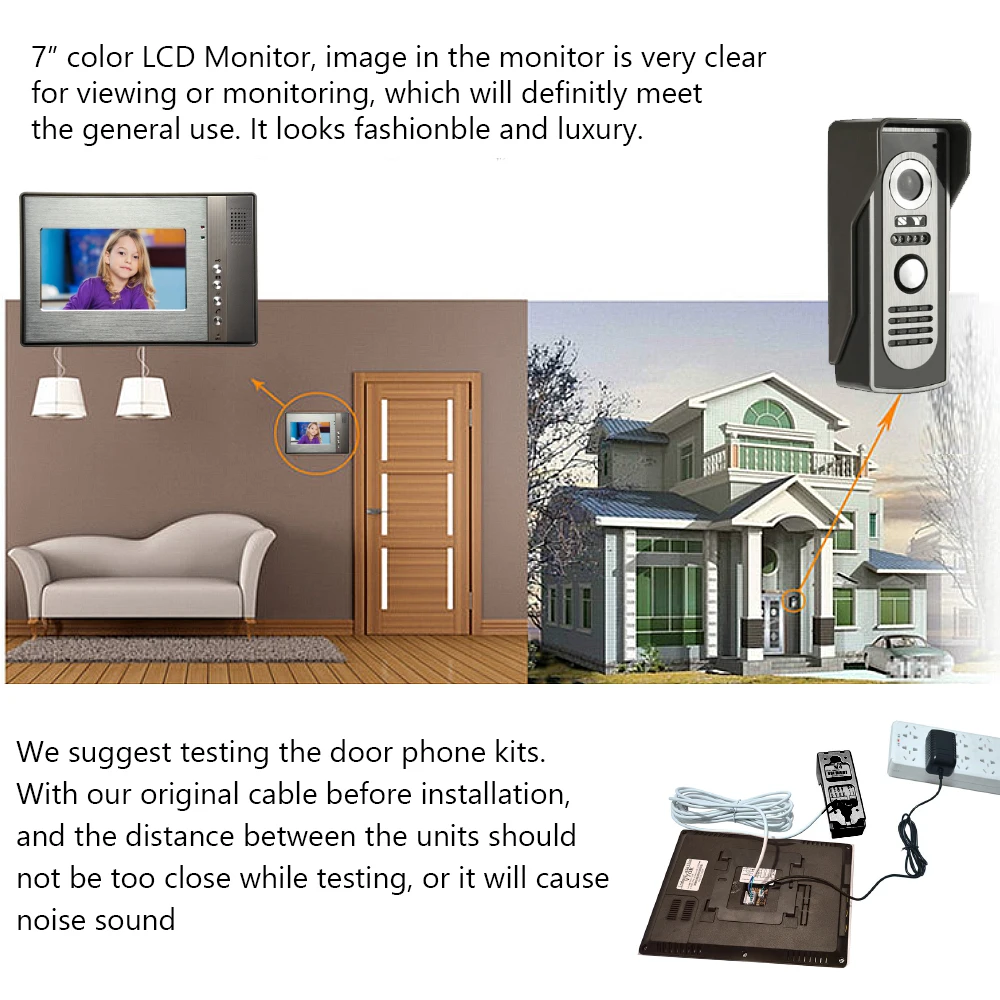

• We suggest testing the door phone kit with our original cable before installation, and the distance between  the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
• The total length of the connection cables can NOT exceed 100 meters.
• If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check  the wiring requirement.

Applications

This door phone system can be widely used in Villa, office, private house, and other place needs intercom. It is not only a intercom system, but also a home security system.
