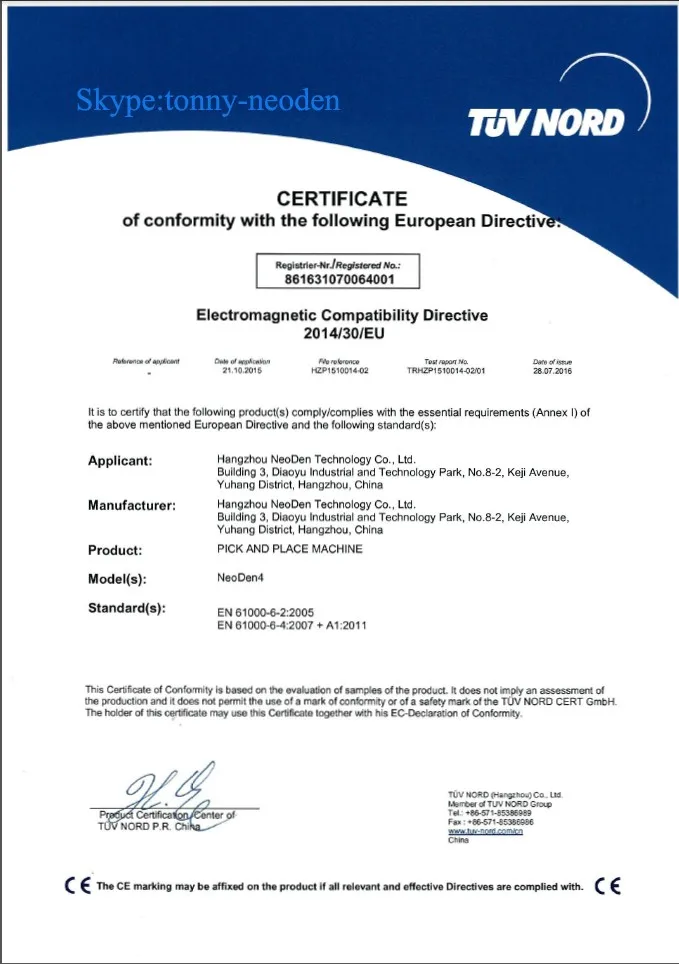

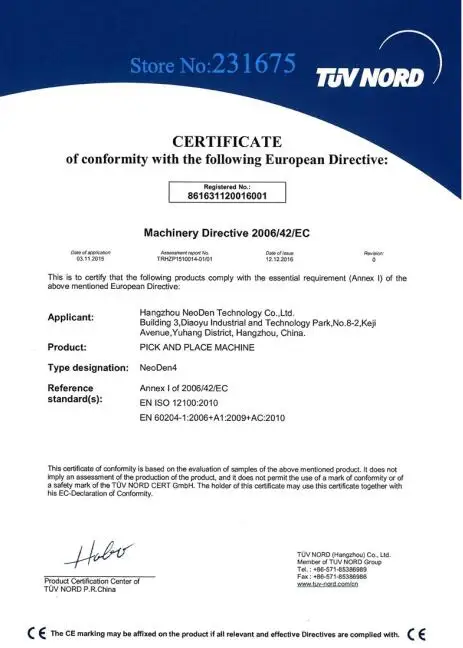

SMT PCB Assembly Pick and Place machine NeoDen4 with vision CE Certified | Инструменты

SMT PCB Assembly Pick and Place machine NeoDen4 with vision CE Certified | Инструменты

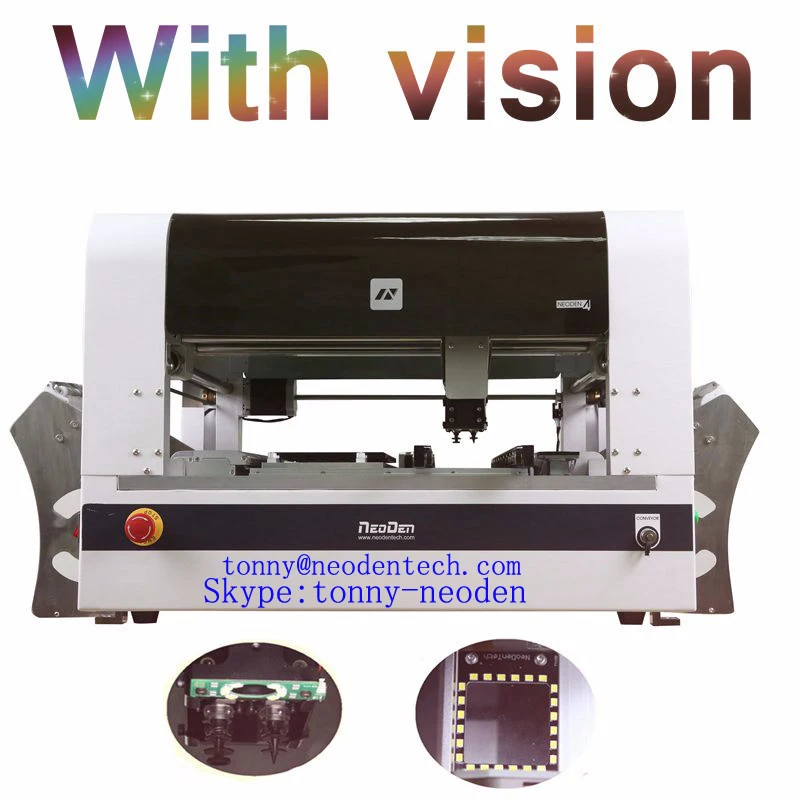

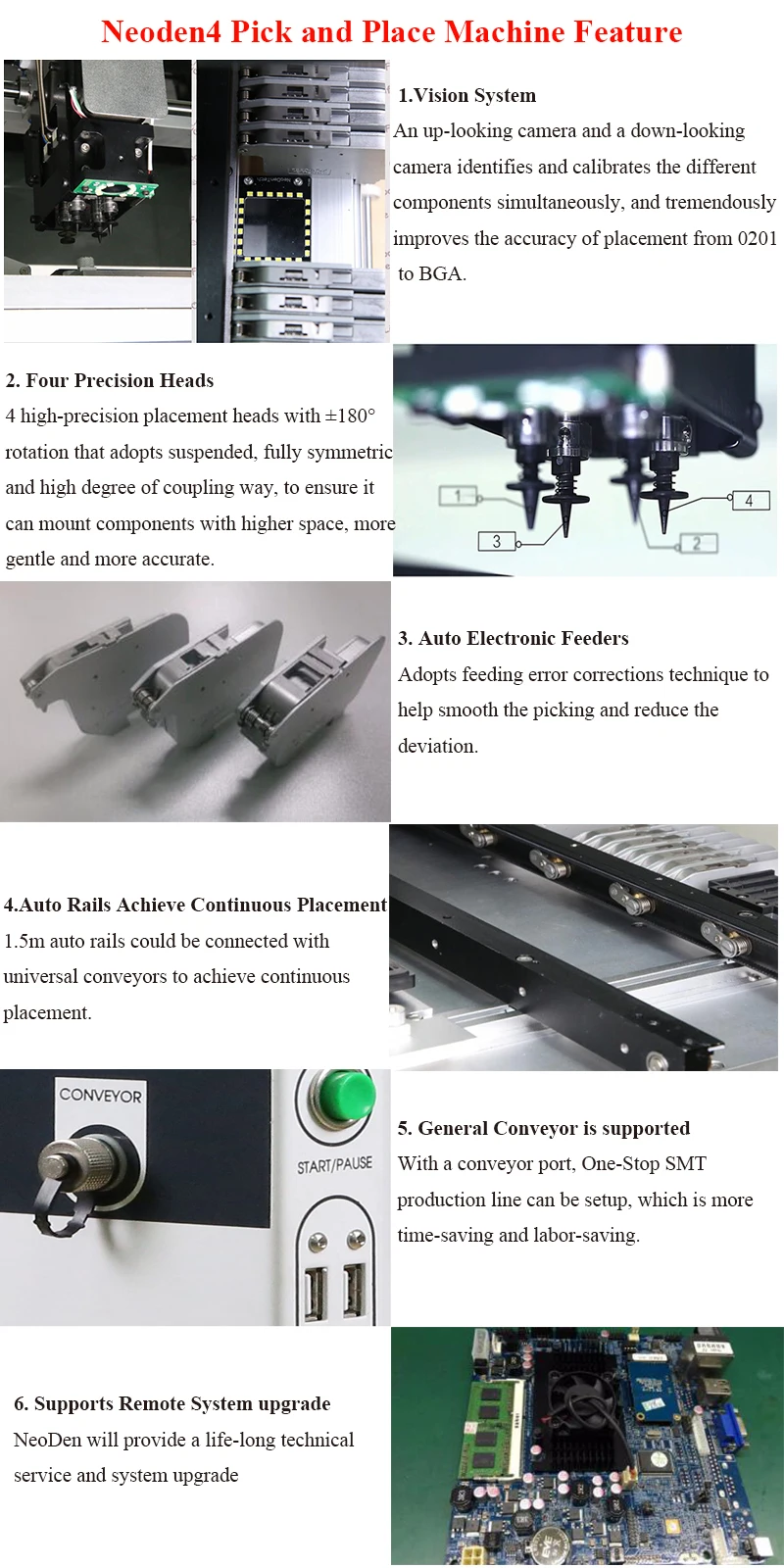

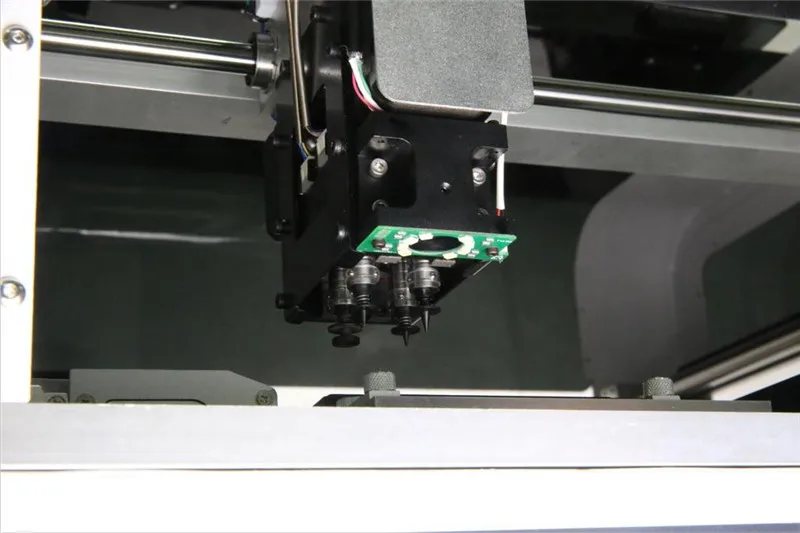

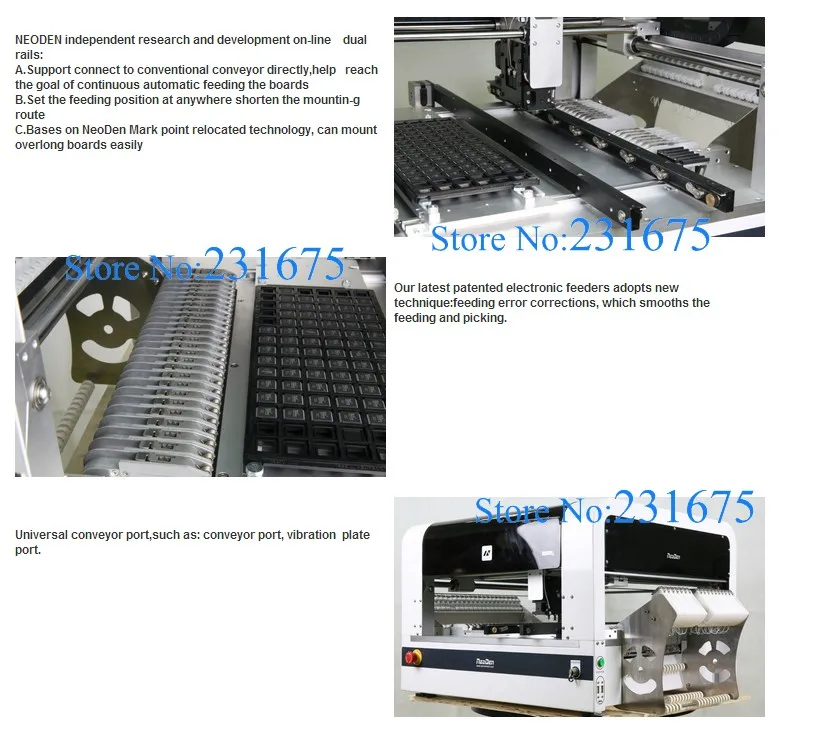

Note:Above quotation have 8 Feeders(8mm=5pcs,12mm=2pcs,16mm=1pcs)for reel tape+5 vibration feeders for tube ICs.   NeoDen Tech had developed a new PNP model-NeoDen4 with vision(Without intenral rails),which can help ensure the  mounting accuracy. NeoDen4 pick and place machine is our newest & most advanced model till now.       Parameters: Number of Heads with Vision enabled:4 Placement Rate:10000CPH (vision off),5000CPH (vision on) Feeder Capacity:Tape Reel Feeders:48 Tape width: 8mm, 12mm, 16mm,24mm     Vibration Feeders:5                                IC Tray Capacity:5 Component sizes with vision:Smallest Component  size:0201  Largest Component size:TQFP240 Applicable Components:0201,BGA,SOIC,SSOP,QFN,TQFP,Led Component,Diode,Triode,Tack Switch                                Component Height Maximum:5mm Resolution X/Y axis:0.01mm   Z axis:0.1mm Rotation:+/-180(360) Positioning Accuracy:+/-0.02mm X-Y repeatability:+/-0.02mm Applicable PCB area:350mm*400mm Placement Area:310*400mm(without waffle Tray)    140*400mm(With 1 waffle Tray) Programming:SOFTWARE AUTOMATIC PROGRAMMING/MANUAL MECHANICAL PROGRAMMING Main Control:GUI Power Supply:220V, 50Hz (convertible to 110V) Power:180W External Dimensions:Machine:87*68*48CM                                  Packing size:94*74*60CM Net Weight:60KGS Gross weight:80Kgs   Videos: //www.youtube.com/c/NeoDenTechnology Twitter: //twitter.com/Tonny_Neoden   Main Features Detail Images: Certifications:     Established in 2010, NeoDen Technology Co.,Ltd., is a high-tech corporation located in Hangzhou, China. Our primary products are desktop automatic pick and place machines. In China, we are the leader in this technology with CE and more than 30 patents registered.   Mounting Effect:       Why Choose NeoDen:

1.Light weight body,occupy small area

2.User friendly interface,no need professional SMT engineer,entry-level device

3.High integrated,no need extra pump or any supporting facility

4.High accuracy and reliability,make up the defection of manual work

5.Low cost,reduce expense to own a professional automatic SMT production line

6.International express with door to door service,3-5 working days delivery

7.Especial for laboratory research and development,samples,to avoid any patents and designs revealment

  Our Service:   Factory Overview:    Accessories: 1) Pick and Place Machine NeoDen4: 1 2) Nozzle: Totally 6pcs 3) 8G Flash Drive: 1 4) Power Cord(5M): 1 5) Video training course: 1  6) Double Sided Adhesive Tape: 2 7)Allen wrench Set:5 8)Tool Box:1 9)Reel holder stand:1 10)Vibration Feeder:1                                   11)User Manual:1   Packing:   Warranty: The complete machine has a warranty period of TWO years from the time  of purchase and lifelong service support as well as a long-term factory price supply. We provide online Q/A and trouble shooting support and technical advice service.   If need the Working Table,you can turn to below link: http:/store/product/Working-table-of-pick-and-place-machine-NeoDen4-camera-equipped-NeoDen-Tech/231675_32520987806.html     If need the Monitor(include Mouse and Keyboard) for NeoDen4,pls refer to below link: http:/store/product/Monitor-Mouse-Keyborad-for-new-Pick-and-Place-machine-NeoDen4-NeoDen-Tech/231675_32519593720.html

Buy more Feeders refer to:

8mm feeder:http:/store/product/8MM-Feeders-parts-for-new-pick-and-place-machine-NeoDen4-NeoDen-Tech/231675_32519658598.html

12mm feeder:http:/store/product/12MM-Feeders-parts-for-new-pick-and-place-machine-NeoDen4-NeoDen-Tech/231675_32519733468.html

16mm feeder:http:/store/product/16MM-Feeders-parts-for-new-pick-and-place-machine-NeoDen4-NeoDen-Tech/231675_32521188489.html

24mm feeder:https:/store/product/24mm-Width-Feeders-parts-for-new-pick-and-place-Prototype-machine-NeoDen4/231675_32801244144.html









Thank you very much for your support on Neoden Tech's machines.



      Email:Tonny  @    neodentech.com     Skype:tonny-neoden
