29mm Sewer / Drain / Pipe Underwater Video / Audio Inspection Camera (V8-1288TC 30m)

Professional pipe insepction camera factory,over 5 years expriences

Factory price ---Fast shipment--- Professional after-sales service

About Product

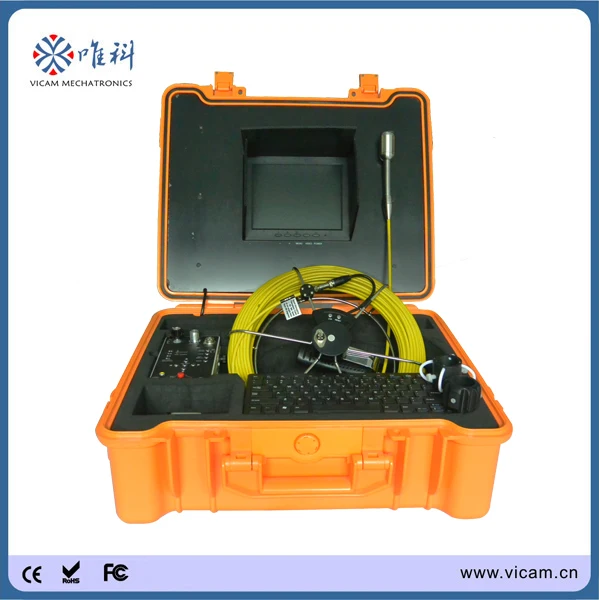

1)Waterproof drain inspection camera V8-1288TC with 29mm camera head with transmitter, is mainly designed for inspecting

  pipe from  33mm to 200mm.

2) 8" color LCD monitor with sunshade, high definition and can be observed under strong sunshine.

3)DVR control box easy to record and replay video, photo.

4)A removable SD Card records images and video for later review and easy transfer to a PC for reporting or

    sharing via  email.

5)15 pcs high brightness LEDs lighting can easily check all pipes problem inside

Applications of Waterproof drain inspection camera

1.  WATER SUPPLY

2.  WASTER WATER

3.  ELECTRICAL AIR CONDITIONER

4.  CABLE DUCTING

5.  DUCTED VACuUM SYSTEMS

6.  PLUMBING

7.  IN BUILDING

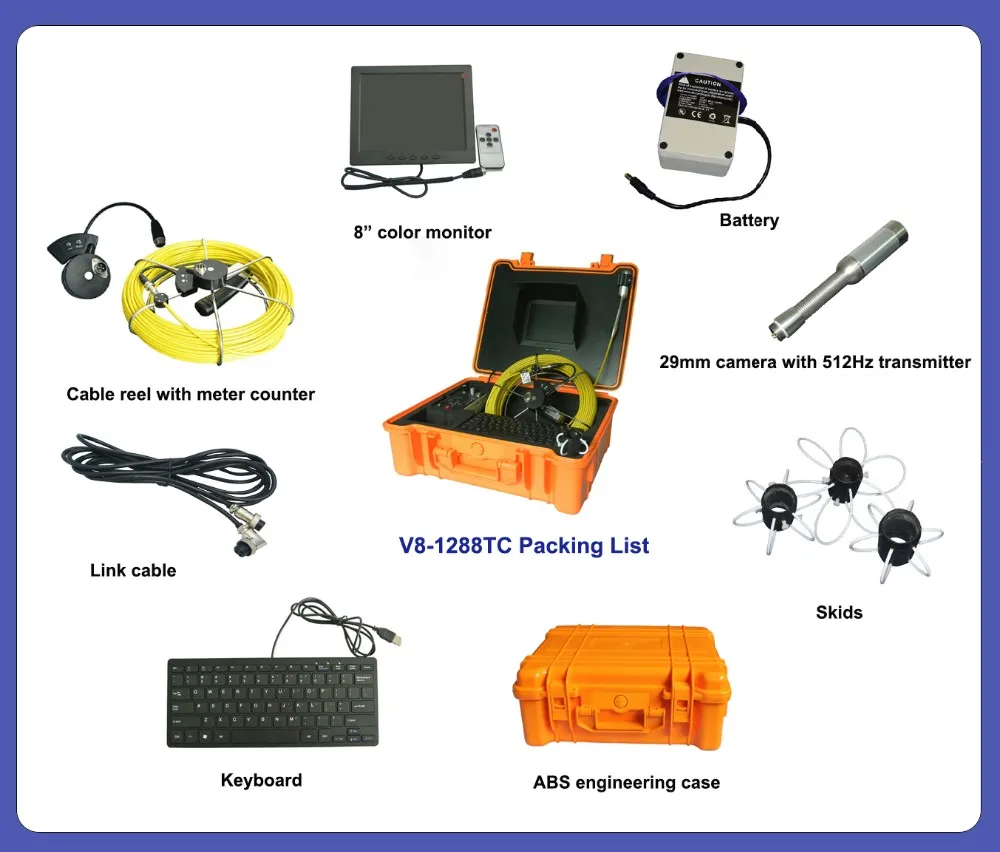

Detailed  Images

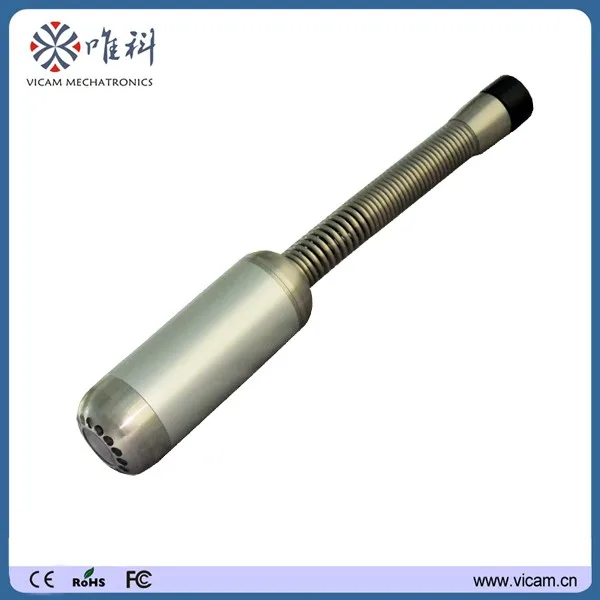

Camera head

* Camera head with transmitter size Φ29 x 89mm for pipe Φ33 to 200mm

* Camera head casing material stainless steel

* Camera lens window material sapphire glass

* Sensor size 1/4 inch CMOS camera

* Total Pixels PAL 720X576   NTSC 720X 480

* Field of view 120°,IP68 waterproof

* 15 pcs high intensity white LED

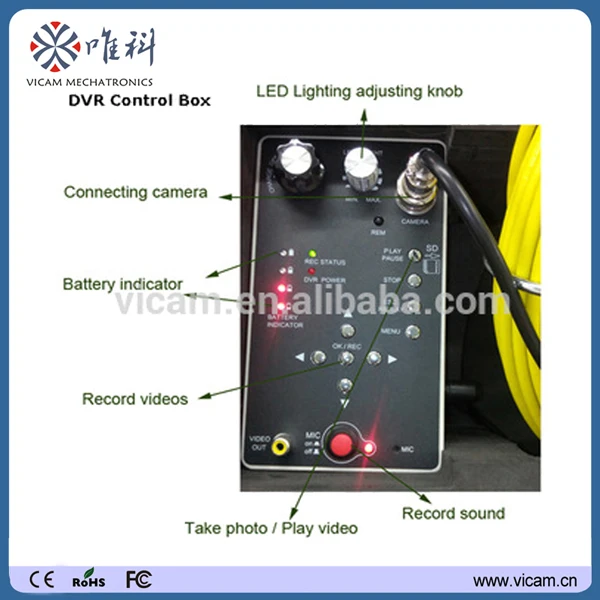

DVR Control Box

* DVR control buttons,remote controller can operate in more than 2m

* SD card (max 32G) jack,keyboard jack (8G SD card included)

* LED brightness adjusting knob

* A / V & photo selection available

* On/off microphone control button

* Battery level indicator lights

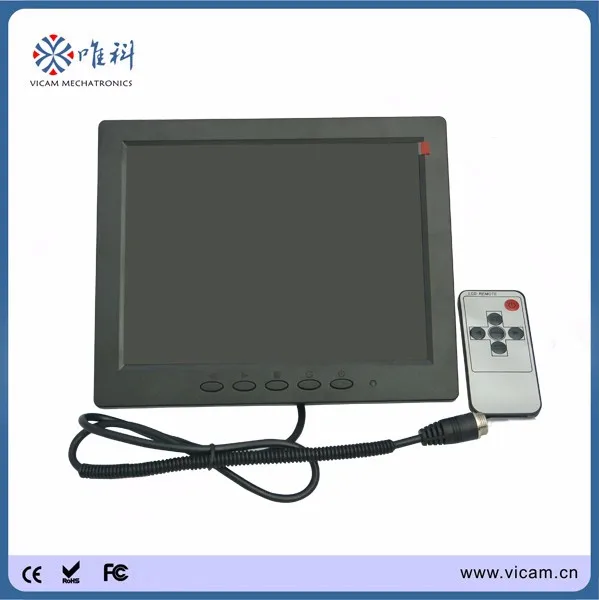

Monitor:

* 8 inch TFT LCD monitor

* 4:3 display model optional

* Brightness:400cd/m2

* 6600mA li-ion battery

* AC110-240V 1.5A charger

* Charging time 5 hours, working time 6 hours

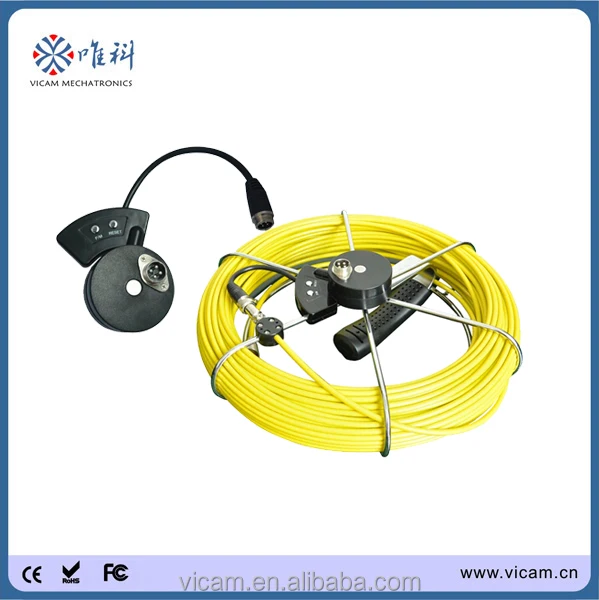

Cable Reel

* Fibreglass push rod cable

*F/M button to switch"feet/meter"

* Cable diameter Φ5.2mm

* Cable length 30m

* Reel size Φ 320 x 110mm

* Push rod cable reel with meter counter

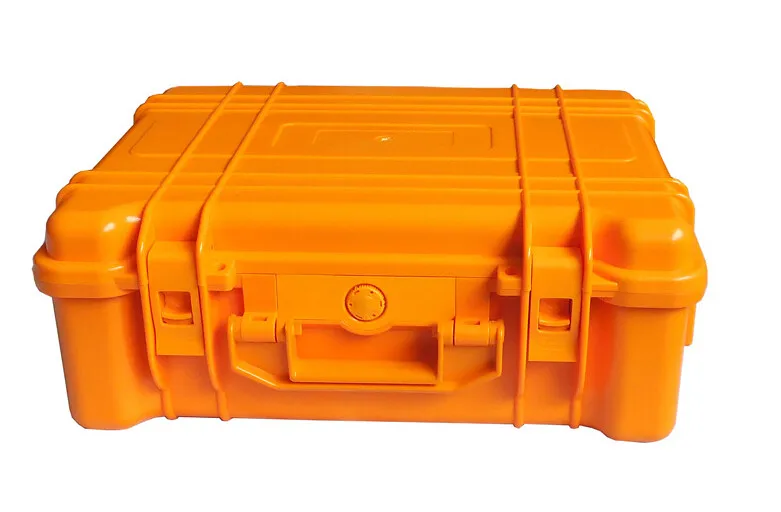

*ABS carrying case:  520 x 435 x 200mm

* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximu

* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

1pcs/ctn ,firm package carton to protect the unit in delivery time Package size:53X 21X46cm G.W :10kg Welcome to place the order and fast delivery in 3 days  Our Service

♦ Your satisfaction is more than your order to us.

♦ Offer you quality products and meet you demands is our always goal

♦ Any of your inquiry or suggestions will catch our great attention

♦ OEM / ODM Services are available


About VICAM

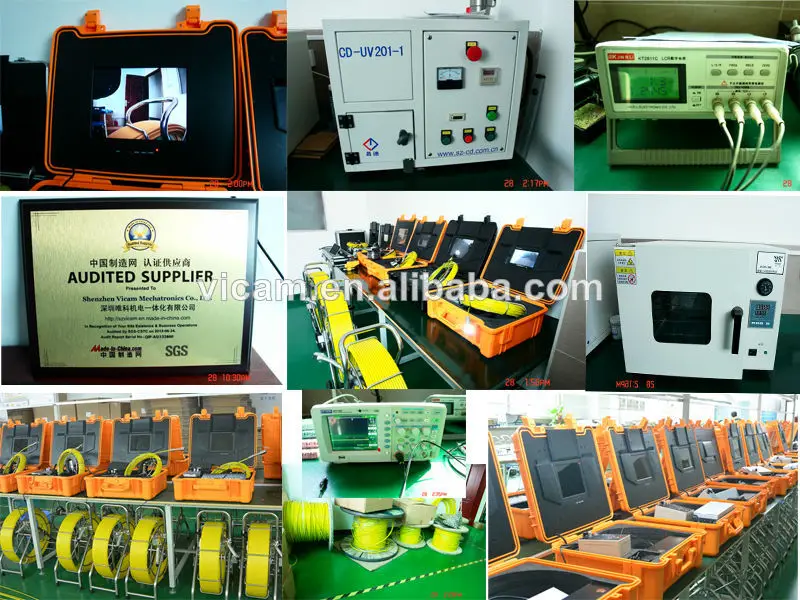

Vicam Mechatronics Co., Ltd is located at Shangxue Industrial Park in Shenzhen, South of China.Specialising in the design, manufacture and assembly of video inspection systems, we have introduced the international advanced technology, designed and produced various video inspection cameras. Most of our products sold to Europe, America, Australia, Middle East, South Africa and South America market. In the process of Vicam growing up, we have got very important technical support from CYBERIA SAS, and Shenzhen Institutes of Advanced Technology.

Our main product range include portable pipeline video inspection system, industrial and city underground pipe video inspection system, special video inspection cameras and CCTV robots for complex applications and hazardous area rated environment.

The Vicam tenet is to rely on the advanced technology, meet the global market demand, provide good quality products and good service to all our customers!
