NeoDen4 Desktop Pick and Place Machine

(without Rails and 31*Feeders Version)

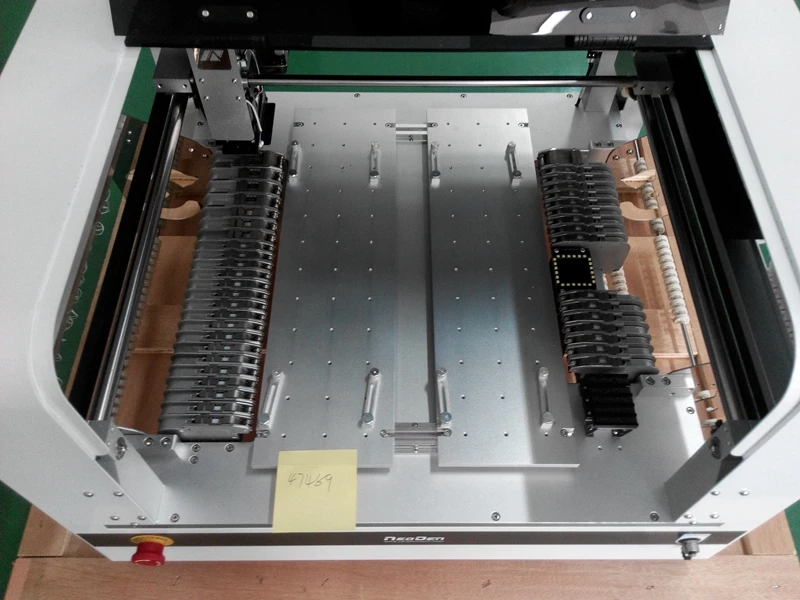

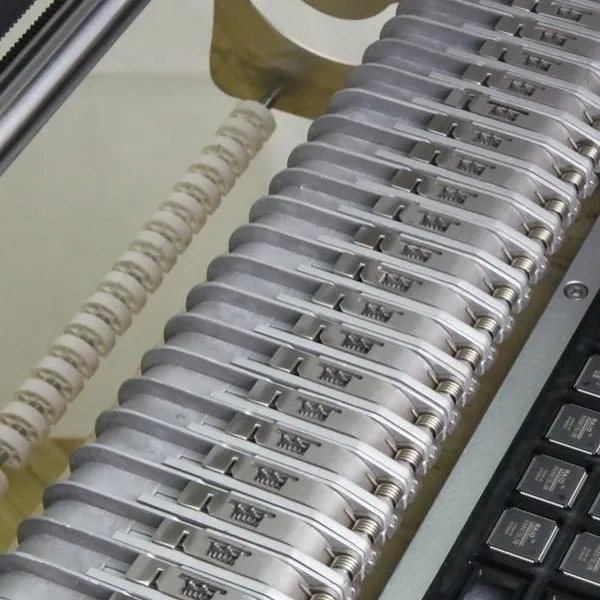

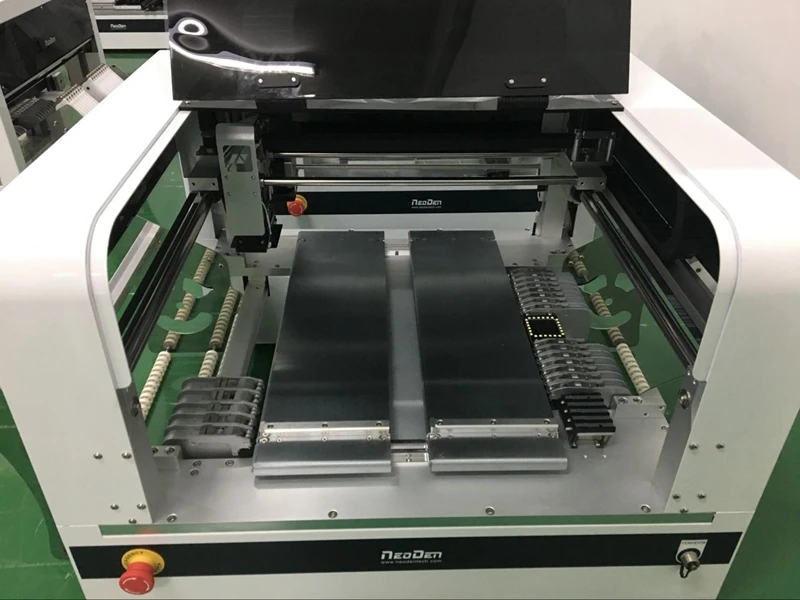

Note:Above quotation have31Feeders(8mm=26 pcs,12mm=2pcs,16mm=2pcs,24mm=1pcs)for tape reel+5 vibration feeders for tube ICs.

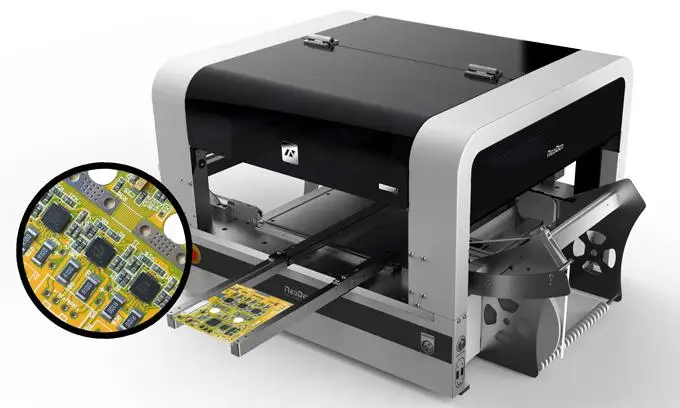

NeoDen4(TM4120V) with camera, the brand new and long awaited model of NeoDen, is a desktop Pick andPlace machine with vision system.

As a professional PnP machine designer and developer, NeoDen has been doing research in SMT industry from 2010.

NeoDen4 is with dual cameras, auto rails, auto electronic feeders and 4 placement heads, which could help to handle0201,

BGA,QFN and 0.8m/1.2m/1.5mLED strip.  NeoDen4 is the best choice to satisfy all demands of high precision, high capacity,   stable performance and low cost. This is a huge breakthrough not only for NeoDen,but also for small and medium-sized enterprises, those who want to improve placement accuracy and speed up PCB assembly with a limited budget.

1.Dual vision system(up-looking and down-looking camers), identify and calibrate the different components at one

time,  improves the accuracy of placement from 0201 to BGA;

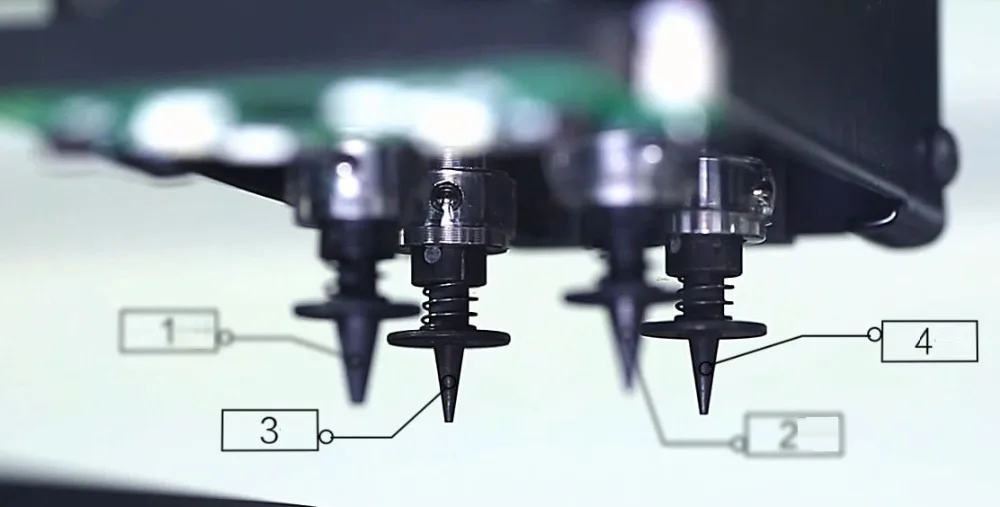

5.Four placement headscan pick up and calibrate components at one time.

6. The device supportsremote system upgrade, NeoDen provides a life long system upgrade service for free to you;

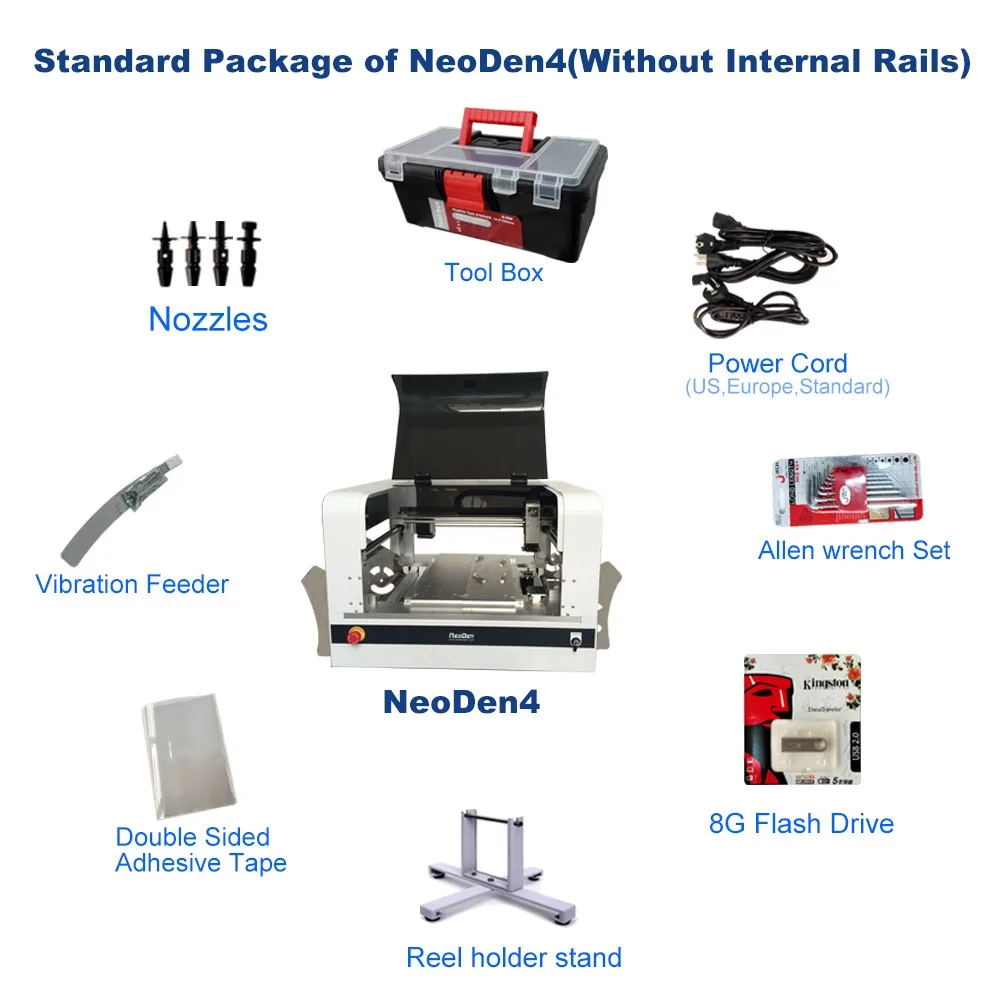

1) Pick and Place Machine NeoDen4: 1

2) Nozzle: Totally 6

3) 8G Flash Drive: 1

4) Power Cord(5M): 1

5) Video training course: 1

6) Double Sided Adhesive Tape: 2

7)Allen wrench Set:5

8)Tool Box:1

9)Reel holder stand:1

10)Vibration Feeder:1

11)Rail Parts:4

12)User Manual:1

Buy moreFeedersrefer to:

8mmfeeder:http:/store/product/8MM-Feeders-parts-for-new-pick-and-place-machine-NeoDen4-NeoDen-Tech/231675_32519658598.html

12mmfeeder:http:/store/product/12MM-Feeders-parts-for-new-pick-and-place-machine-NeoDen4-NeoDen-Tech/231675_32519733468.html

16mmfeeder:http:/store/product/16MM-Feeders-parts-for-new-pick-and-place-machine-NeoDen4-NeoDen-Tech/231675_32521188489.html

24mmfeeder:/store/product/24mm-Width-Feeders-parts-for-new-pick-and-place-Prototype-machine-NeoDen4/231675_32801244144.html
