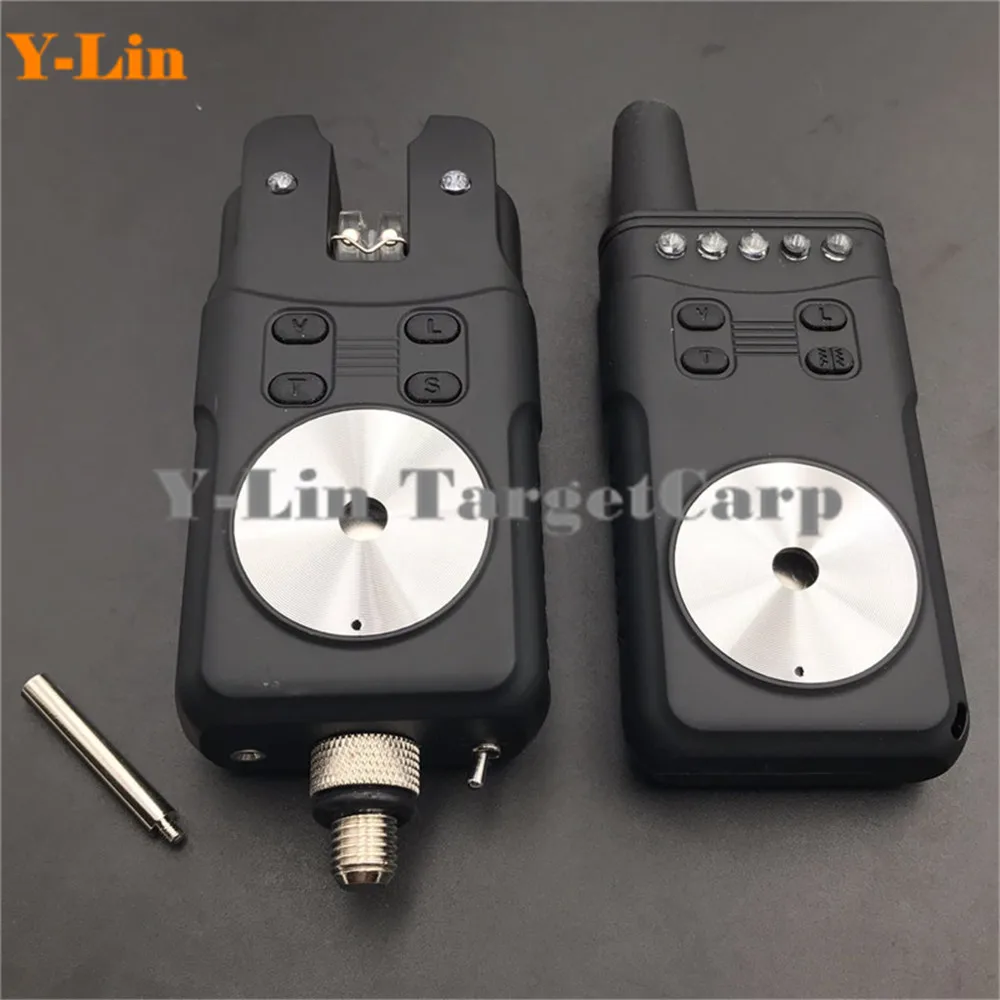

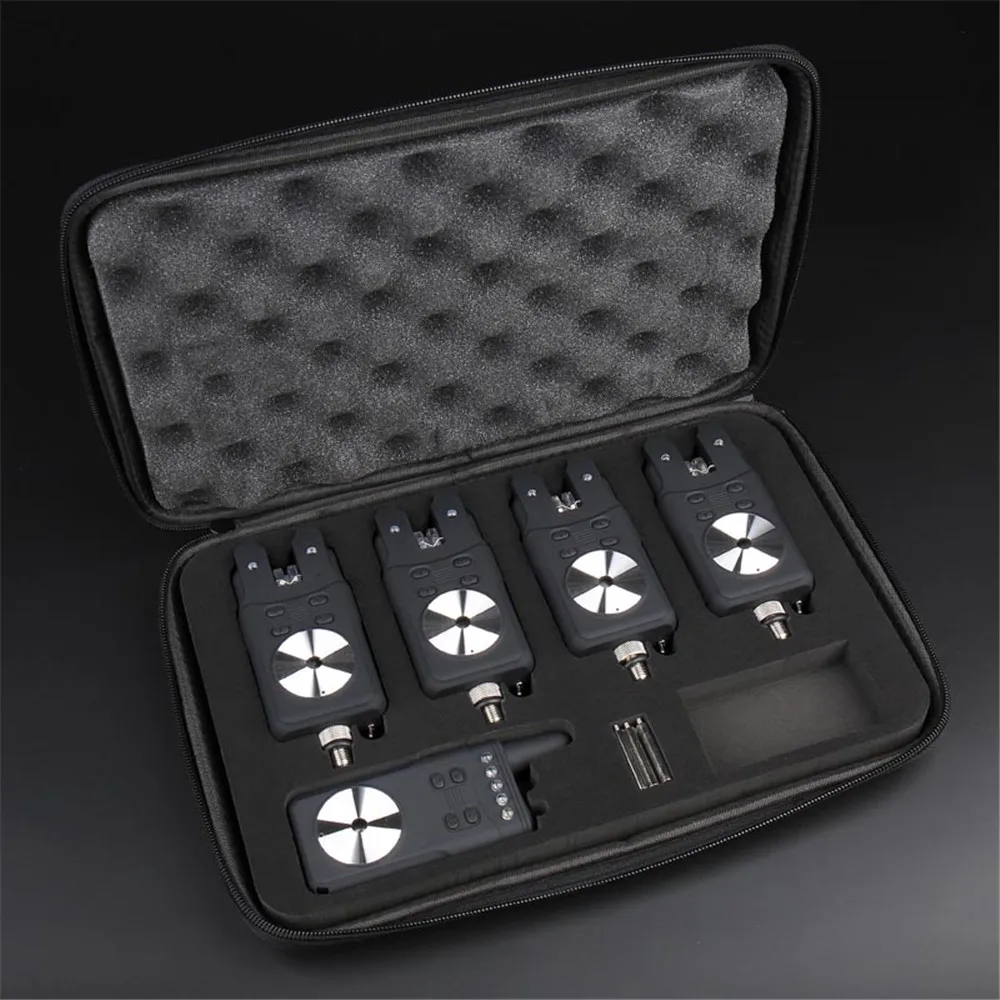

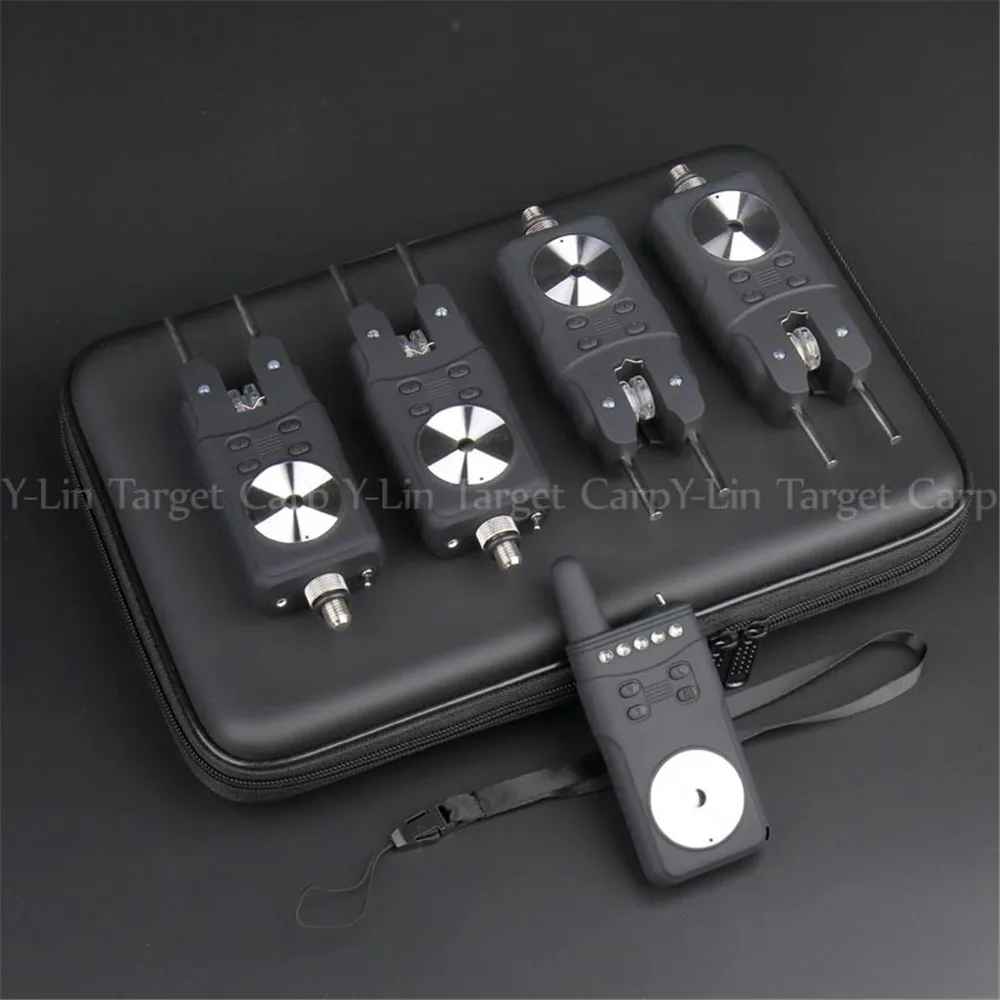

Карповый сигнализатор поклевки с электронным индикатором световой сигнализации на удочку, водонепроницаемый, беспроводной приемник 1+4.

Карповый сигнализатор поклевки с электронным индикатором световой сигнализации на удочку водонепроницаемый беспроводной приемник 1+4.

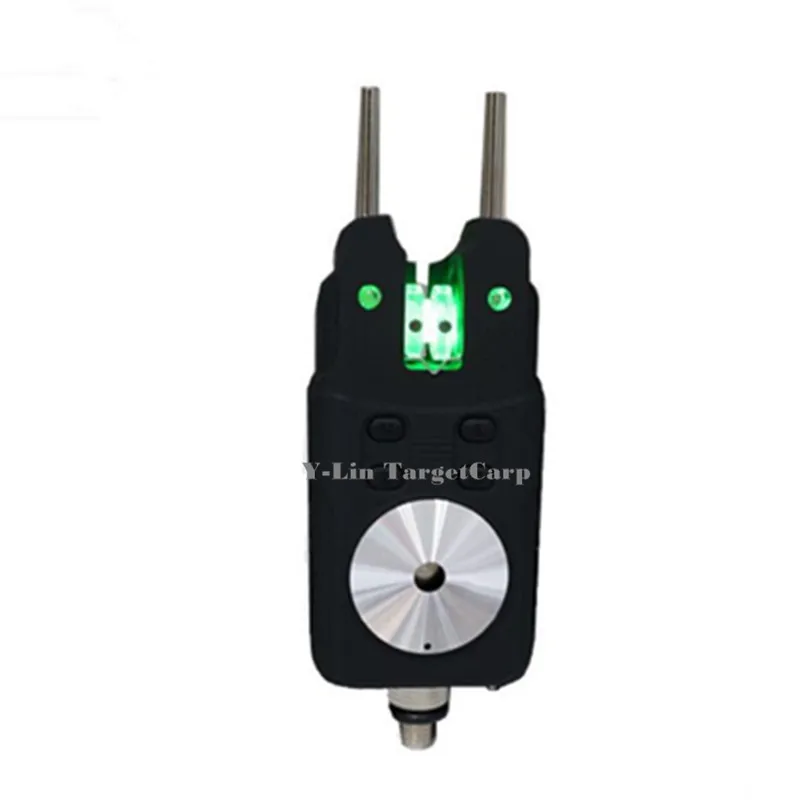

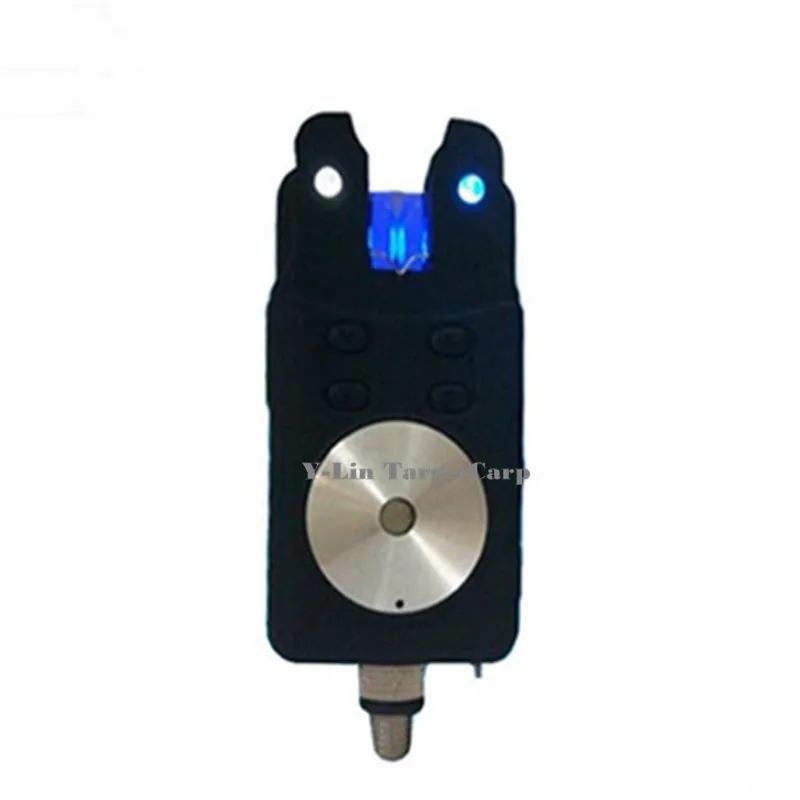

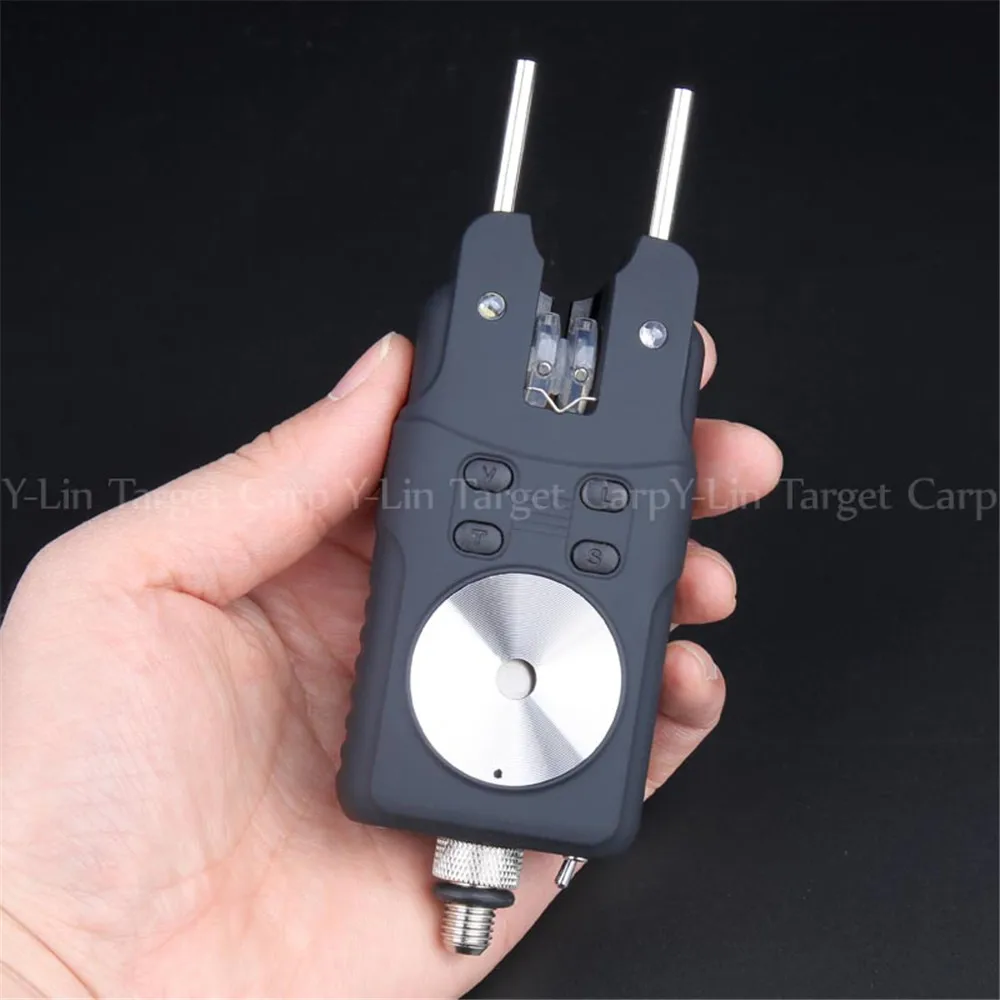

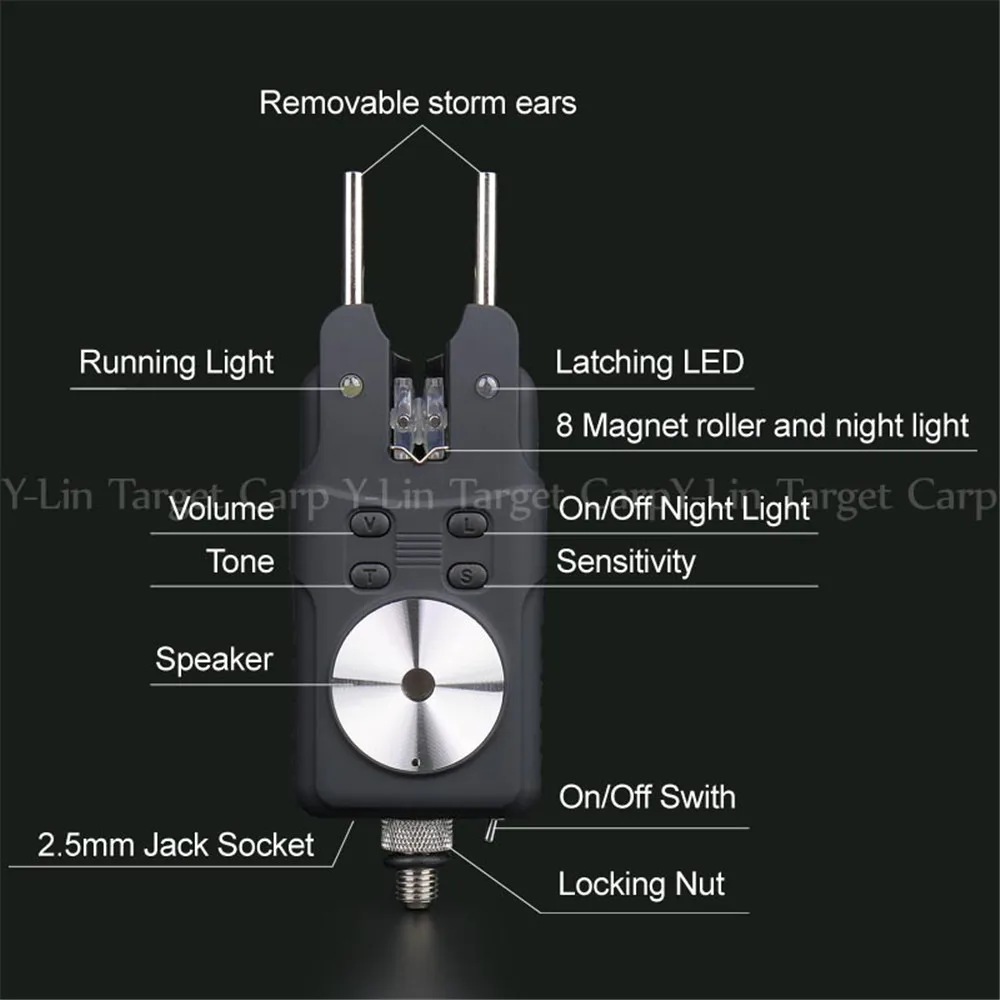

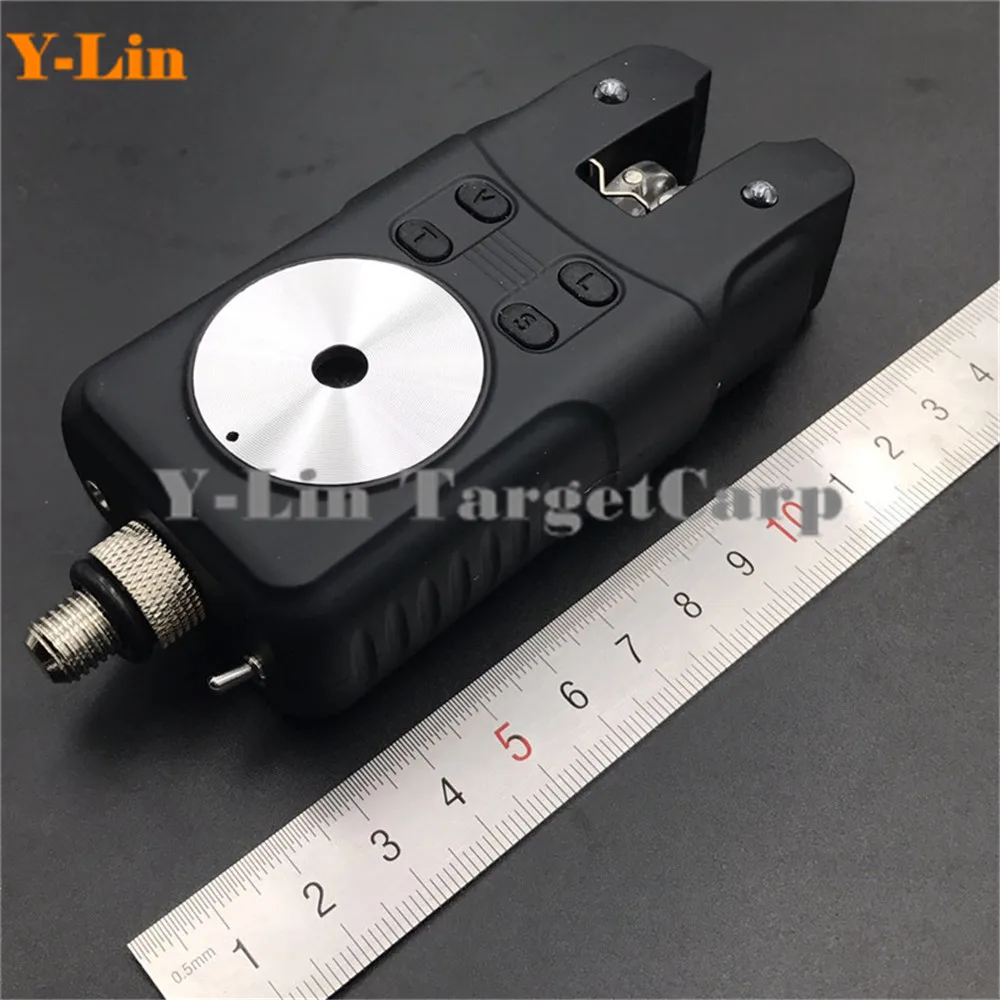

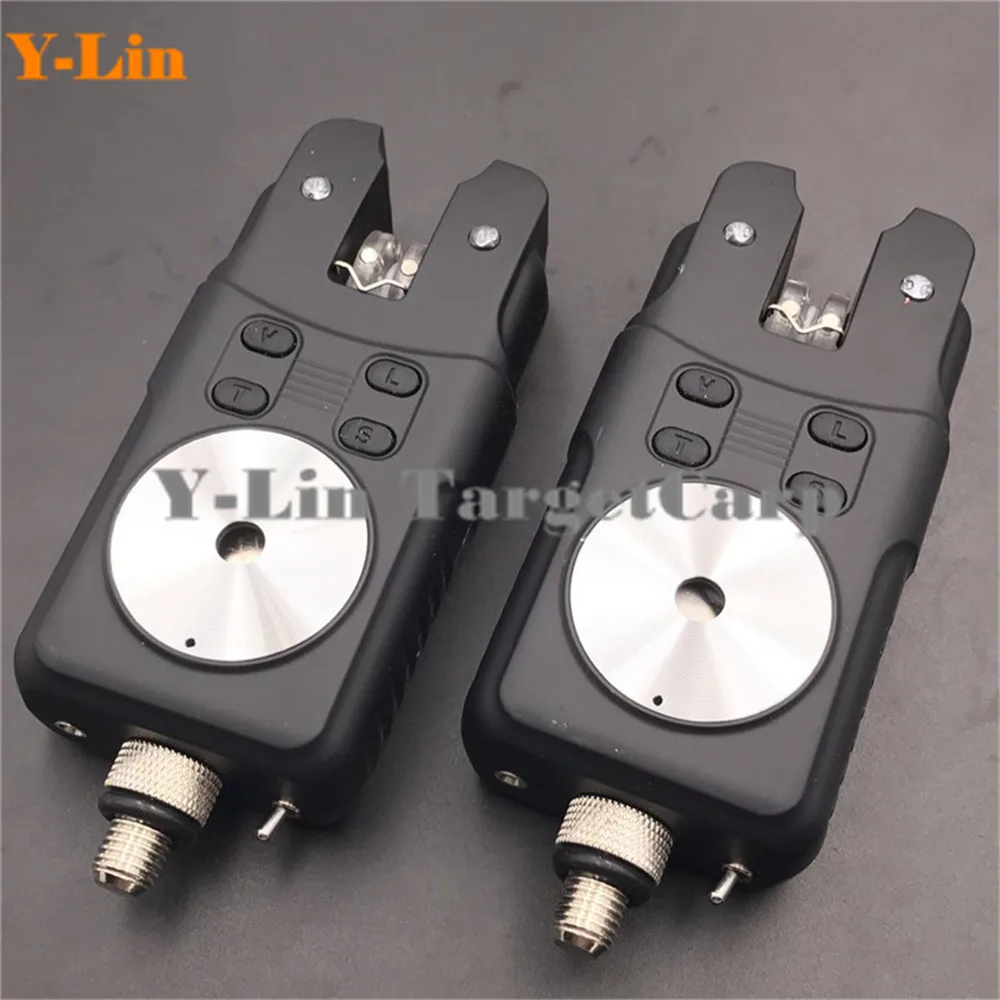

Bite alarm units

8 tones settings

8 volume settings

5 sensitivity settings

15 sec latching LED

8 magnet rollers

Running LED(all are white)

Push button LED dimmer

Black satin smooth finish

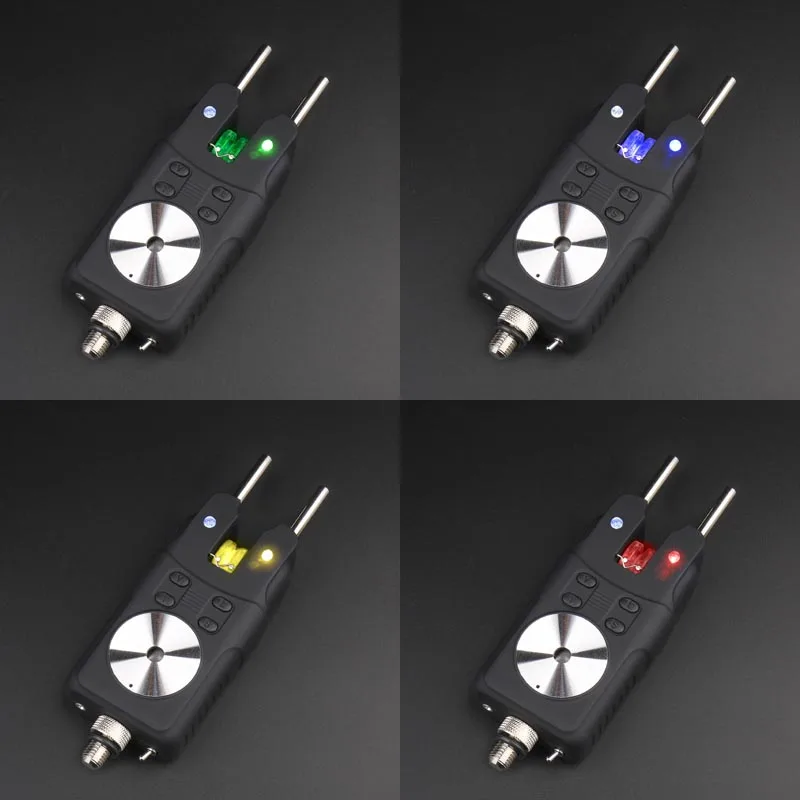

Colorful light rollers

150-200 meters

Operater with the 1.5V*3 batteries

2.5mm jack socket

Memory function in bite alarm

Toggle switch

Removable storm ears

Low battery function

Alarms User Instructions

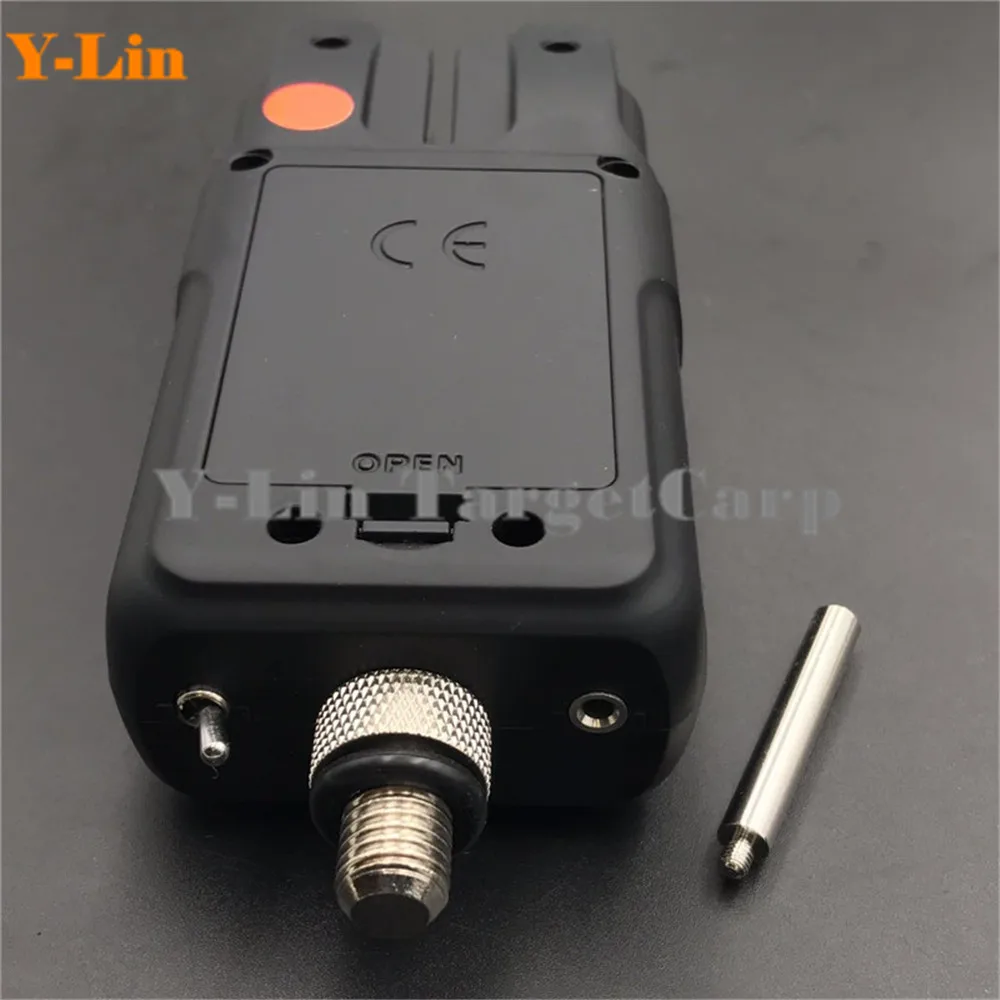

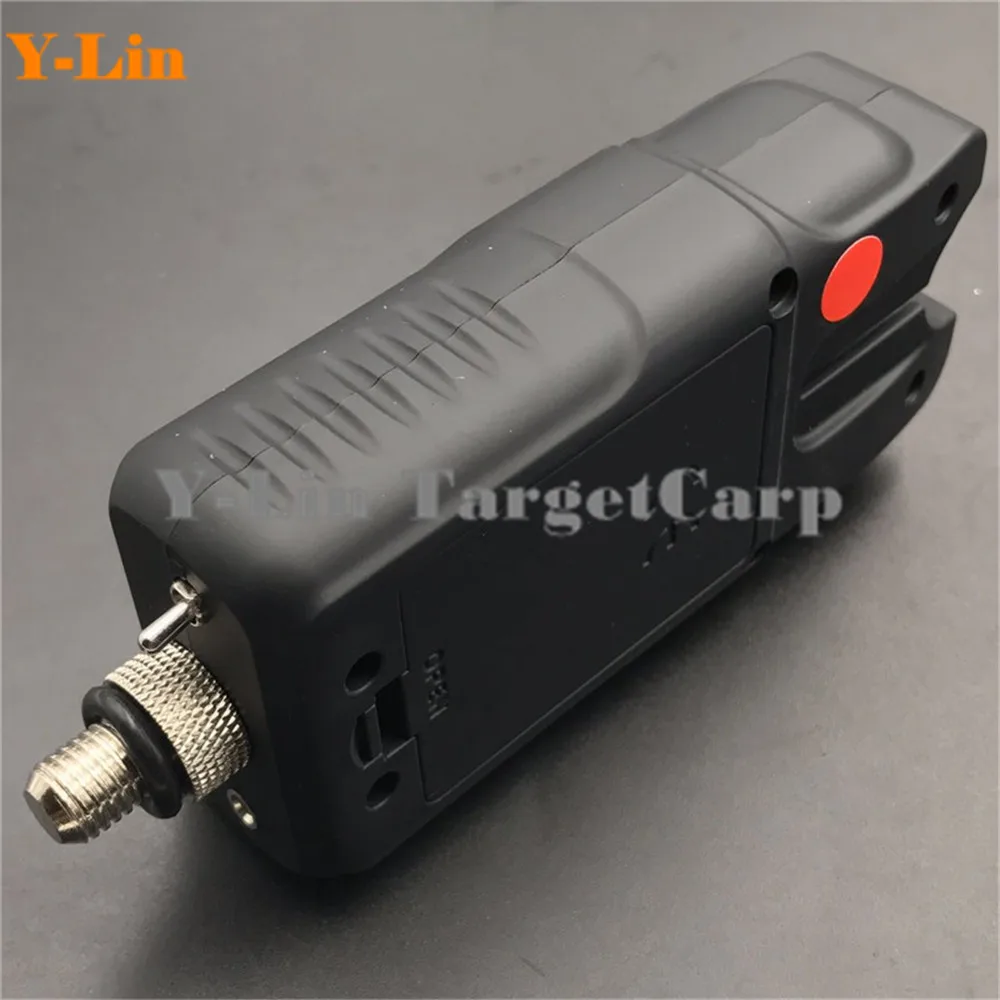

Inserting battery

Undo single battery------slide down battery cover------insert 1.5V*battery

To complete the procedure, gently push back the battery cover,

Power on/off swith

Push the switch to right “Power ON”, push the switch back left position “Power OFF”

Volume adjustment

Press the volume control “V”to step through the 8 volume settings,

ranging from low to high and silent mode.

Tone adjustment

Press the tone adjustment button “T”to step through the 8 settings.

On/Off Light switch

Press the light control “L”to set ON/OFF night light.

Sensitivity adjustment

Press the sensitivity adjustment button “5”to step the 5 sensitivity settings, ranging from Minimum to Maximun mode.

1 beep equals maximum sensitivity to 5 beeps minimum sensitivity.

Run indication/Low battery indication

When magnet roller wheel is activated. Both LED’S will be illuminated. The latching LED will illuminate for 20 seconds

and the run LED illumination stops when the roller wheel finishes rotating./Run LED on bite alarm will flash/blink once

every 5 seconds when battery low.

Technical Specification

Transmitter:

Power Voltage:1.5V*3

Standby Current:6uA

Working Current:58mA

Shut down current:0mA

Working Power:9dB

Frequency:433MHz

Coverage range:150~200m

Working Temperature:-10~70°

Receiver

Power Voltage:15V*3

Standby Current:2.6mA

Working current:21mA

Shut down cuttent:0mA

Receiving Sensitivity:-95db

Frequency:433MHz

Coverage range:150~200m

Working Temperature:-10~70°

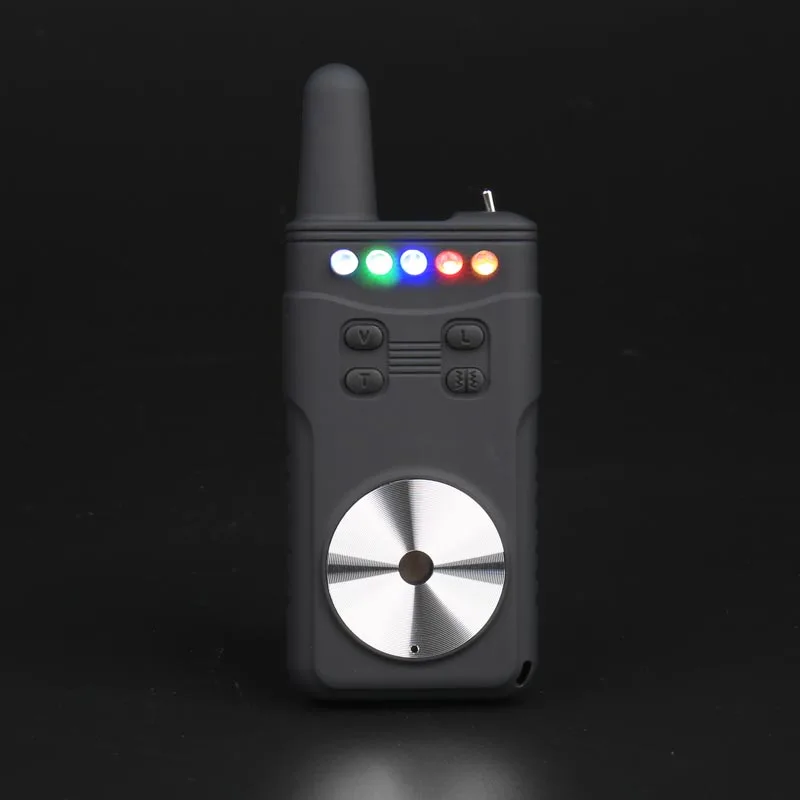

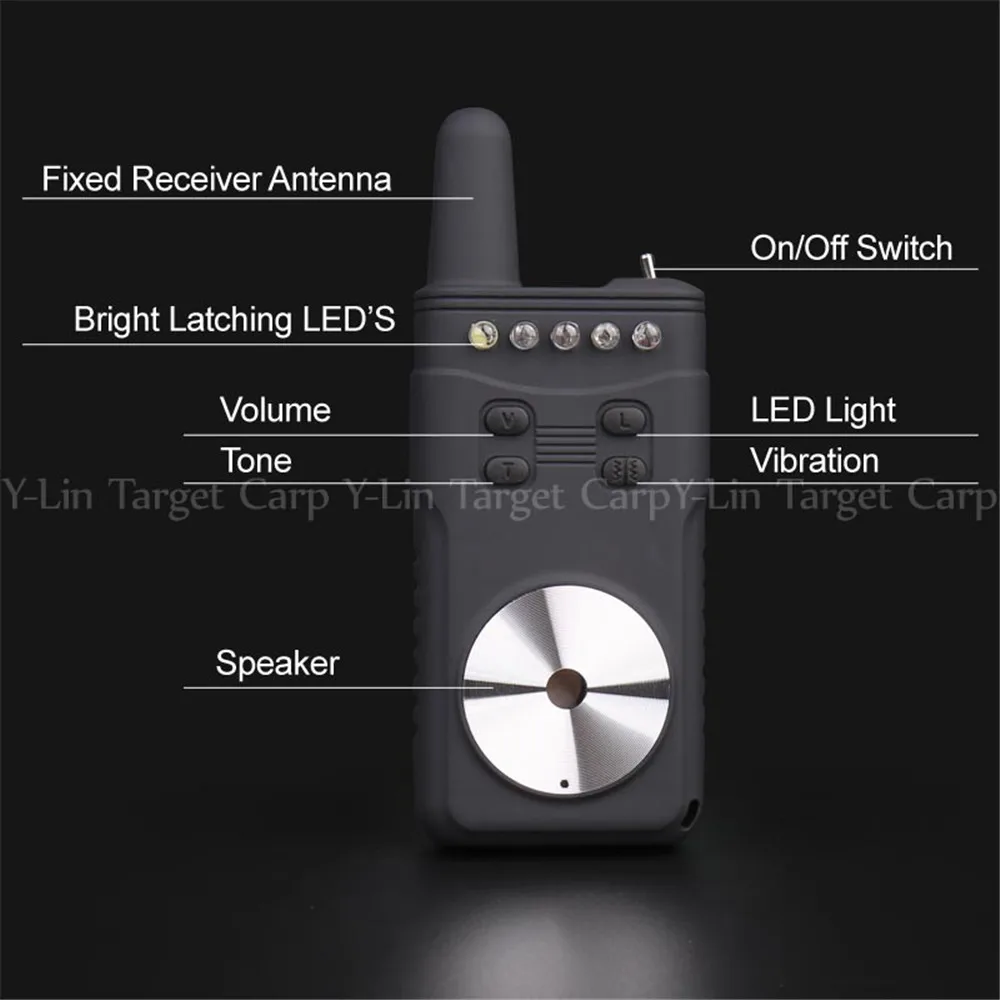

Receiver units

8 tones settings

8 volume settings

5 colors clear LED choices

Vibration mode/silent mode

5 LED dimmer

150-200 meters

Memory function in receiver

Learn and erase code

Low battery function

Toggle swith

Operate with 1.5V*3 batteries

Receiver User Instructions

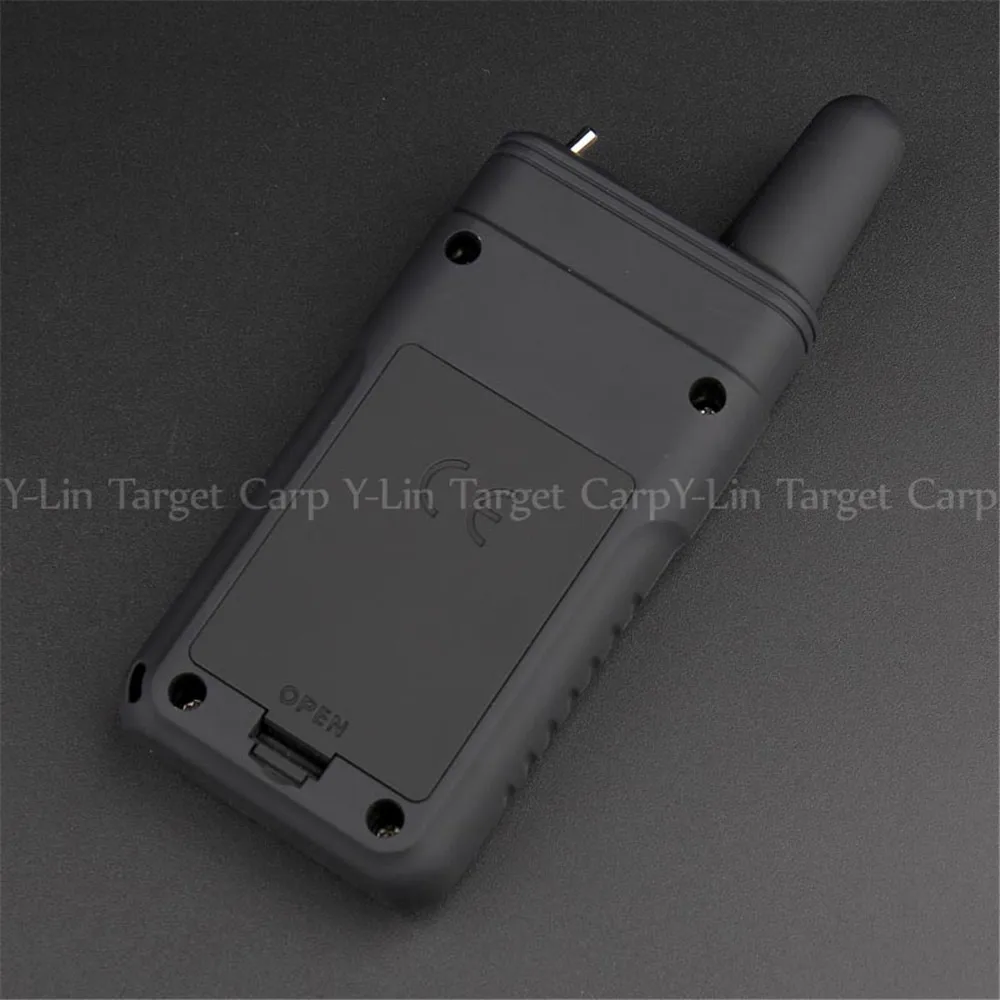

Inserting battery

Undo single battery------slide down battery cover------insert 1.5V*battery

To complete the procedure,gently push back the battery cover

Power on/off switch

Push the switch to right “Power ON”

Push the switch back left position “Power OFF”

Volume adjustment

Press the volume control “V”to step through the 8 volume settings,

ranging from low to high and silent mode.

Tone adjustment

Press the tone adjustment button “T”to step through the 8 settings.

On/Off Light switch

Press the light control “L”to set ON/OFF Bright Latching LED’S

Vibration adjustment

Press the vibration button “O”to choose vibration mode on or off.

Low battery indication

The first latch LED on remote receiver will flash/blink once every 5 seconds when battery is low.

Learning method

1.Press the V button and hold down L button,sounds one time,then enter the learning,the receiver receive a signal

while rotate the roller wheel of bite alarm, it will sounds again, that means learning successfully, when you need to

learn other bite alarm, repeat the above operation.

2.Press the V button and hold down L button, sounds one time, then enter the learning, press L button to choice

receiver LED light while rotate the roller wheel of bite alarm, it will sounds again, that means learing successfully, when

you need to learn other bite alarm, repeat the above operation.

Erase method

Press the V button and hold down L button, sounds one time, then enter the learning, but continue hold down the buttons,

sounds again, erasing successfully, and all code of bite alarm which had been stored are erased.
