For Ac servo PMSM development board STM32 FOC sine wave (BLDC PMSM) -FOC4.2 library |

For Ac servo PMSM development board STM32 FOC sine wave (BLDC PMSM) -FOC4.2 library |

For :

Brief introduction:

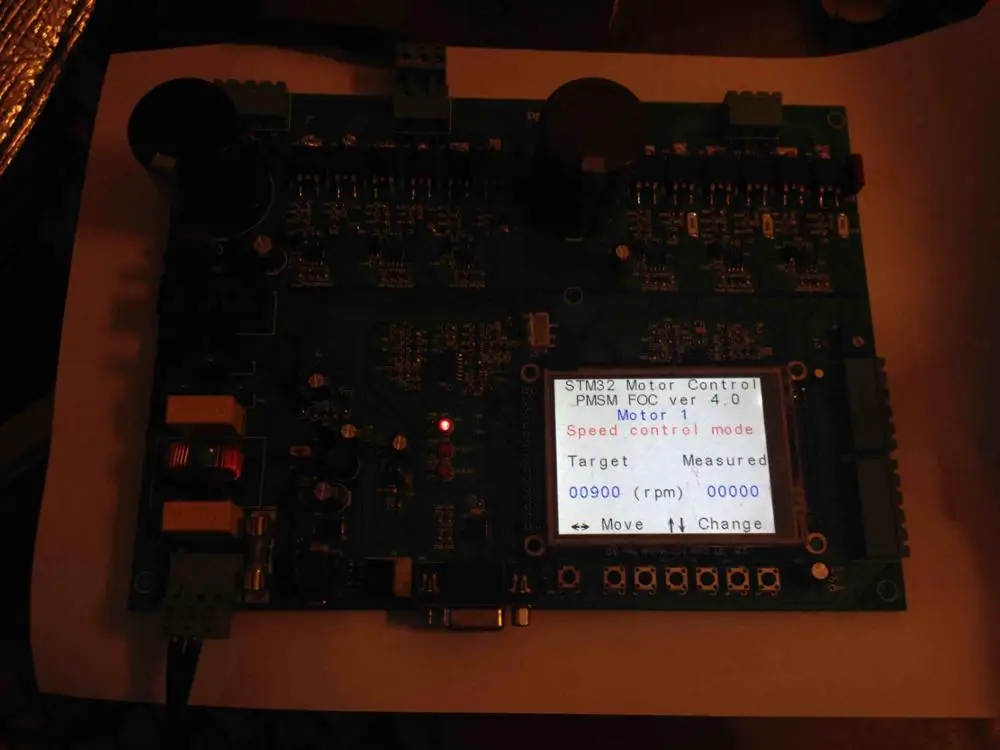

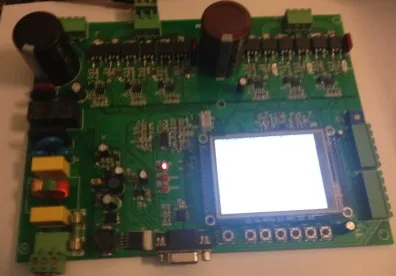

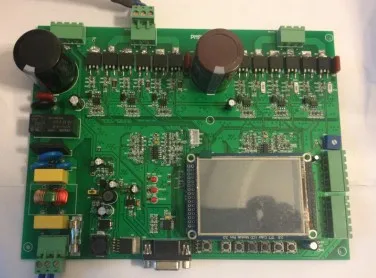

STM32F103ze motor control kit contains: main control board and drive board, a BLDC motor, a switching

power supply.The main control board comes with a 2.8 'TFT LCD, with STM32F103ZET6 chip.Drive board

main independent IC drive motor.The user may overdo STLINK or JLINK's SWD download program and debug it.

Features:

The 32-bit CORTEXM3 core CPU: STM32F103ZET6

Adopt master control and drive together circuit, easy to debug and repair

Support DC and ac input, DC input: DC 18V ~ 300V, standard 24V power supply, ac input AC85~220V

180o sine wave control mode, FOC vector control mode

Three resistance current detection, convenient man-machine interface: TFT liquid crystal display, 6 key, potentiometer, 4 LED lights, serial communication interface

Dual motor control interface, support BLDC, PMSM, ACIM (three-phase ac asynchronous) motor control

Supports V2.0 and the latest V4.2 library driver, hardware fully supports dual motors

Support V4.2 library. Purchase the development board to enjoy free upgrade service, and update the ST electric library upgrade in a timely way.

Dual motor drives video connection

v.youku.com/v_show/id_XODM0OTk2OTM2.html

MCU standard with STM32F103ZET6,512K Flash, 64K SRAM, 32-bit ARM cortex-m3 kernel, hardware division and single-cycle multiplier

To provide a flexible and reliable platform for the application of hardware and software for various applications, saving a lot of r&d investment.For example: variable frequency air conditioning, industrial sewing machine, BLDC/PMSM control, electric vehicle controller, solar inverter power station, UPS and other product development

It can meet the college students' electronic competition, the course experiment, internship and graduation design requirements of college majors: embedded system, power electronics

Compatible and improved the ST official motor suite, the upper current can run, support has, no sensing operation, support the speed mode or the torque mode

Support high, low voltage motor (12V ~ 300V DC), support HALL and encoder input

* this plate is designed for hot ground (high and low voltage). Please use isolation transformer to ensure the safety of person and equipment when connecting to high pressure.

Support ST FOC V2.0 library, support ST FOC V3.2 library.

A brief introduction to the function of ST

The optimized and well-documented C firmware library can be used both for PMSM (with sensor and sensor mode) and for ac induction (with sensor) brushless motor.(the FOC calculation is provided in the LIB file mode)

Different current detection method system, independent current detection mechanism

Shunt resistance + dual acquisition/maintenance, advanced method system, the demand for bus voltage is lower

Different rotor position feedback, encoder (PMSM motor), tachometer (AC induction motor)

Hall sensor (60 ° and 120 ° placeholder)

No sensor (specially designed for PMSM)

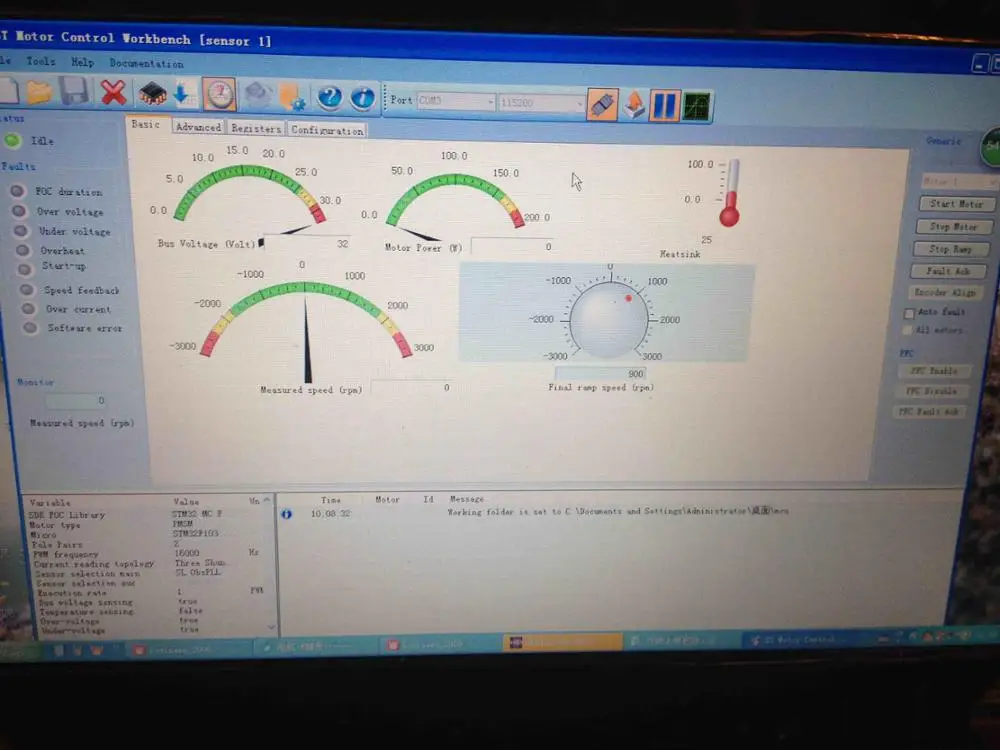

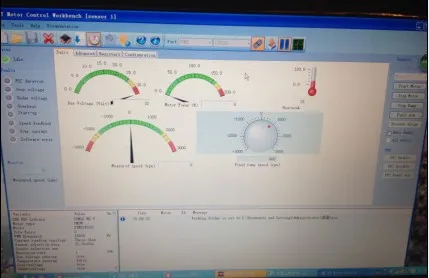

Support upper computer control, real-time monitoring of motor operation
