GALO swing gate motor kit Separated on both sides home farm gates use Actuator Automation swing gate opener

Produrct feacture：

1.Easy to install and operate,and easy to connect wired.
2.Open and close the gate by remote control and keypad.
3.Time promotation function.when open gate,speed is slow,then a little quick,and when close the door,speed is slow again.
4.In case of power failure,release the clutch easily,and can operate the gate manually.
5.Stop working when gate meets with obstacle.
6.Rod's max travel is 300mm.
7.Motor's Poweer : 24VDC 40W
8.Running Speed :1.6cm/s
9.Run travel : 300mm
10. Max single leaf gate width: 2.5M
11.Max single leaf gate weight: 300KG

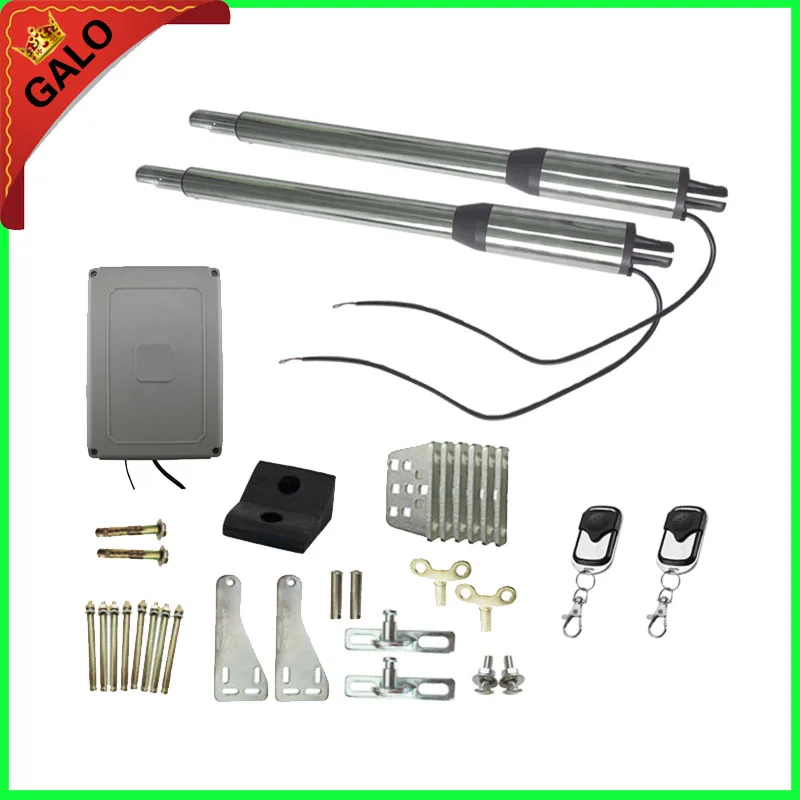

Standad kit components：

①2* Arms Gate Openers(drive motor)
②1* Control Box
③1* A set of Hardware Accessories
④1*Rubber stopper
2* Remote Control

    1* Manual

In some countries the cold climate, we add antifreeze oil inside the motor, It can work in cold environment.

Control Box details

Solar power system

Solar panel, solar charge controller and back up battery can make your motor operate with out traditional power supply.
Battery Capacity: 12V 5AH
Soalr panel
Max. Power 20.0W
Max. Voltage 17.0V
Max. Cureent 1.18A
Open Circuit Voltage: 21.6V

Photocell

Features
1. The photocells should be installed at height of more than 20cm above the ground.
2. The distance between transmitter and receiver should be more than 50cm.
Wireless Keypad

Touch Sensor Bottons or Digital keys
Compatible With Most Of Fixed Codes&Rolling Codes
Two Channel Output
LED Indicator&Backlight
Security Lockout
IP Rating 53

2G/3G GSM Controller

1. No call charges
2. Multipleapplications.
3. Secure.
4. Can be operated from anywhere, no distance limit.
5. Add or remove users by Simple SMS Text command.
6. Up to 99 authorized phone numbers can be configured.
7. Two Digital inputs for door sensor, motion sensors or other sensors to protect your door and windows.

According to the color kit picture above to choose the necessary accessories

Produect feacture:

Digital LED Menu brings a easy setting ,plug and play
Availble to set pedestrian mode
Adjustable working time
Adjustable resistance sensitiv
Adjust auto-closing time
Terminal availble for loop detector ,photocell,push button, keypad , access control equipment etc.
Custom rolling code makes the system more secure, high anti-theft performance

Need more clear instructions and installation tutorial Please contact the seller to use e-mail send

Produect detail：

If you have any questions, pls contact with me. I am glad to service you.
Whatsapp : +8615820492596

Q1: What is the Warranty for swing gate opener?
A1:we have 24 months warranty time ,If any quality problems on our side occured in this period ,contact us.

Q2: What is connponents of 1 set swing gate opener?
A2:Each Kit swing gate opener inclduing 2motors, 1 control panel, 2 remote controls, 2 release keys, 1 user book, 1 set hardward accessories for installation .

Q3:What is the securiy device for swing gate opener?
A3: Our control panel have terminals for infrared sensor ,flashing light , it can avoid some unnecessary accident.

Q4: What is package size, weight?
A4: Package size:about 84cm*34cm*15cm . Gross Weight : 15KG.

Q5: What is the Volatage input?
A5: Volatage range : 110V-240V.you can choose or tell us

Q6:Is there any quick release device for power failure?
A6:Our system have clutches device , when the power failure ,just use a Allen key to release the clutch , and push the door open or close by hand. Or use a backup power supply，contact seller.

Q7:Is there cheap shipping cost to import to our country?
A7: For 1 order,express will be best.

For bulk order,sea ship way is best but take much time. you need contact seller.
