Xintai Touch Open Frame PCAP сенсорный монитор с разрешением 1920*1080, яркостью 350 кд/м2 и емкостным сенсорным экраном на 10 точек.
39062.34
Новое поступление
Монитор Samsung S24R356FHI 23.8" IPS 1920x1080/ 4ms/ 178°*178°/ 250 cd/m/ 100 000 000:1 +НDMI Black - купить по
Free Shipping 5 Wire Resistive Touch Screen Monitor 15 "LCD USB For POS Dispaly | LCD Monitors
Характеристики
Оверлей-комплект сенсорного экрана Obeytec 23" с 10 точками прикосновения и стеклом толщиной 3 мм защитой от вандализма солнечного света пыли.
История изменения цены
*Текущая стоимость 6509.42 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-17-2026 | 8266.29 руб. | 8431.57 руб. | 8348.5 руб. |
| Jan-17-2026 | 6704.93 руб. | 6838.52 руб. | 6771 руб. |
| Dec-17-2025 | 8136.42 руб. | 8299.89 руб. | 8217.5 руб. |
| Nov-17-2025 | 8071.70 руб. | 8232.41 руб. | 8151.5 руб. |
| Oct-17-2025 | 6444.45 руб. | 6573.42 руб. | 6508.5 руб. |
| Sep-17-2025 | 7941.77 руб. | 8100.67 руб. | 8020.5 руб. |
| Aug-17-2025 | 7876.99 руб. | 8034.6 руб. | 7955 руб. |
| Jul-17-2025 | 7811.63 руб. | 7967.44 руб. | 7889 руб. |
Описание товара
start
US $49.95
US $51.95
US $53.95
US $55.95
US $57.95
US $59.95
US $65.95
US $67.95
US $67.95
US $69.95
US $69.95
US $69.95
US $69.95
US $74.95
US $65.95
end
23 inch wide NEW Type IR touch frame multi touch points 10 touch points- This Product is 23" IR touch frame with 10 touch points only. Windows/linux/android supported. USB plug and works.

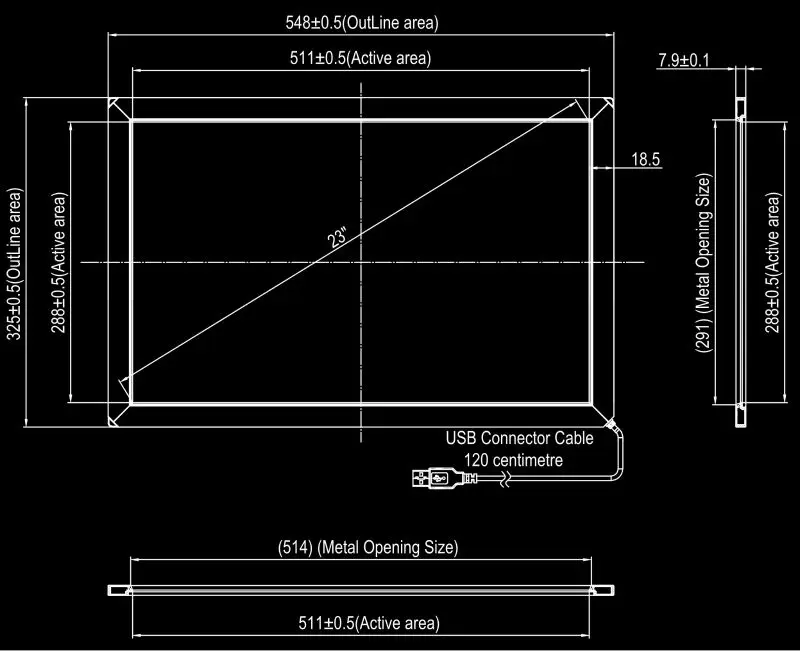

IR Touch Frame Bezel Drawing:
Drawing for Touch Bezel
Support Operation system
*APPLE OS PLS LET US NOW BEFORE ORDER. We will use different firmware ..
Please Notice: If working on Android, confirm with us first ,thanks~
IR touch frame Specification
| MECHANICAL | |
| P/N | Obeytec Slim Version |
| Overlay Thickness | 8mm |
| Overlay Frame Width | Top 17.0 mm/Buttom 18.5 mm |
| Glass | 3 mm Vandal proof Glass |
| Housing | Aluminum frame |
| TOUCH CHARACTERISTICS | |
| Input Method | Finger or touch pen |
| Touch Points | 2/4/6/10 (Standard 2 touch points) |
| Touch Activation Force | Non Minimum activation force |
| Position Accuracy | 1mm |
| Resolution | 4096(W)×4096(D) |
| Response Time | Touch: 6ms |
| Drawing : 6ms | |
| Cursor Speed | 120 dot/sec |
| Glass | 4mm glass Transparency : 92% |
| Object Touch Size | ≥ Ø5mm |
| Touch Intensity | Over 60 millions |
| ELECTRICAL | |
| Operating Voltage | DC 4.5V ~ DC 5.5V |
| Power | 1.0W (100mA at DC 5V) |
| Anti -Static Discharge | Touch Discharge，Grade 2：Lab Vol 4KV |
| (Standard :B) | Air Discharge，Grade 3：Lab Vol 8KV |
| ENVIRONMENT | |
| Temperature | operating：-10 °C ~ 60 °C |
| storage：-30°C ~ 70 °C | |
| Humidity | operating：20% ~85% |
| storage：0%~95% | |
| Relative Humidity | 40 °C，90% RH |
| Anti – glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Interface | USB2.0 full speed |
| Detection Method | Infrared rays |
| Seal Ability | IP64 Anti-Spill (Customizable to IP65 Waterproof) |
| Working Environment | Directly Under sunlight ,indoor and Semi-outdoor |
| Application of Display | Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks |
| SOFTWARE | |
| Scanning | Auto full screen scanning |
| Operate system | Window xp,Windows 7,Windows 8,Windows 10, Andriod,Linux |
| Calibration tool | Plug and works |

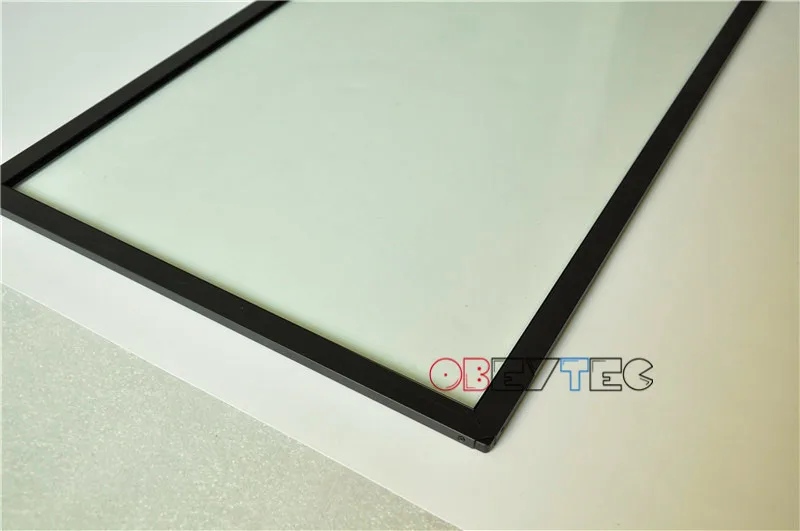

Ir touch frame photos
IR touch frame testing before shipments

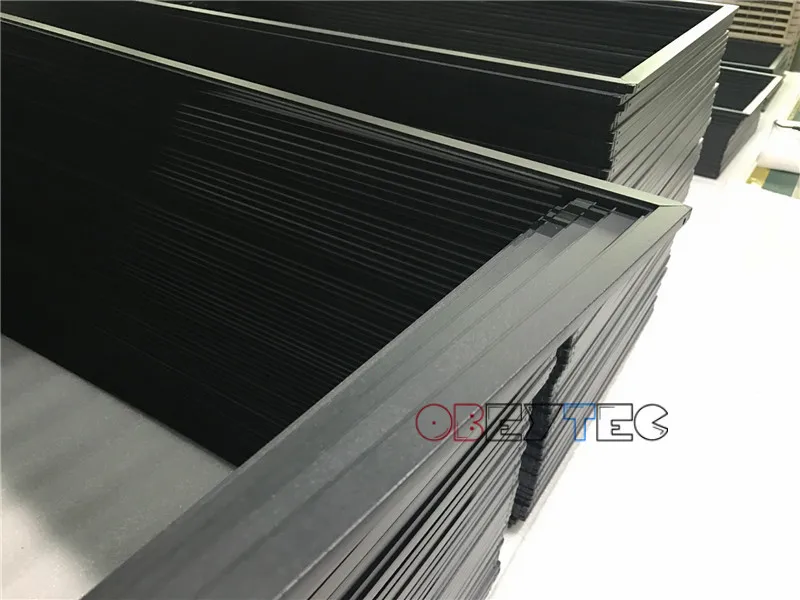

Photos of productions
Shipping method
Ship with Glass Normally. For Sizes Over 32 inches we ship without glass. Because shipping too expensive. If you want ship with glass and disassembly packed into Tube Packaging. Pls contact if you need ship with glass.
WARM TIPS
1. Payment & Shipping
1) Your payment will be temporarily held by Aliexpress to protect your benefit. We will not get it until you confirm receiving the goods.
2) We will ship items out within 5 business days after your payment is verified by Aliexpress.
3) We support free shipping to most countries. But extra shipping charge is required for remote areas.
4) Buyers are responsible for additional COD charges, VAT, Brokerage Fees, Duty, or Custom Fees and Taxes.
2. Feedback
1) We appreciate all our customers to post a positive feedback and 5 scores DSR. The star-scores are very important to us.
2) If anything does not meet your expectation please let us know and give us opportunity to make things right.
3. Warranty & Return Policy
1) All items are under strict examination before deliver. If you find any problem please contact us before open a disputer.
2) We offer 12 months warranty for our products. We can help to repair or replace within warranty period.
3) Products could be returned within 30 days after you receive it. Returned goods must be unused and in original packaging.
4) The buyer is responsible for the cost of returning.
