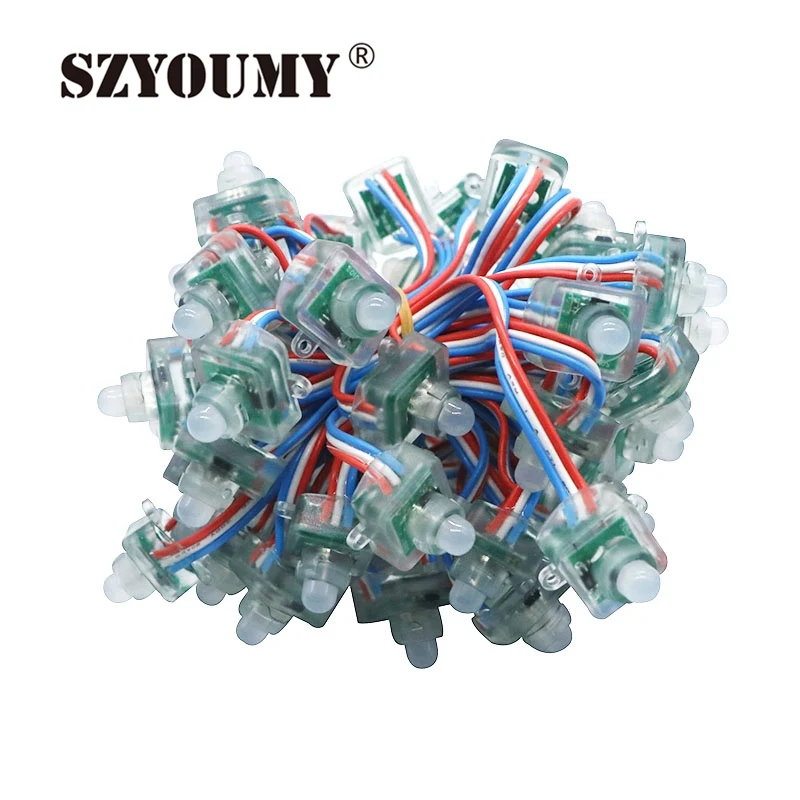

SZYOUMY12mm Ws2811 2811 Square Pixel Led Modules Light DC5V Outdoor Waterproof Full Color Digital Led Pixel Lights

RGB Pixels are digitally-controllable lights you can set to any color, or animate

Each RGB LED and controller chip is molded into a 'dot' of silicone.

The dots are waterproof and rugged.

There are four flanges molded in so that you can 'push' them

into a 12mm drill hole in any material up to 1.5mm/0.06" thick

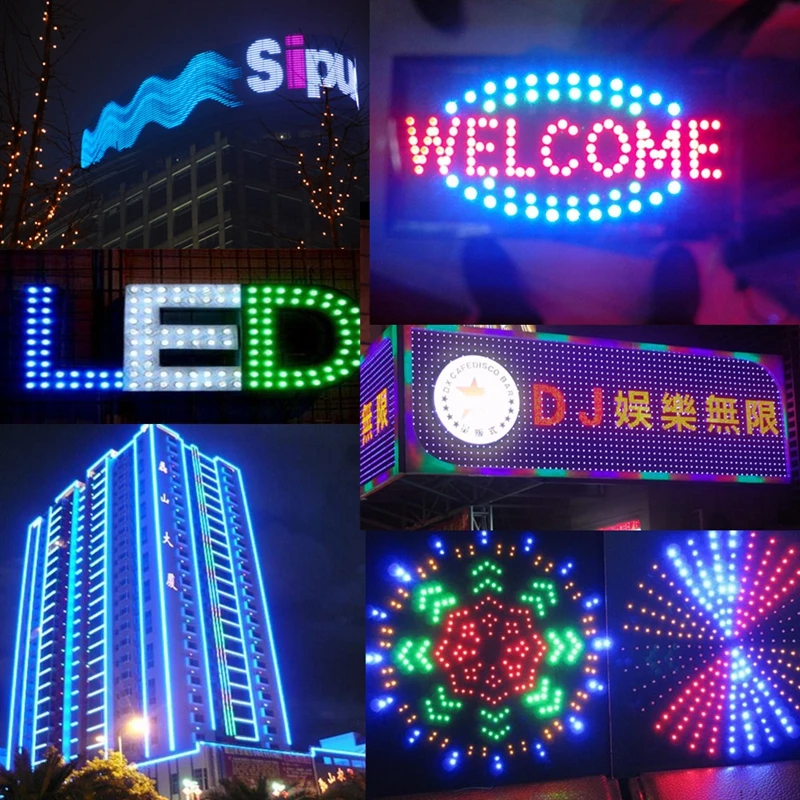

They are typically used to make outdoor signs. Compared to our other 20mm LED dots

these are diffused 8mm LEDs so they are not as bright but they color mix a little nicer.

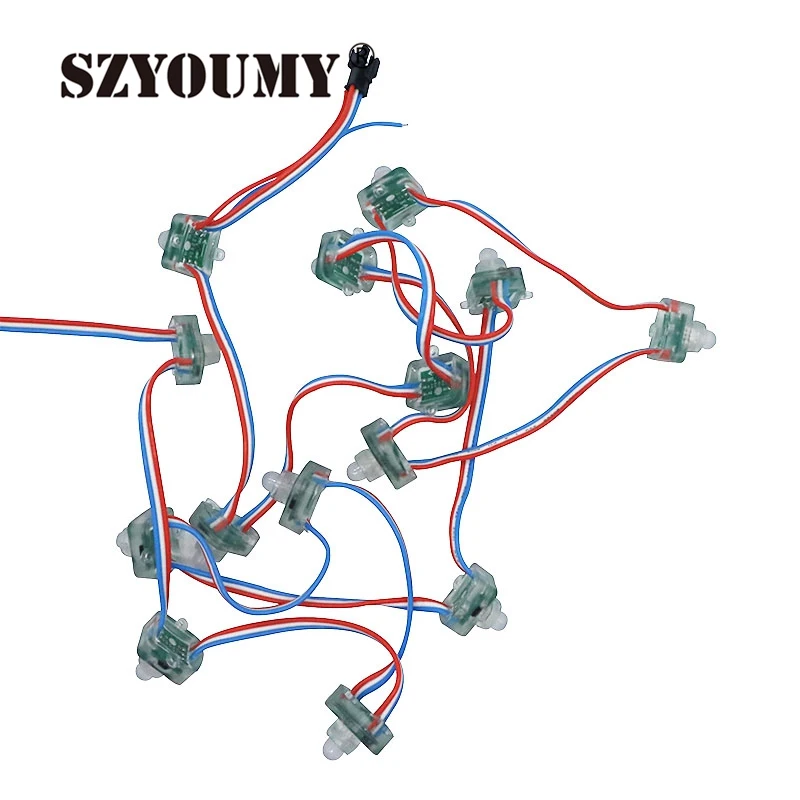

The pixels are connected by a 3-conductor cable. Red is +5V, Yellow is Ground, Green is Data and

Data is shifted down from one pixel to the next so that you can easily

cut the strand or attach more onto the end.

Each dot is digitally controlled, with an internal 5-bit PWM LED driver (15-bit color for 32,768 different shades). The pixels must be clocked by a microcontroller

The pixels use 8mm diffused RGB LEDs

with brightness of about 300 mcd per individual r/g/b LED.

SD controller
Programable by Software
Individually Control
Conformal Coating,PVC glue protection
IP66, Water-proof protection
Easy installation (punching 12mm hole on metal panel)

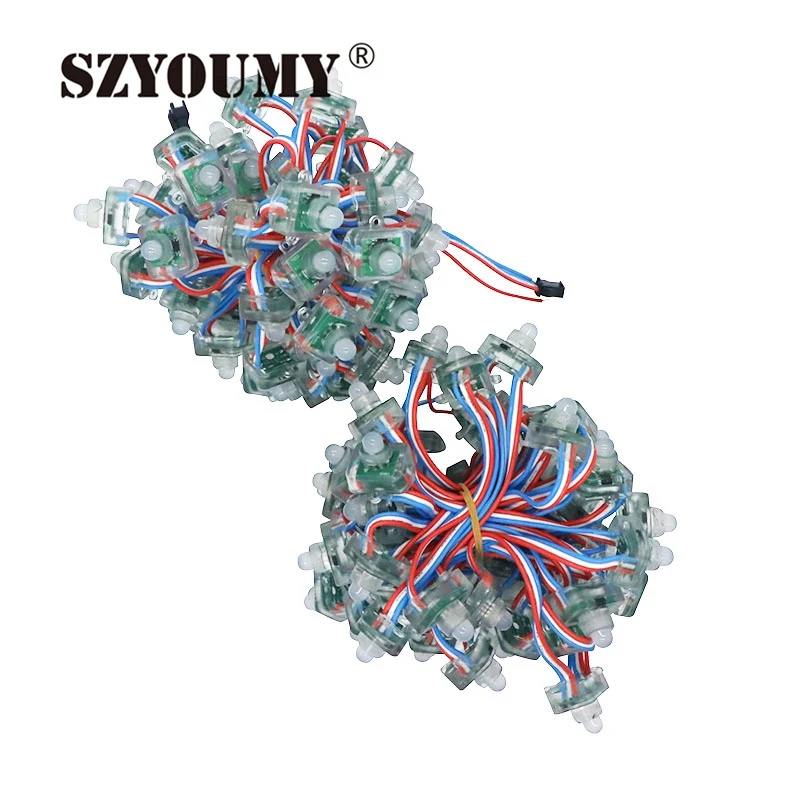

200pcs led string set into antistatic bag

Shenzhen You&My is a professional manufacturer and supplier of Led light product in China Since 2007

Our main products isled solar light,led strip light,led tube,led bulb,led spotlight,led downlight  led floodlight Lighbay lights,and so on The product has achieved CE, ROHS Factory directly offer a competitive price with Good Quality. We provide 2 years warranty for all of our products. Welcome any partner from worldwide regarding LED lights or energy-saving projects in your location,pls do not hesitate to contact us ,we will try our best to help you , You are warmly welcome to visit us

1. Reply Emails within 24 hours when we got your email
2. Experienced marketing team give perfect answers to all your questions by heart.
3.Customized design is available. OEM&ODM are welcomed.
4. Exclusive and unique solution would be provided by our well-trained & professional engineers and staffs.
5. Special discount and protection of sales area provided to our distributor.

Q1:What is the warranty for the LED products?

A1:For the leds,we have 2 years warranty.And some special offer with 5 years warranty as customers request.

Q2:What is color temperature?
A2:Shenzhen You&my Electronic Technology Co.ltds LED Lighting ofter Led lights in warm, natural,pure and cool white with colour temperatures measured in Kelvin(K). The lower the colour temperature is the warmer the light given by the LED:

Warm white =2700-3200k
Natural white=4000-4500k
Pure white=5000-5500k
Cool white=6000-6500k

Q3:What is CRI?
A3:CRI is a figure which feedback real objects colors.Highter GRI with highter cost.For LED tubes,the CRI is highter than 80. For the outdoor light,the CRI highter than 70 is OK at most of applications.

Q4:What is the AC Voltage tolerance for our LEDS?
A4:Their AC voltage tolerance is +/- 10%.

Q5:Is there cheap shipping cost import to our country?
A5:For small order,express will be best(4-5 working days by DHL/FED/UPS) And for bulk order,sea ship way is best but take longer time(about 3 weeks).For urgent orders,we suggest via air to airport plus our ship partner send to your door(one week time).

Q6: Could you offer OEM led light.
A6:Yes, we offer OEM led light.the OEM leds could offer your customized laber and your color box.

Q7:About Import value and remote fee duty?
A7:1 If you have the request for the declared value, Please tell us the declared value in package,Import duties,taxes and charges are not included in the item price or shipping charges.These charges are the buyers` responsibility.

2.There is additional fee FOR some remote area , hope you can kindly pay it. Otherwise We will reduce the product quantity to balance our cost. And You can check it atDHL websitebefore your purchase. (this policy just refers to DHL free shipping order)
