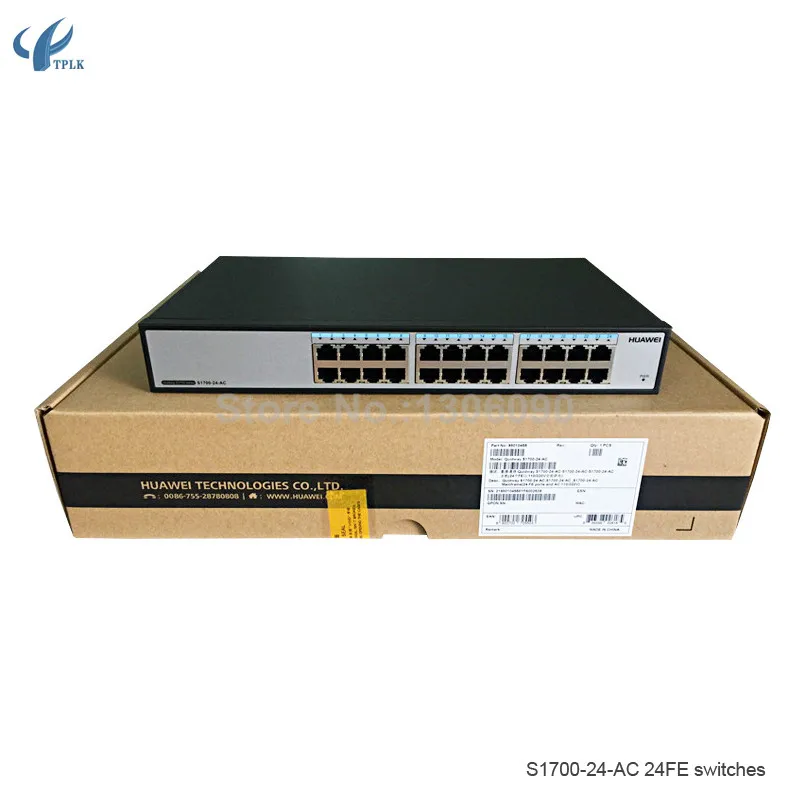

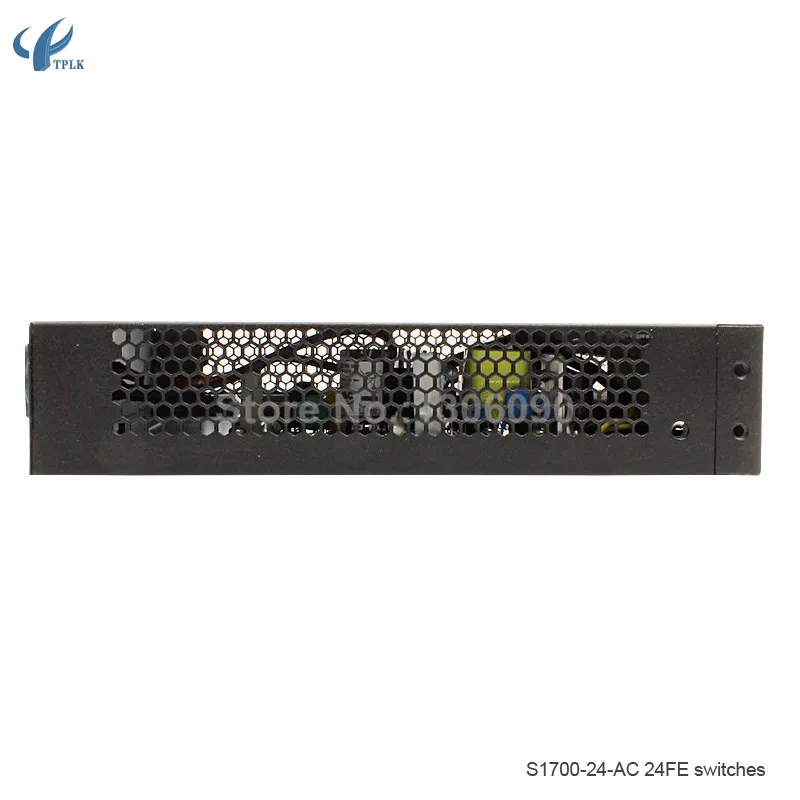

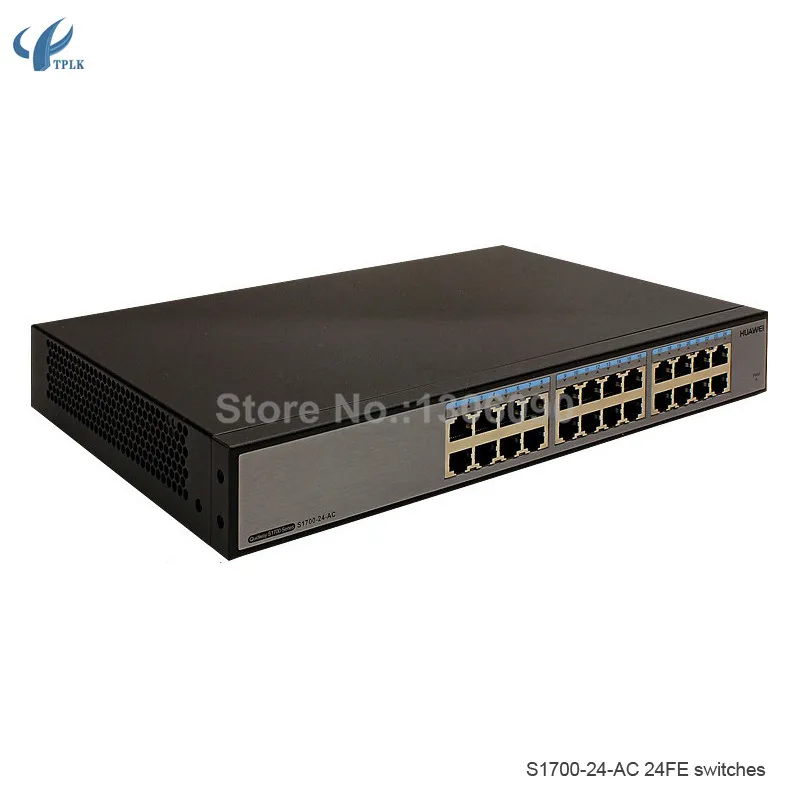

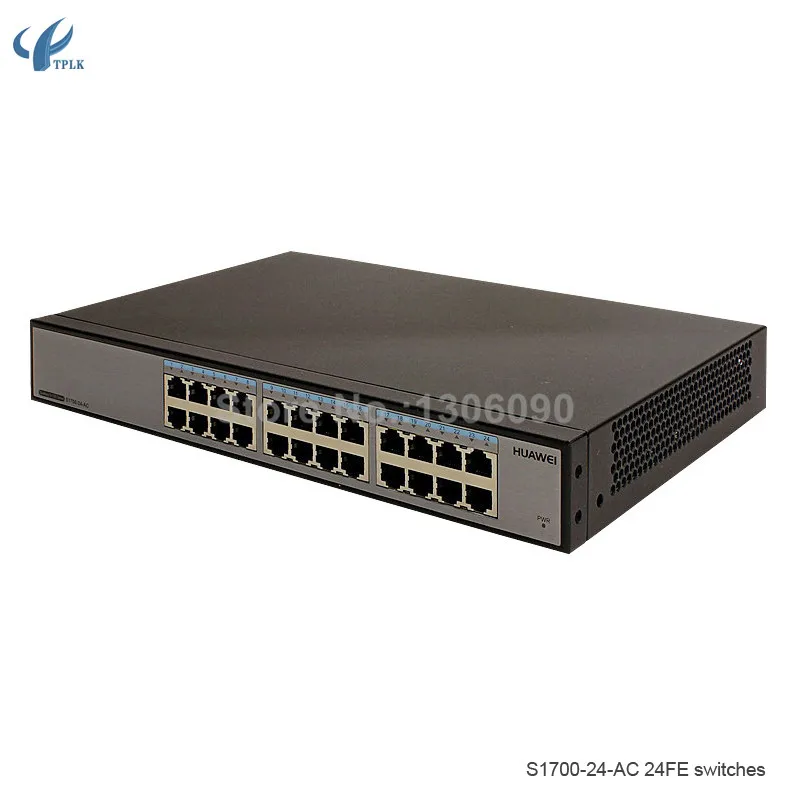

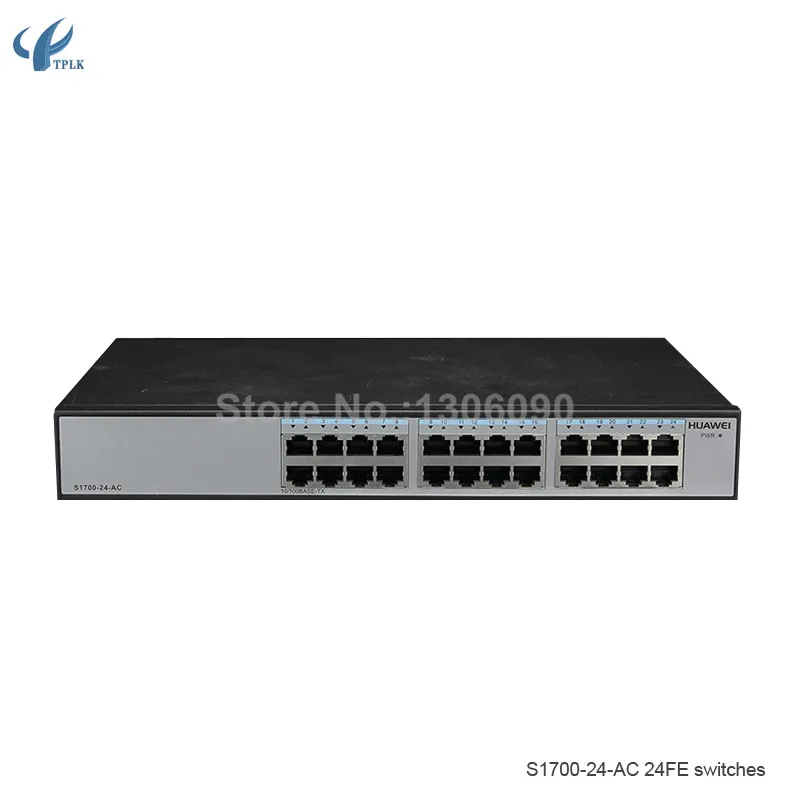

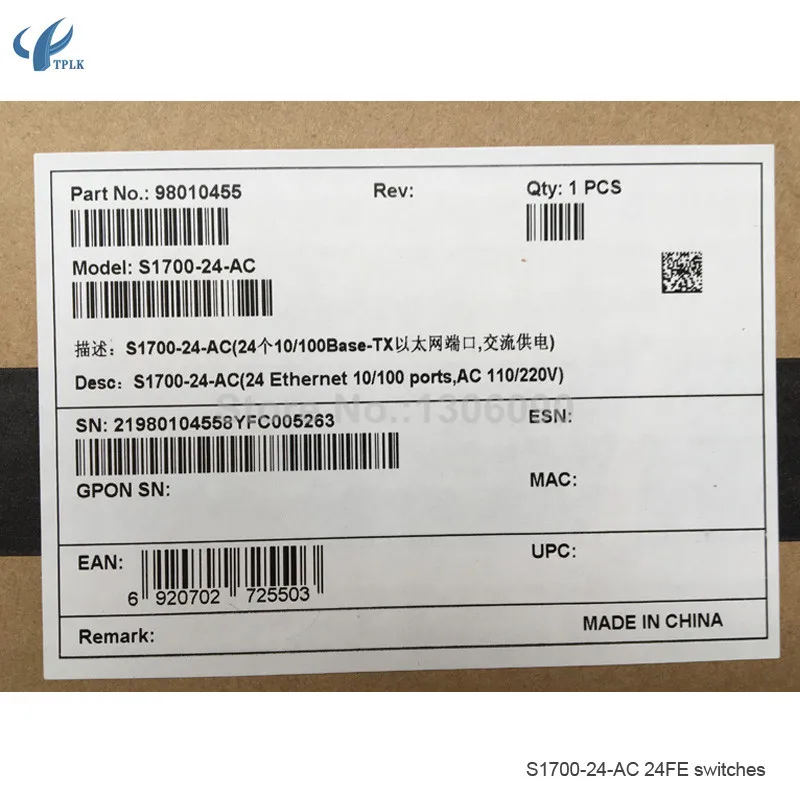

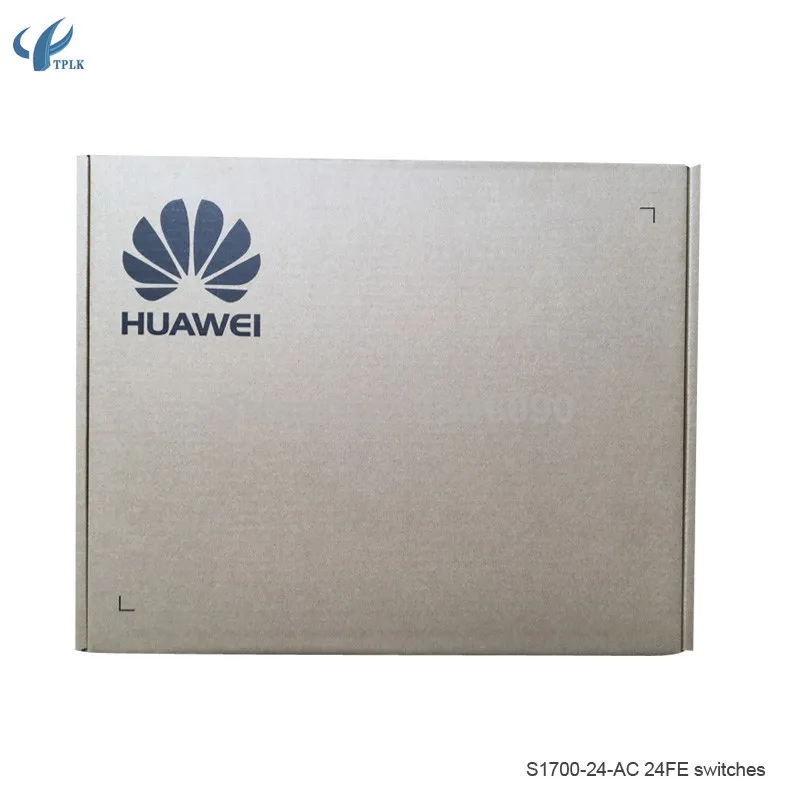

Good Quality Original Hua wei S1700 series switch 24-port S1700-24-AC unmanaged network soho Switch

The S1700 series enterprise switches (S1700s) are next-generation, energy-saving Ethernet access switches. The S1700 uses high-performance hardware, which offers a wide array of features to help customers build secure, reliable, high-performance networks. The S1700 is easy to install and maintain, and is ideal for small- and medium-size enterprises, Internet cafes, hotels, and schools.
The S1700 consists of unmanaged switches, Web/SNMP-based switches, and a web-managed switch:
Unmanaged switches include the S1700-24-AC, S1700-52R-2T2P-AC, S1724G, S1700-24GR, and S1700-16G.
Web/SNMP-based switches include the S1700-28FR-2T2P-AC, S1700-28GFR-4P-AC, S1700-52FR-2T2P-AC, S1700-52GFR-4P-AC, S1720-20GFR-4TP, and S1720-28GFR-4TP.
The web-managed switch is the S1728GWR-4P.

Other types:



EI	S5700-28C-EI/S5700-28C-PWR-EI: 24 × 10/100/1000Base-T
	S5700-52C-EI/S5700-52C-PWR-EI: 48 × 10/100/1000Base-T
	S5700-28C-EI-24S: 20 × 100/1000Base-X, 4 × GE Combo
	S5710-28C-EI/S5710-28C-PWR-EI-AC: 20 x 10/100/1000Base-T, 4 × GE Combo, 4 × 10GE SFP+
	S5710-52C-EI/S5710-52C-PWR-EI/S5710-52C-PWR-EI-AC: 48 x 10/100/1000Base-T, 4 × 10GE SFP+
	S5720-32P-EI-AC: 24×10/100/1000Base-T, 4×100/1000Base-X SFP, 4 Gig SFP
	S5720-52P-EI-AC:48×10/100/1000Base-T, 4 Gig SFP
	S5720-36C-EI-AC/S5720-36C-PWR-EI-AC: 28×10/100/1000Base-T(4GE Combo SFP), 4×10 GE SFP+
	S5720-36C-EI-28S-AC:28×100/1000Base-X SFP(4GE Combo), 4×10GE SFP+
	S5720-36PC-EI-AC: 28×10/100/1000Base-T(4GE Combo SFP), 4 Gig SFP
	S5720-56C-EI-AC/S5720-56C-PWR-EI-AC/S5720-56C-PWR-EI-AC1:48×10/100/1000Base-T, 4×10GE SFP+
	S5720-56C-EI-48S-AC: 48×100/1000Base-X SFP, 4×10GE SFP+
	S5720-56PC-EI-AC: 48×10/100/1000Base-T, 4 Gig SFP
	S5720-32X-EI-AC: 24×10/100/1000 Base-T, 4×100/1000Base-X SFP, 4×10 GE SFP+
	S5720-32X-EI-24S-AC: 24×100/1000Base-X SFP, 4×10/100/1000Base-T, 4×10GE SFP+
	S5720-50X-EI-AC : 46 ×10/100/1000Base-T, 4×10GE SFP+
	S5720-50X-EI-46S-AC: 46 ×100/1000Base-X SFP, 4×10GE SFP+
	S5720-52X-EI-AC: 48×10/100/1000Base-T, 4×10GE SFP+
HI	S5700-28C-HI: 24 × 10/100/1000Base-T
	S5700-28C-HI-24S: 24 × 100/1000Base-X
	S5710-108C-PWR-HI: 48 × 10/100/1000BASE-T, 8 × 10GE SFP+
	S5720-32C-HI-24S-AC: 24×100/1000Base-X ,8 of which are dual-purpose 10/100/1000 or SFP, 4×10GE SFP+







Other:



Huawei Switch S2300 Series
LS-S2309TP-EI-AC	S2309TP-EI(8 10/100Base-T,1Combo 10/100/1000 BASE-T+100/1000 Base-X),AC power)
LS-S2309TP-EI-DC	S2309TP-EI (8 10/100Base-T,1 Combo (10/100/1000 BASE-T+100/1000 Base-X),DC power)
LS-S2318TP-EI-AC	S2318TP-EI(16 10/100Base-T,2 Combo(10/100/1000 BASE-T+100/1000 Base-X),AC power)
LS-S2318TP-EI-DC	S2318TP-EI(16 10/100Base-T,2 Combo(10/100/1000 BASE-T+100/1000 Base-X),DC power)
LS-S2326TP-EI-AC	S2326TP-EI (24 10/100Base-T,2 Combo(10/100/1000 BASE-T+100/1000 Base-X),AC power)
LS-S2326TP-EI-DC	S2326TP-EI (24 10/100Base-T,2 Combo(10/100/1000 BASE-T+100/1000 Base-X),DC power)
LS-S2352P-EI-AC	S2352P-EI (48 10/100BASE-T,2SFP(100/1000 BASE-X),2SFP(SFP Req.),AC power)
LS-S2352P-EI-DC	S2352P-EI (48 10/100BASE-T,2 SFP (100/1000 BASE-X),2 SFP (SFP Req.),DC power)
LS-S2309TP-SI-AC	S2309TP-SI (8 10/100Base-T,1 Combo (10/100/1000 BASE-T+100/1000 Base-X),AC power)
LS-S2318TP-SI-AC	S2318TP-SI (16 10/100Base-T,2 Combo (10/100/1000 BASE-T+100/1000 Base-X),AC power)
LS-S2326TP-SI-AC	S2326TP-SI (24 10/100Base-T,2 Combo (10/100/1000 BASE-T+100/1000 Base-X),AC power)
LS-S2309TP-PWR-EI	S2309TP-PWR-EI (8 10/100Base-T,1 Combo (10/100/1000 BASE-T+100/1000 Base-X),PoE,AC power)
LS-S2326TP-PWR-EI	S2326TP-PWR-EI (24 10/100Base-T,2 Combo (10/100/1000 BASE-T+100/1000 Base-X),PoE,Chasiss,dual power slot,no power adapter)

Kindly Note: Pls let me know if you need other Module (B+ /C++  )before your purchase, we will quote you the best price.

Specification:

S1700-24-AC Specification and Datasheet



Type	Unmanaged Switch
Downlink port	Twenty-four 10/100 M electrical ports
Uplink port	Shared with downlink ports
Packet forwarding rate	3.6 Mpps
Switching capacity	4.8 Gbit/s
MAC address table	8 K MAC
EEE	Not supported
Maintenance	Maintenance-free Switch
Power supply	AC: Rated voltage: 100 V to 240 V, 50/60 Hz Maximum voltage: 90 V to 264 V, 50/60 Hz
Input voltage	100 V to 240 V AC,50/60 Hz
Operating environment	Operating temperature: 0°C to 45°C (long term); –5°C to 50°C (short term)
Humidity(noncondensing)	20% to 85%
Storage humidity(noncondensing)	10% to 90%
Heat dissipation	natural heat dissipation
Dimensions: width x depth x height	320*208*43.6mm
Weight	<5 kg
Power consumption	<10W





Type	Web-managed Switch	SNMP-based Switch
Model	S1728GWR-4P	S1700-28FR-2T2P-AC	S1700-52FR-2T2P-AC	S1700-28GFR-4P-AC	S1700-52GFR-4P-AC
Downlink port	24 Ethernet 10/100/1000 ports	24 Ethernet 10/100 ports	48 Ethernet 10/100 ports	24 Ethernet 10/100/1000 ports	48 Ethernet 10/100/1000 ports
Uplink port	4 Gig SFP	2 Ethernet 10/100/1000 ports and 2 Gig SFP	2 Ethernet 10/100/1000 ports and 2 Gig SFP	4 Gig SFP	4 Gig SFP
MAC address table	8K MAC
Dimensions mm(W×D×H)	442×220×43.6
Input voltage	100 V to 240 V AC, 50/60 Hz
EEE	Supported	NA		Supported
Power consumption	<15W	<25W	<35W	<30W	<55W
Operating temperature	0°C to 45°C
Humidity (non-condensing)	5% ~ 90%	10% to 90%
Heat dissipation	Fan-free natural heat dissipation	Fan-free natural heat dissipation			Heat dissipation using fans supporting intelligent speed adjustment



PICS:
