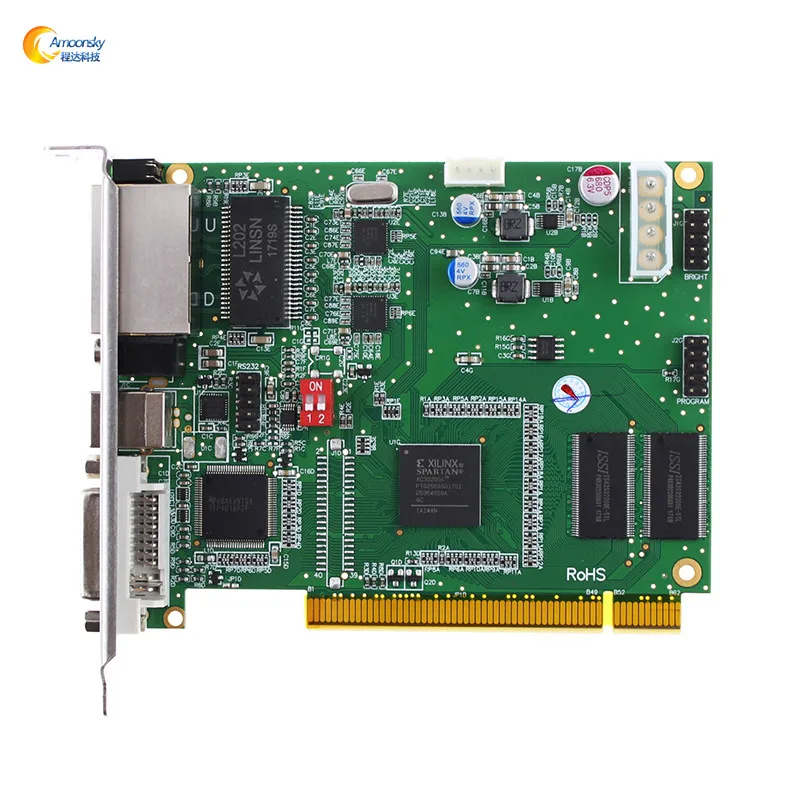

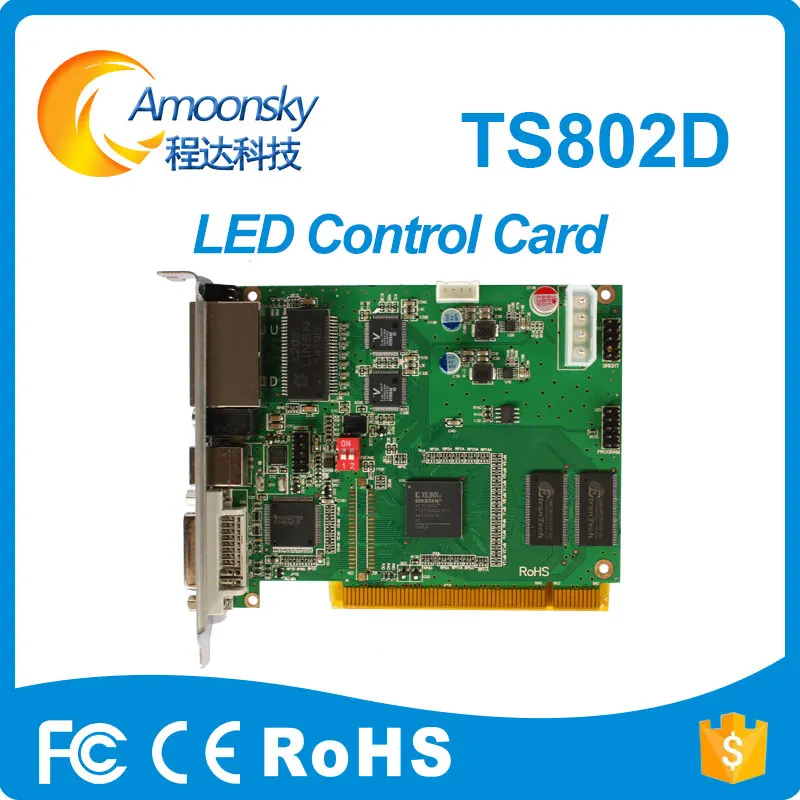

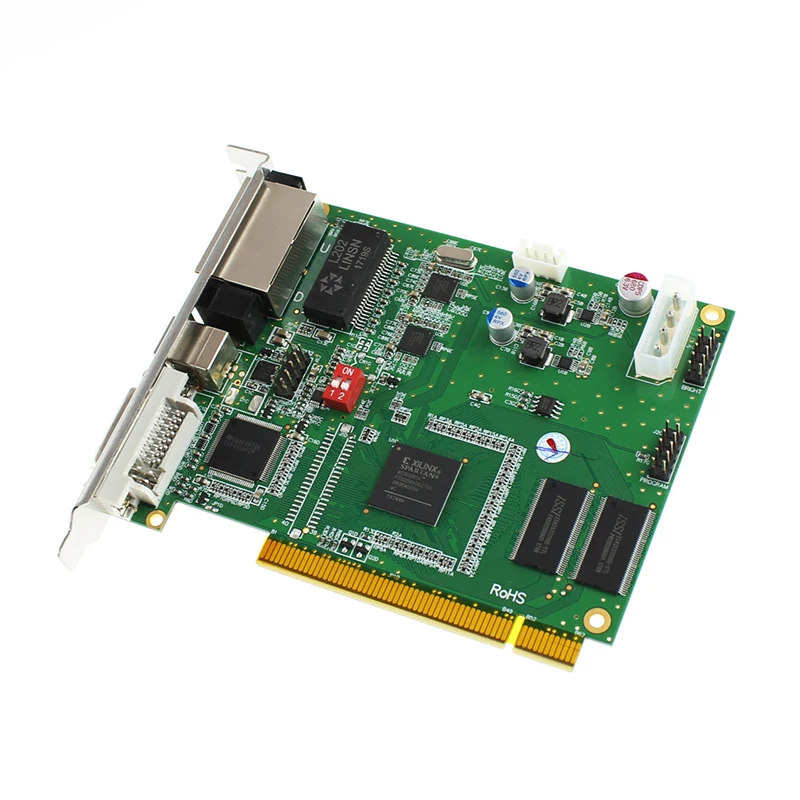

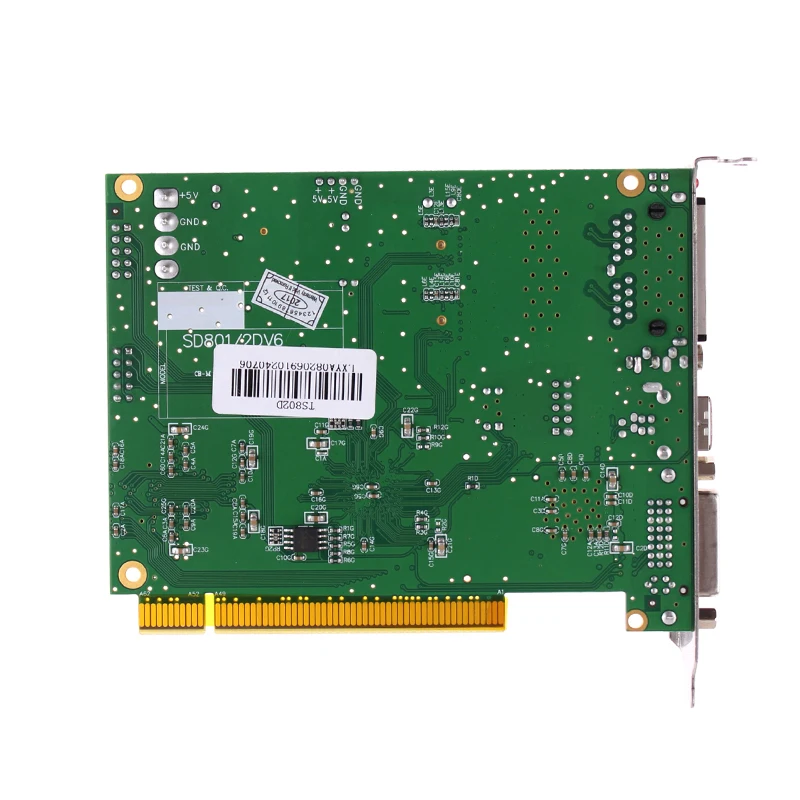

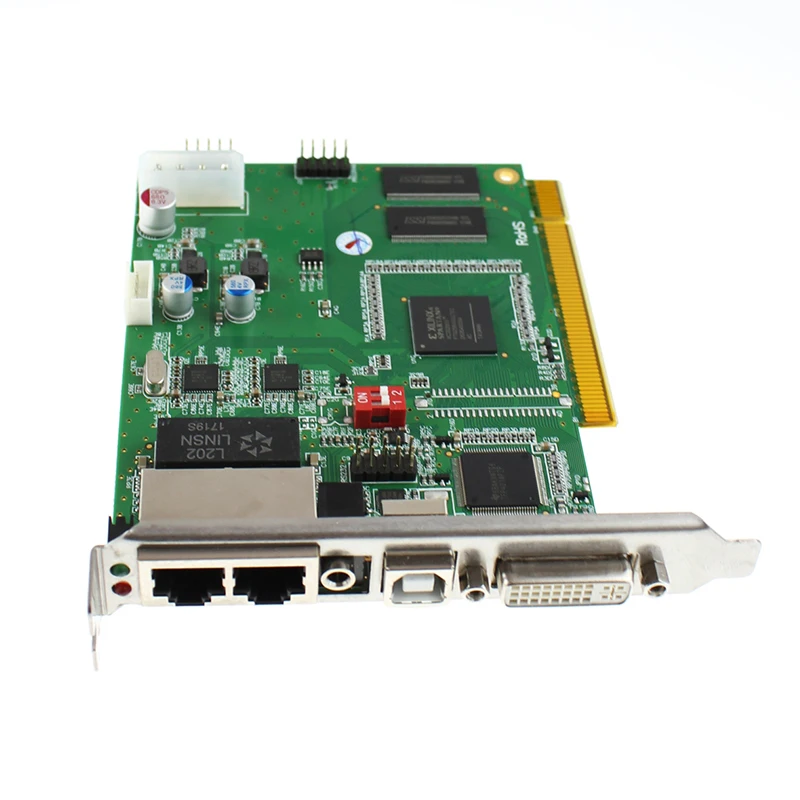

amoonsky hot selling linsn ts802d led sending card hdmi video sender 1024 dmx controller led control card

1) One DVI video signal input;

2) One Audio signal input;

3) Sending card is set by USB; can be cascaded to drive a larger screen, up to 4 cards cascaded;

4) Two network outputs; single port maximum support 655360 pixels;

5) Support adjusting brightness manually (require working with outer box); three scales can be set:16-grade, 32-grade and 64-grade;

6) Support 60Hz and 30Hz output mode;

Key Features:

1. 802 sending card including full-color sending card TS802 and dual-color sending card DS802.

    Full-color sending card supports full-color, dual-color and single color led display

    Dual-color sending card supports dual-color and single color led display.

2. 802 sending card max supports 2048*640

3. Supporting display mode: 640*480  800*600  1024*768  1280*768  1280*800 1280*1024 1440*900  1440*1080  1600*1200

   1680*1050  1728*1296  1920*1080  1920*1200  2048*1152  2048*1280

4. Audio Transmission Function

    802 sending card sends audio data using network cable, and Function board outputs audio signals to the display. Double 24bits

     64KHZ hi-fi digital signal to analog signal or analog signal to digital signal, making display have the perfect video effect.

5. Cascade function

    Through the dig switch on 802 sending card, several 802 sending cards can be easily cascaded to support a super large led

   display

6. Sending card U/D port flexibility for carrying half width or half height

     For example, TS801 can max support 1280*1024 with two ports

     A single network output port supports 1280*512 or 640*1024

7. Sending card rotation function

    In Sender setting, sending card has 0, 90, 180, 270 degree rotation function

8. Sending card zoom in/out function

    In Sender setting, the ratio of width and height can be set to realize zoom in or zoom out

9. Supporting 10-bit colors

     The seventh supports 8-bit colors: 256*256*256=16777216 kinds of colors.

     The eighth supports 10-bit colors: 1024*1024*1024=1073741824 kinds of colors. It needs to work with our video processors using the 30 bits TTL.

10. Multi-display synchronous and combination functions.

    One sending card can control multi-displays, realizing displays combination, synchronous display, and independent play.
