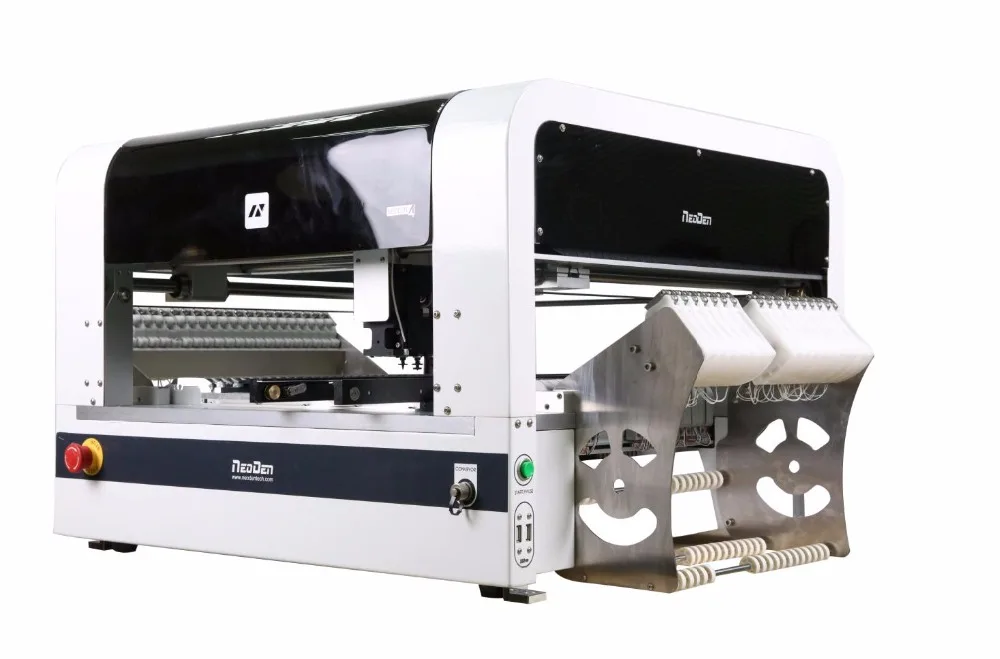

Desktop pick and place NeoDen4 with vision  (With internal rails, 20*8mm +4*12mm+1*16mm feeders)     NeoDen4 Introduction NeoDen4 is a pick and place machine of components flexibility, PCB flexibility and production flexibility. It is equipped with dual CCD cameras, auto rails, auto electronic feeders and 4 placement heads, which could support to mount 0201, BGA, QFN. Especially, with its Internal rails, it is applicable for 0.8m/1.2m/1.5m LED strip.    NeoDen4 is the best choice to satisfy all demands of high precision, high capacity, stable performance and low cost. This is a huge breakthrough not only for NeoDen, but also for small and medium-sized enterprises, those who want to improve placement accuracy and speed up PCB assembly with a limited budget.     Spotlights 1.Vision system An up-looking camera and a down-looking camera identifies and calibrates the different components simultaneously, and tremendously improves the accuracy of placement from 0201 to BGA.

  2. Four precision heads 4 high-precision placement heads with ±180° rotation that adopts suspended, fully symmetric and high degree of coupling way, to ensure it can mount components with higher space, more gentle and more accurate
  3. Auto Electronic Feeders Adopts feeding error corrections technique to help smooth the picking and reduce the deviation.

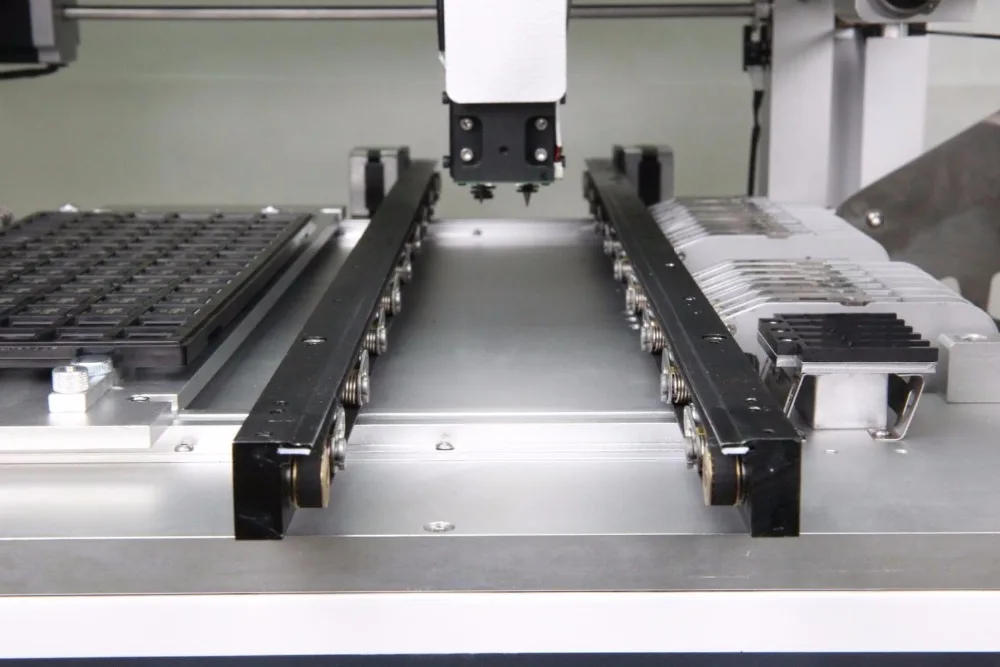

  4.Auto Rails Achieve Continuous Placement 1.5m auto rails could be connected with universal conveyors to achieve continuous placement.
  5.General conveyor is supported With a conveyor port, One-Stop SMT production line can be setup, which is more time-saving and labor-saving.

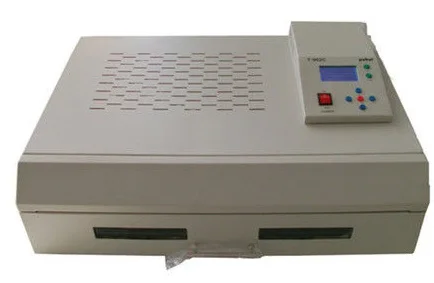

6. Supports remote system upgrade NeoDen will provide a life-long technical service and system upgrade.   7. Industrial PC motherboard 32G solid state drives, read/write faster and more stable, with power-off protection function.   Specifications of NeoDen4         Specifications of Oven T-962C Soldering max area: 400×600 mm Size: 68.4X50.4X22.5 cm Rated power: 2500W Process Period: 1～8 min Supply: AC110V~ AC220V /50~60HZ N.W: 30Kg Packing size: 78x60x33cm       Specifications of Printer PM3040 Platform Size:300×400mm PCB Size:250×300mm Screen Stencil Size:370×470mm Printing Speed:Labor control PCB Thickness:0～100mm PCB Tuning Range:Front/ Side +10mm Platform Height:180mm Repeatability:±0.01mm Positioning Mode:Outside/Reference Hole Fine Adjustment Range:Z-axis ±45mm  X-axis ±35mm  Y-axis ±45mm Dimensions:580×320×260mm Weight:17Kg       Nozzles information( 2*XN07+ 2*XN14+ 1*XN22+ 1*XN40 nozzles will be supplied in accessory box for free)
    Reviews from NeoDen4 users
    Packaging     Warranty The guarantee period is 2 years from the time of purchase and lifelong service support as well as a long-term factory price supply. NeoDen will provide online Q/A and troubleshooting support and technical advice service.   Note The Stand and Monitor are not included, customers need to pay again if they need them.
