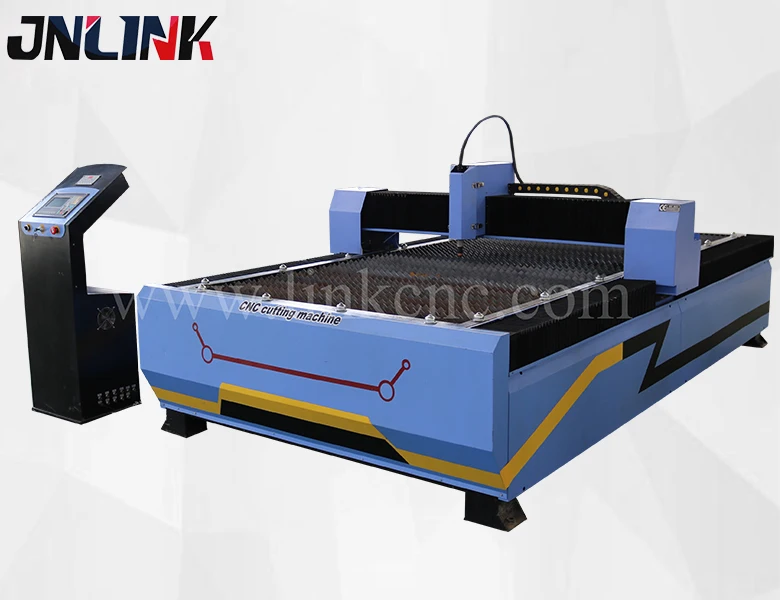

Cheap cnc metal cutting machine | Инструменты

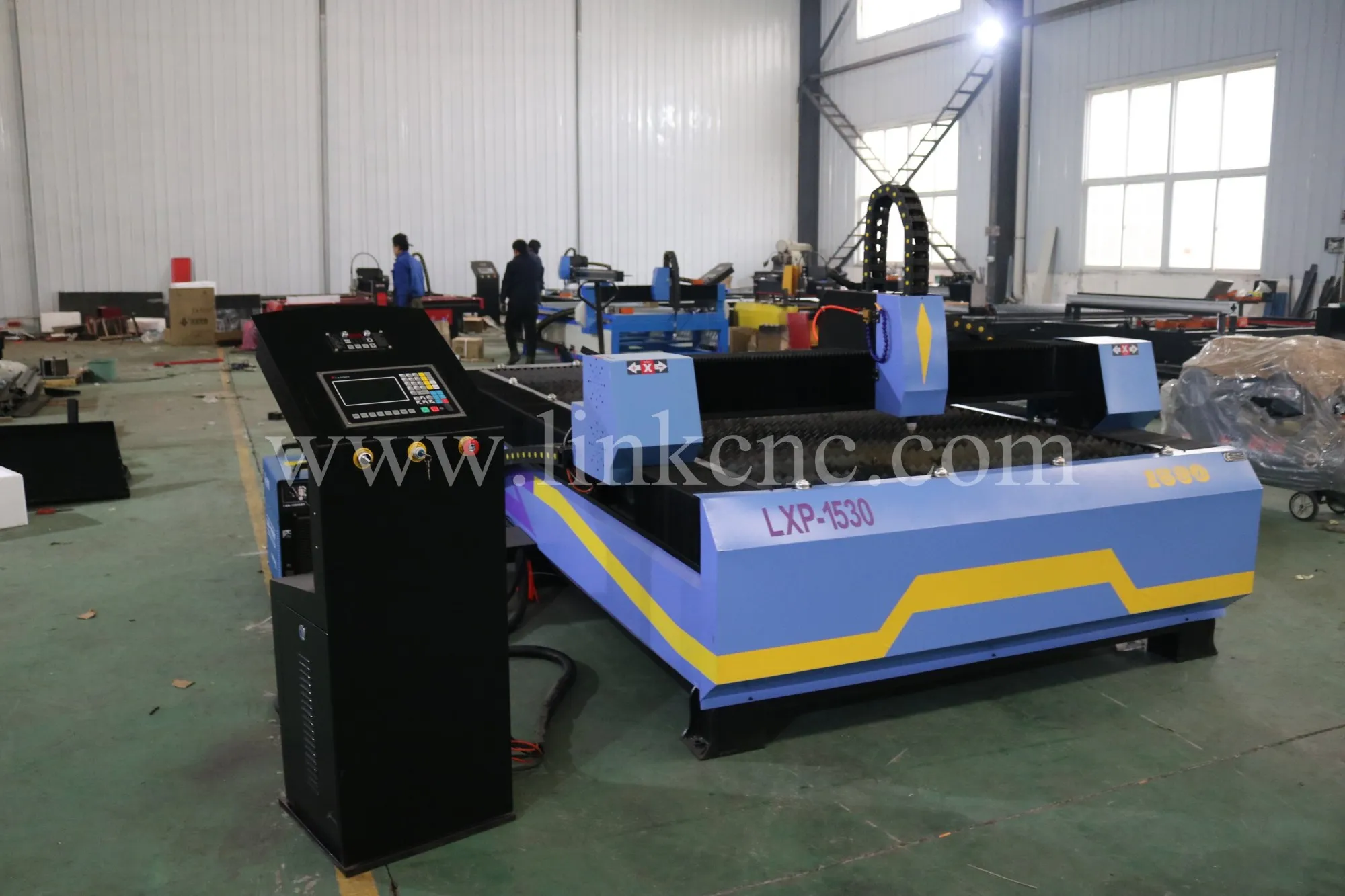

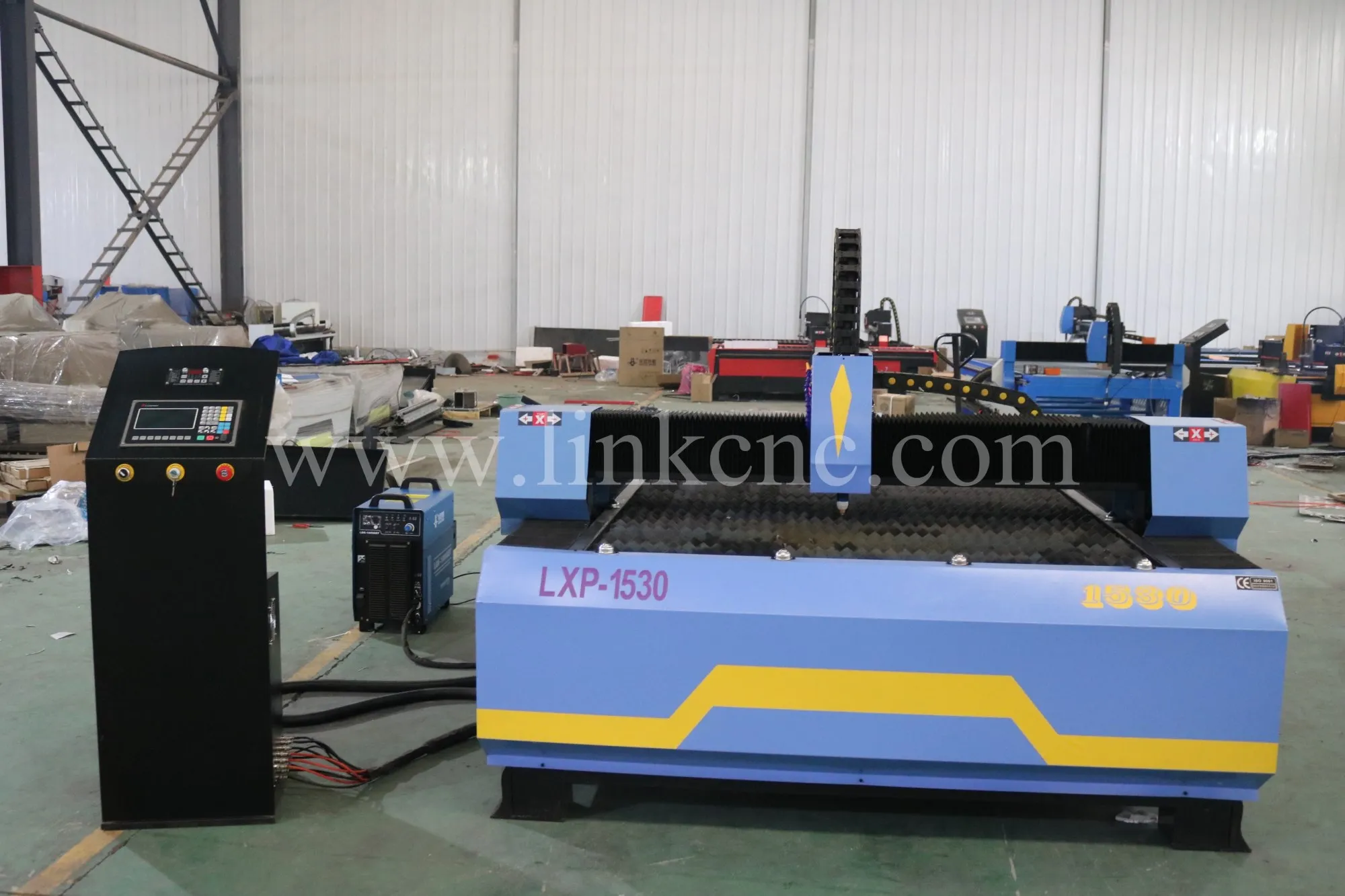

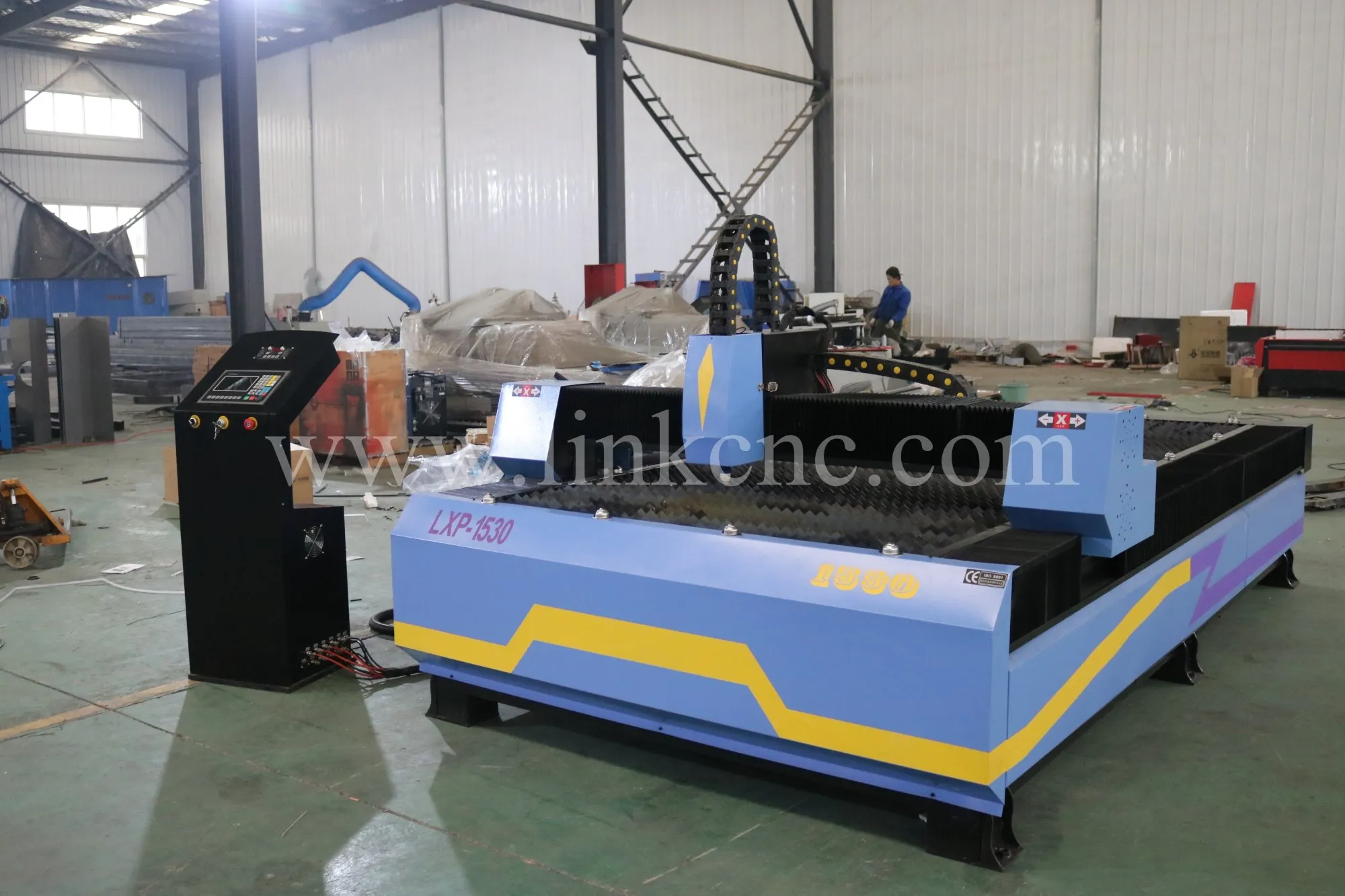

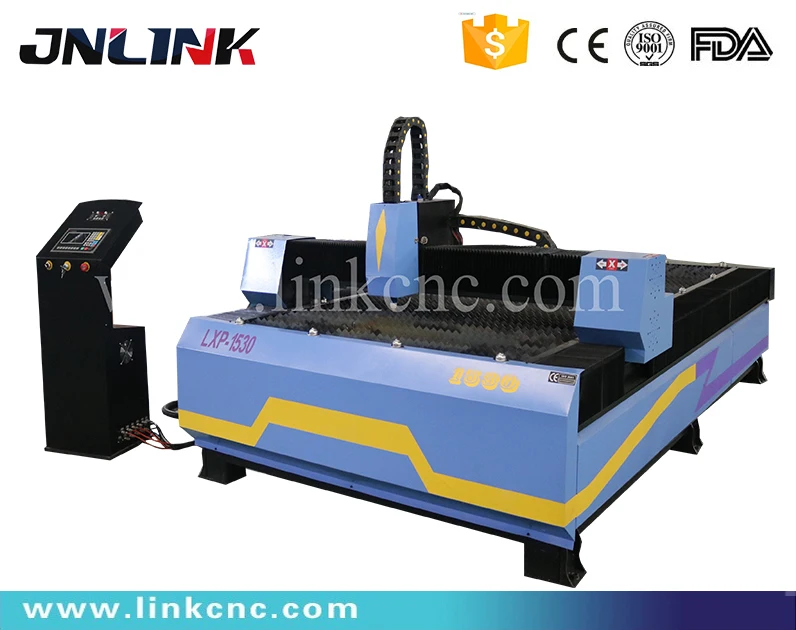

1 Welded lathe bed of thick-wall profiled steel, more solid and stable.

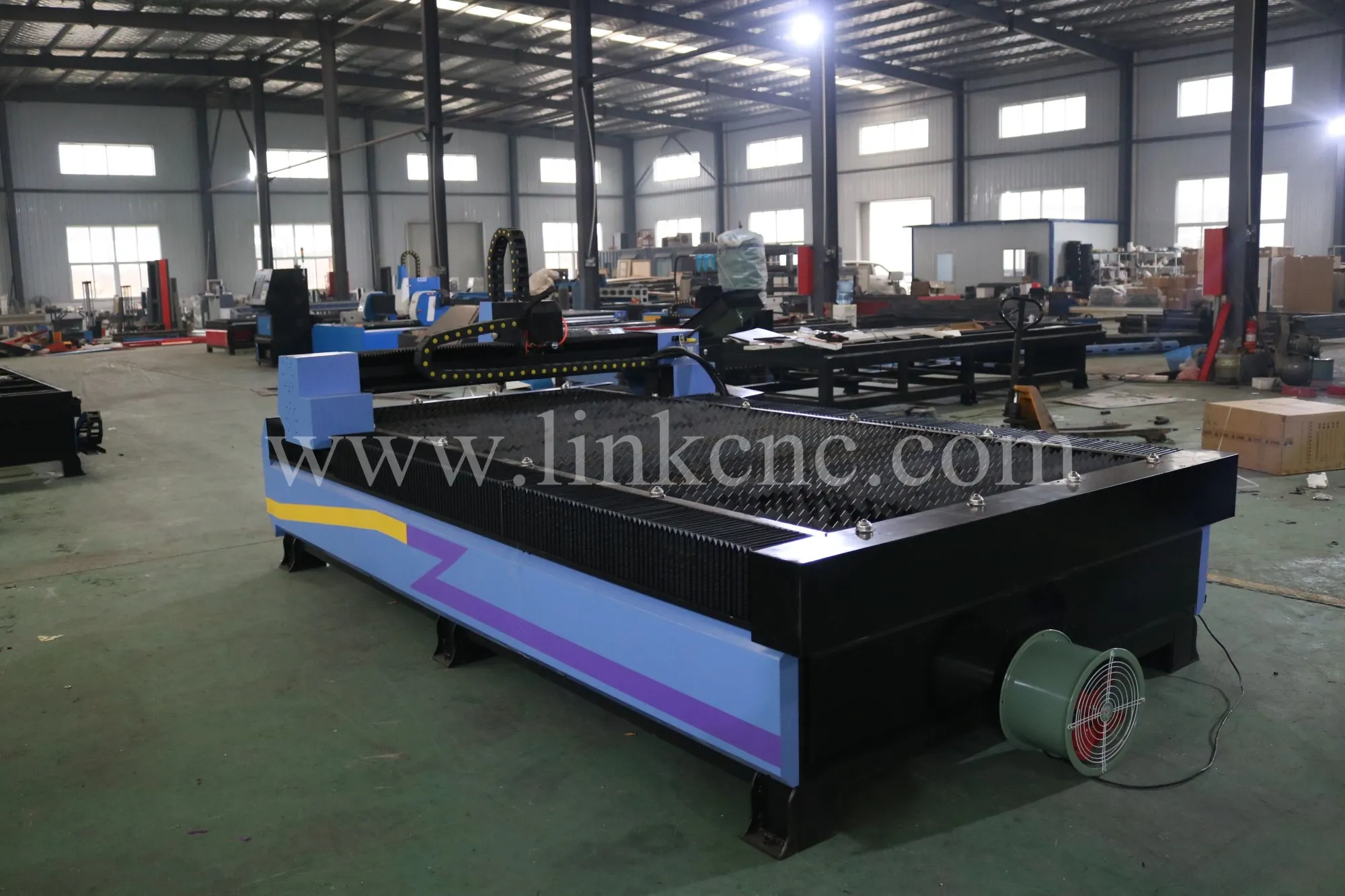

2 Reasonable lathe table design, 10 mm thickness steel plates fixed on lathe table covered by cast sheath with spikes. Steel plates will not be damaged even under raging flame. The level difference of whole double-deck platform remains in 0-1.5mm.

3 Advanced material inclined discharging design. All finished work pieces and fragments slide into both sides of tunnel for safe and convenient collection.

4 Panasonic Servo motor,  high accuracy rack transmission. Low noise, stable and accurate coordinate movement.

5 Start control system made in Sino-US joint venture and design Software Type3 and Ucancam with auto material saving function.

6 American Cut-Master power supply (Power: 100A) together with high sensitive arc pressure adjuster. Self-adjusting to choose the best distance between plasma head and work piece

automatically in order to ensure cutting accuracy.

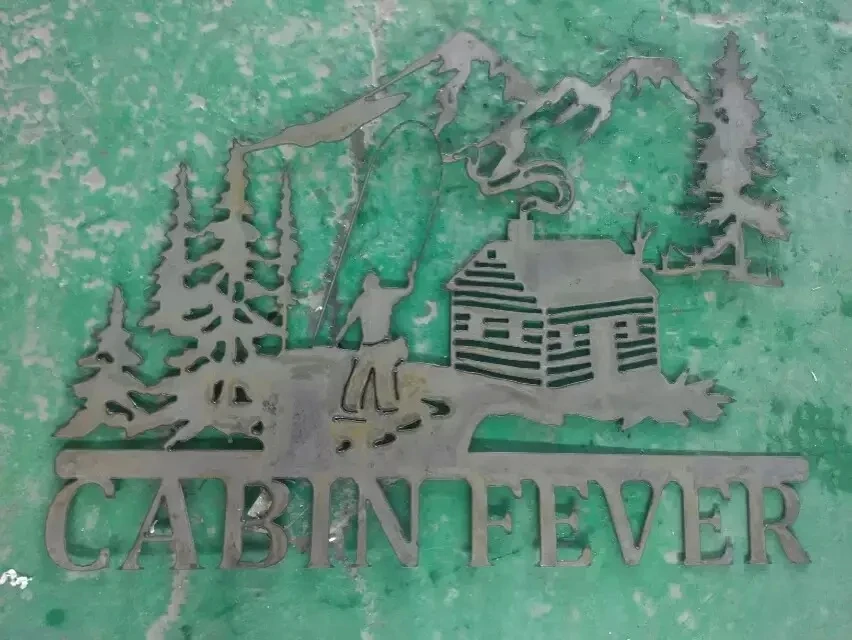

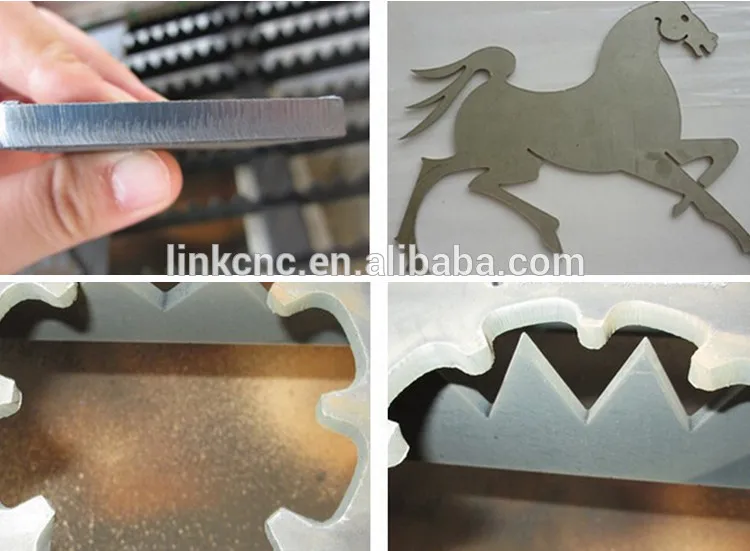

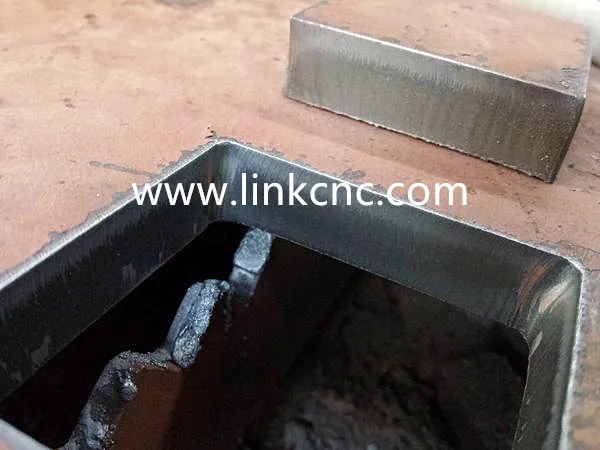

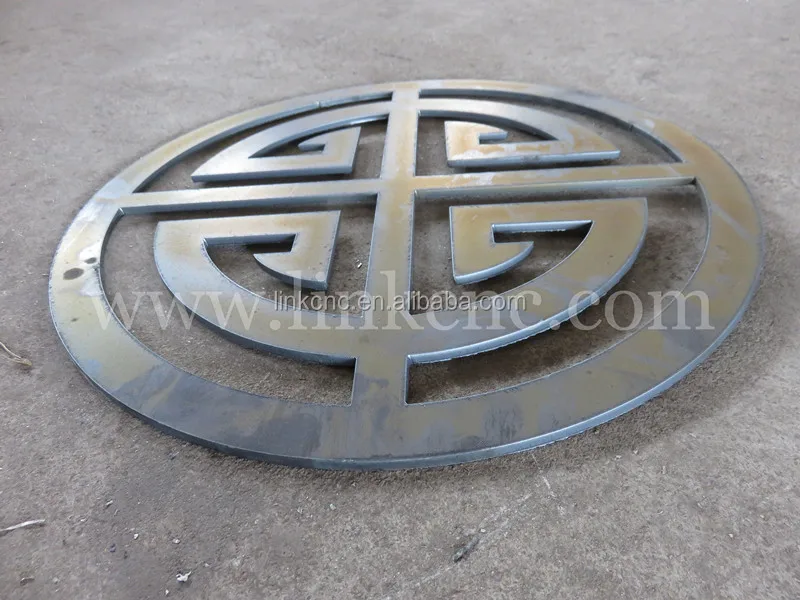

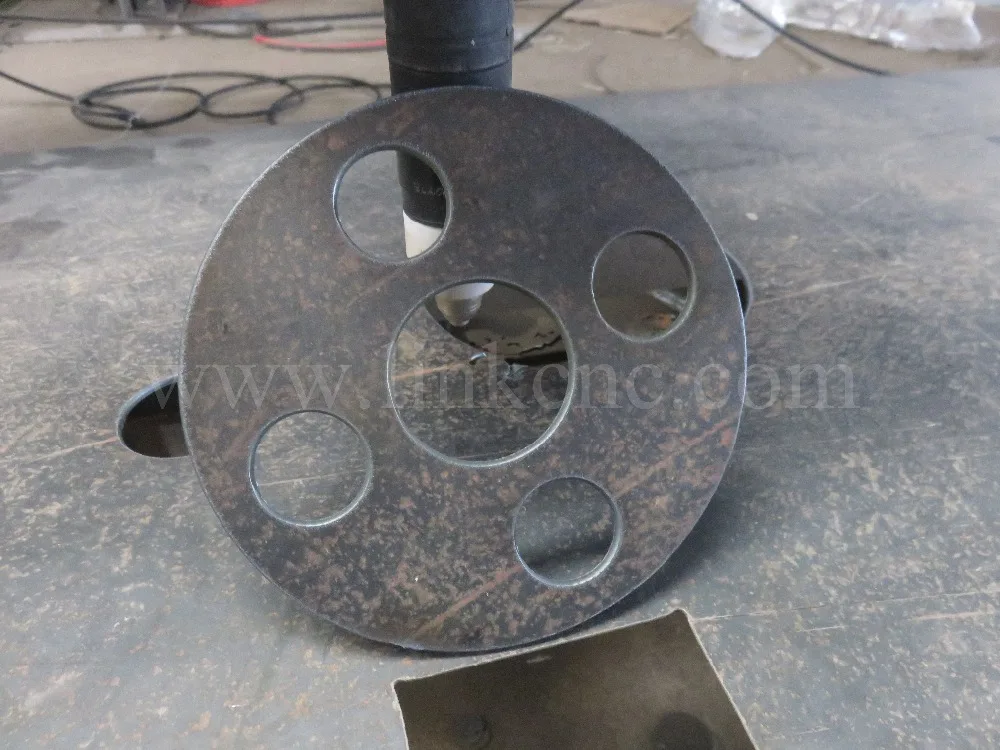

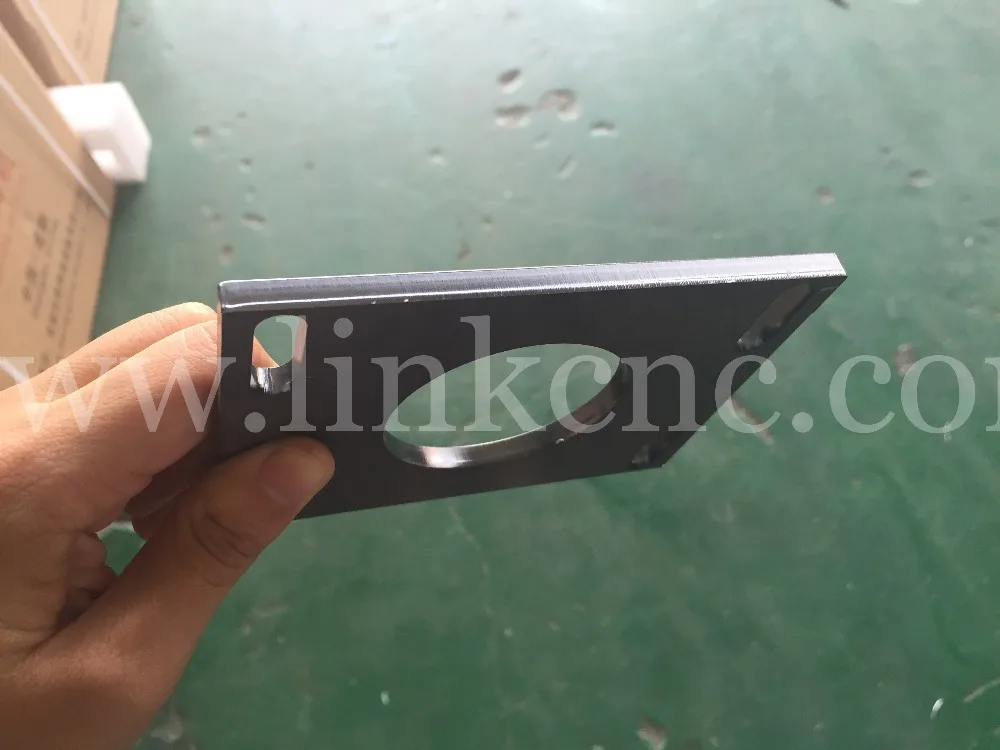

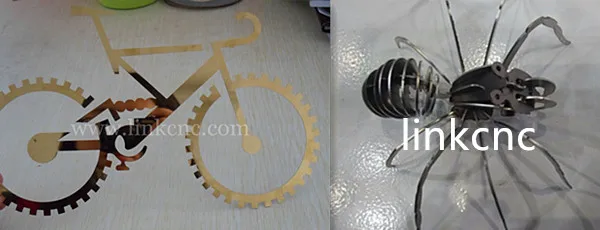

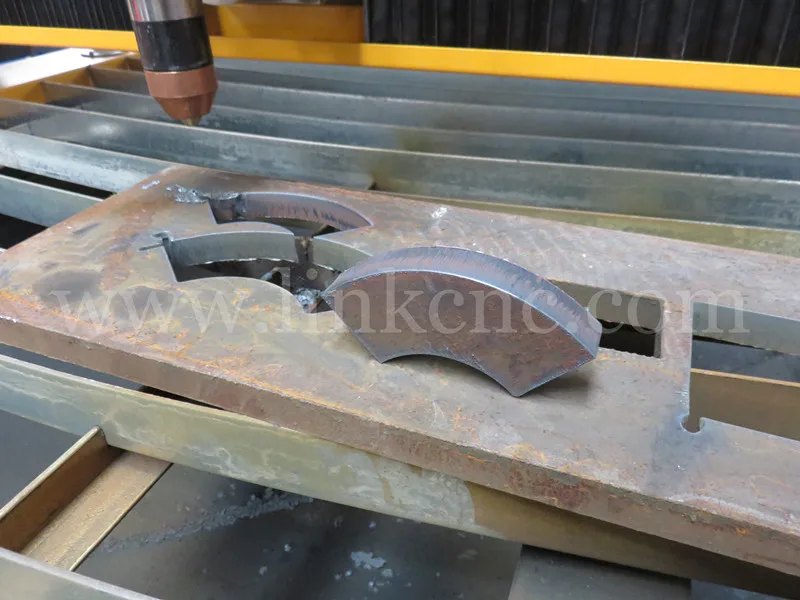

7 Best choice for all kinds of different thickness material and heterotypic sheet cutting.

Configuration

1

Mechanical part

Machine structure

Whole welded steel tube, annealed,

 dust proof on X&Y axis

Machine table

Steel blade bed with water tank

2

Transmission part

Transmission type

X&Y axis rack and pinion

Guide rails

Taiwan HIWIN square rails and square sliders

Lubrication

Yes

Reducer

Gear box and belt

3

Electric appliance

Drive motors

High speed Stepper motors and drivers

Plasma torch

Original Hypertherm plasma torch and cables

Plasma source

Hypertherm or Huayuan

Switch

Schneider

Limit

Omron limit

4

Control system

CNC Controller

Beijing starfire controller

THC controller

AHa THC

5

Software

FastCAM

Specifications

1

Working area

1500x3000mm (can be customized)

2

Voltage

380V 220V / 50Hz

3

Idle speed

≤25000mm/min

4

Working speed

≤8000mm/min

5

Process precision

±0.5mm

6

Reposition precision

±0.05mm

7

power

8.5kw

9

Command code

G code

10

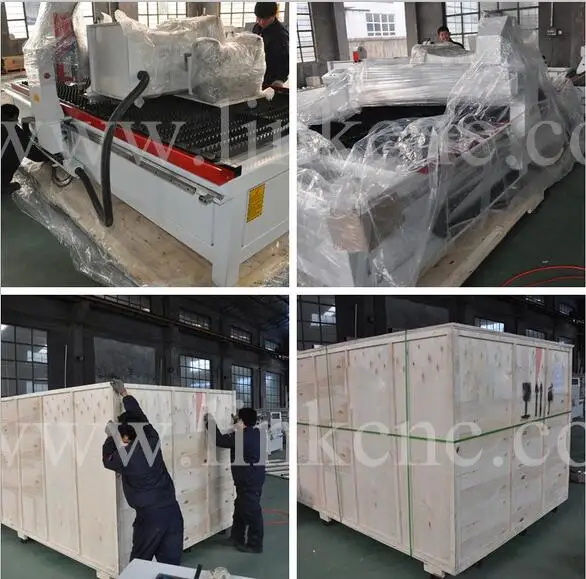

Package

Wooden case

11

Packing size

3920x2280x1890MM

12

Gross weight

1800kgs
