Описание товара

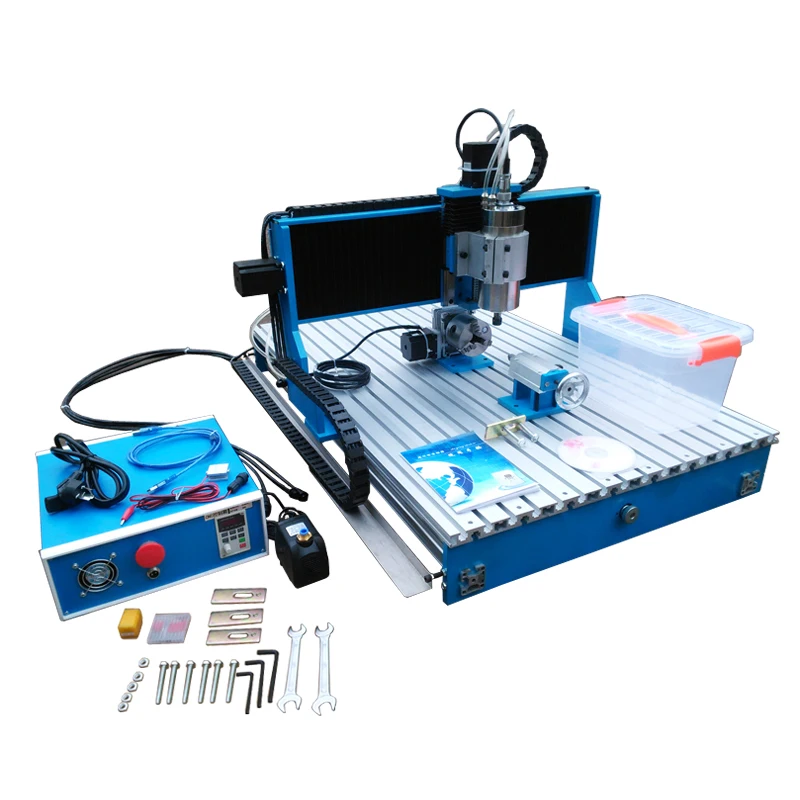

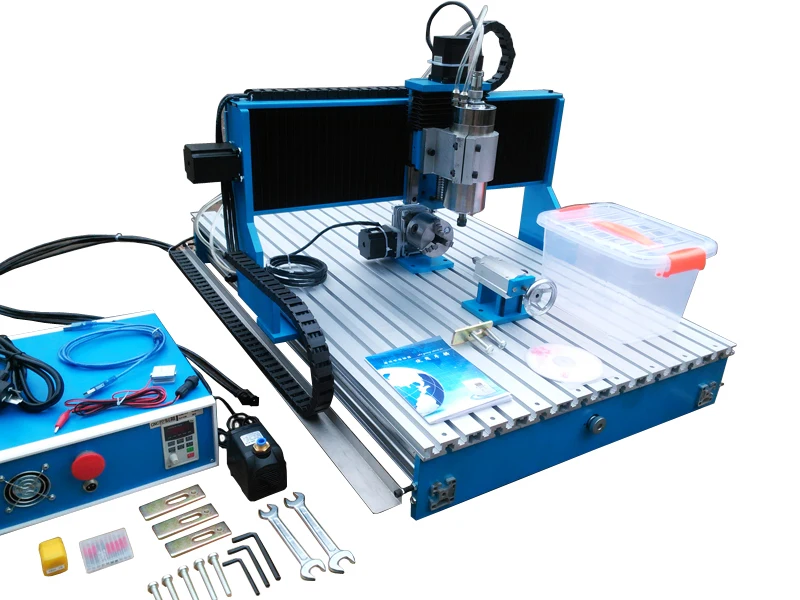

Brand New CNC 6090 L-1.5KW Engraving Machine Carving Router With 1.5KW VFD Water Cooled Spindle 3 axis 4 Axis Milling Machine
Machine Parameter:
Shipping
• By DHL & UPS & FEDEX with tracking number, need 5~10 days;
• By SEA , need 40~50 days;
• Please email us your phone number after you pay for the item only for delivery purpose.
Technical Parameters
| MODEL |
6090L-1.5KW 3axis |
| Machine Dimensions: |
900 * 1200 * 600mm |
| Rack material: |
6061 and 6063 Hard aluminum alloy |
| Table size |
640 * 1080mm (20mm aluminum alloy T table) |
| Engraving area: |
560 *850mm |
| Z-Axis Stroke: |
120mm, Engraving depth depends on the length of the tool edge |
| Acceptable material thickness： |
140mm |

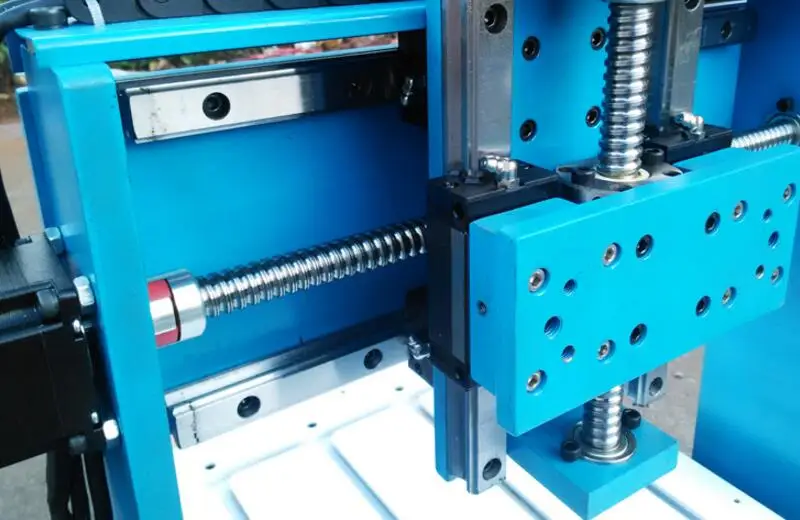

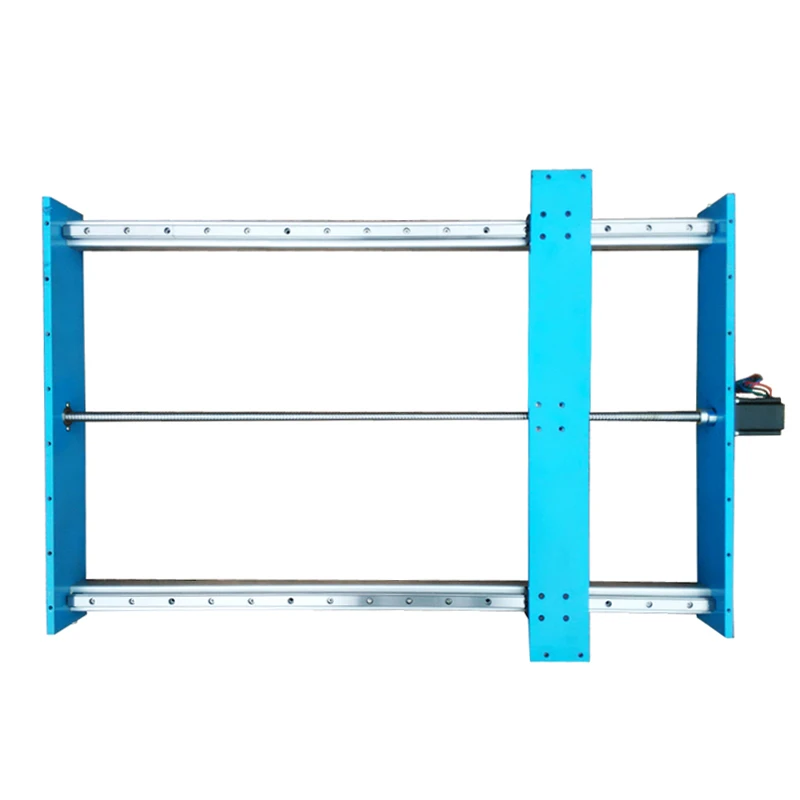

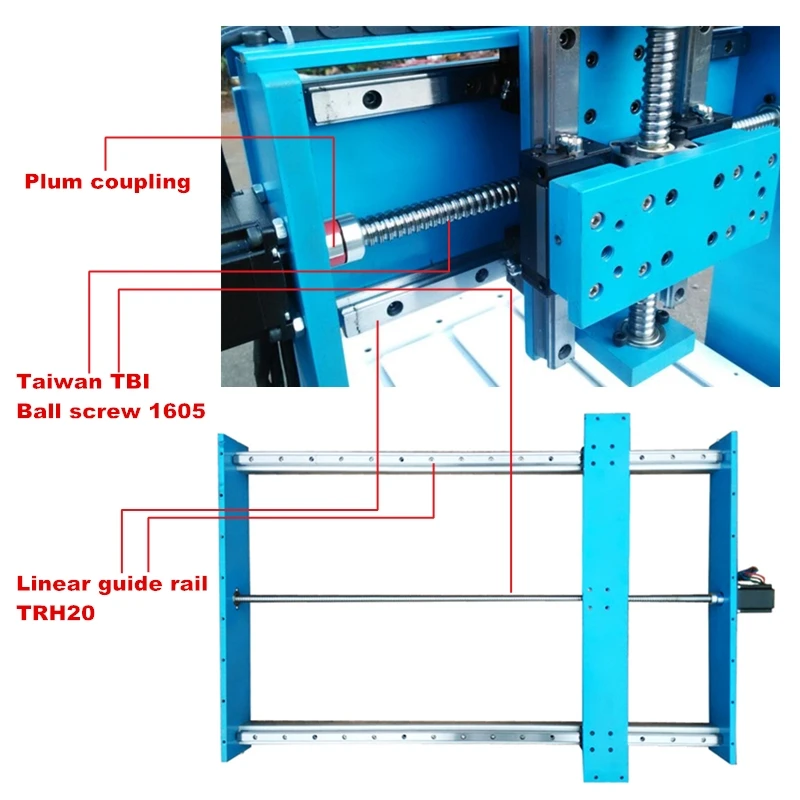

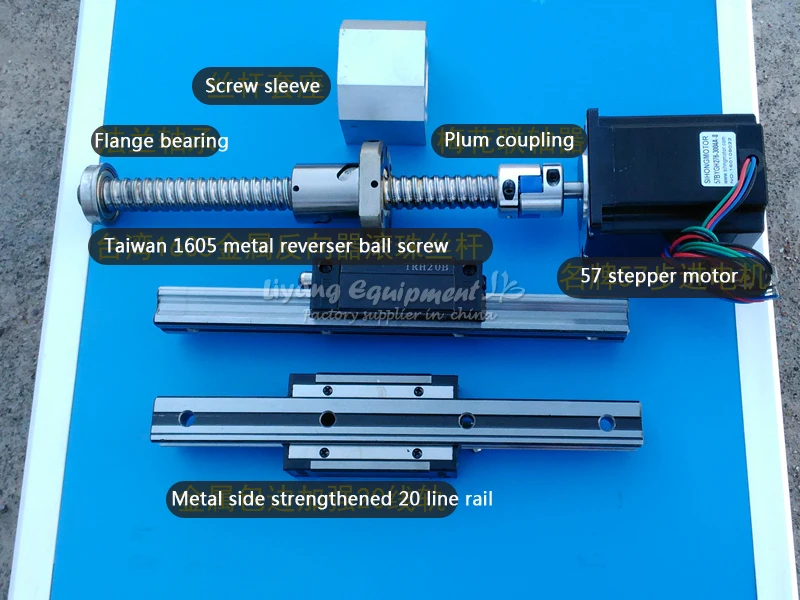

| Rail type: |
Linear guide rail TRH20 (more precise moving) |
| Type of screw: |
Taiwan TBI Ball screw 1605 |
| Spindle motor: |
1.5KW VFD water cooling spindle , 0-24000r/min |
| Collet type: |
ER11,1/8"(3.175mm) and 6mm Collet |
| Stepper motor and drive: |
two-phase 57/3A |
| Maximum operating speed: |
4000mm/min (Engraving speed : 300-3000mm/min) |
| Repeat positioning Accuracy: |
0.03mm |

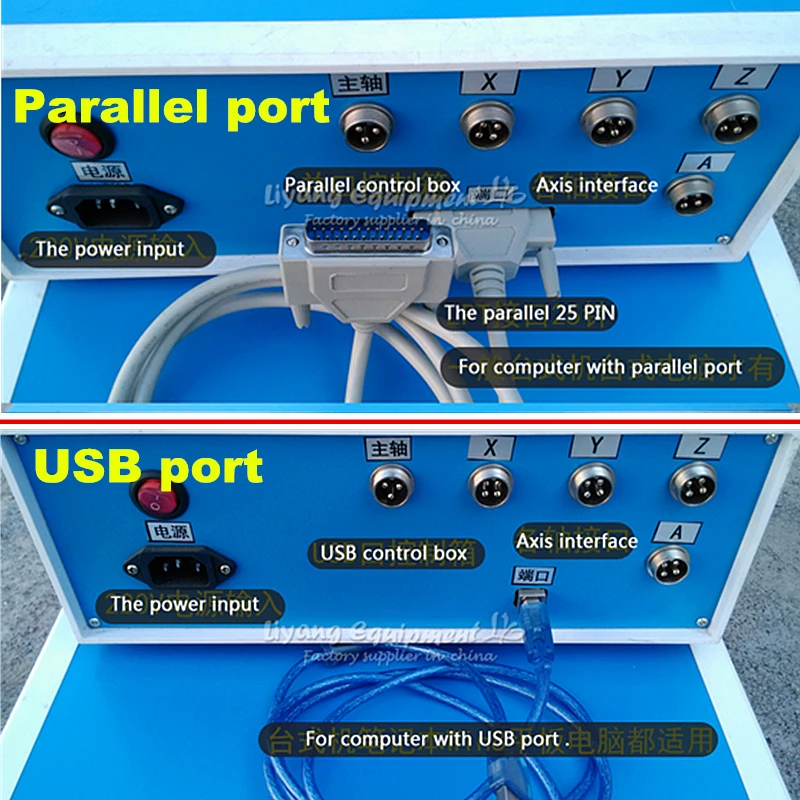

| Communication interface: |
Parallel port or USB port |
| Tool auto-checking |
yes |
| Software Compatability: |
Mach3 (Type3,Wentai, ArtCAM, coppercam) |
| Command code: |
G code/.nc/.ncc/.tab/.txt |
| Machine weight: |
150kg |
| Rotation Axis (4th Axis) Can add 4th axis |
---- |
|
Attribute |
3axis |
|
| Parallel port |
USB port |
|
| Axis |
3axis |
3axis |
| Interface |
Parallel port |
USB port |
| Weigh |
150 |
150 |
| Packing list |
|
|
| 1× Engraving machine |
√ |
√ |
| 1× Control box |
√ |
√ |
| 1× Power cable |
√ |
√ |
| 1× Parallel port cable |
√ |
ⅹ |
| 1× USB port cable |
ⅹ |
√ |
| 1× Tool package |
√ |
√ |
| 1× Rotation axis |
ⅹ |
ⅹ |
| 1×tool auto-checking instrument |
√ |
√ |
| 1x water pump |
√ |
√ |
| 1× CD (if not get, may be lost in customs, please contact us) |
√ |
√ |
| MODEL |
6090L-1.5KW 4axis |
| Machine Dimensions: |
900 * 1200 * 600mm |
| Rack material: |
6061 and 6063 Hard aluminum alloy |
| Table size |
640 * 1080mm (20mm aluminum alloy T table) |
| Engraving area: |
560 *850mm |
| Z-Axis Stroke: |
120mm, Engraving depth depends on the length of the tool edge |
| Acceptable material thickness： |
140mm |
| Rail type: |
Linear guide rail TRH20 (more precise moving) |
| Type of screw: |
Taiwan TBI Ball screw 1605 |
| Spindle motor: |
1.5KW VFD water cooling spindle , 0-24000r/min |
| Collet type: |
ER11,1/8"(3.175mm) and 6mm Collet |
| Stepper motor and drive: |
two-phase 57/3A |
| Maximum operating speed: |
4000mm/min (Engraving speed : 300-3000mm/min) |
| Repeat positioning Accuracy: |
0.03mm |
| Communication interface: |
Parallel port or USB port |
| Tool auto-checking |
yes |
| Software Compatability: |
Mach3 (Type3,Wentai, ArtCAM, coppercam) |
| Command code: |
G code/.nc/.ncc/.tab/.txt |
| Machine weight: |
150kg |

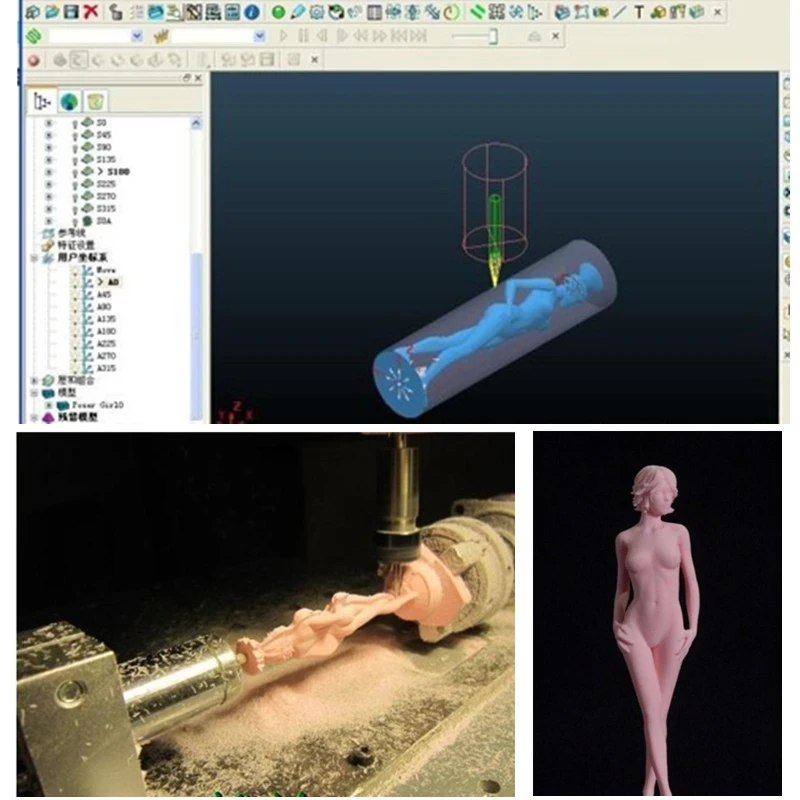

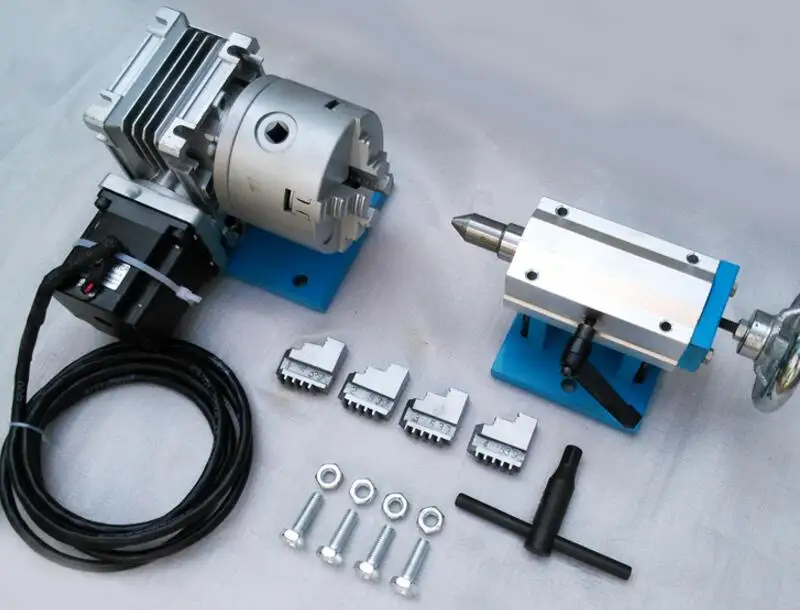

| Rotation Axis (4th Axis) Description: |
Chuck Size: 80mm self-centering chuck Center height: H = 71mm Clamping diameter: 80mm or less Deceleration mode: Gear box Deceleration ratio: 20:1 Stepper motor: 57 step motor current 3A Positioning accuracy: 0.075 ° |
Note:
This machine have other spindle, For example 800W and 2.2KW;
But the price may be different;
If you need other spindle ,please message us or contact us, thank you very much;
