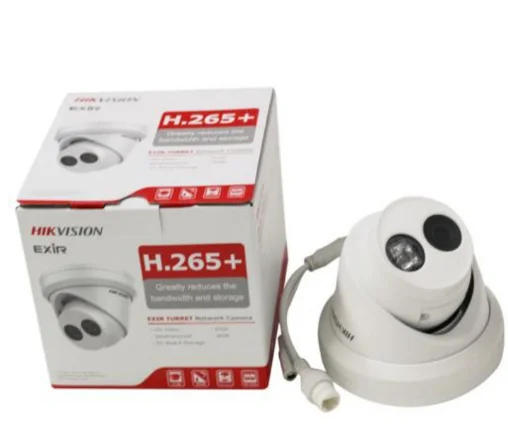

HIKVISION DS-2CD2335FWD-I CCTV Turret Camera with 3MP IR30m IP67/IK10 Protection PoE up to 128GB storage English version | Безопасность

---



DS-2CD2335FWD-I

Key Features

l    Up to 3 megapixel high resolution

l    Max. 2048 × 1536 @30fps

l    2.8 mm/4 mm/6 mm/8 mm/12 mm fixed lens, optional

l    Ultra-low light

l    H.265, H.265+, H.264+, H.264

l    120dB Wide Dynamic Range

l    3D Digital Noise Reduction

l    12 VDC & PoE (802.3af)

l    IR range: up to 30 m

l    Support on-board storage, up to 128 GB

l    3-Axis Adjustment

l    IP67



        General information:

Camera
Image Sensor:	|	1/2.8” CMOS progressive scan CMOS
Min. Illumination:	|	Color: 0.008 lux @(F1.6, AGC ON), 0 lux with IR
Shutter time:	|	1/3 s to 1/100,000 s
Slow shutter:	|	Supported
Lens:	|	98° (2.8 mm), 78.7° (4 mm), 48° (6 mm), 37° (8 mm)
Lens Mount:	|	M12
Adjustment Range:	|	Pan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355°
Day& Night:	|	IR cut filter with auto switch
Wide Dynamic Range:	|	120 dB
Digital noise reduction:	|	3D DNR
Compression Standard
H.264 Type:	|	Main stream: H.265+ / H.265 / H.264+ / H.264; sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG; third stream: H.265+ / H.265 / H.264+ / H.264
Video bit rate:	|	32Kbps~16Mbps
Triple Streams:	|	Yes
Max. Image Resolution:	|	2048×1536
Main Stream:	|	30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream:	|	30 fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240)
Image Enhancement:	|	BLC/3D DNR
Image Settings:	|	Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
Day/Night Switch:	|	Auto/scheduled
Network
Network Storage:	|	Micro SD/SDHC/SDXC card with ANR (up to 128G), NAS (Support NFS, SMB/CIFS)
Alarm Trigger:	|	Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protocols:	|	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
System Compatibility:	|	ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Communication Interface:	|	1 RJ45 10M / 100M Ethernet interface
On-board storage:	|	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set
Behavior Analysis:	|	Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Line Crossing Detection:	|	Cross a pre-defined virtual line
Intrusion Detection:	|	Enter and loiter in a pre-defined virtual region
Unattended Baggage:	|	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:	|	Objects removed from the pre-defined region, such as the exhibits on display.
Recognition:	|	Face detection recognition
General
Operating Conditions:	|	-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply:	|	12 VDC ± 10%, PoE (802.3af)
Power Consumption:	|	7 W
Impact Protection:	|	IK10
Weather Proof:	|	IP67
IR Range:	|	30 meters
Dimensions:	|	Camera: 5.01" x 3.78" (Ø 127.3 x 95.9 mm); Package: 5.91" x 5.91" x 5.55" (150 mm x 150 mm x 141 mm)
Weight:	|	1.37 lbs (620 g)

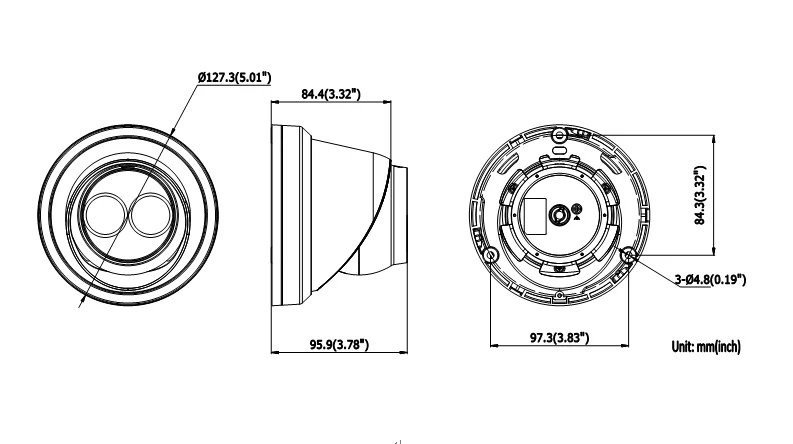

         Dimensions:



Individual Packing:

Warehouse:
