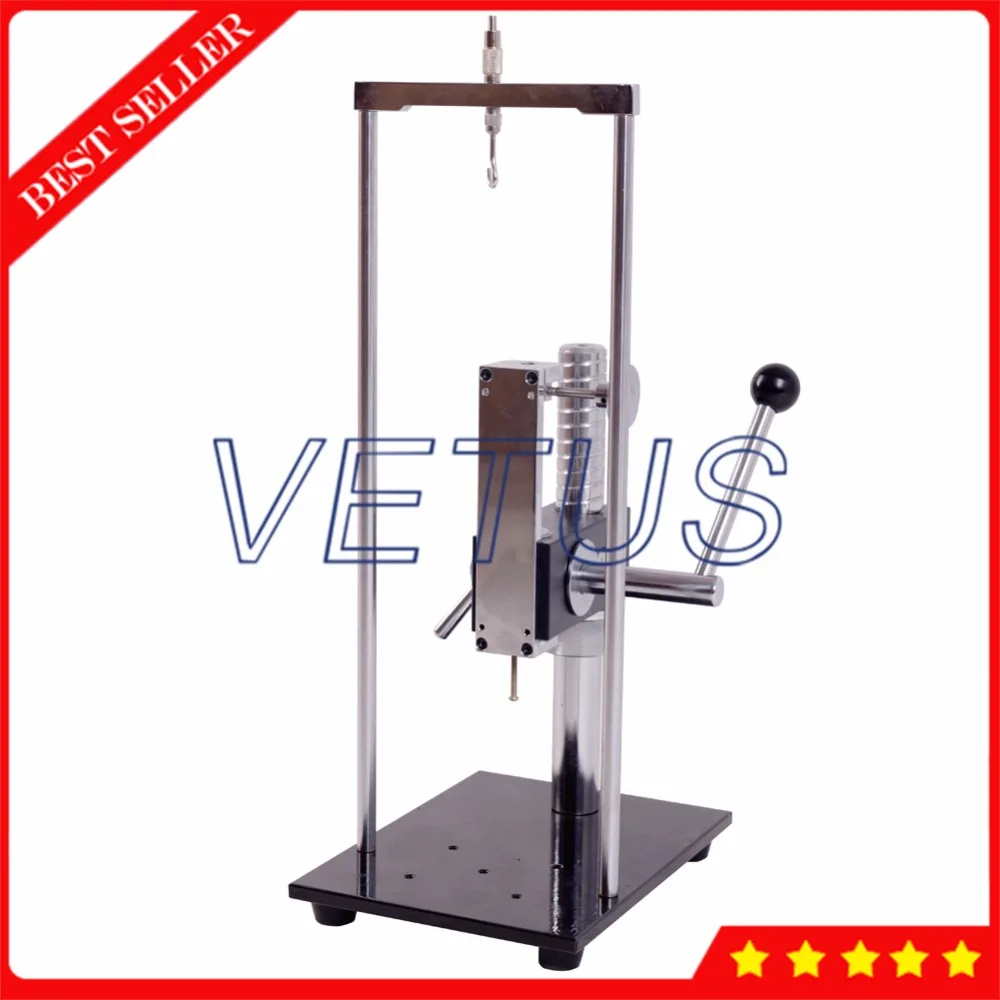

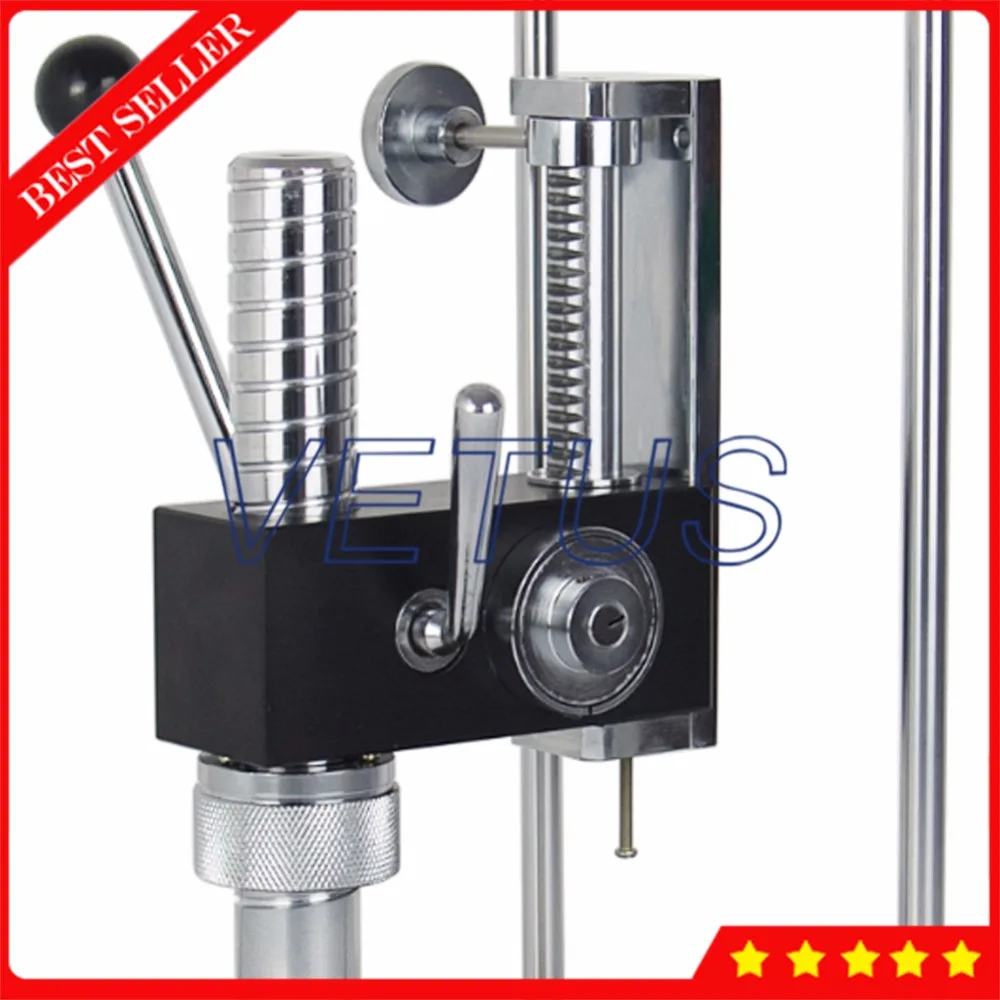

Analog series force gauge tester platform Manual Push Pull Force Gauge Test Stand Max load 500N AST-J

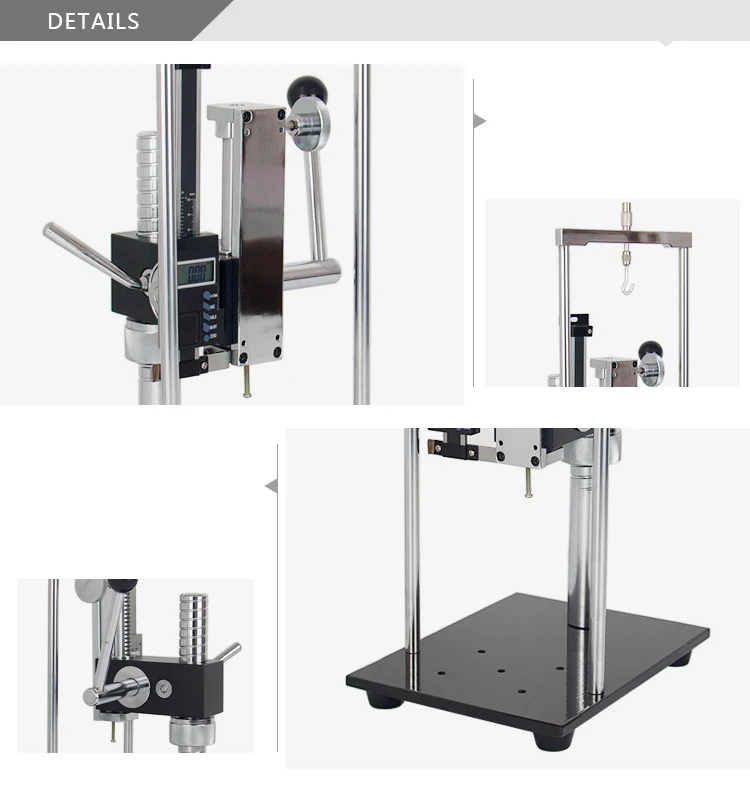

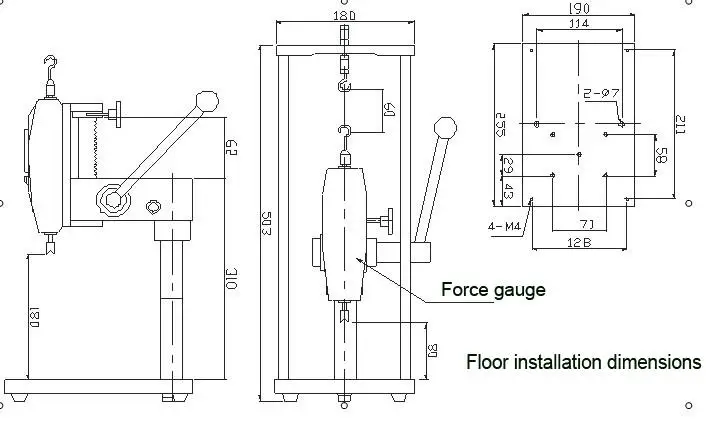

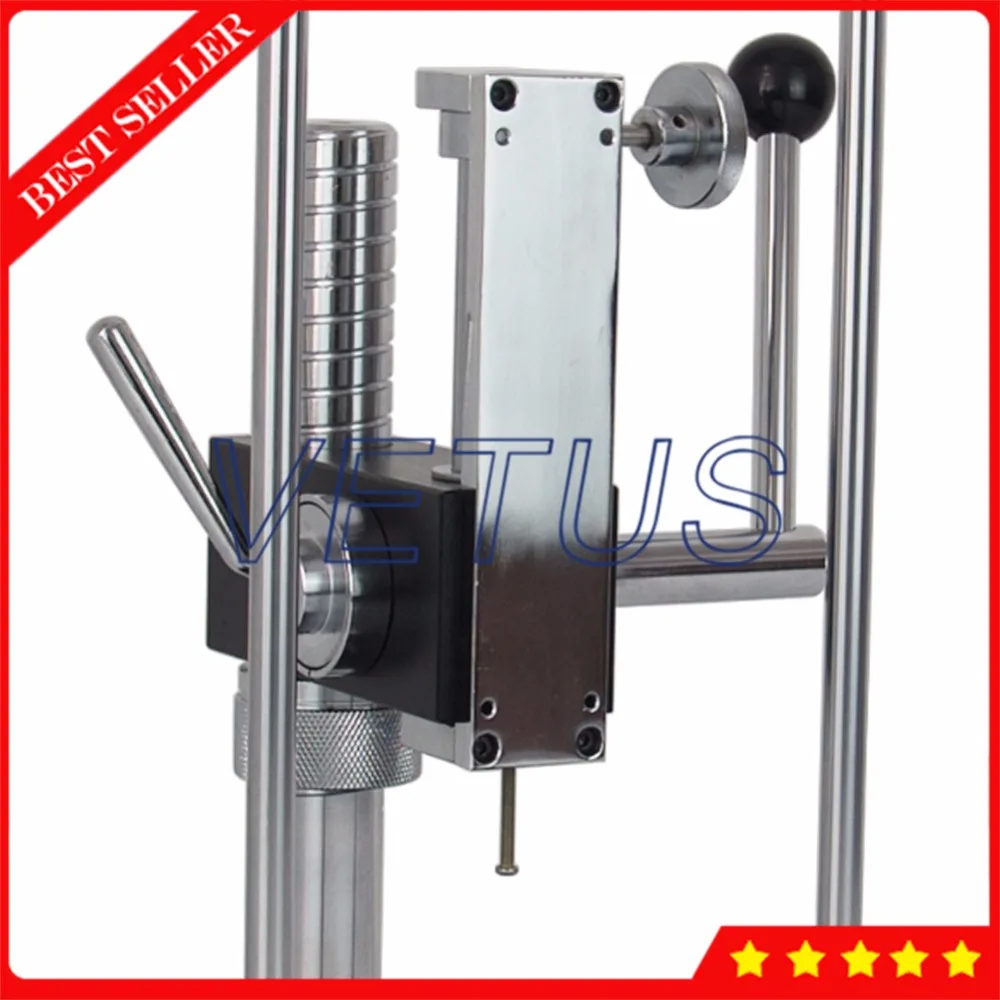

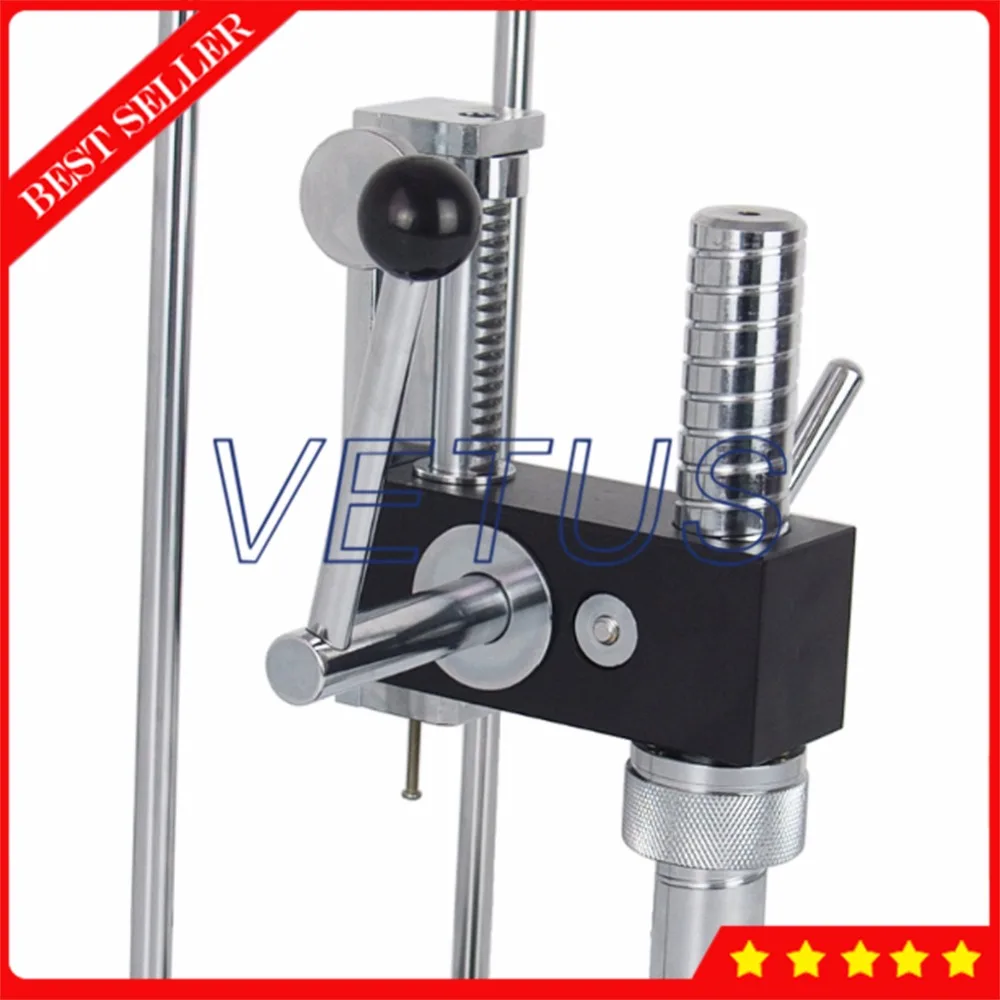

Function AST-J test stand is specially design for the analog series force gauge to make up of different test equipment    doing the push pull force insertion force and destructive experiment.   Character 1:Hand press, operate simply and firmly. 2:Compact structure, gear and rack transmission. 3:Fix firmly, big feet and heavy frame, can install on the floor (tabletop) to use, causes operate more firmly.  4:Matching digital staff gauge, collection stroke data at any moment.     Note:    AST-J Manual Push/Pull Test Stand without force gauge and digital scale etc.    We will recommend the push-pull force gauge suitable for you according to your needs. But the premise is that you need to tell us what objects must be measured, what range you need to measure, and so on.    if you need these options, please contact me.    Parameter Capacity: 500N Stroke: 80mm Effective area ofthe test area:105*100mm  Max can be reached: 105*150mm  Dimension: 255x240x550mm Weight: 12KG   Note:   1．When Testing, install the force gauge to the test stand,choose the appropriate clamps and install them to the force gauge. Rotating testboard up-down adjustment nut to make clamp and tested objects contact, then start testing items.   2．The value shown by push pull gauge is the testing value.
