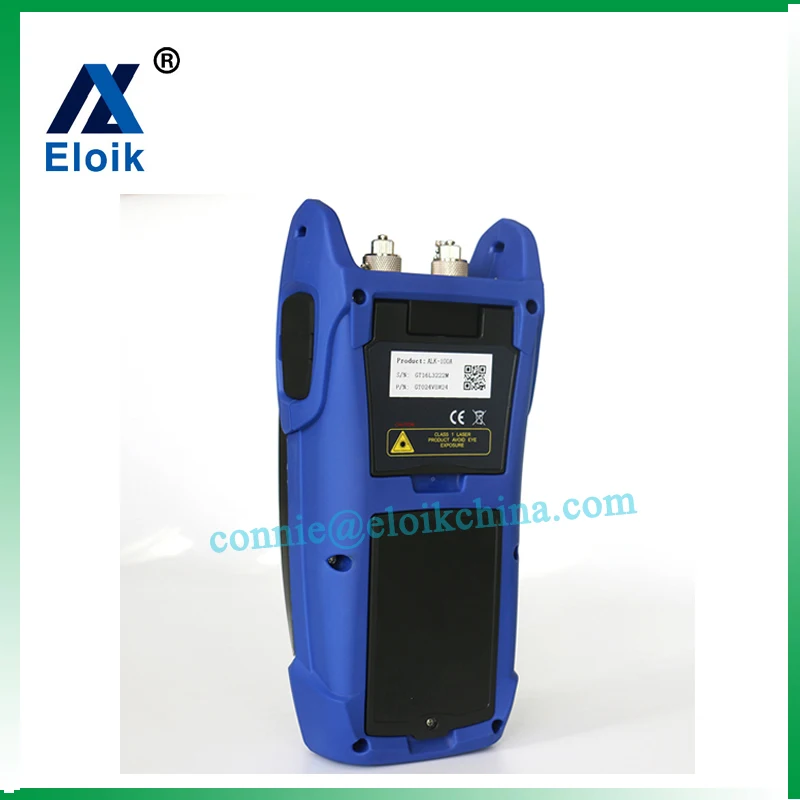

Handheld OTDR ALK-100B -SM-OTDR 1310/1550nm 28/26dB Integrated VFL Optical Time Domain Reflectometer BY DHL |

Handheld OTDR ALK-100B -SM-OTDR 1310/1550nm 28/26dB Integrated VFL Optical Time Domain Reflectometer BY DHL |

ELOIK ALK100 Handhold OTDR Factory Supply Better-sale

  High-quality Mini OTDR 1310/1550   Max.150KM   35/33dB

Product Description

(OTDR) is the new generation of intelligent meter for the detection of fiber communications systems. With the popularize of optical newwork construction in cities and countrysides, the measurment of optical network became short and disperse, ALK-100 Series  is specially designed for that kind of application, its economic and also have outstanding performence.It is  manufactured with patience and carefulness , following the national standards to combine the rich experience and modern technology, subject to stringent mechancial,electronic and optical testing,quality assurance,in the other way, new design makes ALK-100 Series

 more smart and compact and multi-purpose ,also it has various functions.Whether you want to detect link layer in the construction and installation of optical network or proceed efficient maintenance and trouble shooting ,ALK-100 Series
 can be your best assistant.

Features:

Center wavelength 1310/1550nm(±20nm)

Dynamic Range(dB) 28/26
Pulse width 10ns,30ns,50ns,100ns, 300ns,1.0s, 2.5s,10s
Event Dead Zone(m) 2.5
Attenuation dead zone(m) 14
Distance Range(Km) 0.5~120
Distance Measurement Accuracy ±(1m + sample space + measurement distance×0.005%)
Linearity ±0.05dB/ dB
OTDR Other Specifications VLS
Memory capacity 1000

Center wavelength 650nm±20
Fiber Type SMF

Out power <1dBm
Display 3.5 inch LCD

Interface FC/UPC
Optical connector FC/SC/ST (universal connector)
Battery NimH Smart Charge Battery
Continuous working time * >10(From Bellcore TR-NWT-001138)
Dimensions 230mm×120mm×60mm

Weight 0.9Kg

More details:

More questions contact me!
