Описание товара

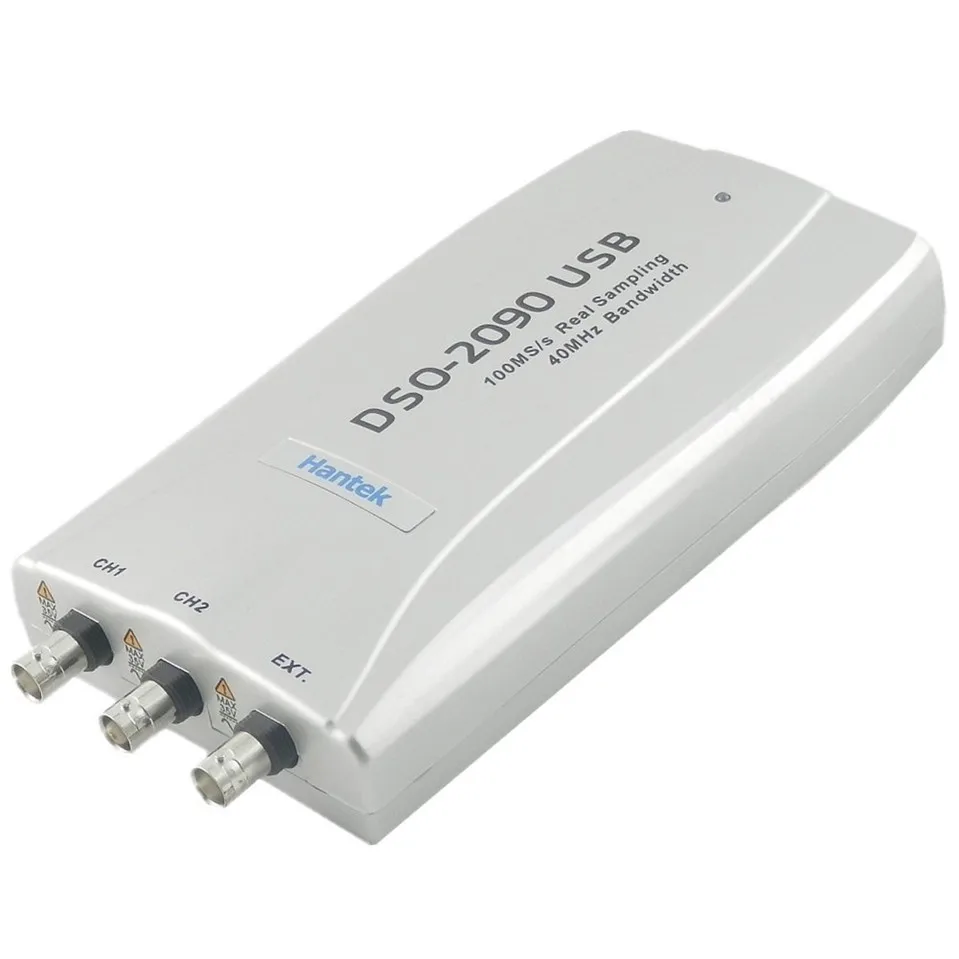

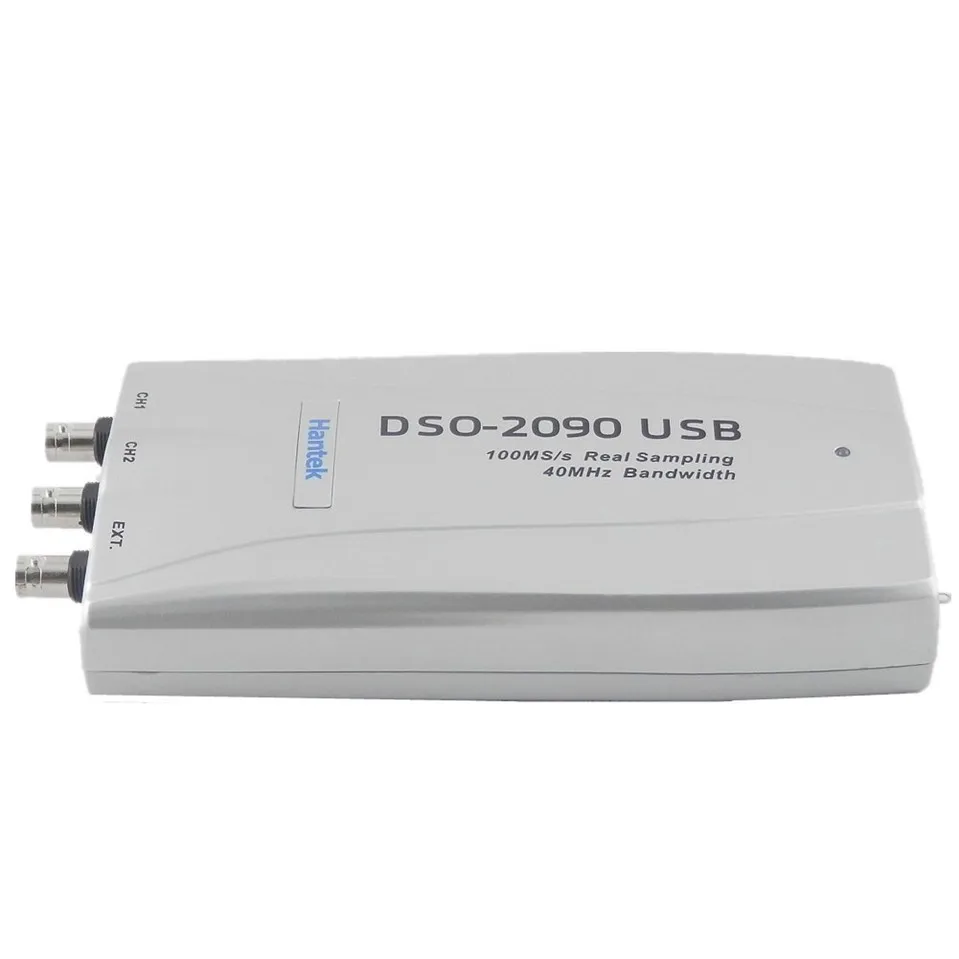

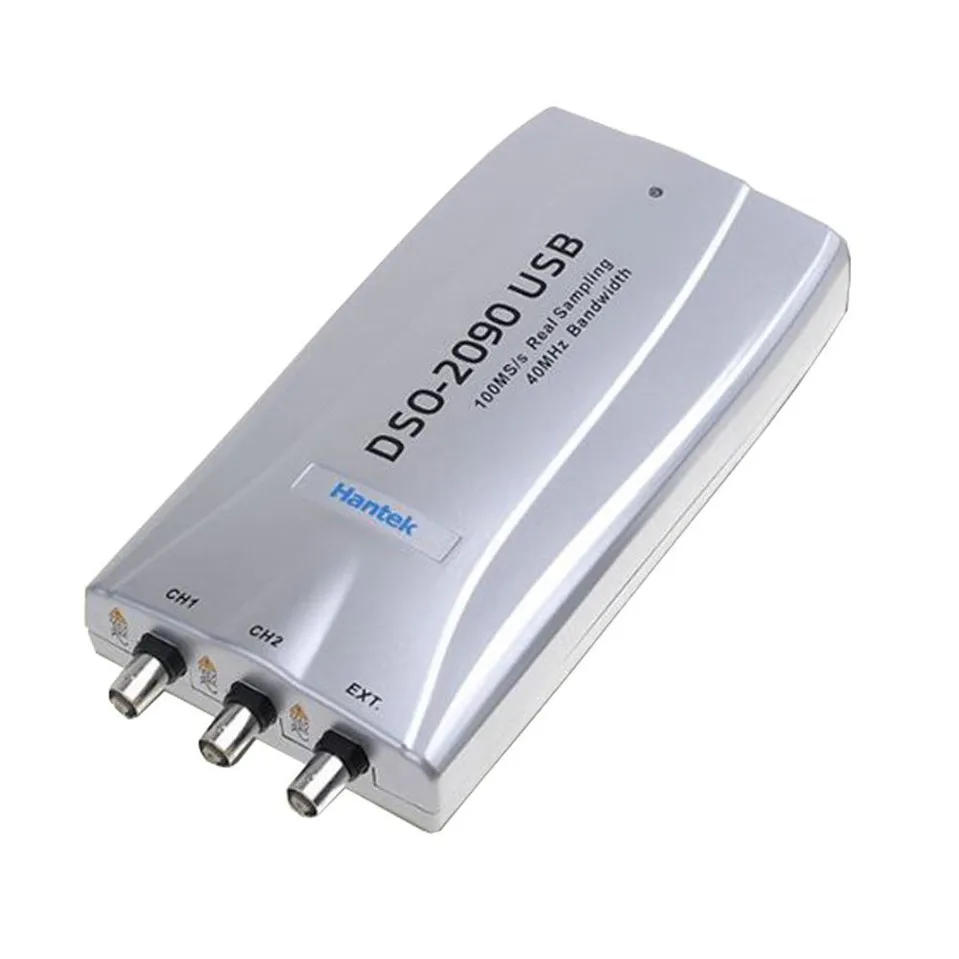

Portable Oscilloscope USB PC Digital Oscilloscope 100MS/s 40MHz Hantek DSO2090 DSO-2090
Model |
DSO2090 |
DSO2150 |
DSO2250 |
|
|
Channel |
2 |
2 |
2 |
|
|
Bandwidth |
40MHz |
60MHz |
100MHz |
|
|
Max. Sample rate |
100MS/s |
150MS/s |
250MS/s |
|
|
Rising Time |
8.8ns |
5.8ns |
3.5ns |
|
|
Impedance |
1M 25pF |
||||
Coupling |
AC/DC/GND |
||||
Vertical resolution |
8Bit |
|
|||
Gain range |
10mV-10V, 10Steps |
||||
DC accuracy |
3% |
||||
Timebase range |
2ns-1h, 39 Steps |
||||
Vertical adjustable |
Yes |
||||
Input protection |
Diode clamping |
||||
X-Y |
Yes |
||||
EXT. input |
Yes |
||||
Trigger Mode |
Auto, Normal and Single |
||||
Trigger Slope |
+/- |
||||
Trigger level adjustable |
Yes |
||||
Trigger Type |
Rising edge, falling edge |
||||
Trigger Source |

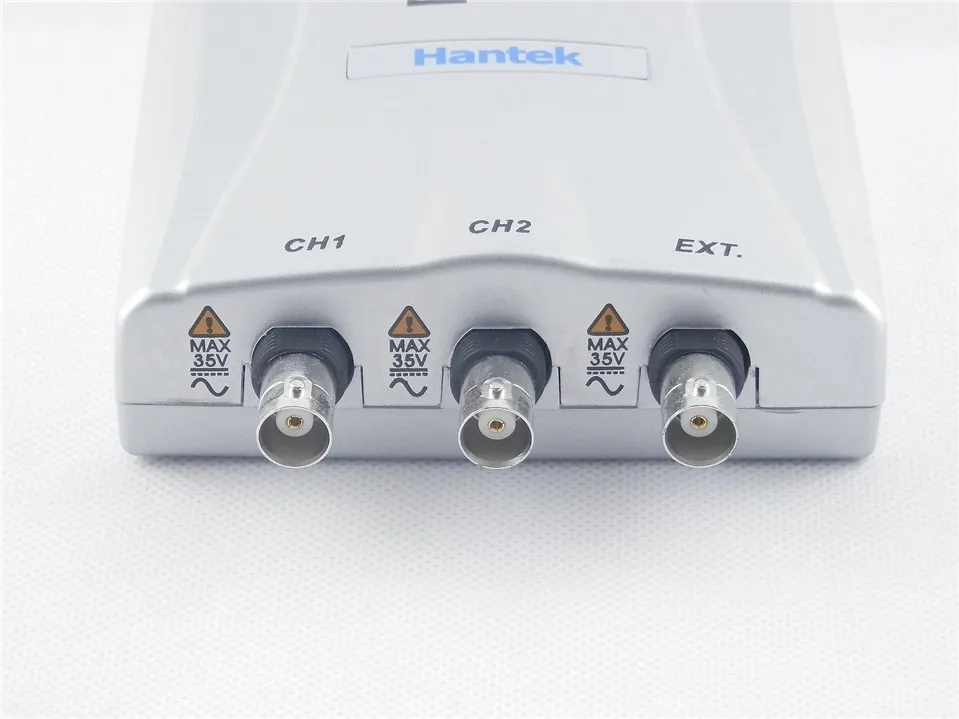

CH1, CH2, EXT |
||||
Pre/Post trigger |
0-100% |
||||
Buffer size |
64K |
64K |
1M |
|
|
Sampling selection |
Yes |
||||
Waveform Display |
port/line, waveform average, persistence, intensity |
||||
Network |
Open/Close |
||||
Vertical mode |
CH1, CH2, Dual, ADD |
||||
Cursor measurement |
Yes |
||||
Math |
FFT, addition, subtraction, multiplication, division. |
||||
Cursor |
Frequency, Voltage |
||||
Accessories |

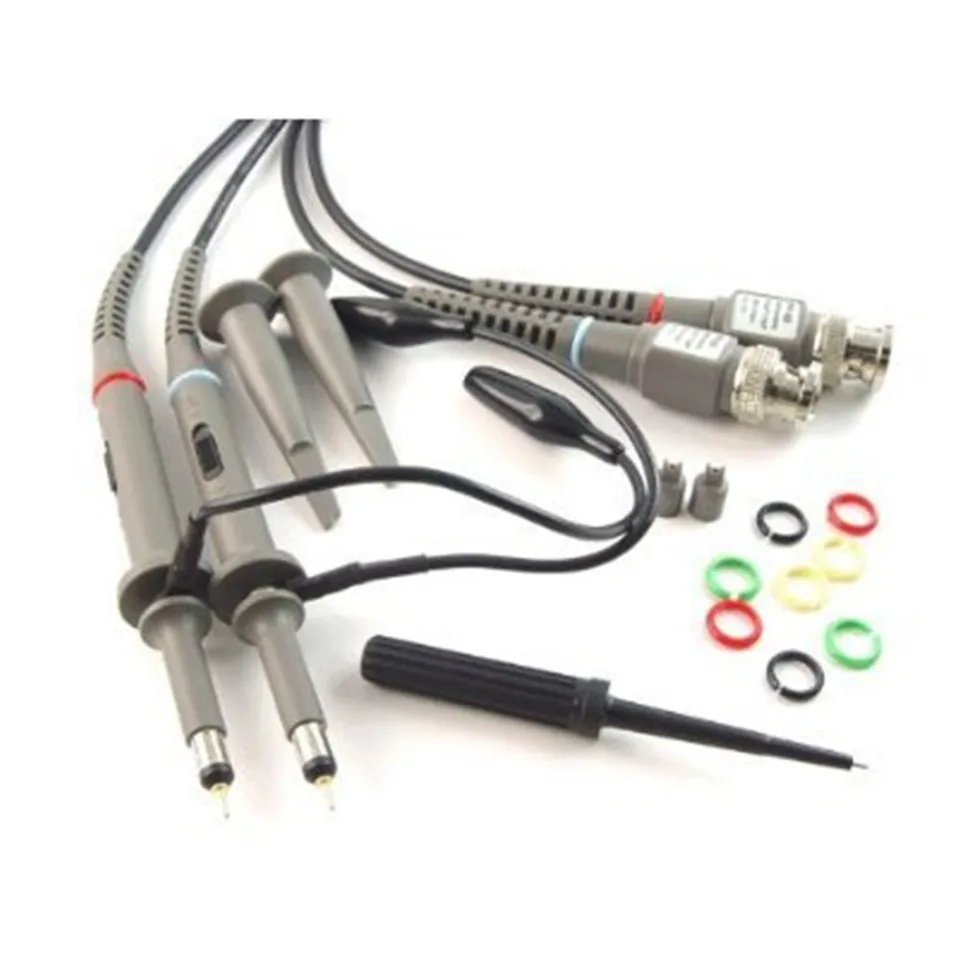

S/W CD, probes, manual, USB cord |
||||
DSO2000 Series
*200MHz bandwidth, 50GSa/s sampling

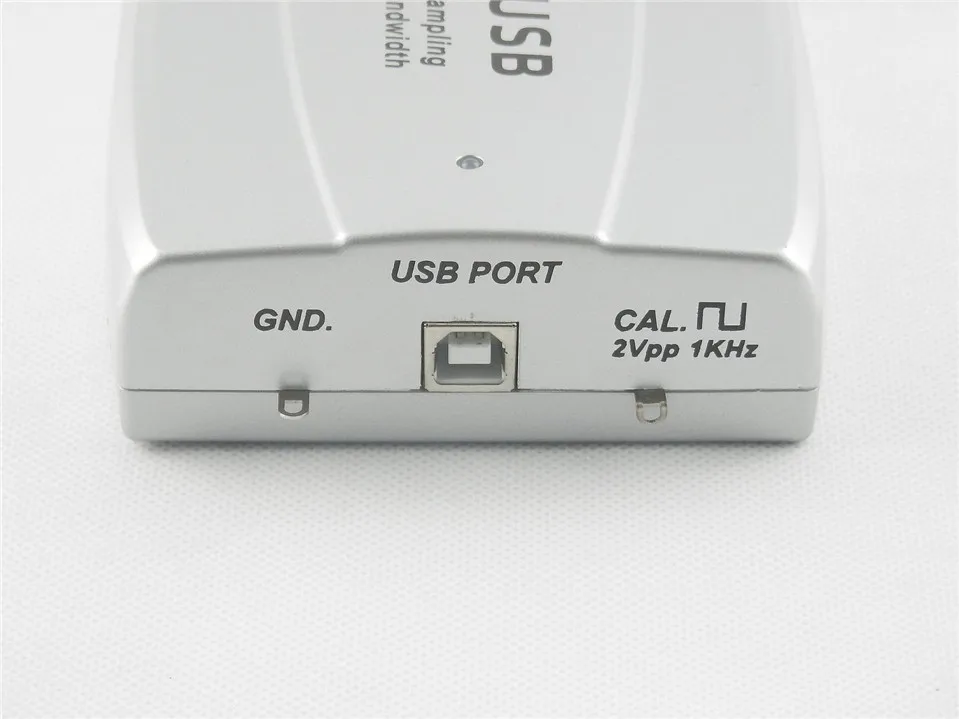

*USB2.0 interface, no external power source required, easy to use.
*be suitable for notebook computer,product line maintenance,be used easily on business.
*Dimensions (mm):190(L) x100(W) x35(H), be carried easily.
*High performance,250MS/s real-time sampling, 200MHz Bandwidth.
*Operating System: Windows7,Windows Me, Windows NT, Windows 2000, Windows XP ,VISTA,Win8
*23 measurement functions, PASS/FAIL Check, be suitable for technical application.
*Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
*Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
*FFT
*One computer can connect many DSO, extend channel easily.
*Labview\\VB\\VC\\Delphi\\C++Builder Second Design instance.
