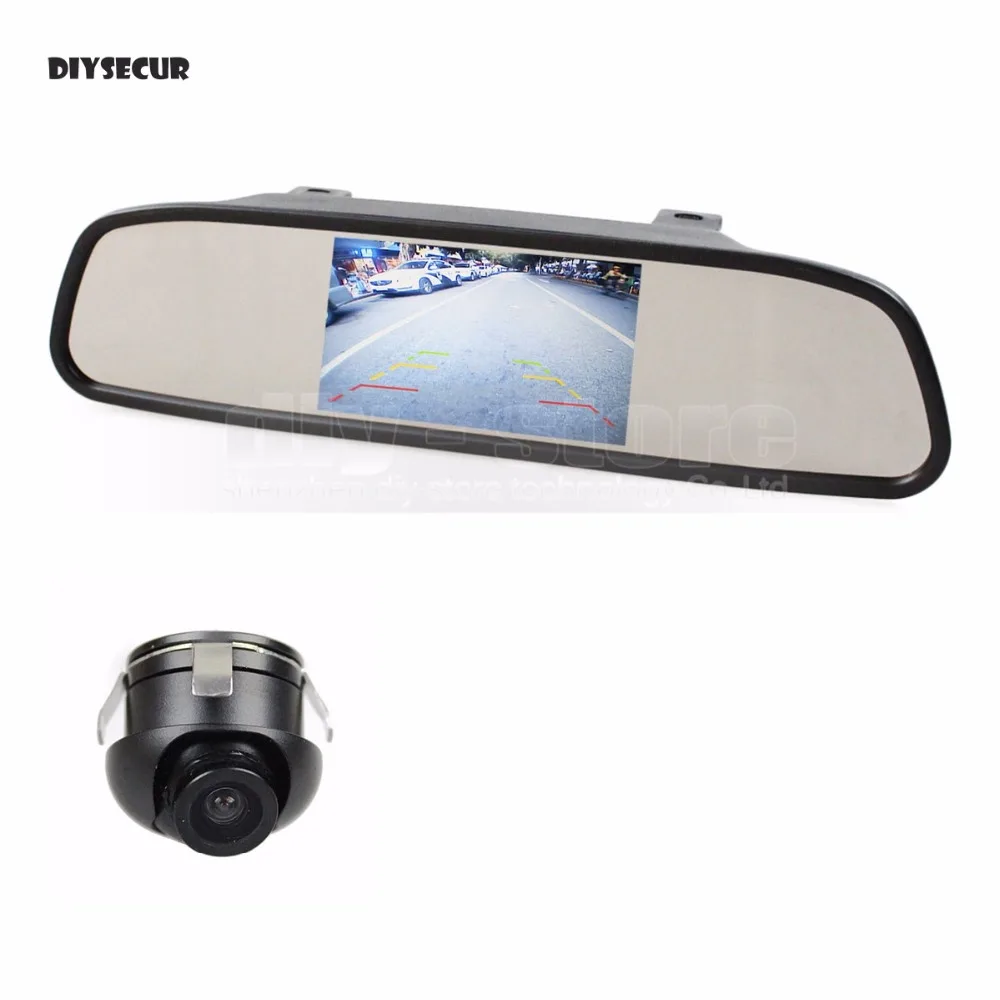

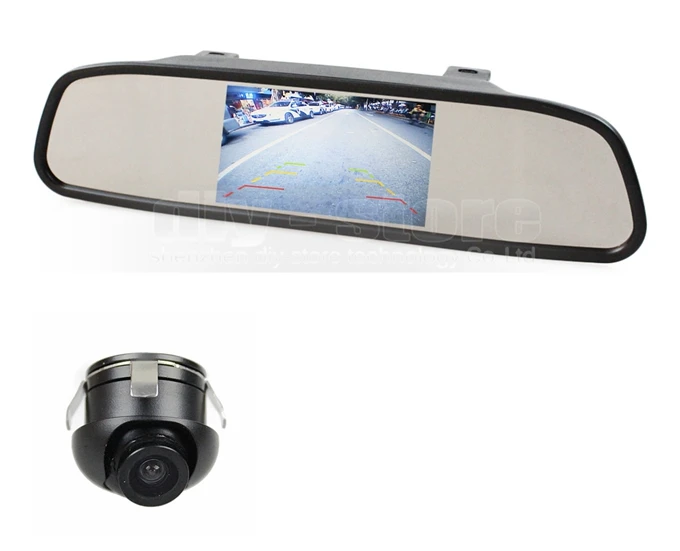

4.3 Inch Car LCD Rear View Rearview Mirror Monitor Rear / Front / Side View Camera Cam

Waterproof camera with wide view angle

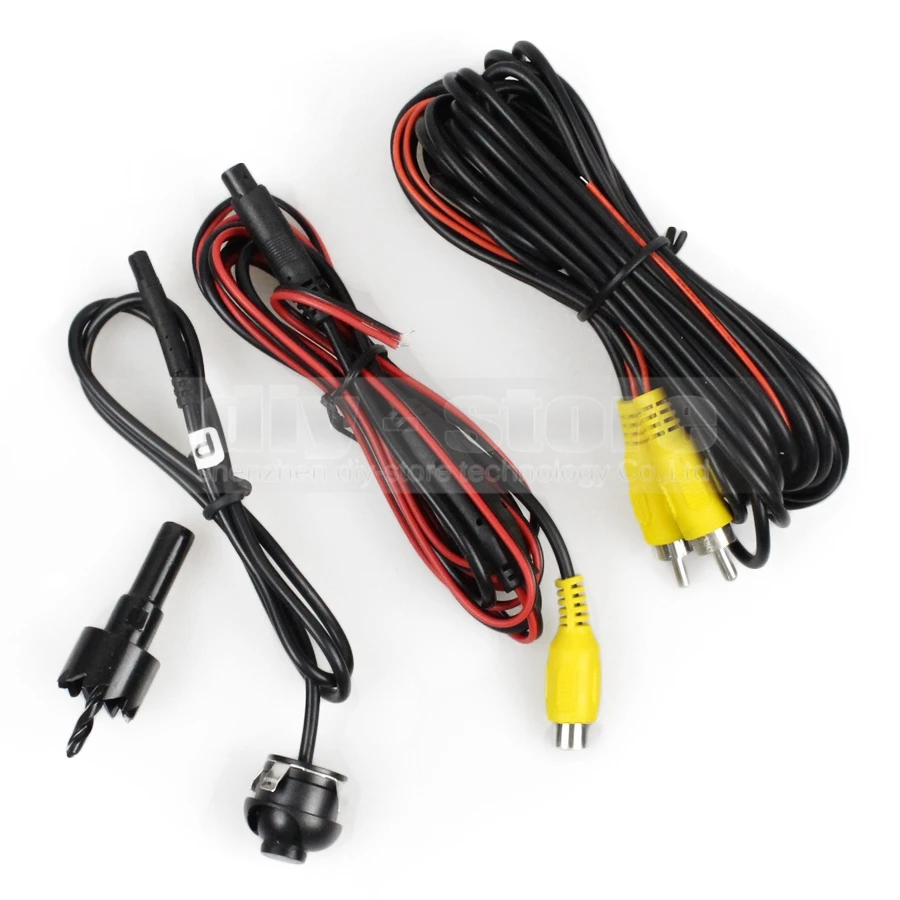

6m length video cable, Plug and Play

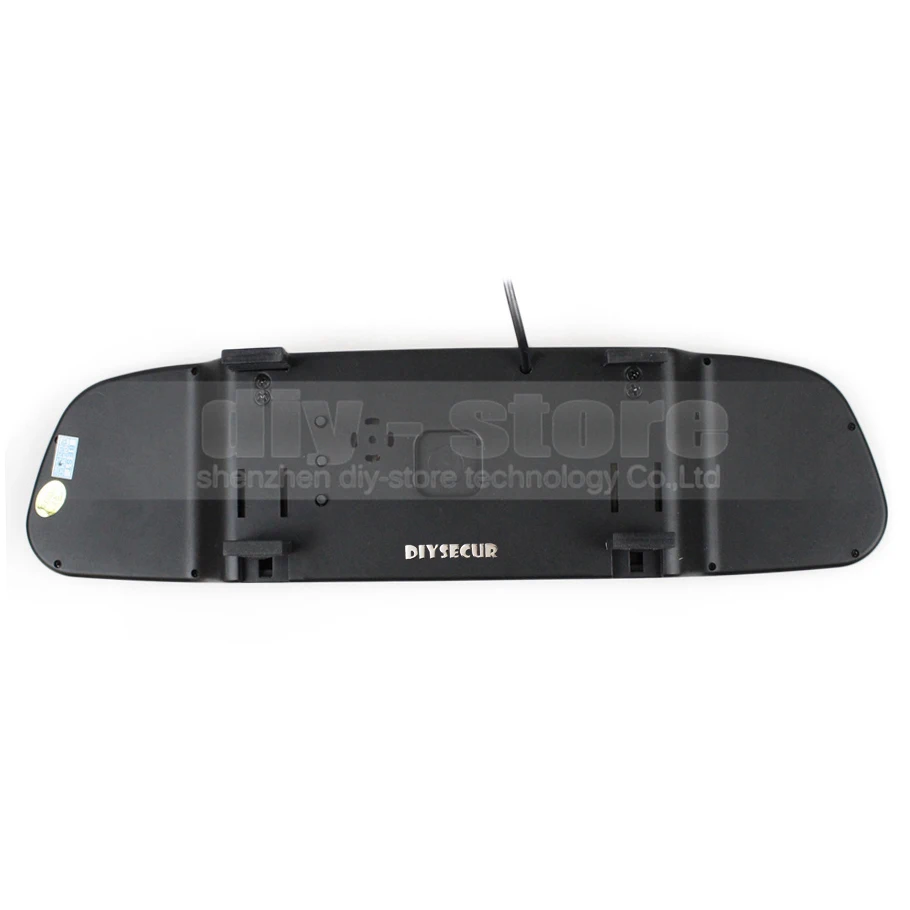

4.3" High quality ultra-thin monitor
2 channel video inputs
Easy installation

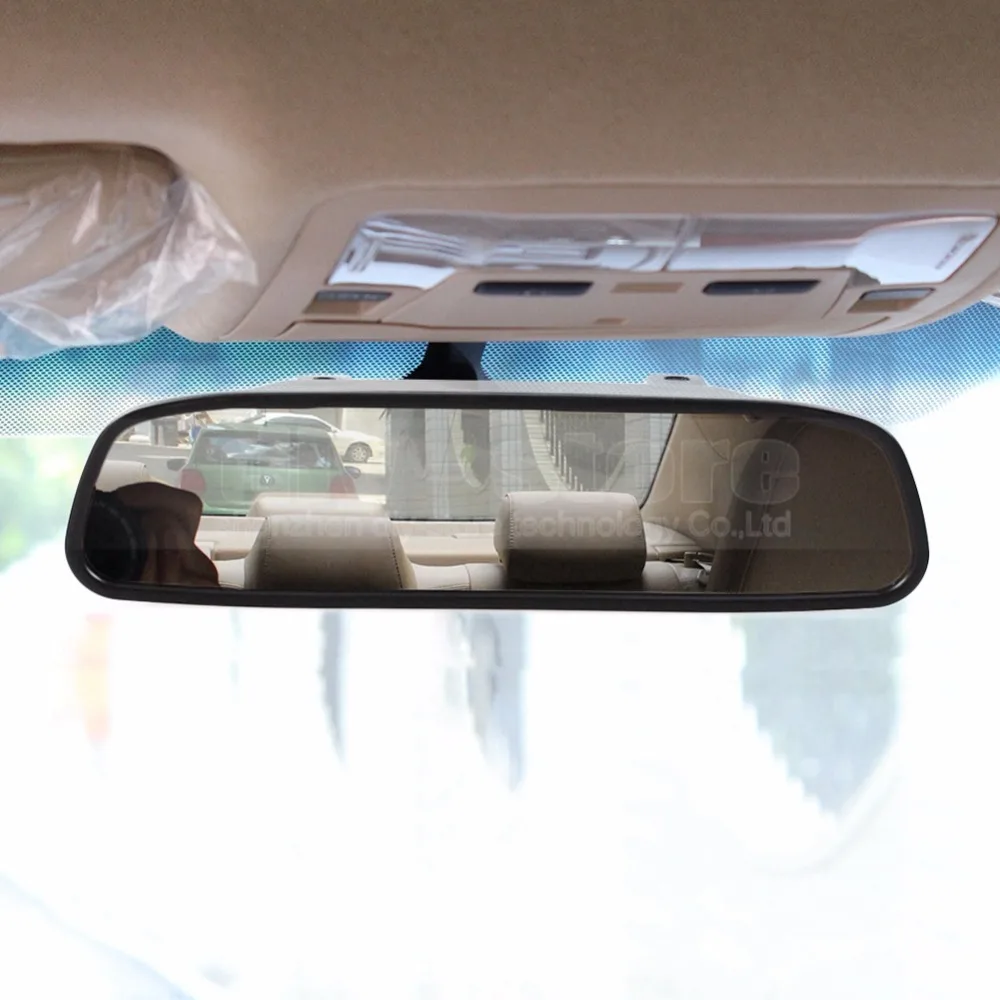

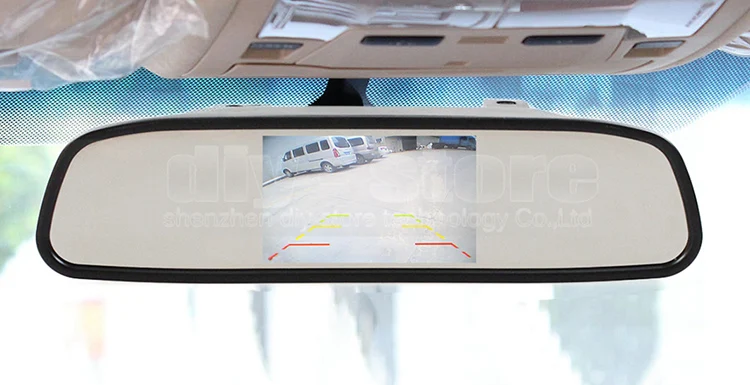

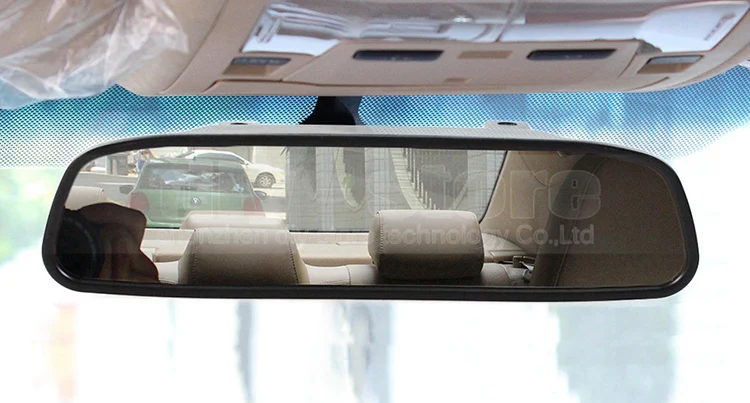

It acts as a normal rear view mirror, and reflector will automatically appears when the monitor is turned off. So you can clip it over your original mirror, and it will show rearview image; while it is connected with rear view camera,the rear view image will appear on the screen automatically when reversing the car.

Monitor:

Two inputs are both video inputs, one for reversing camera, and the other for other video equipment inputs, such as DVD video input. The unit can only display one video input at a time and gives priority to video input 1. Generally, please connect video input 1 to the reversing camera, and input 2 to video equipment for entertainment.

1. Since reversing camera is connected to your car's reversing light power cable, when you reverse the car, the reversing camera will be powered on. And monitor will display video input 1 whose signal comes from reversing camera.
2. When car leave reserving mode, reversing camera is powered off. The monitor will switch to input 2 display.

Camera:

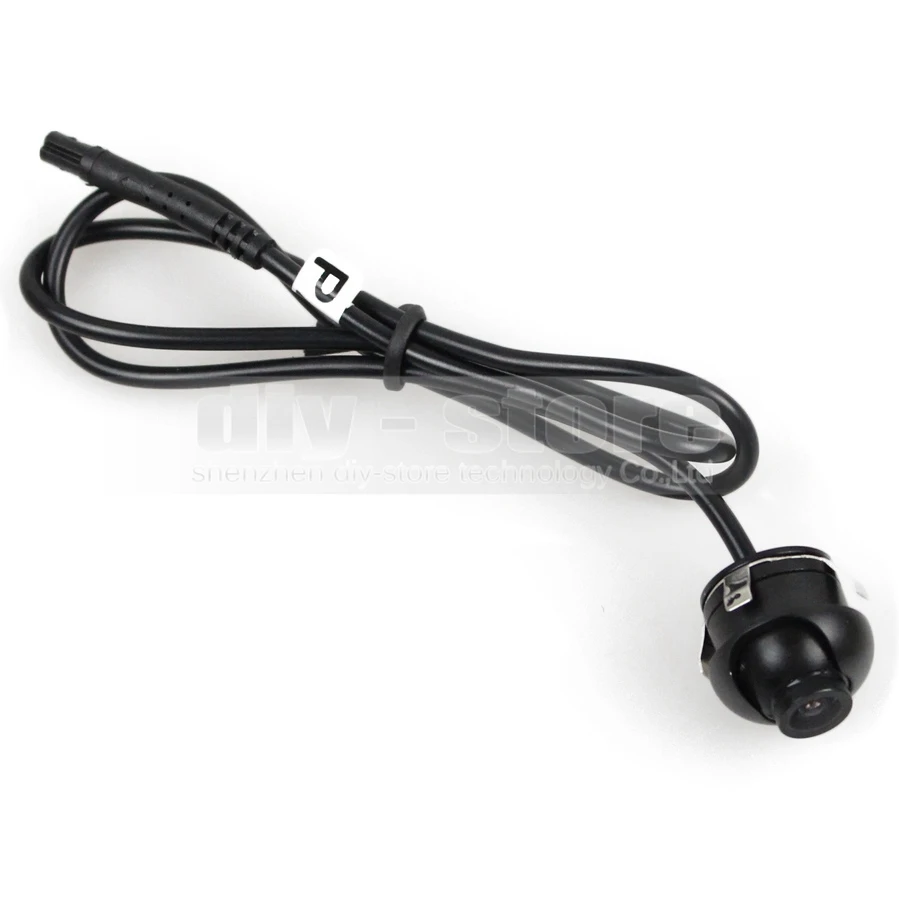

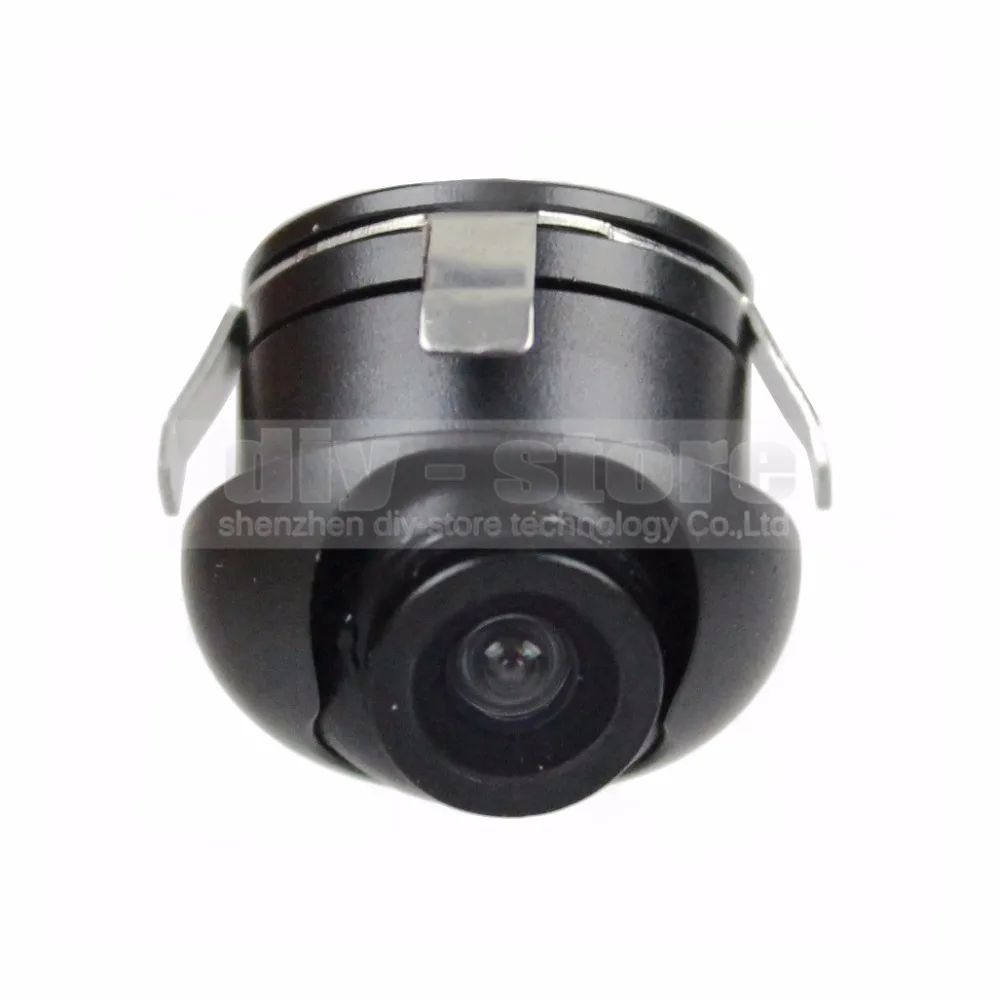

This rear / front / side view Waterproof / Colour camera can be connected with your in-car DVD player or rear view monitor.

With this item, you can park your car easily, speedily and safely.It will be a lot safer for beginners or even professional drivers.As you never know when an accident will occur.You can only prepare for the worse.

• HD sensor with high-definition, quality guarantee,

• 420TV line of resolution with 120º wide view angle,

• Low illumination sensor enables satisfactory night view even without IR night vision function.

• It can be easily mounted onto the handle of car rear hood or other suitable place.

• 6M Extended Video Cable FOR FREE.

With this item, you can park your car easily, speedily and safely.It will be a lot safer for beginners or even professional drivers.As you never know when an accident will occur.You can only prepare for the worse.

Specifications:

Monitor :

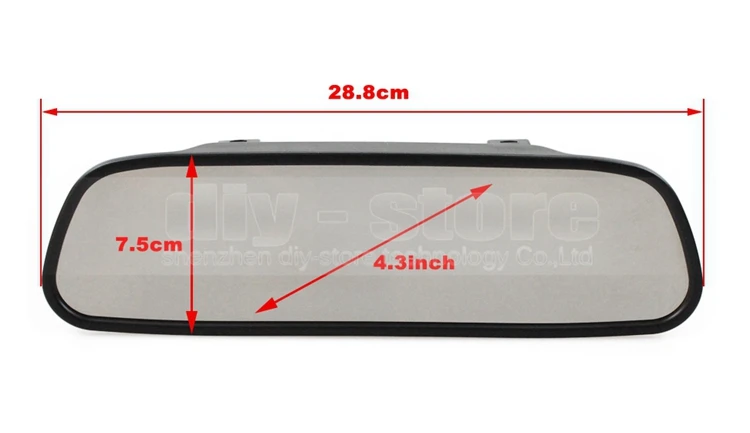

• Screen size: 4.3 inches

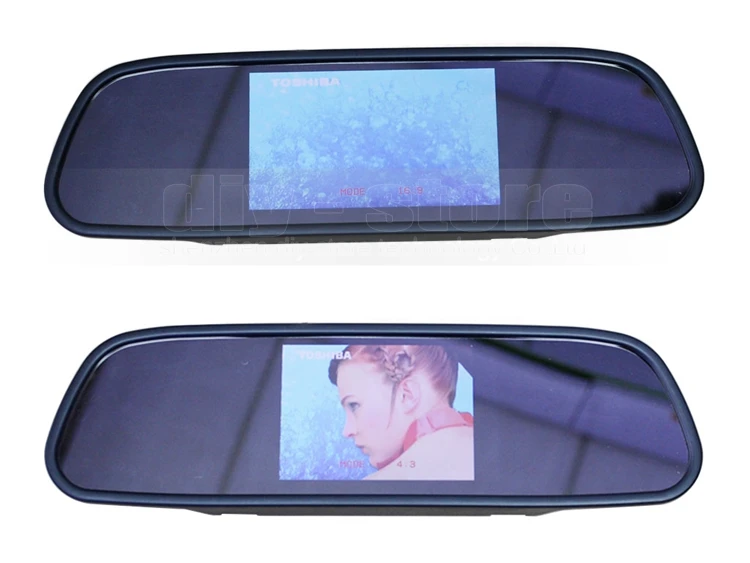

• Display mode: 16 : 9
• System: PAL / NTSC (Auto)
• Definition: 480(H) x 234(V)
• Nominal voltage: 12V 10%
• Power consumption: 3W

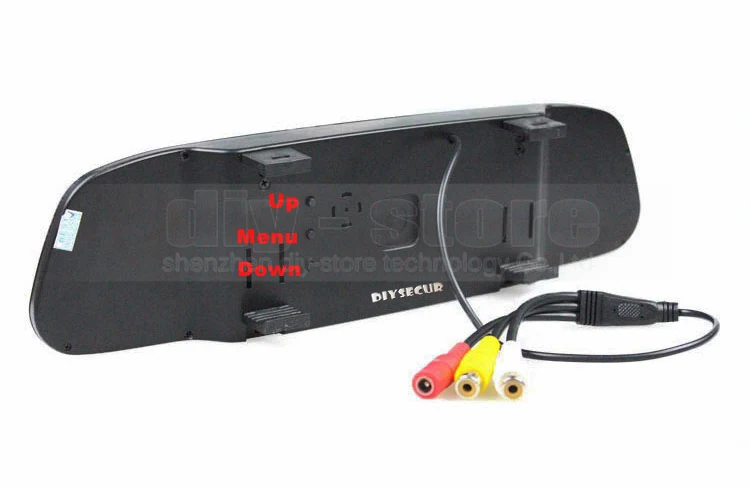

• Way of control: Monitor button
• Vedio input: Two way video input
• Operation temperature: -20°c-60°c
• Storage temperature: -40°c-60°c
• Brightness: 250cd/m⊃2;
• Contrast: 300:1

Camera:

• Camera image type: High performance color image
• Horizontal resolution: 420TV Lines
• Usable illumination: 0.05Lux
• Free viewing angle: 120º
• Waterproof: IP67
• Shockproof: 10G
• Video output: 1.0Vp-p75
• Power supply: DC 12V
• Video system: NTSC / PAL

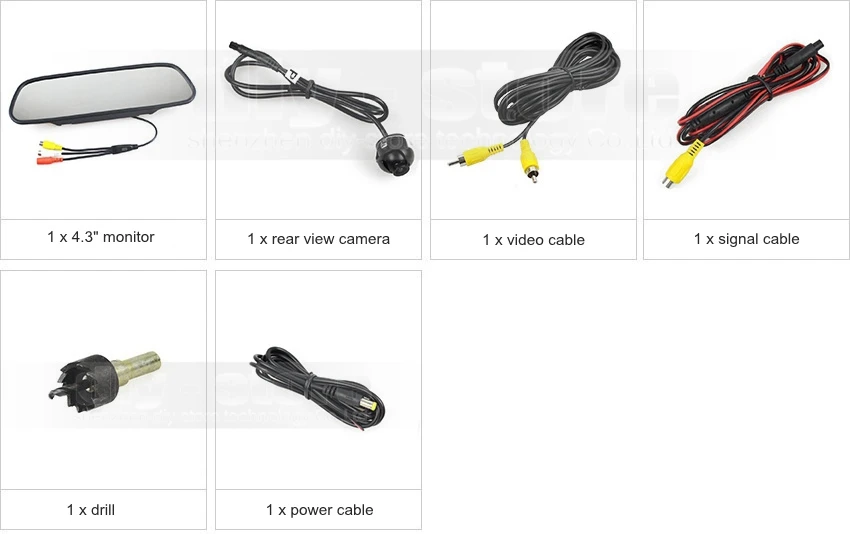

Parking List:
