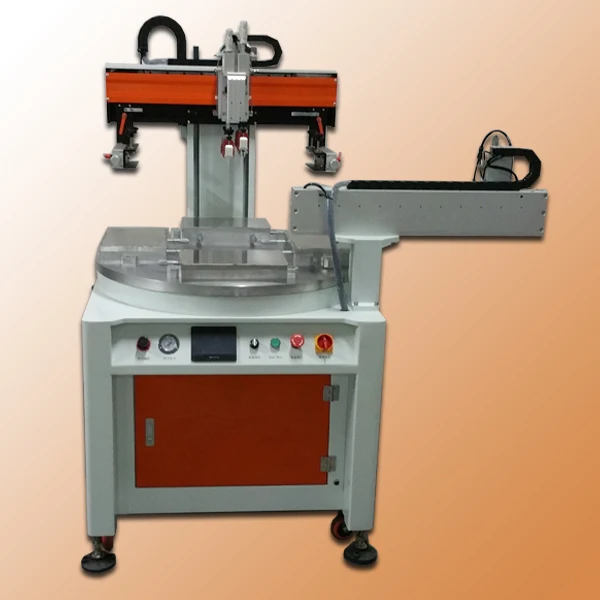

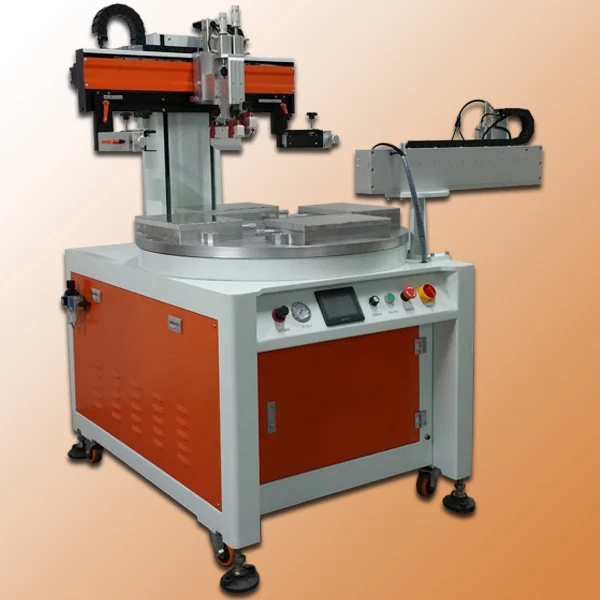

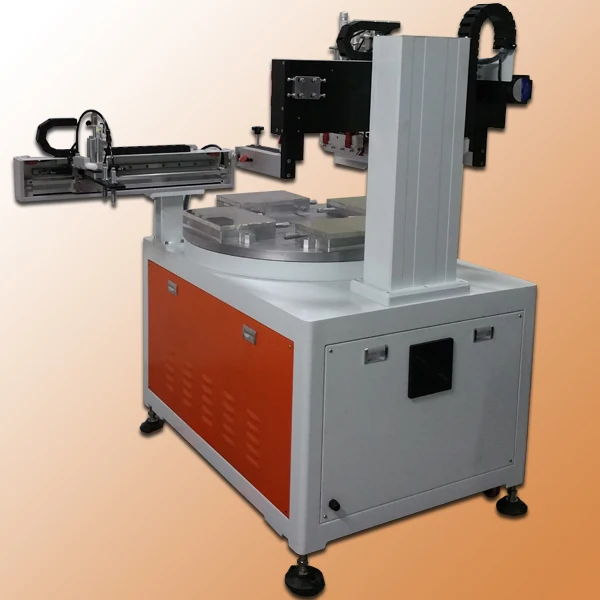

high precision auto rotary serigraphy machine for acrylic sheet

Regards the video:

If you using phone to visit this link and want to watch the machine working video, please change it to use the computer to get it. or leave your email box to us for get it.

The delivery cost in our store by express which is safe and fast. but shipping cost is higher than by sea.  For this machine, can be sent out by sea if you want to save the freight cost.

serigraphy machine Products instruction:

precision conveyor screen printing machine main apply to Mobile phone touch screen, light guide OGS / TP / CG / LTD glass, PCB, LCD, liquid green oil,EL, thin film, keyboard, acrylic, mobile phone panels, touch panels, light guide plate, diffusion chip, nameplate signs, ceramics, stationery and small pieces of film / sheet / Precision Screen Printing of the plate-shaped products, such as flexible printed circuit (FPC), in-mold decoration (IMD), film button (Membrane Switch), and other biological test piece ....... product precision flat screen printing.

high precision auto rotary serigraphy machine for acrylic sheet feature:

1 Screen frame lifting adopt Panasonic servo motor, matching with high-performance lead drive screw and precision linear guides combined net frame movements using screw guide, printing more stable and smooth, higher printing accuracy;

2 printing holder adopt stepper motor,swift run, position accuracy, stroke/speed/director is setted by digitization.

3 Printing holder with integrated pull aluminum molding, simple structure. Blade holder with cylinder with cross roller guide rail, smooth and stable, high precision.

4 Rotary table adopts Taiwan precision cam splitter drive, repeat positioning precision and speed swift, bench micrometer fine adjustment (stroke ± 6mm), vacuum suction platen, product positioning accuracy, prevent rotation during product loosening. One-piece cast aluminum wheel processing, structural stability, excellent rigidity, table flatness accuracy 0.05mm.

5  Robot laying-off:mechanical hands can be formulated material, reduce productivity, increase productivity, machines and production lines docking, cutting directly to the production line, according to customer requirements for non-standard custom.

6 The use of advanced control Mitsubishi PLC control, human-machine interface digital control, you can set a variety of functions and operating parameters, in favor of job data and standard equipment humane.

7 Installation of security bars, security screens, thorough operator personal safety protection;

8 Free oil drainage regulator group does not produce oil mist exhaust pollution, suitable for clean room use.

high precision auto rotary serigraphy machine for acrylic sheet parameter:

1 Printing color: 1 color

2 Single Cycle: Can

3 Continue sports: can

4 Counter: can

5 Every parts delay time: can

6 Printing speed: 1300 times/ hour

7 Max screen frame size: 450x 650mm

8 Max printing area: 180mm x 250mm

9 Worktable size: 200mmx 300mm

10 Conveyor diameter: dia.845mm

11 Station quantity: 4 pieces

12 Robot stroke: 500mm

13 The max objects height: 80mm

14 Screen frame up stroke: 200mm

15 Scraper stroke: 350mm

16 Scraper/ squeegee up/down stroke: 30mm

17 Worktable Vertical and horizontal adjustment amount: +-6mm

18 Feeding way: Vacuum Adsorption/ Finger gripping

19 Lift driver: Servo motor

20 Control system: PLC

21 Control motor: DC24V

22 Control voltage: AC220V 50/ 60hz

23 Power: 2.2kw

24 Working air pressure: 0.4-0.6Mpa

25 Air consumption/ circle: 3.0L

26 Machine dimension: 1160 (L)X 1450MM(W)X 1600MM(H)

27 Weight: 560kgs

Relative Products:

Click here to get the linking of desktop screen printing machine for printing area 200x300mm

Click here to get tabletop silk screen printer T shape

This linking for flat screen printing machine with printing area:500x700mm

This linking for run-table silk screen printing machine

other flat screen printing machine from here

This linking for bottles/cups/pens screen printing machine

Accessories:

1 set tool

1 book english manual

1 piece squeegee as random

1 piece screen frame as random

Remark:

1 Package: Standard export plywood case

2 Warranty: 1 year

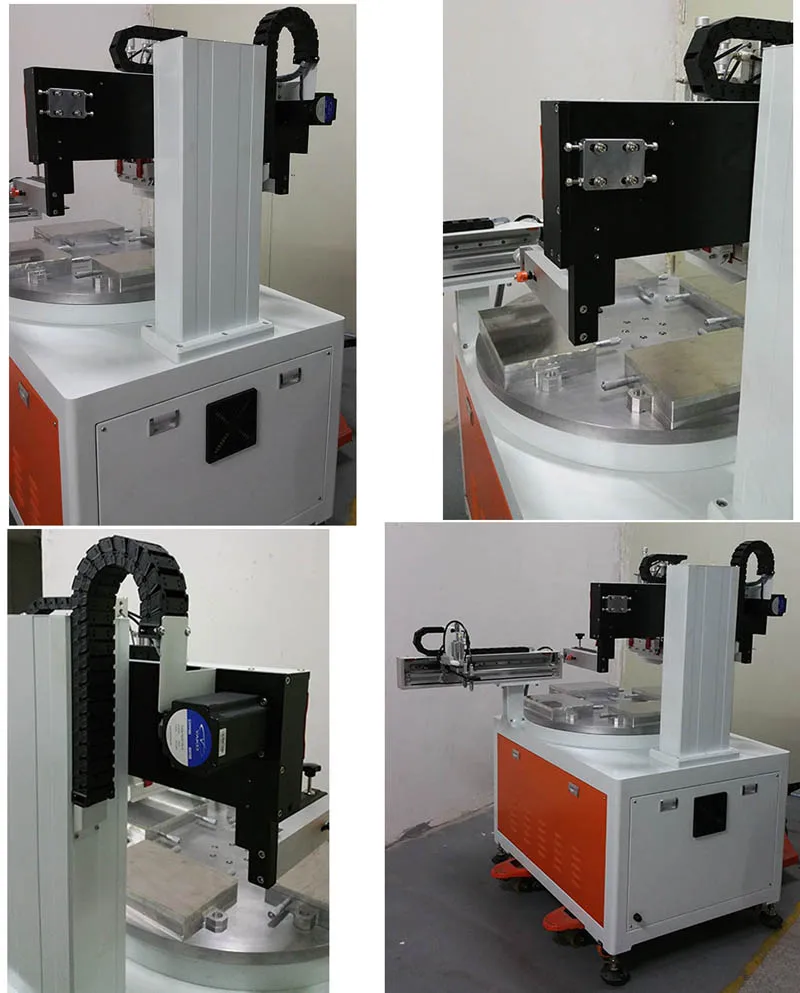

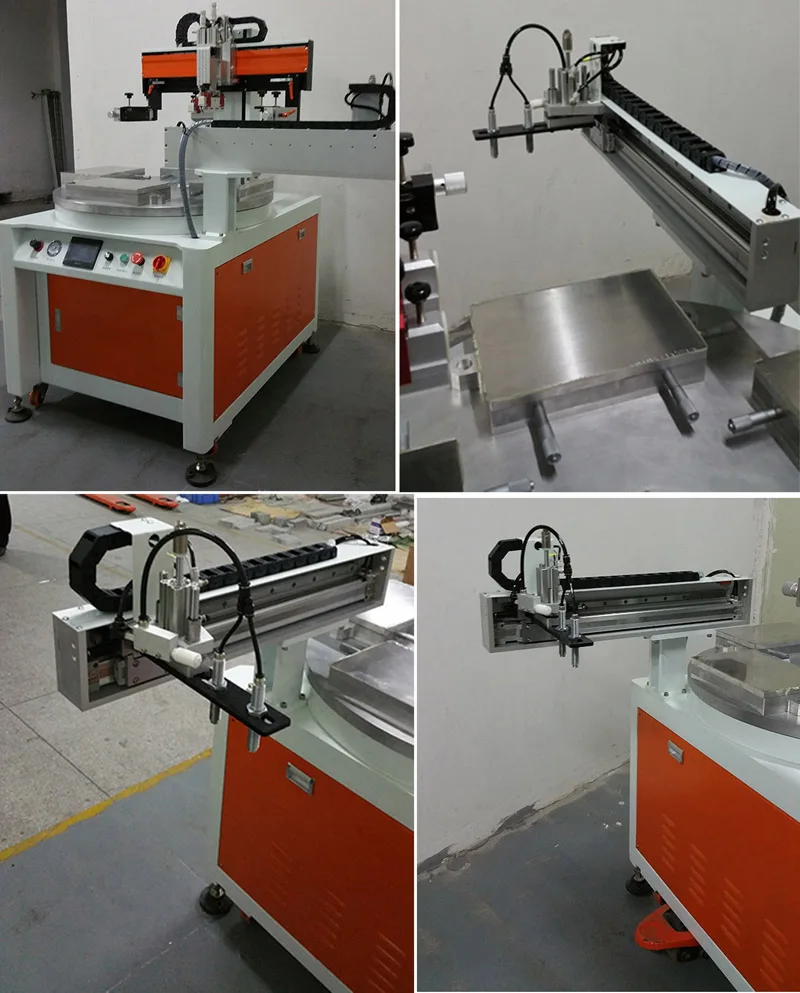

Acutal Picture:

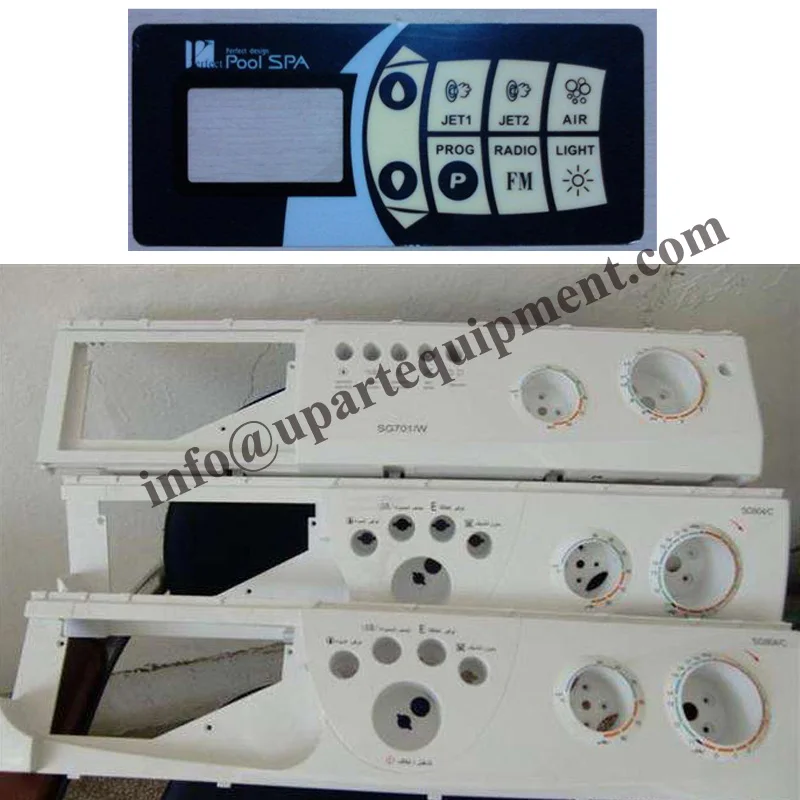

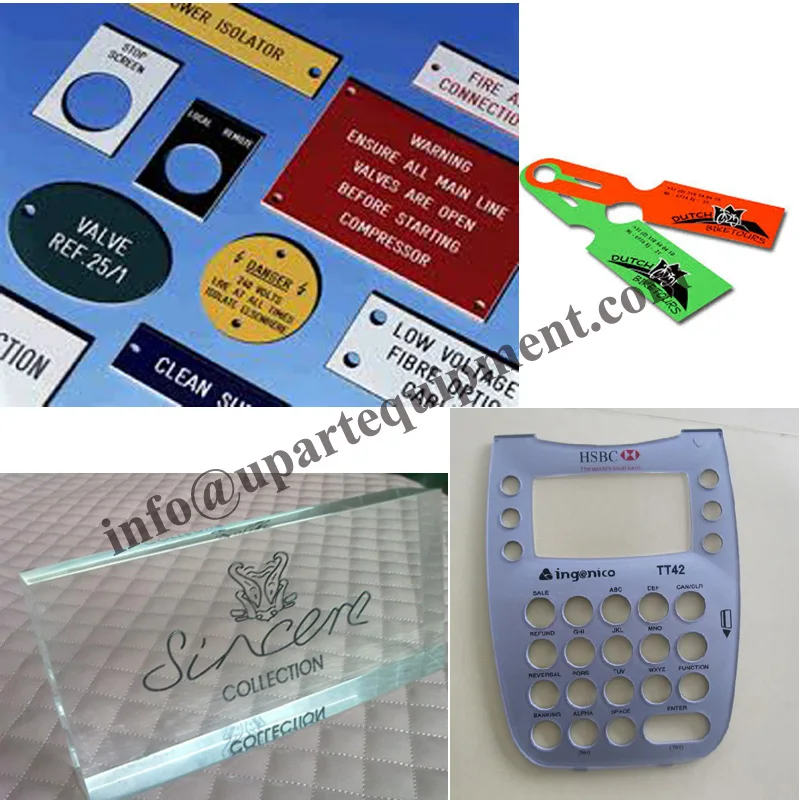

Samples:
