Описание товара
Technical Parameter
|
Model No. |
ZL12-RZ1020-3P-X (Tubing ID 0.38-0.64mm) ZL12-RZ1020-3P-Z (Tubing ID 0.76-2mm) ZL12-RZ1020-3P-D (Tubing ID 2.06-2.29mm) ZL12-RZ1020-3L-X (Tubing ID 0.38-0.64mm) ZL12-RZ1020-3L-Z (Tubing ID 0.76-2mm) ZL12-RZ1020-3L-D (Tubing ID 2.06-2.29mm) |
| Roller numbers |
3 rollers |
| Roller material |
POM |
| Pump head material |
POM |
| Motor type |
12V DC motor |
| Rated current |
0.15A |
| Rated power |
1.6W |
| Motor Speed |
4500rpm |
| Flow rate |
0-60ml/min |
| Tubing |
ID0.64-3.0mm WT0.8-1.0mm OD≤5mm |
| Working temp. |
0-40℃ |
| Working humidity |
80% |
| Max DB |
65db |
| Dimension (L*W*H) |
10*6.8*7.6CM |
| Net Weight |
100g |
Product Features
l Fine appearance, compact structure, mini size for space-saving, low consumption
l Speed and flow rate adjustable, low noise
l 3 rollers for moderate pulse
l Only suitable for interval working and non-accurate liquid dispensing requirement

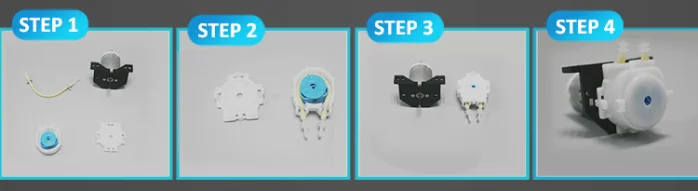

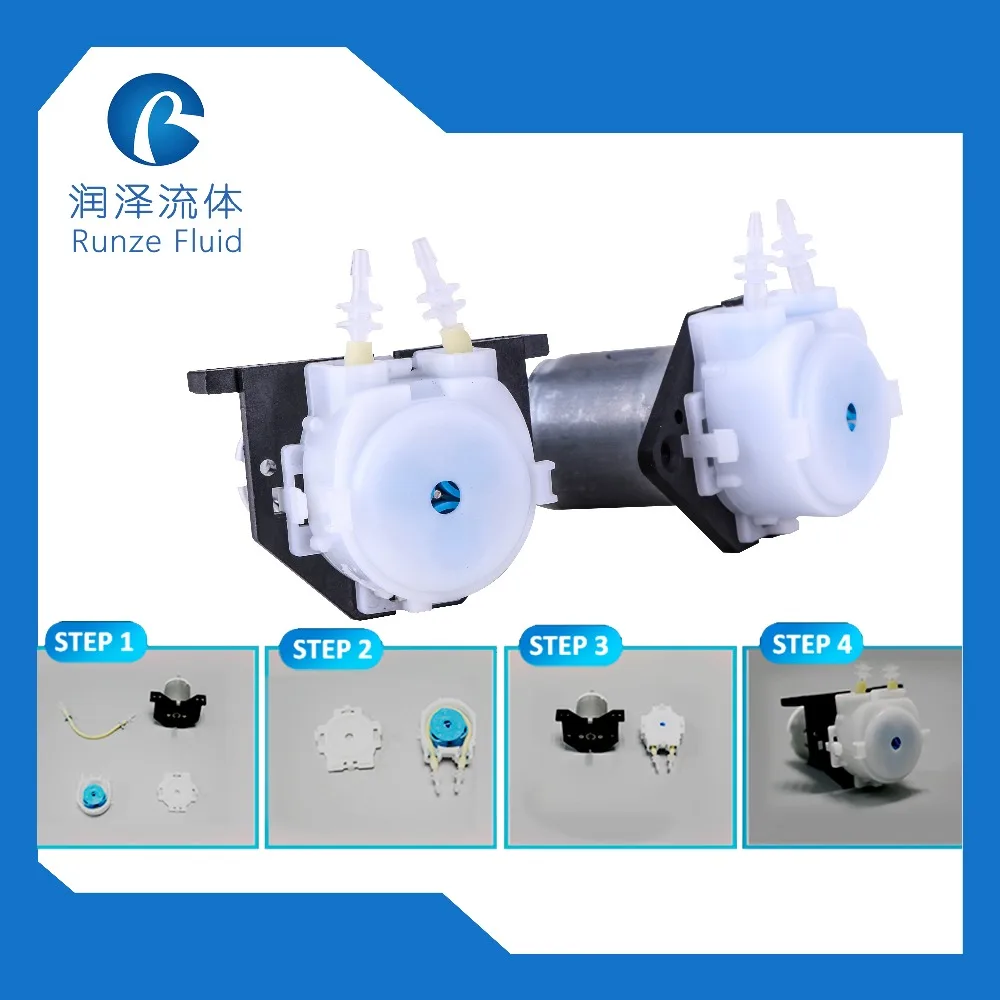

Tubing Steps
ZL12-RZ1020 Flow Rate Table
| Tube type |
Tube size (ID*WT: mm) |
SR200-RZ1020-3P Flow rate (ml/min) |
Motor Speed (rpm) |
|
Rubber tube |
0.64*0.8 |
6.8 |
4500rpm |
| 0.76*0.8 |
9.4 |
||
| 0.89*0.8 |
12.5 |
||
| 1.02*0.8 |
16 |
||
| 1.14*0.8 |
21 |
||
| 1.30*0.8 |
33 |
||
| 1.42*0.8 |
19.5 |
||
| 1.52*0.8 |
28 |
||
| 1.65*0.8 |
39.5 |
||
| 1.85*0.8 |
43 |
||
| 2.06*0.8 |
45 |
||
| 2.29*0.8 |
60 |
||
|
Silicon tube |
1*1 |
15.5 |
|
| 2*1 |
48 |
Application Note:
1. These data are generated under room temperature without extra pressure, test media is water. Your results may vary depending on variables such as the solvent used, the material of tubing, temperature, pressure, humidity, voltage etc.
2. ZL12-RZ1020 peristaltic pump is suitable for liquid viscosity like water or weak viscosity liquid.
3. ZL12-RZ1020 peristaltic pump is suitable for corrosive or non-corrosive liquid when equipping different kinds of tubing, liquid only go through tubing, so tubing material is the main factor for corrosion problem.
4. 2 pieces straight connectors are necessary for pump tube on ZL12-RZ1020, or tubing will get slide when working, we will standard equip 8.5cm tube and 2 pieces straight connectors for each pump for your order, if you need more tubes and connectors for spare use, please order them in our shop.

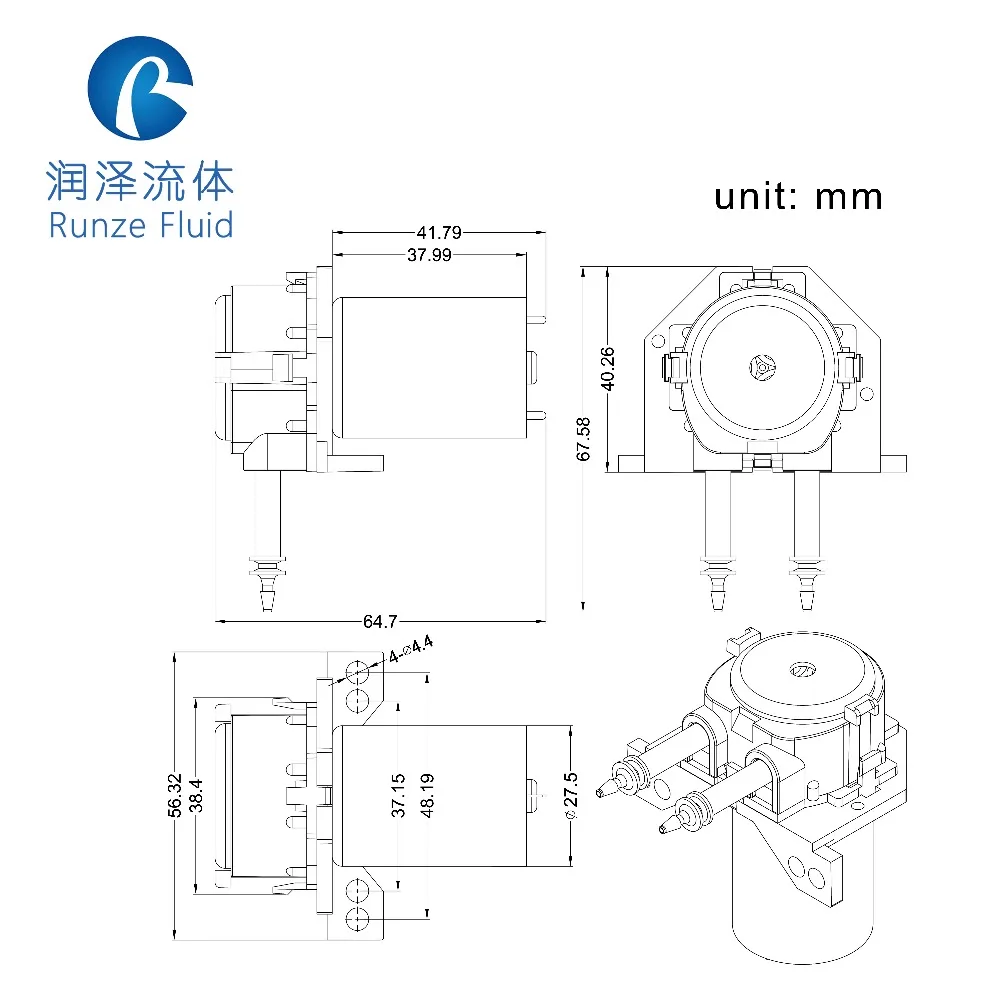

5. Dimension is within the 6 main showing pictures, please check it there.
