Описание товара

Wind turbines grid tie system power inverter 2000W MPPT AC 45-90V input 72V second genertor with wifi plug dump load | ОбустройствоWind turbines grid tie system power inverter 2000W MPPT AC 45-90V input 72V second genertor with wifi plug dump load | ОбустройствоWind turbines grid tie system power inverter 2000W MPPT AC 45-90V input 72V second genertor with wifi plug dump load | ОбустройствоWind turbines grid tie system power inverter 2000W MPPT AC 45-90V input 72V second genertor with wifi plug dump load | ОбустройствоWind turbines grid tie system power inverter 2000W MPPT AC 45-90V input 72V second genertor with wifi plug dump load | ОбустройствоWind turbines grid tie system power inverter 2000W MPPT AC 45-90V input 72V second genertor with wifi plug dump load | ОбустройствоWind turbines grid tie system power inverter 2000W MPPT AC 45-90V input 72V second genertor with wifi plug dump load | Обустройство

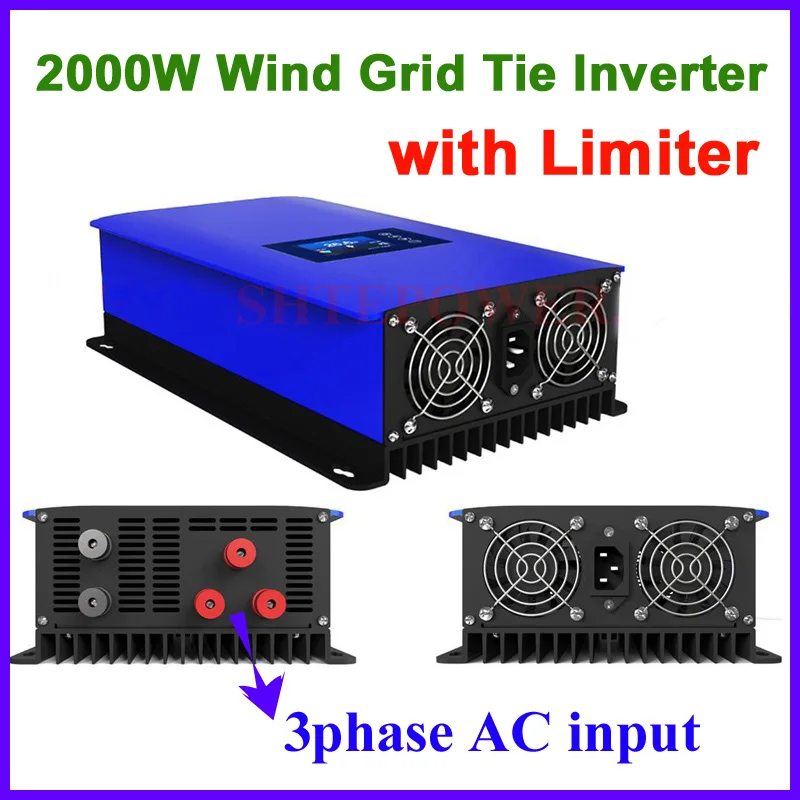

NEW 2000W Wind Power Grid Tie Inverter   -with dump load controller and resistor

  --Max Efficiency:>92%               MPPT Efficiency:99%

  -- 3phase AC   45-90v

  --AC   220V 230V 240V  50hz 60hz

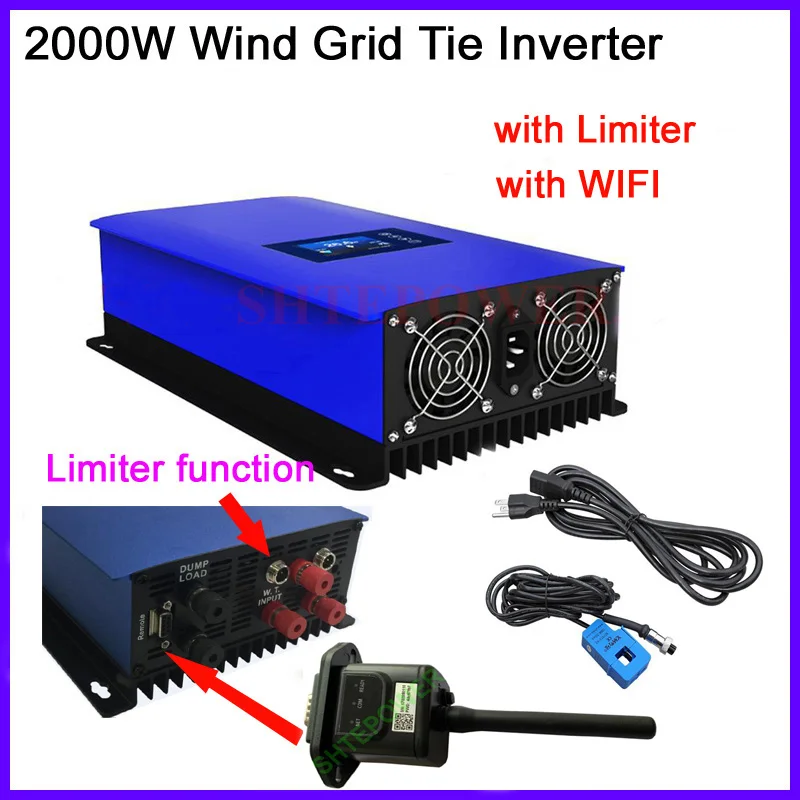

 2kw with limiter & wifi 拷贝

NEW 2000W Wind Power Grid Tie Inverter

Max Efficiency:>92%               MPPT Efficiency:99%

 1.  Low cost and easy installation   2.  Directly connect to three phase wind turbine  3.  Much better output waveform compare with similiar GTI  4.  Improving the efficiency of the entire solar power system      Overload protection ,Anti-island protection      Short-circuit protection/Reverse polarity protection   5.  AC output voltage and current THD<5%,PF>99%

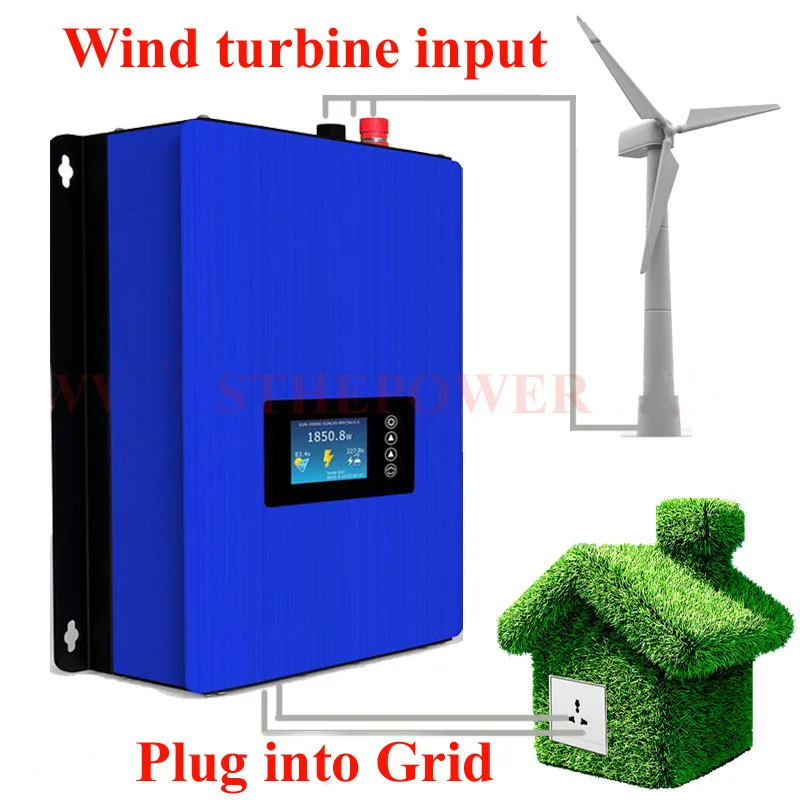

1

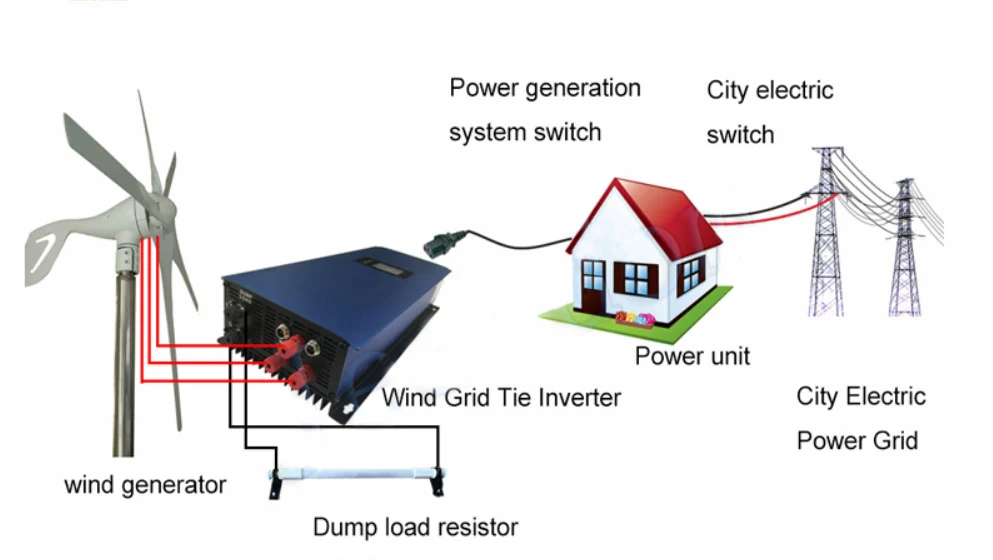

This model grid tie has designed for wind turbines that put out 3 phases AC voltage. It can maintain the rotating speed of the wind turbine and keep the voltage from the wind turbine always at the range of the rated range of the grid tie inverter. It also has a high voltage protection function, when the wind is too big, and the dump load controlling system can’t keep the output voltage from the wind turbine, the controller will disconnect itself from the wind turbine, so it is very safe to be used.

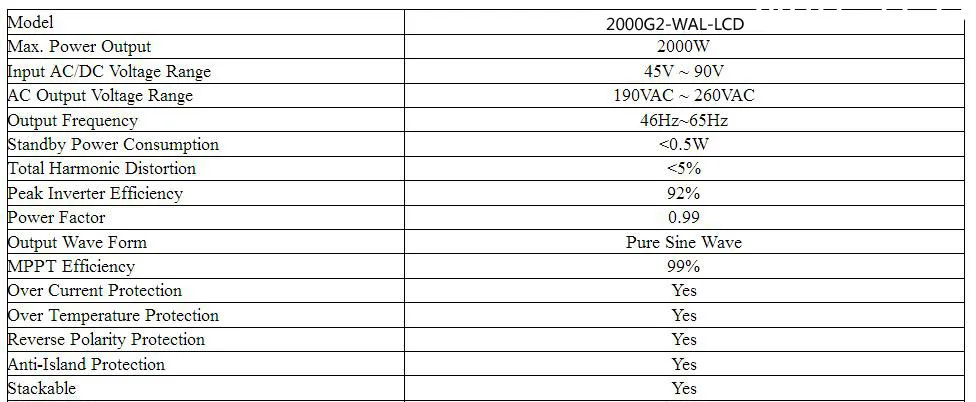

Technical Data



 2000w



XXG

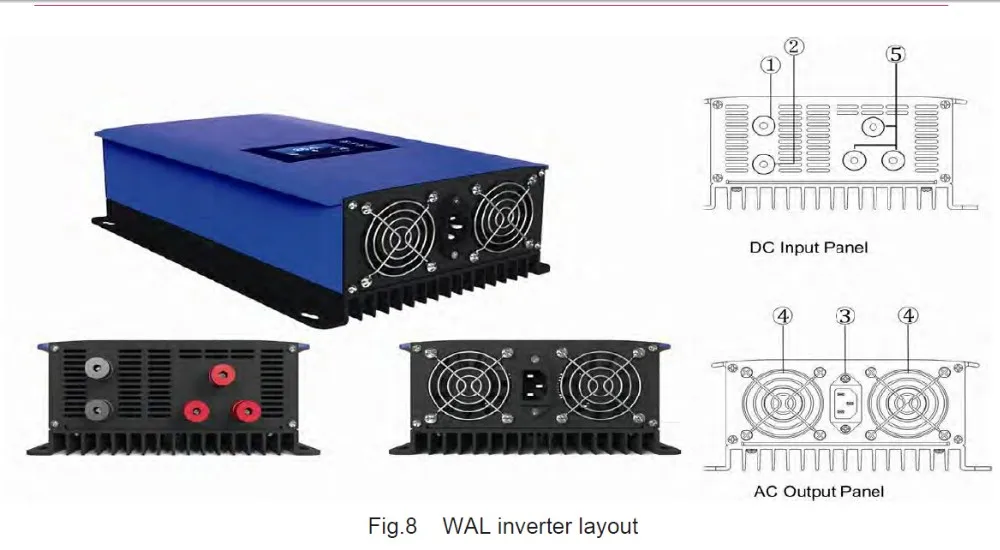

(1) (2) Dump load resistor connection Terminal. This terminals will connect to the dump load resistor.

(3) AC socket,This socket will connect the inverter to the public grid via the AC cable.

(4) Cooling fans.

(5) Input Terminals. This terminals will connect to the wind turbine.

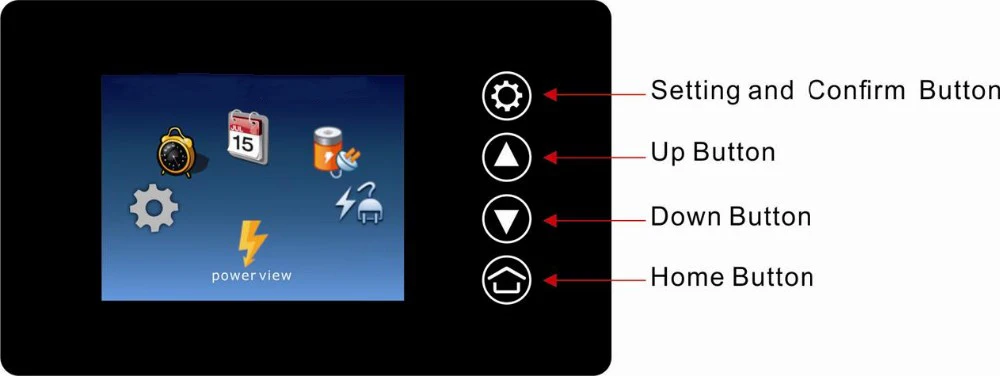

Inverter Display Instruction



XXl

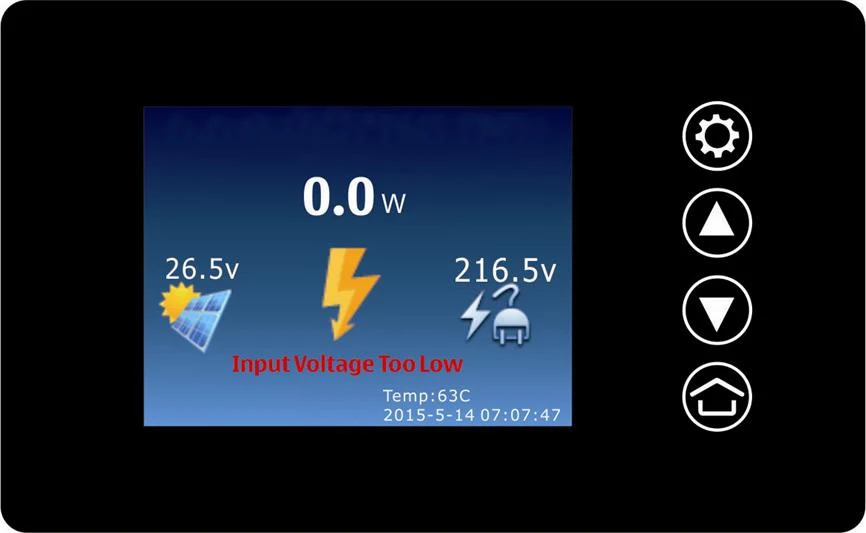

The Inverter display can show many information,The main interface of the display and the icons explainations are show above.

Set Menu:Choose the set menu icon on the main screen interface,click the confirm button to enter into the interface show below,In this interface,can set the LCD backlight always on or auto turn off backlight after 3 minutes no action.

The inverter also integrate with internal limiter and external limiter function which can prevent excess power from going to the public grid.Select the internal limiter mode,inverter will work under limiter mode,output power of the inverter will be determined by load power.Select the external limiter mode,inverter need a external limiter module working with it.For more details about the limiter function,pls contact supplier. ( this function only useful with limiter type inverter. )



XXY

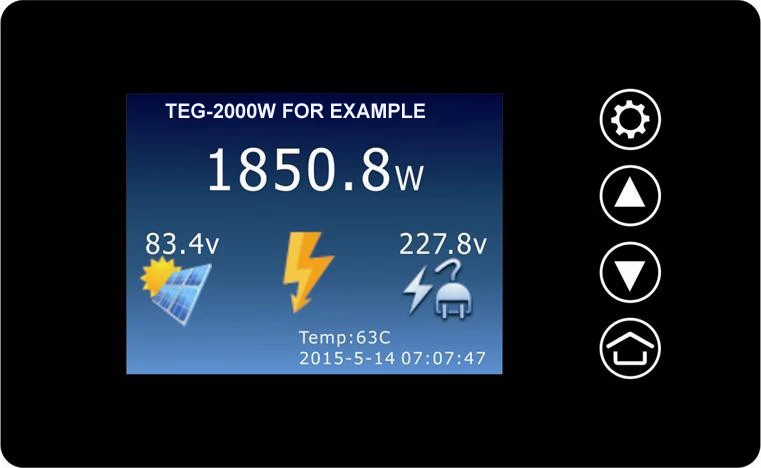

Power View:

In this interface,the display shows real time power,PV input voltage, inside temperature,date and time.



XXG

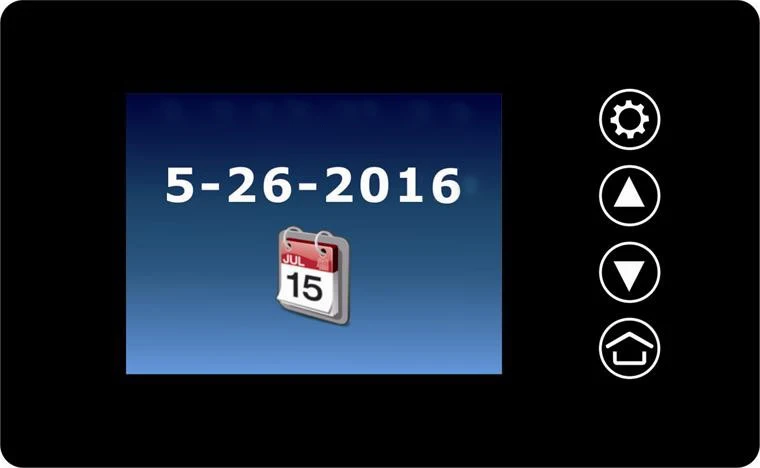

Clock And Date Setting:

Set the clock and date in this page,save the setting before exit.

XX3



Notes: Save the setting after you reconfigurate the working mode or backlight setting.

Notes: Battery Discharge Current Mode And Battery Discharge Power Mode are not developed yet.

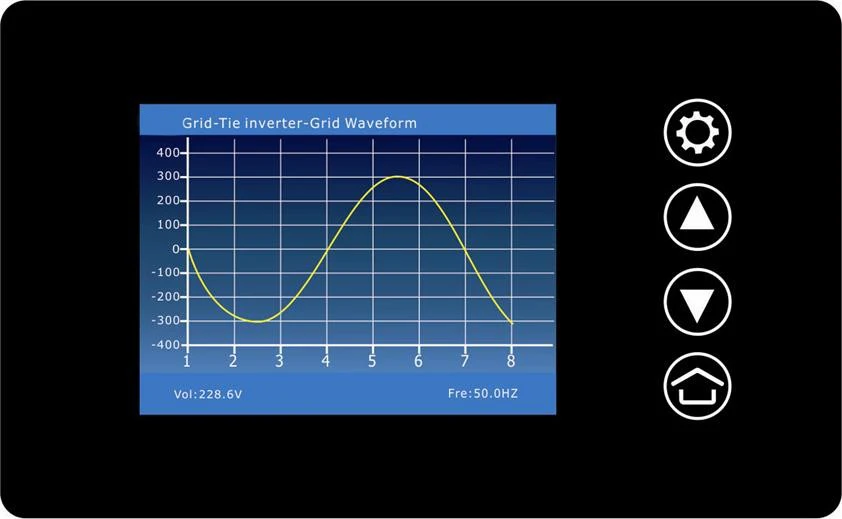

Grid Waveform:

This interface will show the real time grid waveform.The grid voltage and frequency also will show in this interface.



XXE

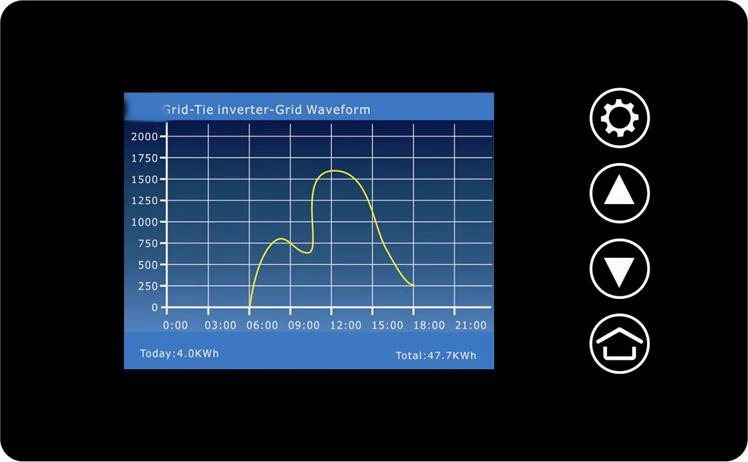

Energy Menu:

The energy interface will show the power generation curve everyday. Today KWH and Total KWH are also show in this page.



6-1

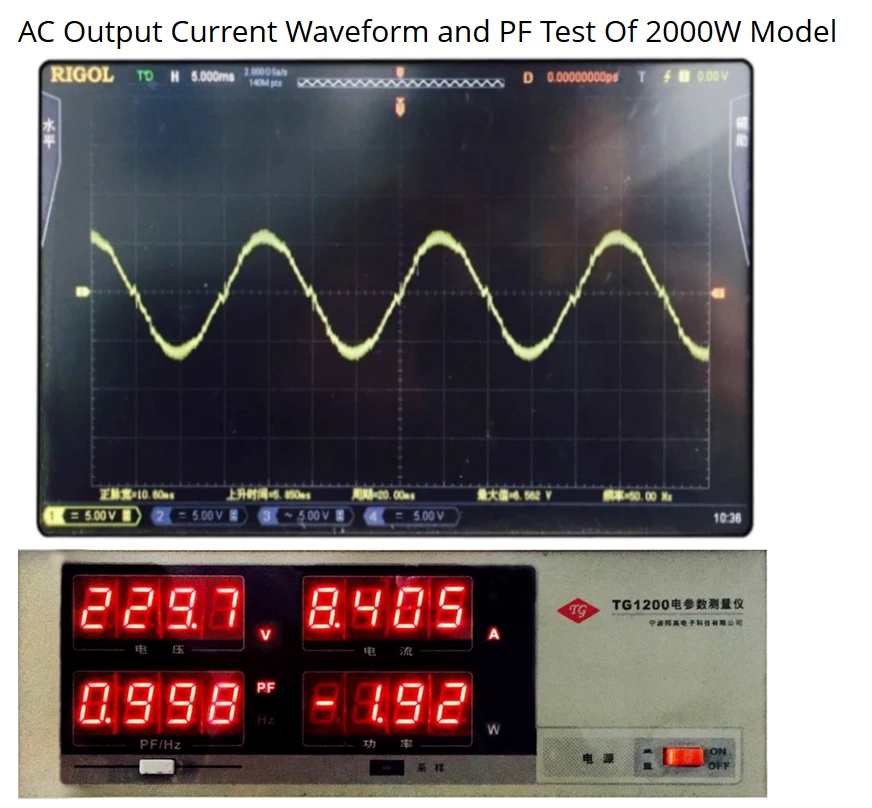

AC Output Current Waveform and PF Test Of 2000W Model

Tested 2000W model at nearly full load,Output current waveform shows good pure sine wave in oscilloscope,PF value also shows in good result,99.8% PF value.     QQ20160607192549

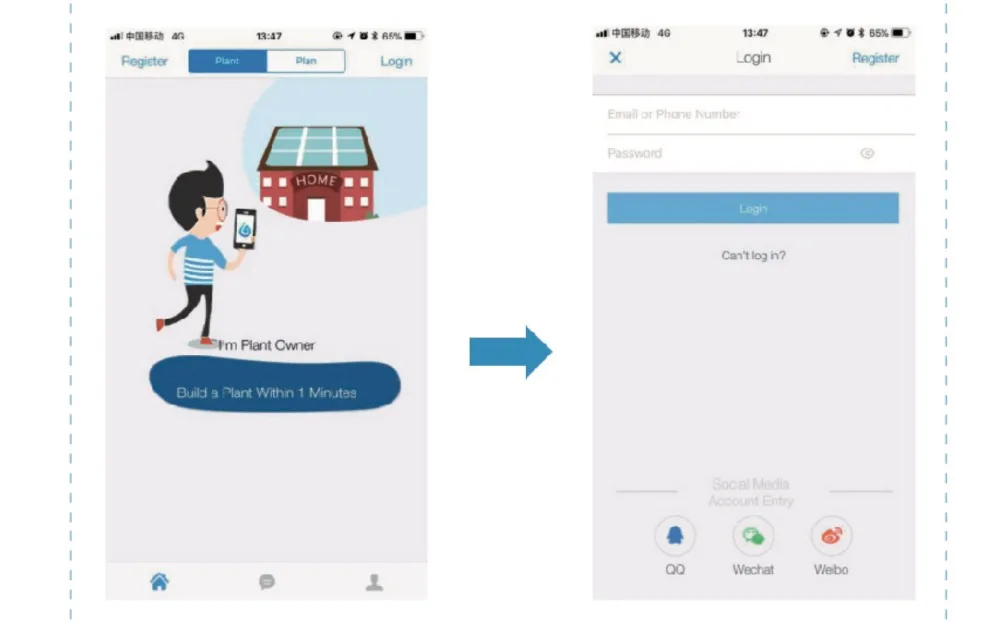

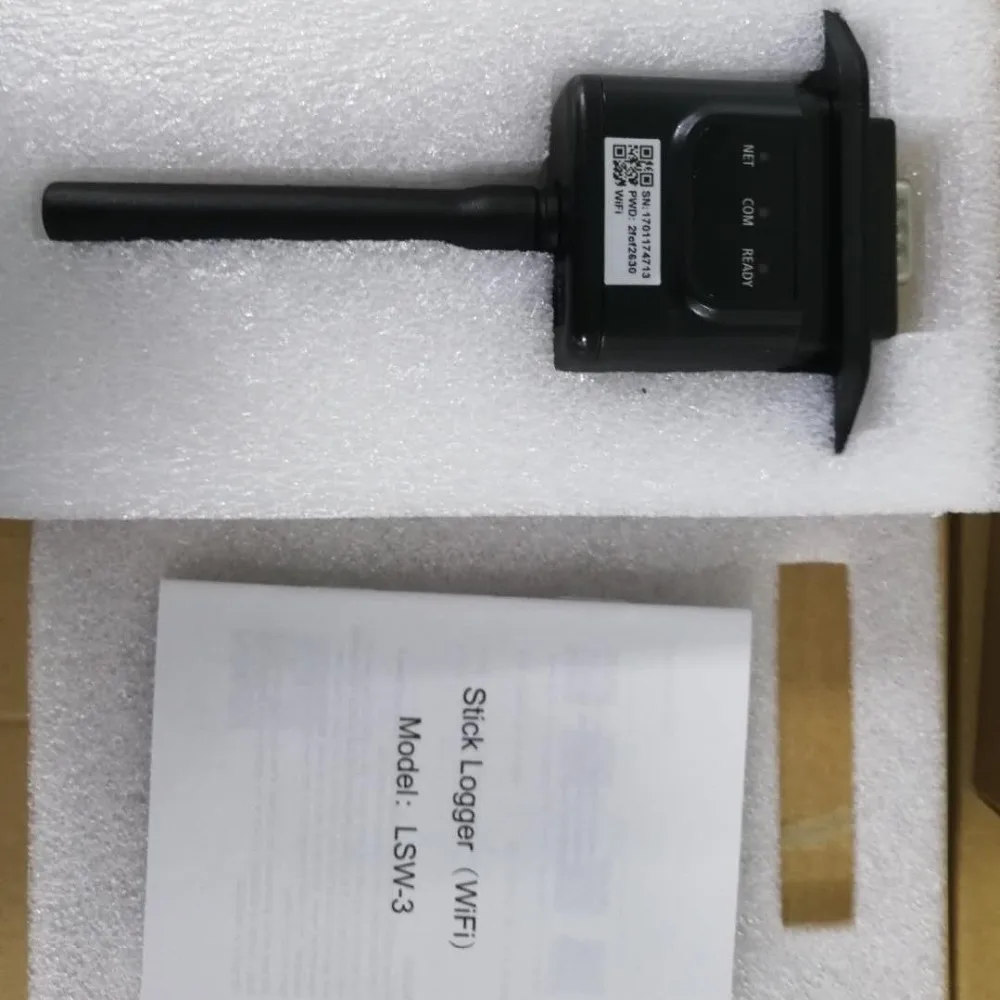

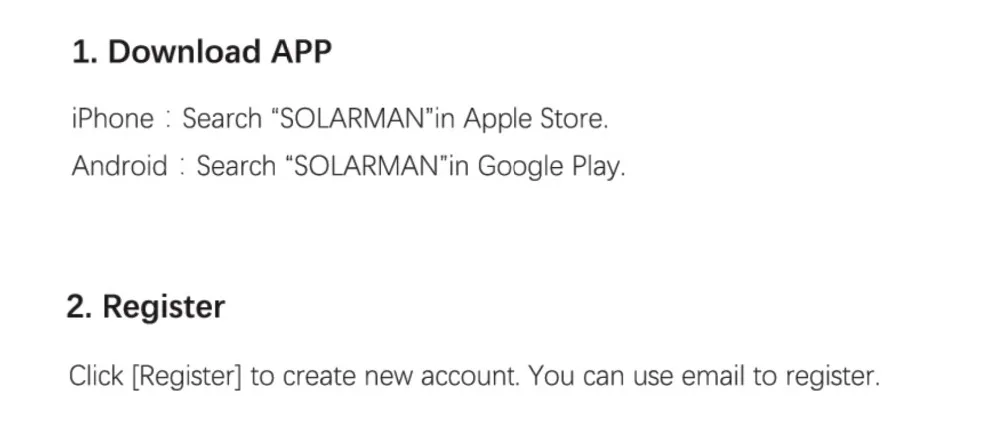

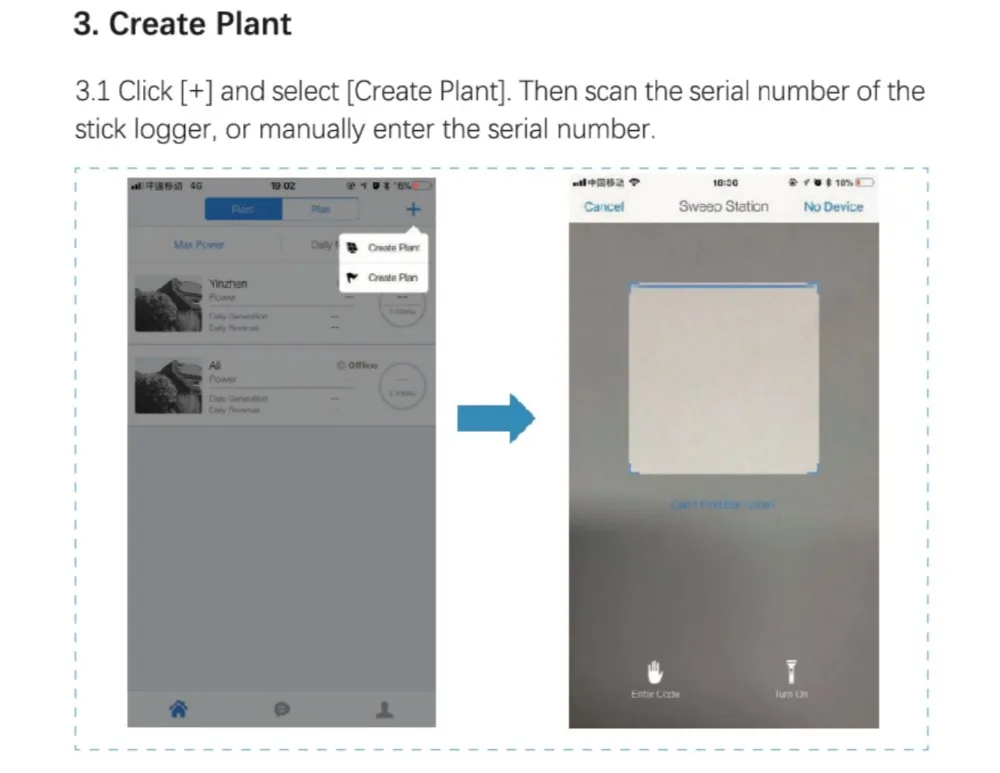

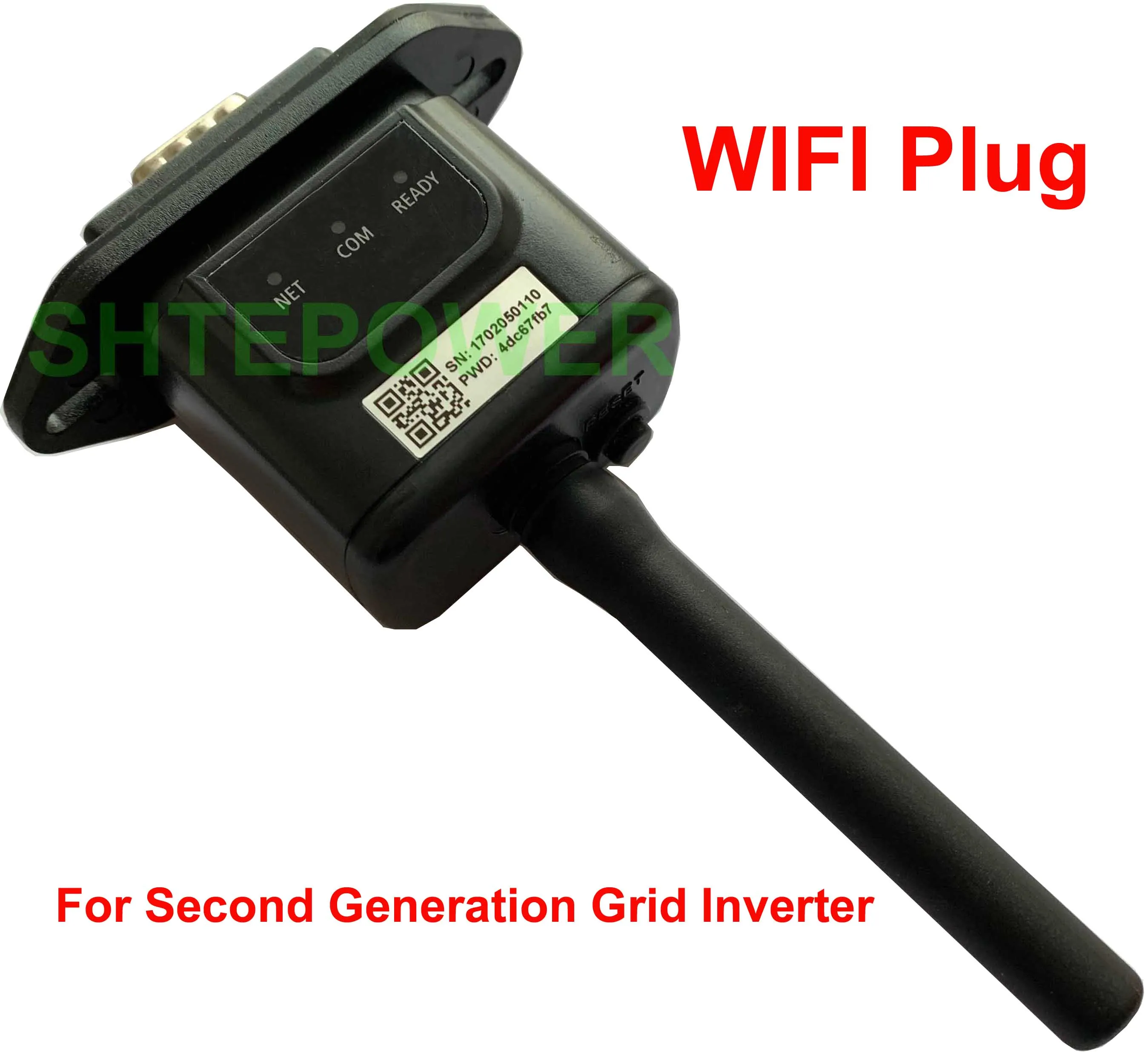

 Wifi introduction

     WIFI plug 2 拷贝HTB1Am9OPxnaK1RjSZFtq6zC2VXam

HTB1NBSsPAPoK1RjSZKbq6x1IXXaNHTB1TXWnPrvpK1RjSZFqq6AXUVXaWHTB1HyGpPAzoK1RjSZFlq6yi4VXas

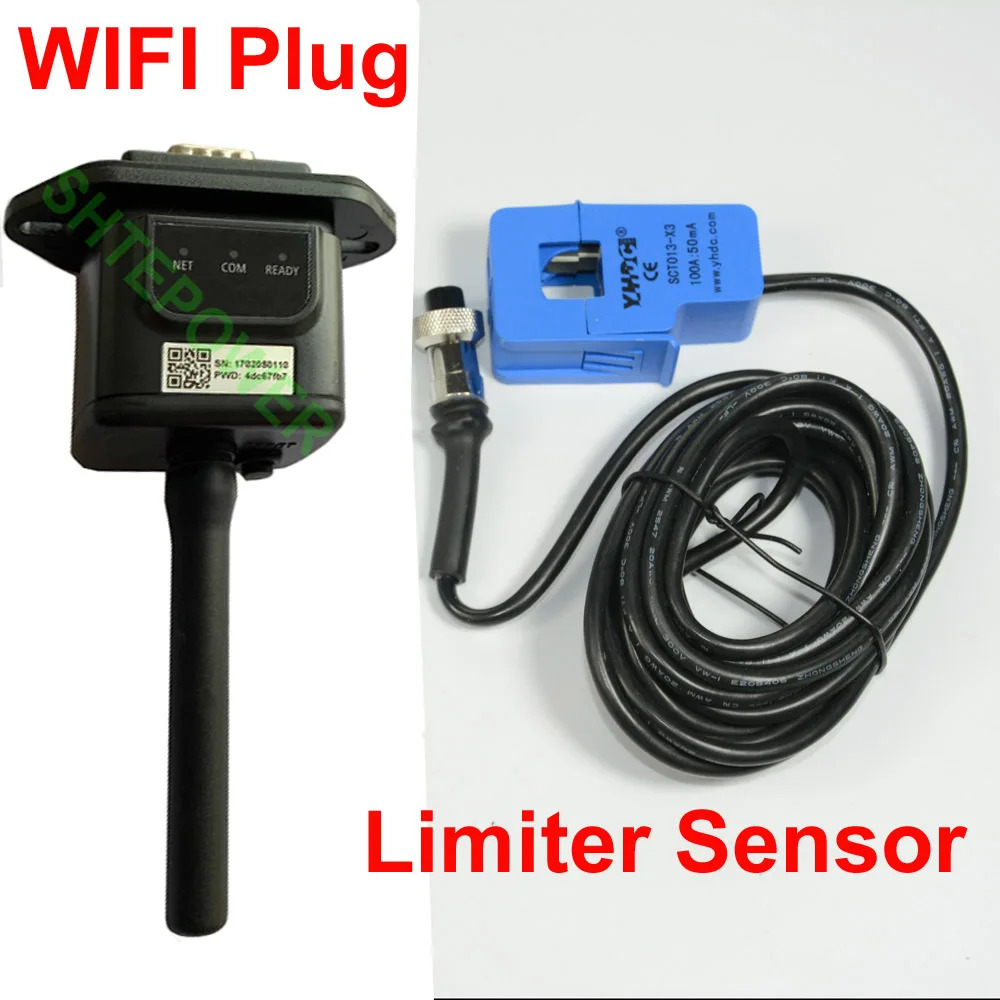

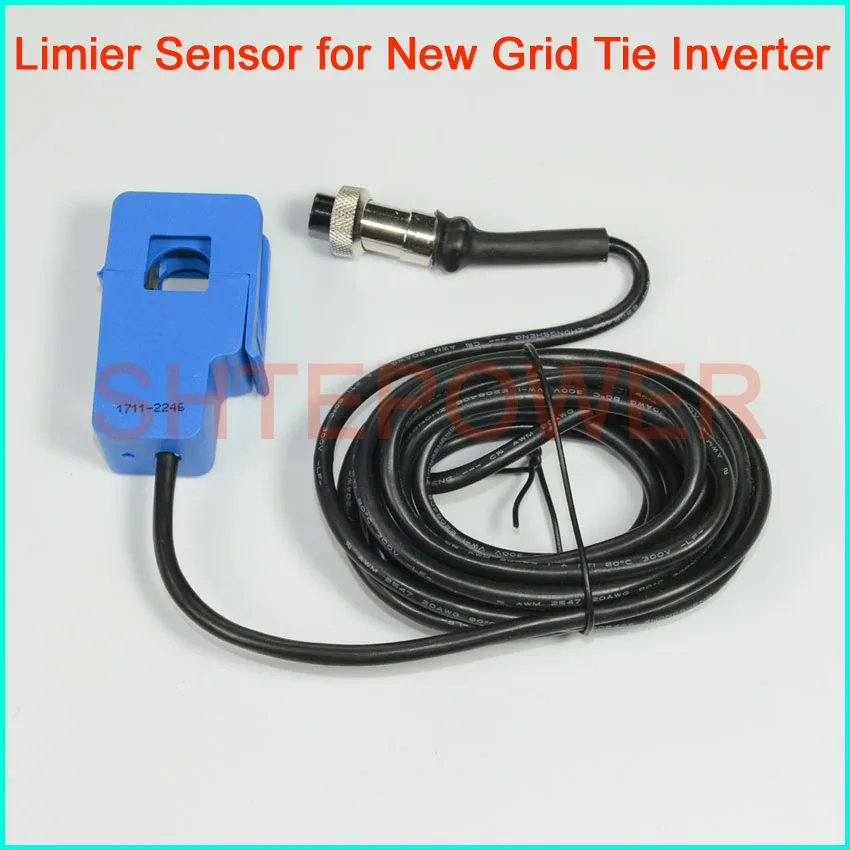

If you only want to buy the Limiter Sensor or wifi plug alone,please click the following picture link:

WIFI+LIMITER线 拷贝



Advantages:

 1. Advanced patented technology,  MPPT efficiency is higher.
2. High-quality imported components, more stable quality, lower failure rate. Significantly longer life, more than 10 years.
3. Each inverter need to pass twice testing (20 hours) before leaving factory.
4. Warranty: 2 years of free maintenance and replacement, lifetime technical support.
5. Low cost and easy installation .
6. Free combination.
7. Combination of SGPV does not interact.
8. Improving the efficiency of the entire solar power system.
9. Low power consumption.

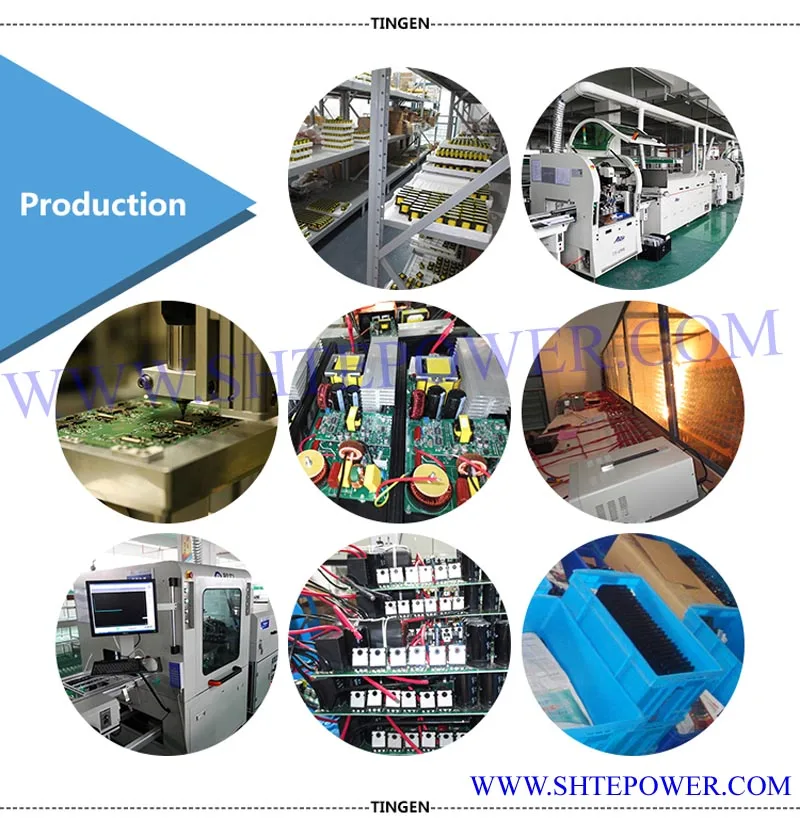

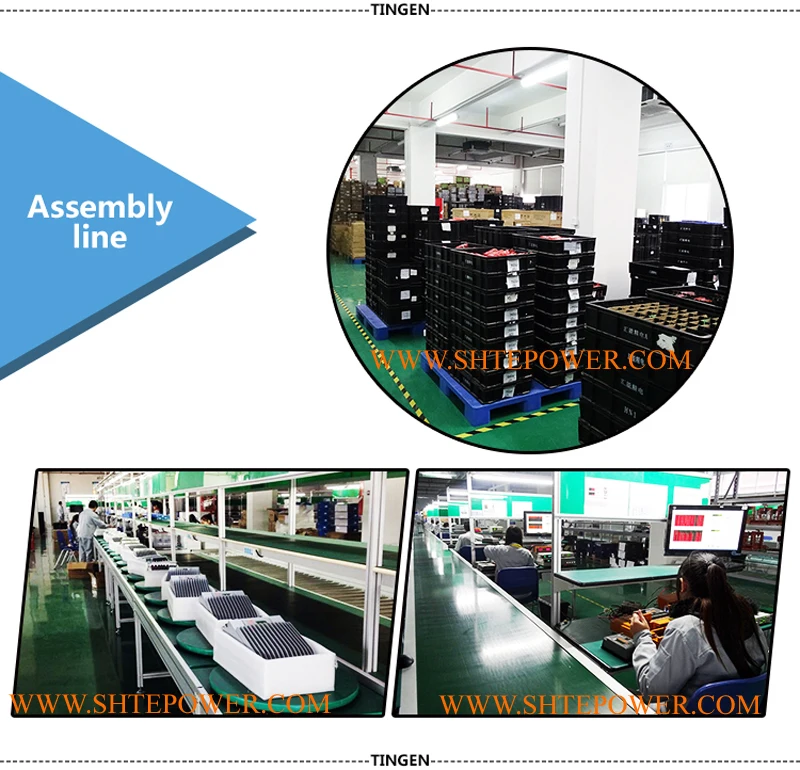

production production LINE
