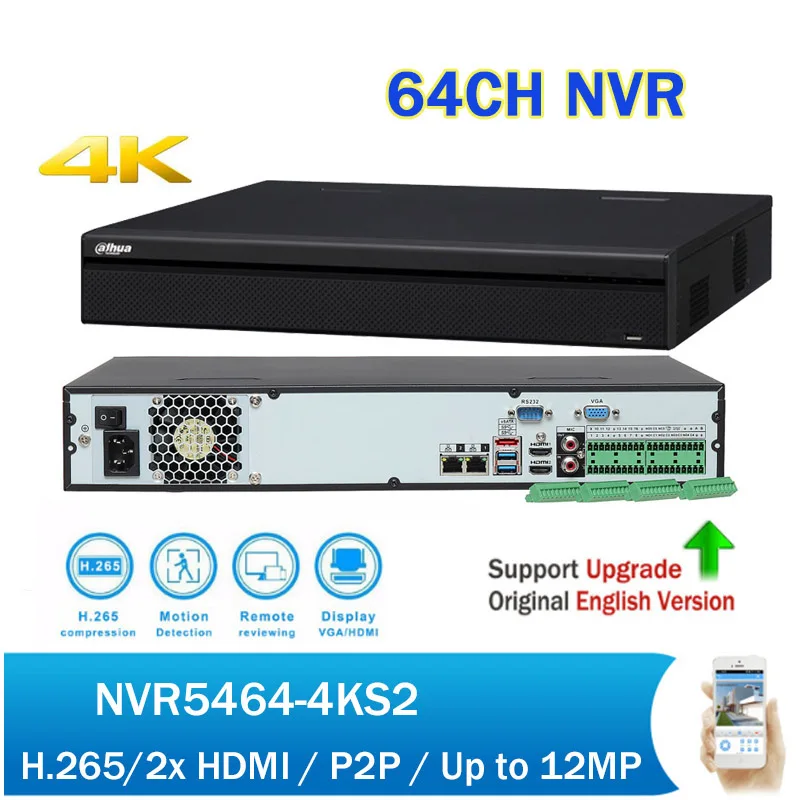

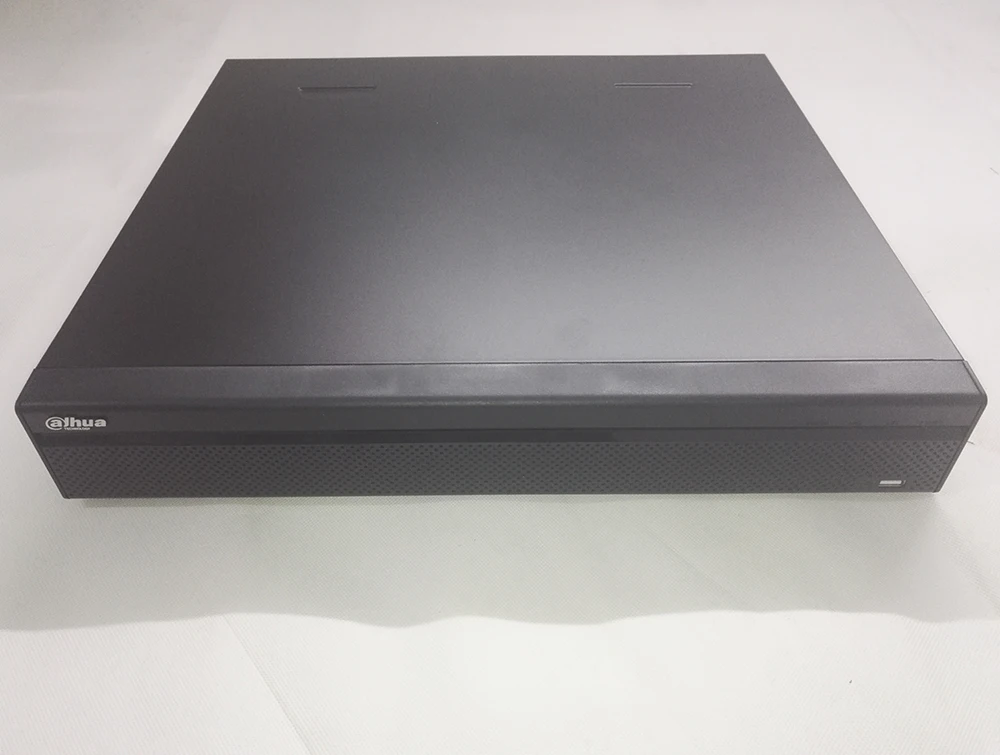

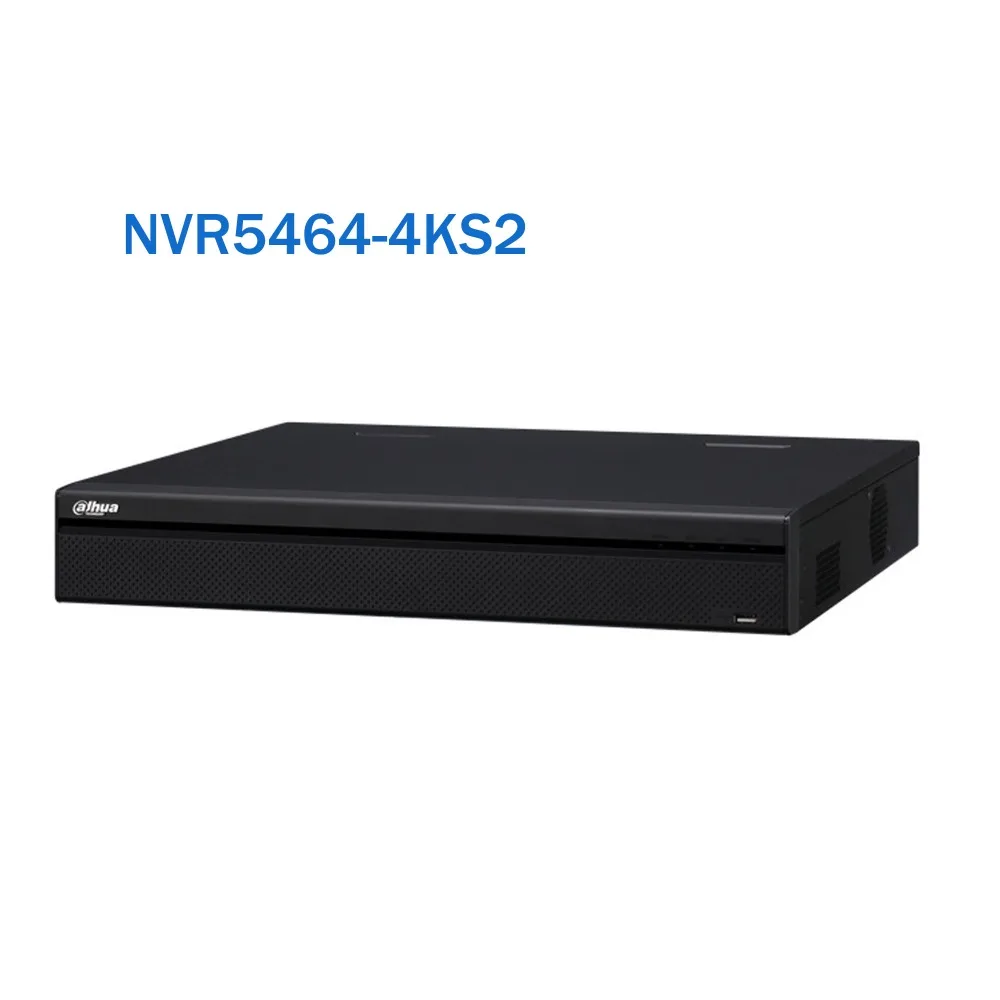

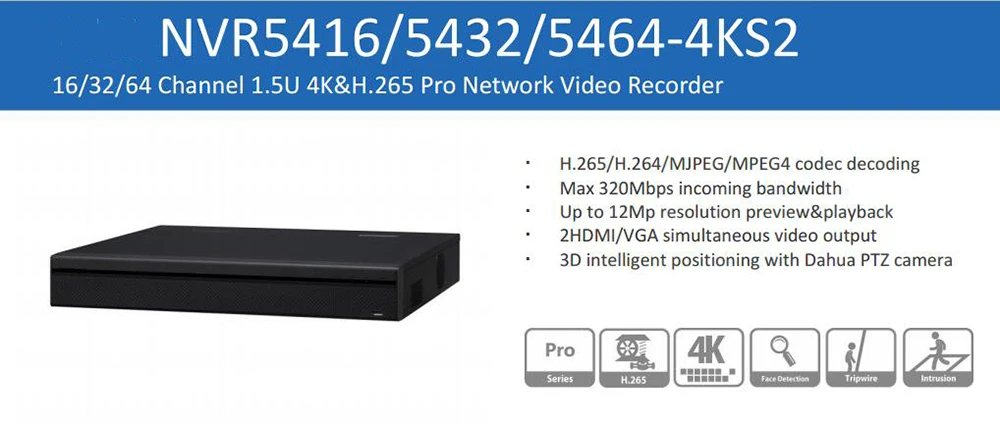

DH NVR5464-4KS2 64CH Security 4K&H.265 Pro Network Video Recorder up to 12Mp IP Camera with 2HDMI CCTV NVR English firmware |

System

Main Processor

Quad-core embedded processor

Operating System

Embedded LINUX

Display

Interface

2 HDMI (1 HDMI up to 3840x2160, Different Source ), 1 VGA

Resolution

3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768

Multi-screen Display

1st screen:
16CH: 1/4/8/9/16
32CH: 1/4/8/9/16/25/36
64CH: 1/4/8/9/16/25/36
2nd screen: 1/4/8/9/16

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering

Alarm input

16 Channel, Low Level Effective, Green Terminal Interface

Relay Output

6 Channel, NO/NC Programmable, Green Terminal Interface

Tracking Trigger Event

N/A

Playback and Backup

Sync Playback

1/4/9/16

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate tosecond)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network/Internal SATA burner/eSATA Device

Storage

Internal HDD

4 SATA III Ports, up to 8TB capacity for each HDD

HDD Mode

Single

eSATA

1 eSATA port

SAS

N/A

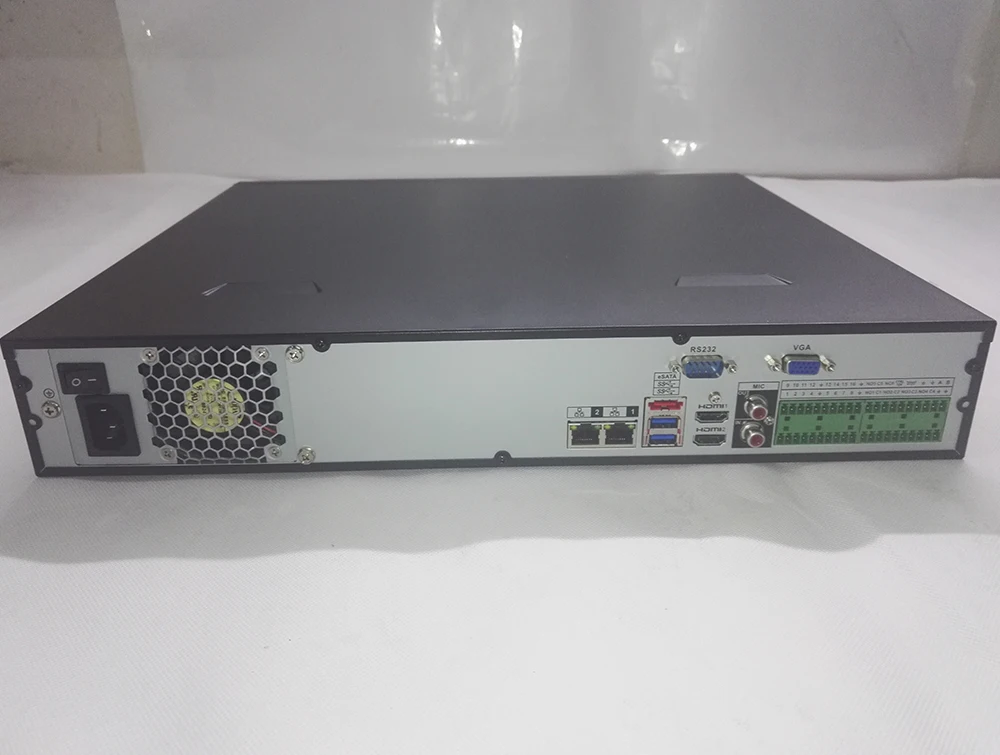

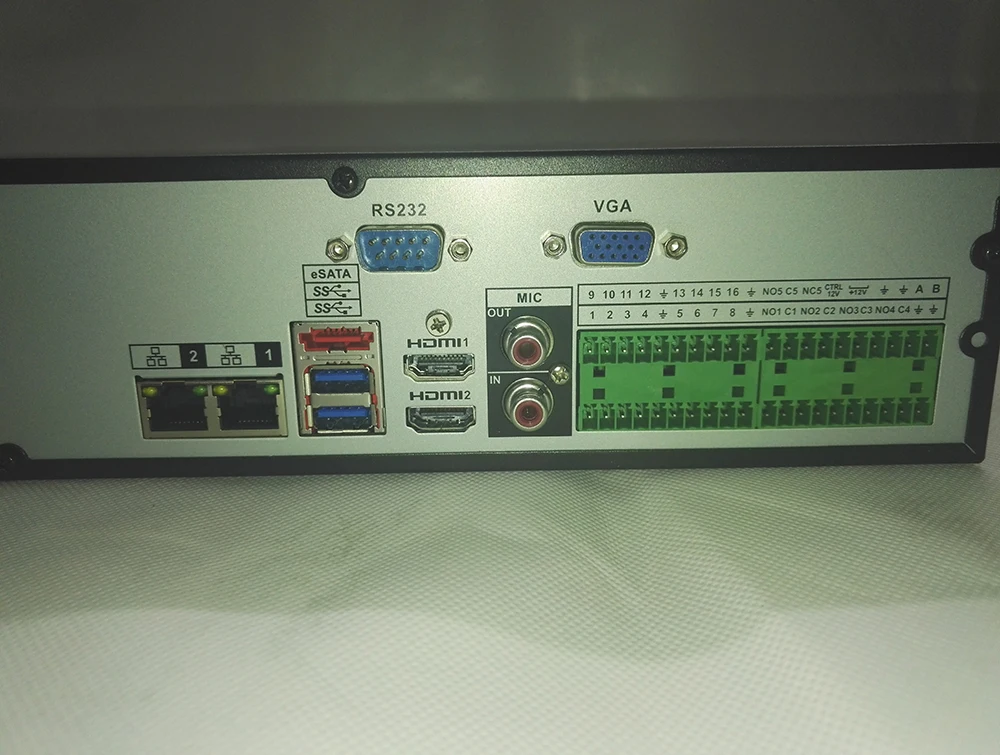

Auxiliary Interface

Front Cover

N/A

USB

3 ports (2 Rear USB3.0,1 Front USB2.0)

RS232

1 Port, for PC Communication and Keyboard

RS485

1 Port, for PTZ Control

Third-party Support

Third-party Support

Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more

Audio and Video

IP Camera Input

16/32/64 Channel

Two-way Talk

1 Channel Input, 1 Channel Output, RCA

Recording

Compression

H.265/H.264/MJPEG/MPEG4

Resolution

12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc.

Record Rate

320Mbps

Bit Rate

16kbps~20Mbps for per channel

Record Mode

Manual, Schedule(Regular(Continuous), MD, Alarm), Stop

Record Interval

1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Network

Interface

2 RJ-45 ports (10/100/1000Mbps)

Ethernet Port

2 Ethernet Ports Joint Working or 2 Independent 1000Mbps Ethernet Ports

PoE

N/A

Network Function

HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P

Optical Fiber Interface

N/A

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.4, CGI Conformant

Electrical

Power Supply

Single, AC 100~240V, 50/60 Hz

Power Consumption

<16.7W (without HDD)

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions(W×D×H)

1.5U, 440mm×411.1mm×76mm (17.3" x 16.2" x 3.0")

Net Weight

4.3kg (9.5 lb) (without HDD)

Gross Weight

7kg(15.4 lb)(without HDD)

Certifications

CE

EN55022, EN55024, EN50130-4, EN60950-1

FCC

Part15 subpartB,ANSI C63.4-2014

UL

UL60950-1+CAN/CSA C22.2 No.60950-1
