Описание товара

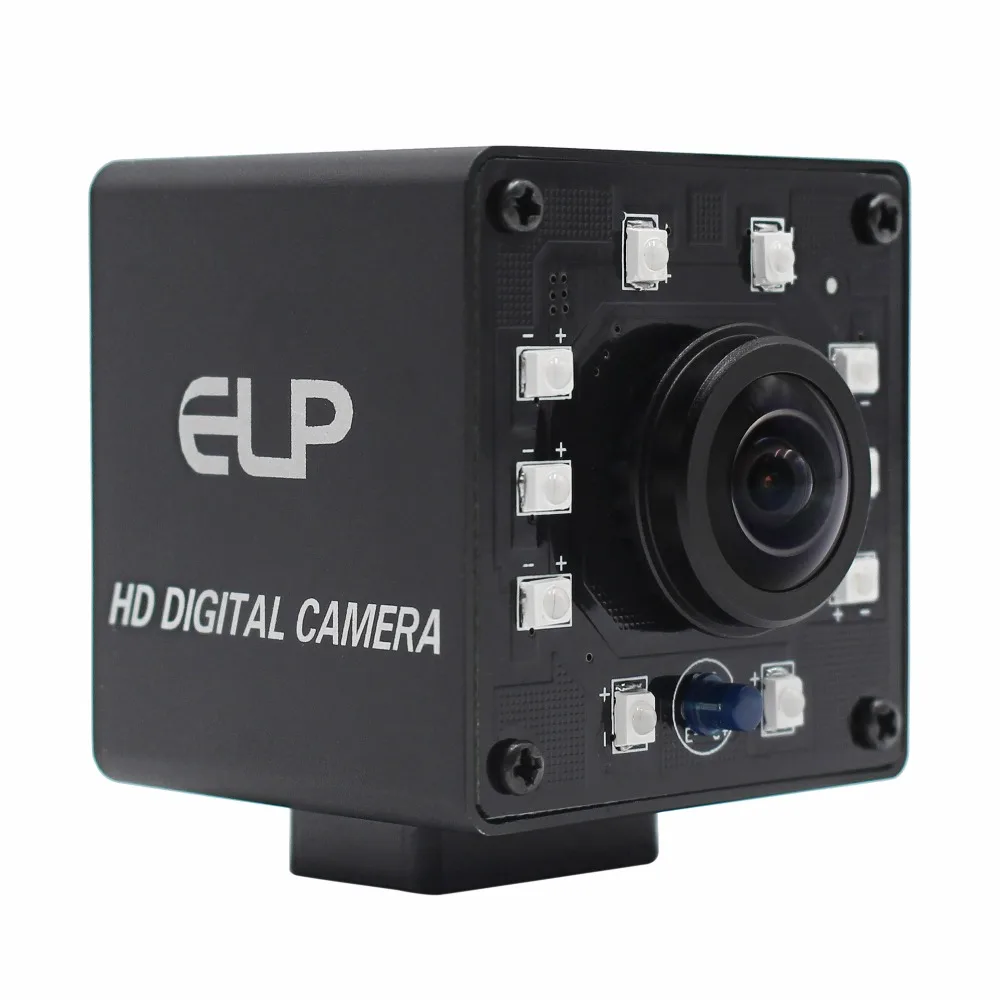

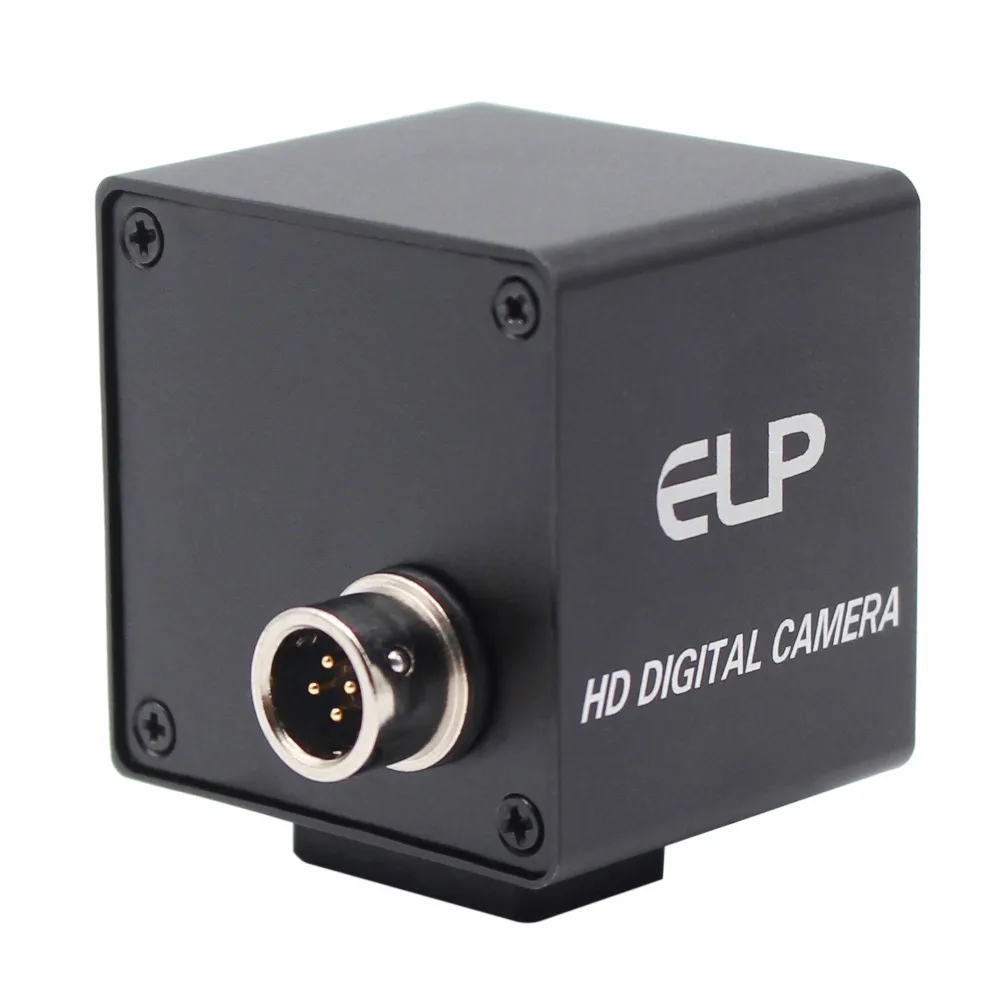

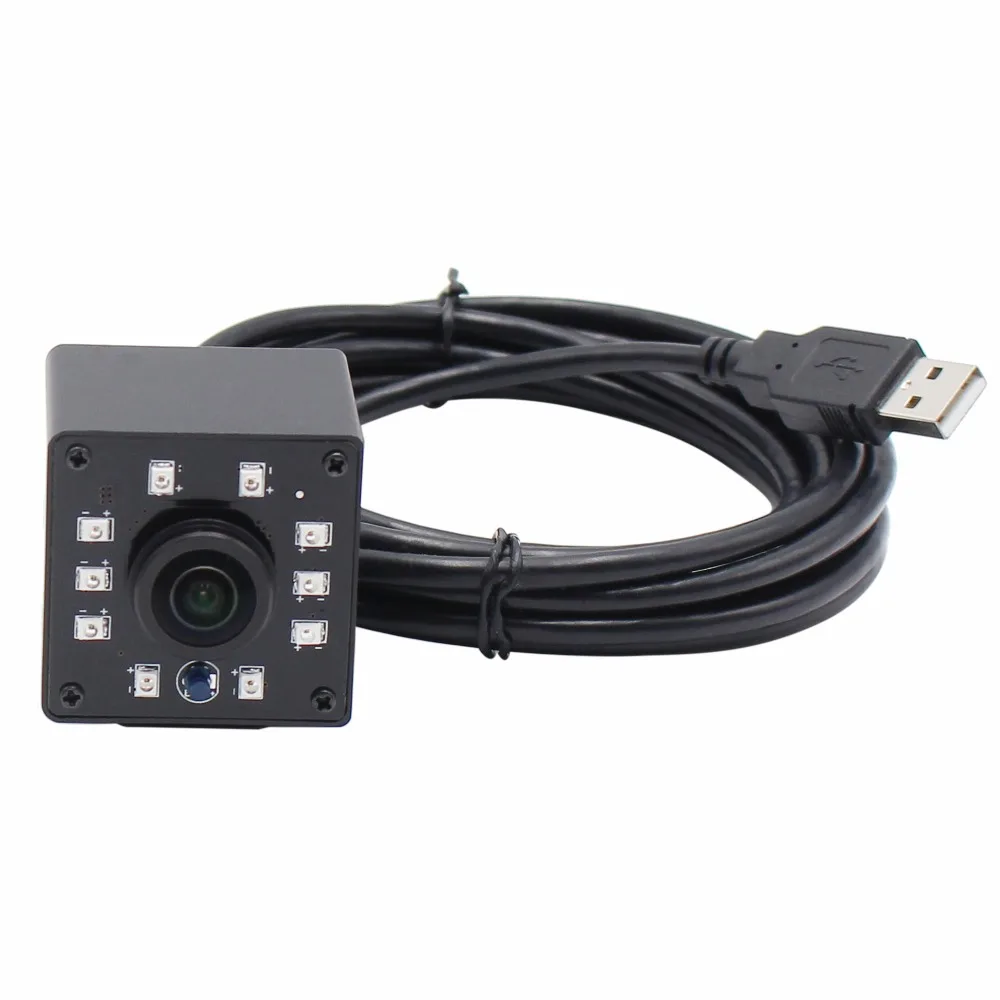

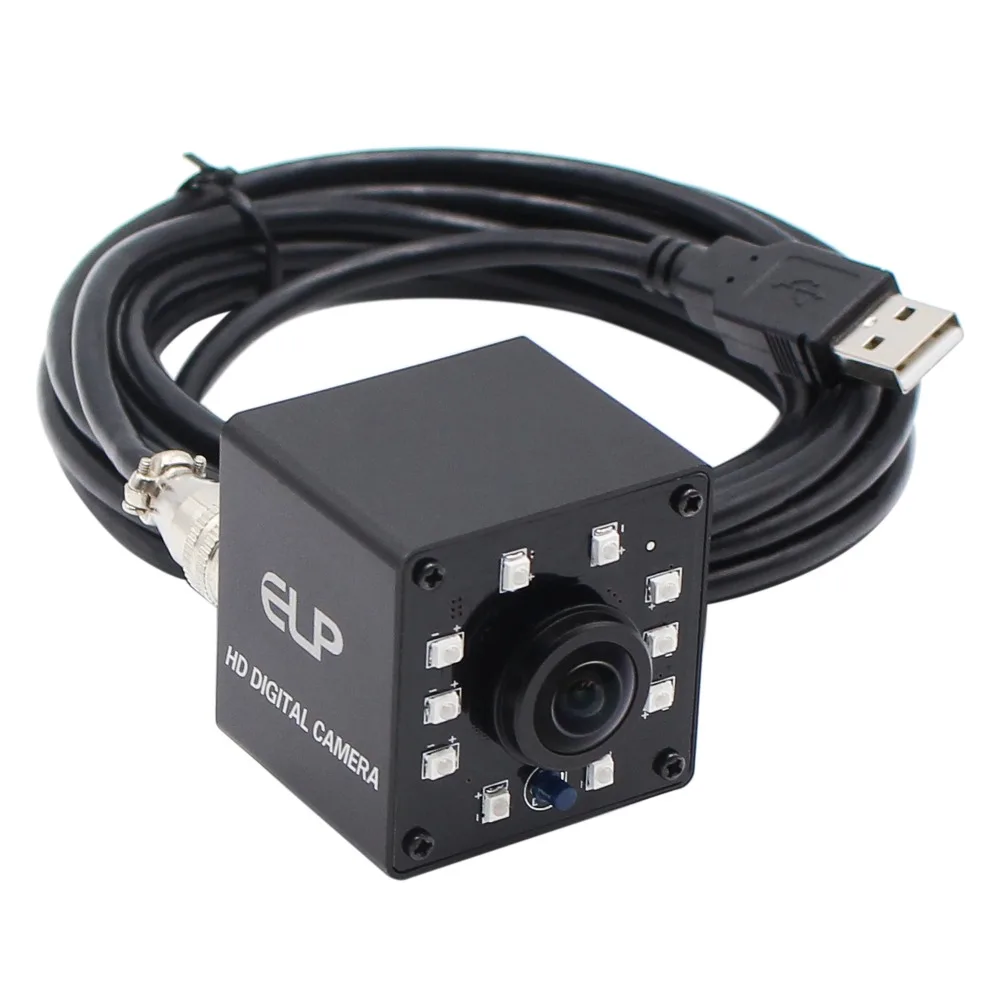

1MP 720P CMOS OV9712 HD Camera Wide Angle 1.56mm Fisheye lens Mini USB Webcam Video Camera Panoramic View IR CUT Night Vision
Key features:
Specifications:
Model |
ELP-USB100W05MT-KL156IR |
Sensor |
OV9712 |
Sensor Size |
1/4 inch |
Pixel Size |
3.0um X 3.0um |
image area |
3888 µm x 2430 µm |
Max. Resolution |
1280(H)X720(V) |
Compression format |
MJPEG / YUV2(YUYV) |
Resolution & frame |
1280X720 MJPEG@ 30fps YUY2@10fps/ 960X720MJPEG@ 30fps YUY2@15fps 800X600 MJPEG@30fps YUY2@20fps/ 640X480 MJPEG@ 30fps YUY2@ 30fps 352X248 MJPEG@30fps YUY2@ 30fps/ 320X240 MJPEG@ 30fps YUY2@ 30fps 176X144 MJPEG@30fps YUY2@ 30fps/ 160X120 MJPEG@ 30fps YUY2@ 30fps |
S/N Ratio |
40dB |
Dynamic Range |
69dB |
Sensitivity |
3.7V/lux-sec@550nm |
Mini illumination |
0lux |
Shutter Type |
Electronic rolling shutter / Frame exposure |
Connecting Port type |
USB2.0 High Speed(Support USB2.0 HS/FS, USB2.0 OTG) |
Free Drive Protocol |
USB Video Class(UVC) |
AEC |
Support |
AEB |
Support |
AGC |
Support |
Adjustable parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure |
Lens Parameter |
5MP 1.56mm panoramic wide angle fisheye lens |
LED |
with PCS LED , with IR CUT |
Audio input |
Support |
IR CUT Connector |
Support 2P-1.25mm socket |
LED board test connector |
Support 2P-1.25mm socket |
LED board power connector |
Support 2P-2.0mm socket |
Power supply |
USB BUS POWER 4P-2.0mm socket |
Power supply |
DC5V |
Operating Voltage |
100mA~120mA |
Working current |
-10~70℃ |
Working temperature |
-20~85℃ |
Board size /Weight |
38X38mm/ about 60g |
Cable |
Standard 1M / optional 2M,3M,5M |
Operating system request |
Win XP/Vista/Win7/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Applications:
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc. used for all kinds of machine as below: machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
Product display:
