Описание товара

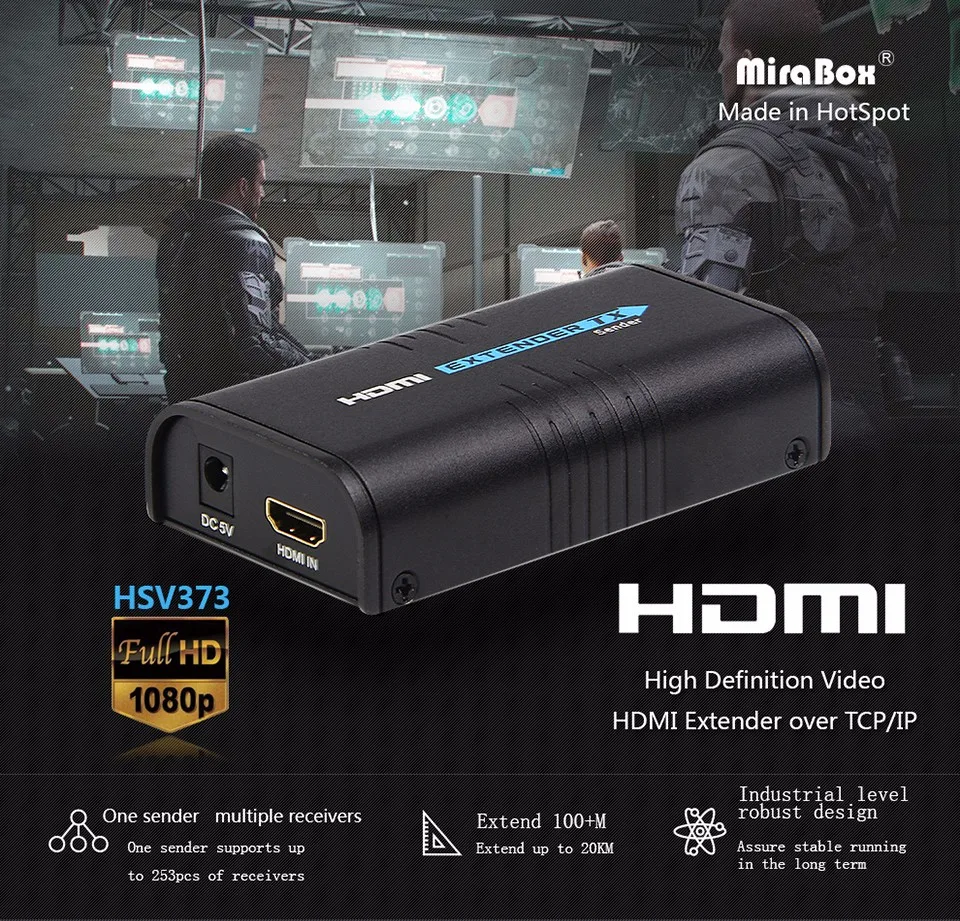

HDMI Extender Over IP/TCP UTP/STP CAT5e/6 Rj45 LAN Network Support 1080p 120m Extension Like HDMI Splitter Transmitter Receiver
!!! This product supports 1pcs of SENDER support maximum 253pcs of RECEIVER (over Swtich).Buy more receivers.
Introduction
This HDMI Extender Ethernet is designed to convert HDMI signal to standard TCP/IP and transimit by enternet cable or Lan.With the advantage of TCP/IP standard,it can transmit HDMI signal source from HD STB,DVD,Sky HD box, HDMI display card etc to HD projector, DLP,LCD,LED and other audio visual equipments.
Features
Auto Adjustment to Match Cable Length
Adjust the specifications automatically for different cable length 1-160m (10m 20m 30m 40m 50m 60m 70m 80m 90m 100m 110m 120m 130m 140m 150m 160m) to achieve the best display With the help of a network hub, router or switch, the transmission range of the extender is virtually unlimited. It's a perfect solution to image mosaic, color distortion, transmission failure and other problems when HDMI signal is transmitted to a long distance. It's perfect for high quality HDMI video signal long-range transmission environment, such as big screen curtain wall advertising project, Industrial automatic control, armamentarium, and audio/video meeting system.
Extending by Single Cat 5/5e/6e:
Instead of expensive HDMI cable, use Ethernet cable to connect the HDMI source devices (such as HD camera, Blu-ray, Cable Box etc) to HDMI display for longer distances, up to 160M (525ft) using Cat6 cable, 120M (390ft) using Cat 5e cable or 100M (320ft) using Cat 5 cable for 1080P
Unlimited Extension over LAN:
By using network routers or repeaters, you will be able to extend your HDMI signal without limit.HDMI Network Distribution Technology:
Supports HDMI extender + splitter function, which allows you to connect 1 pcs sender to N pcs receivers (up to 253 theoretically). By plugging the sender into a wireless router and using the additional Ethernet ports you will be able to connect multiple receivers to multiple TV's so now you have an extender that also works as a splitter!

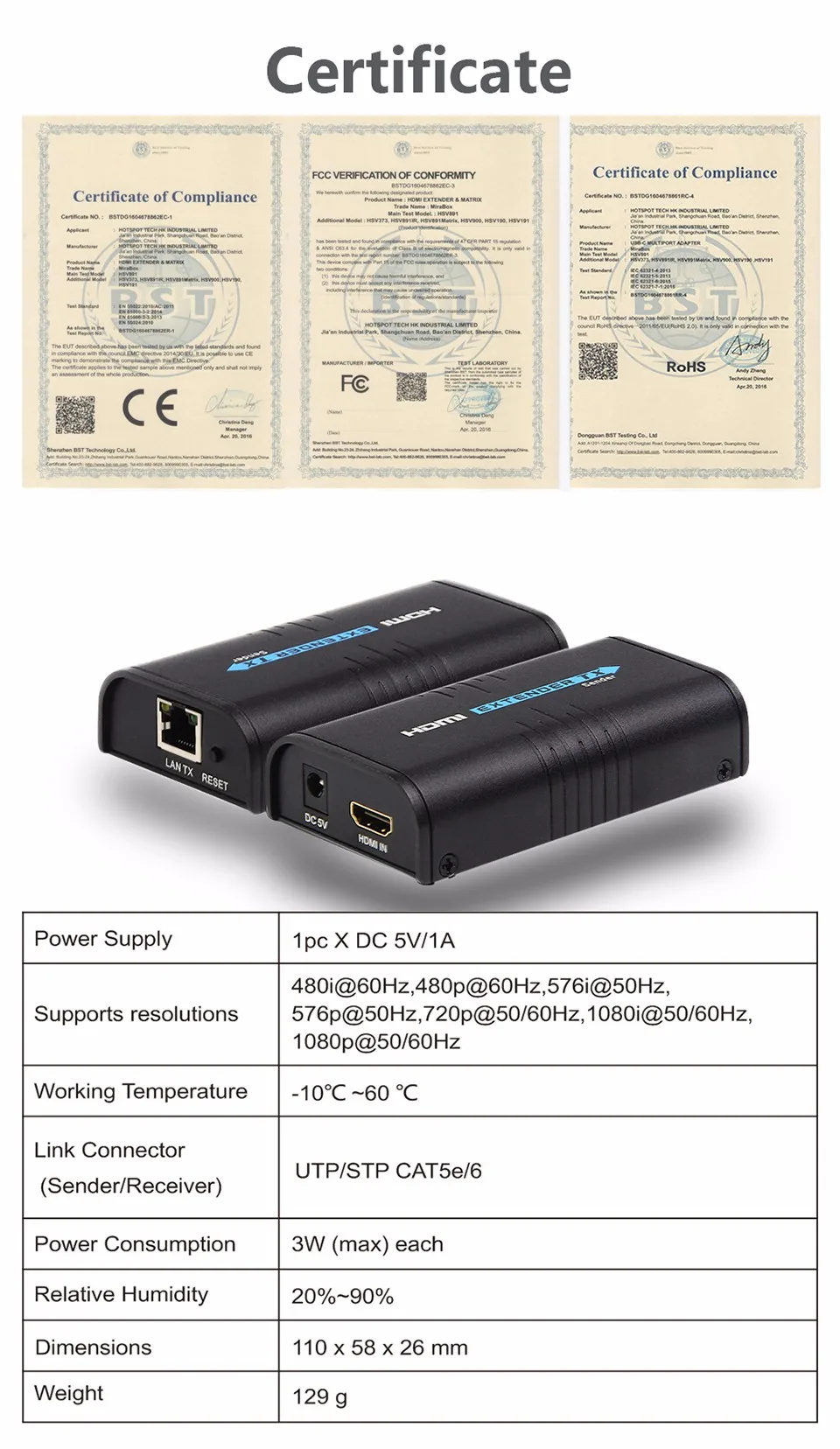

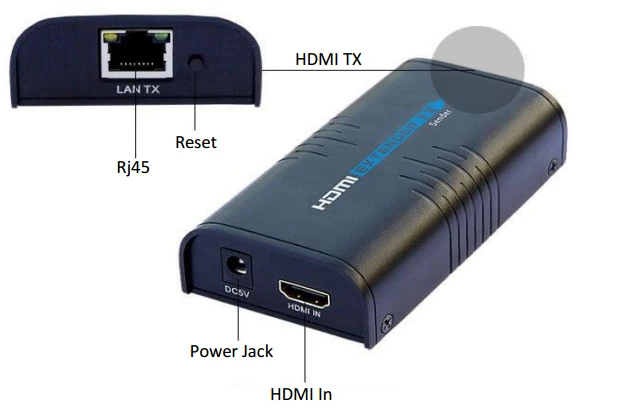

Specification
-
HDMI In: Connect your HDMI source here with an HDMI cable (cable not included)
-

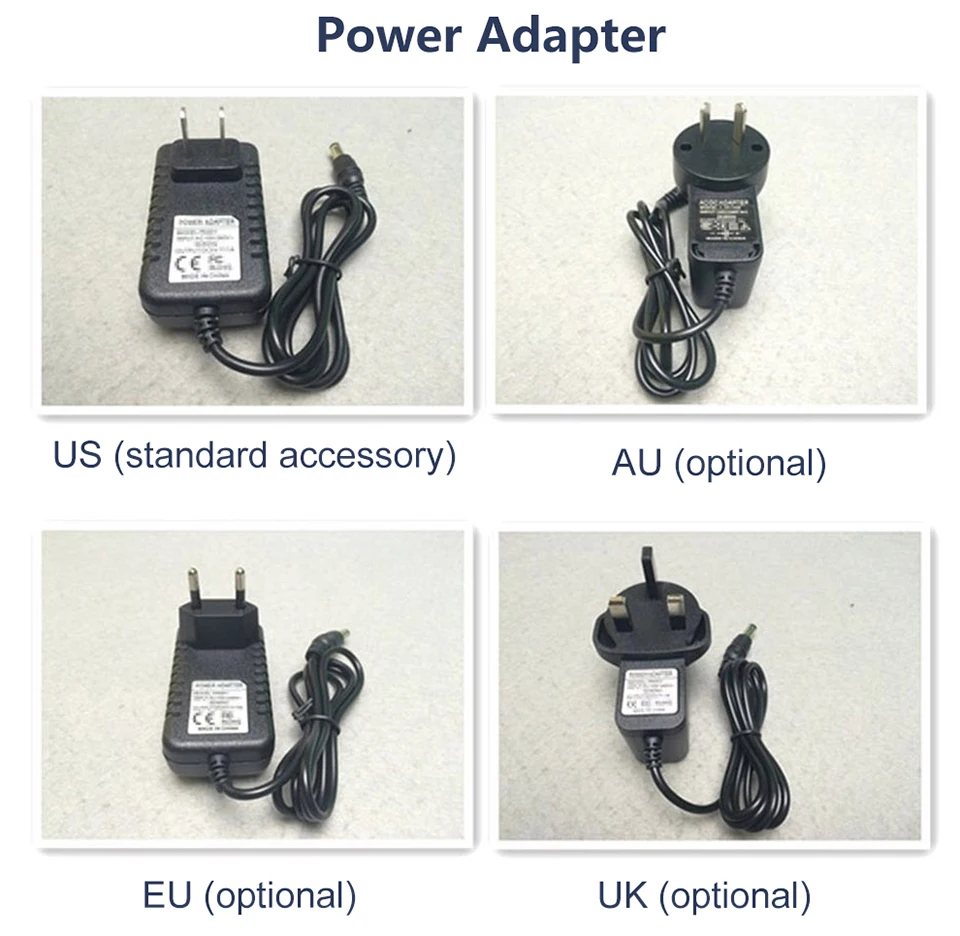

Power Jack: onnect the included 5V DC power adapter here
-
Reset: Press to reset if HDMI Extender doesn't work properly
-
RJ45: Link to the Receiver's RJ45 via a Cat5/5e/6 cable
-

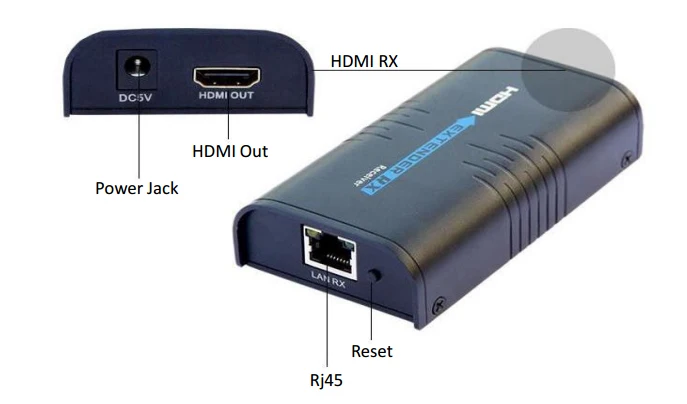

HDMI Out: Connect to your HDMI display here with an HDMI cable (cable not included)
-
Reset: Press to reset if HDMI Extender doesn't work properly
Application
1. Single output: Extend HDMI signals up to 120 meters over one CAT5/5e/6 cable.

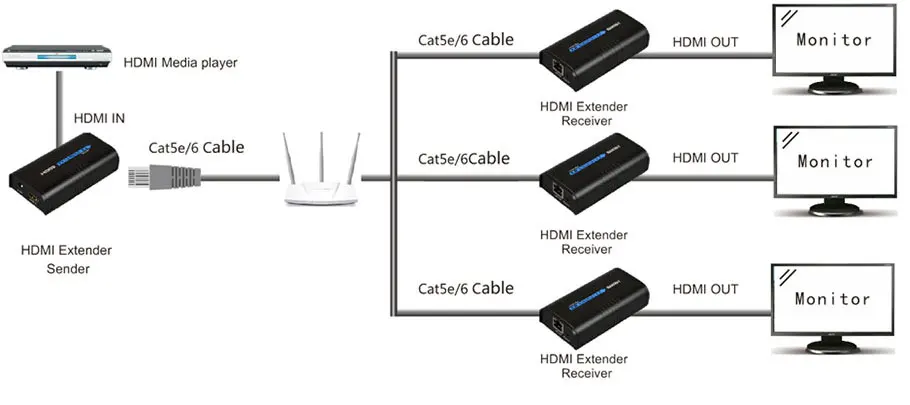

2. Multiple outputs: Extend and split using network router/switch.
- One Extender (TX) to several Receivers(RX)

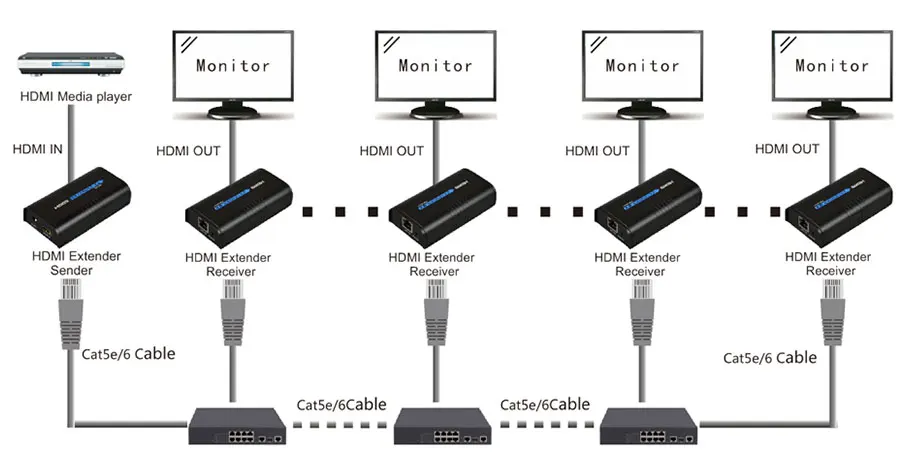

3.Cascade: Unlimited extension with network router/repeater.
Extending HDMI signal one by one. It's maximum distance is 20km.
Customer could combine Cascade Mode and Splitter mode to setup complex
HDMI transmission network for big projects.
Package contents
"Please choose the iterm you need." "1 TX" item: 1 sender, 1 power adapter. 1 manual "1 RX" item:1 receiver, 1 power adapter. 1 manual "1 TX 1 RX" item:1 sender, 1 receiver, 2 power adapters. 1 manual "1 TX 2 RX" item:1 sender, 2 receivers, 3 power adapters. 1 manual "1 TX 3 RX" item:1 sender, 3 receivers, 4 power adapters. 1 manual "1 TX 4 RX" item:1 sender, 4 receivers, 5 power adapters. 1 manualHardware Installation
Note: To achieve optimal performance, a CAT6 cable is recommended. 1. Power off all devices including your HDMI source and display. 2. Connect your HDMI source to the Transmitter's HDMI IN connector. 3. Connect your HDMI display to the Receiver's HDMI OUT connector with an HDMI cable (not included). 4. Connect and link the Transmitter and Receiver by a CAT5/5e/6 cable. 5. Plug the included power adapters into the Transmitter's and Receiver's Power Jacks, then plug both power adapters into reliable power outlets. 6. Power on your HDMI device and HDMI display. 7. The HDMI Extender is ready for use.
FAQ & Solution
Q: The TV displays "Waiting for connection..." on the bottom-right corner:
A: 1) Check whether the power adapter of Transmitter (TX),Receiver (RX) or Network Switch (if used) is connected.
2) Make sure the Network cable (CAT5/5e/6) is firmly connected between TX and RX.
Q: The TV displays "Searching TX":
A: 1) Make sure the HDMI device is connected to the Transmitter (TX).
2) Use other HDMI cables to connect.
3) If still doesn't work, connect the HDMI device to the TV directly to see if there's a signal.
Q: The HDMI extender isn't working properly:
A: 1) Please check the cable lengths are within below:
- HDMI cables: 2m
- Network cable (CAT5/5e/6): 120m
2) Press the "Reset" button on the TX/RX and reconnect.
