Type 1: LMX2594 Core board V2

Type 2:   LMX2594 board V2+STM32+1.3 inch TFT

Low phase noise, wideband, internally integrated VCO PLL (LMX2594 adopts four-layer plate design)

1, basic version V1 core board (788) : four layer board, used for verification function, common SMA interface INPUT and output,

10MHZ TCXO temperature complementary crystal oscillator,

JOHNSON 142-0701-801 (18GHZ-SMA)

TI industry low noise LDO, 10MHZ TCXO temperature complement crystal oscillator,

3. The physical picture with control board is as follows

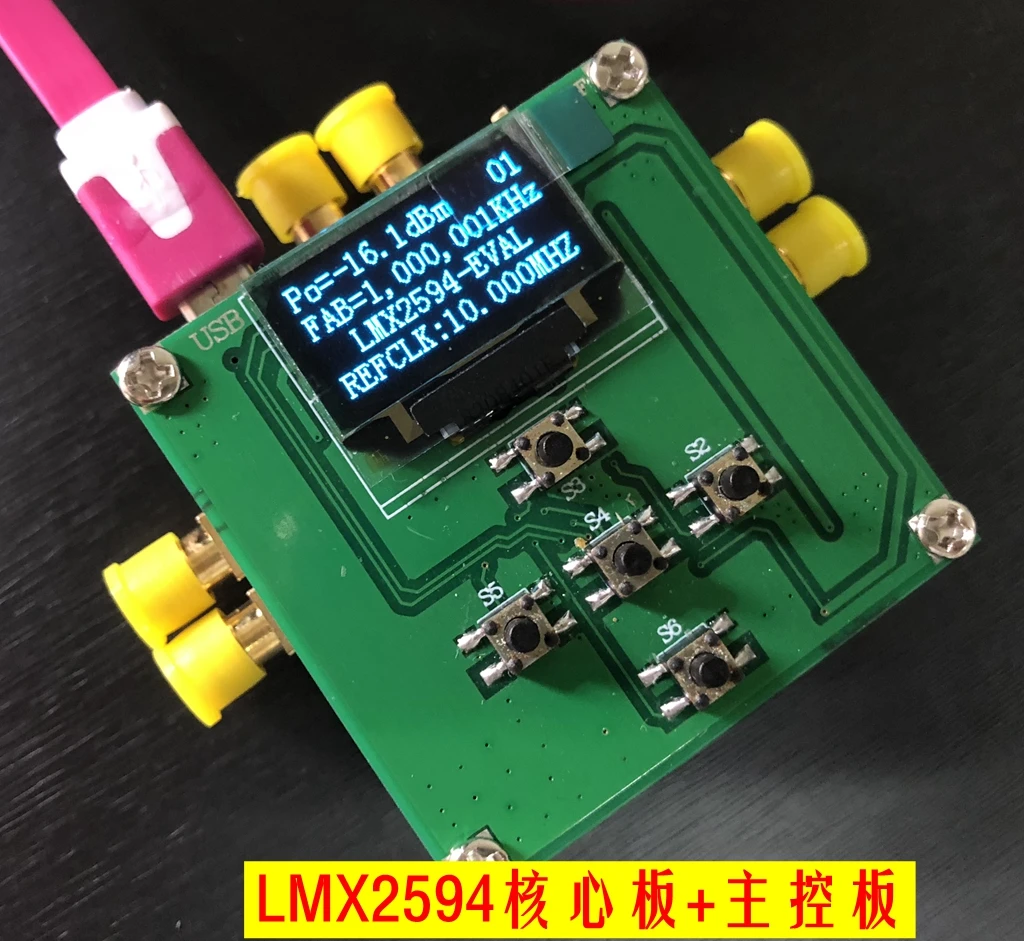

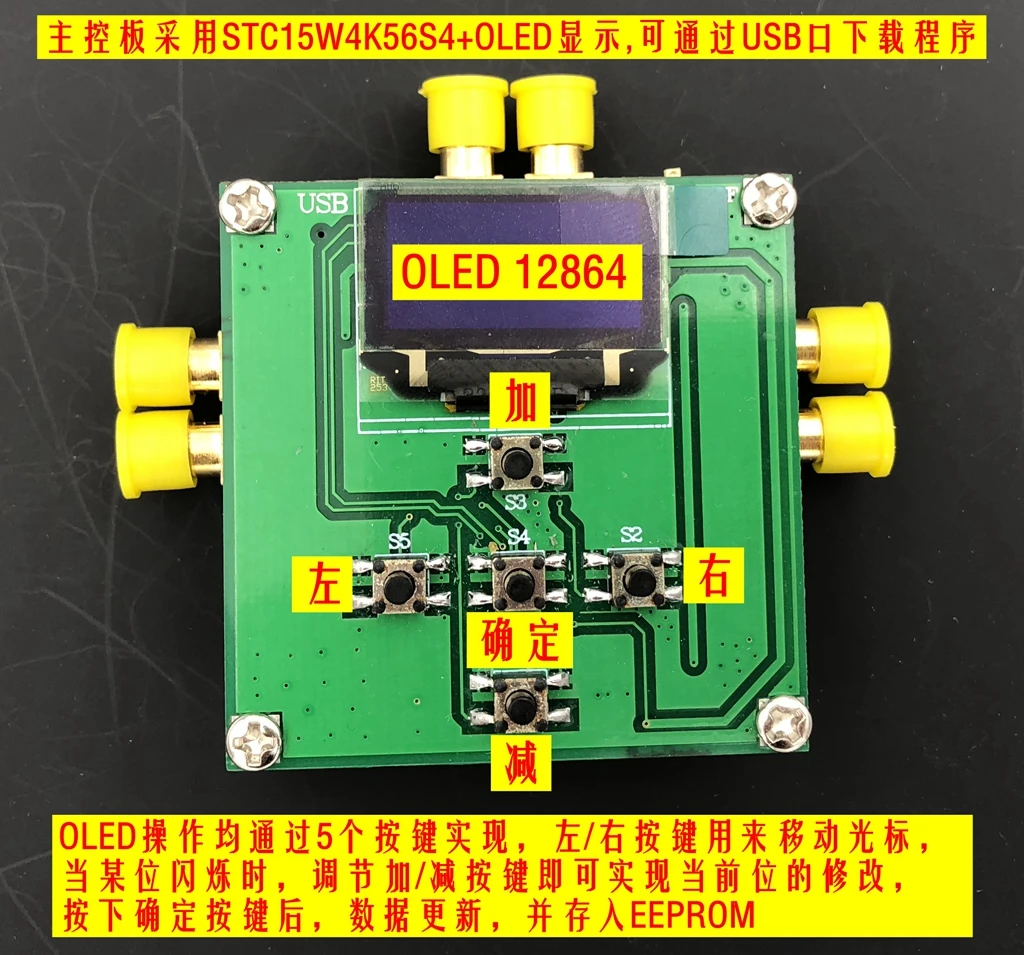

LMX2594+STC15W MCU +0.96 inch OLED physical picture is as follows (only dot frequency function)

Product features

1, 10MHz to 15GHz output frequency

2, in the case of 100KHz offset and 15GHz carrier with -110 DBC /Hz phase noise

3, 7.5GHz, with 45FS RMS jitter (100Hz to 100MHz)

4, programmable output power

5, PLL main specifications:

Quality factor: - 236dBc/Hz

Nominal 1/f noise: - 129dBc/Hz

Highest phase detector frequency

400MHz integer mode

300MHz fractional mode

32 bit fractional N divider

Eliminate integer boundary spurious with programmable input multiplier

7, across multiple devices to achieve output phase synchronization

Support SYSREF programmable delay with 9ps resolution

9, FMCW frequency ramp up and linear frequency modulation pulse capability applications

10, less than 20μs VCO calibration speed

11, 3.3V single power supply operation

Second, product application

1. 5G and millimeter wave wireless infrastructure

2. Test and measurement equipment

3, radar

4, MIMO

5. Phased array antennas and beamforming

6, high speed data converter clock (support JESD204B)

Iii. Product Description

The LMX2594 is a high-performance broadband synthesizer capable of generating any frequency in the 10MHz to 15GHz range without the use of an internal doubler, thus eliminating the need for sub-harmonic filters. High-performance PLL with a quality factor of -236dbc /Hz and high phase detector frequencies achieve very low in-band noise and integrated jitter. High speed N divider not preloaded

Frequency divider, thus significantly reducing the amplitude and number of stray. There is also a programmable input multiplier that reduces integer boundary spurious.

The LMX2594 allows users to synchronize the output of multiple devices and can be applied when a delay between input and output is determined. The frequency ramp up generator can synthesize up to 2 slopes in either the automatic ramp generation option or the manual option for maximum flexibility. The frequency can be accelerated to more than 20μs by fast calibration algorithm. LMX2594 adds a pair of generated or heavy

Complex SYSREF (JESD204B compliant) support makes it an ideal low-noise clock source for high-speed data converters. Fine delay adjustment (9ps resolution) is provided in this configuration to address the delay difference of the plate trace.

The output drivers in the LMX2594 provide output power of up to 7dBm at a carrier frequency of 15GHz. The device is powered by a single 3.3V power supply and has an integrated LDO, eliminating the need for onboard low-noise LDO.

Iv. Product physical drawing:

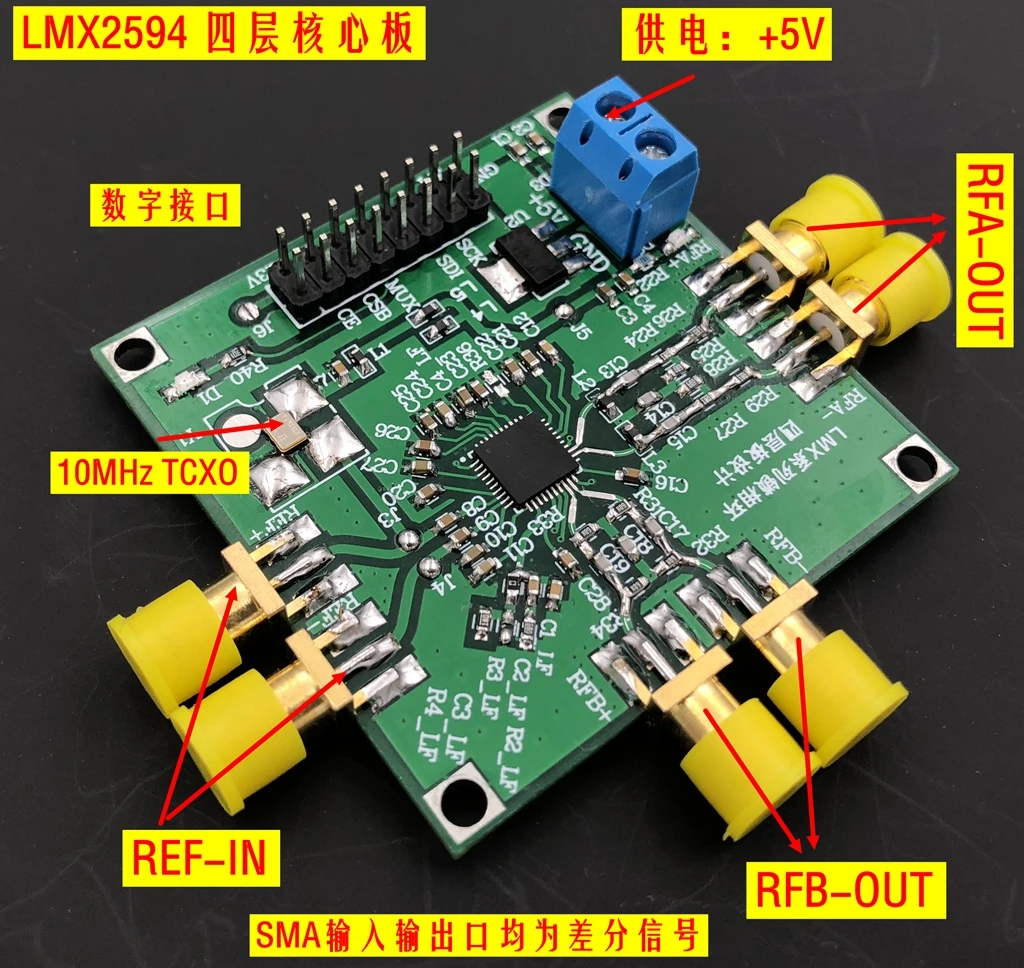

V1 version physical drawing

V1 version physical map

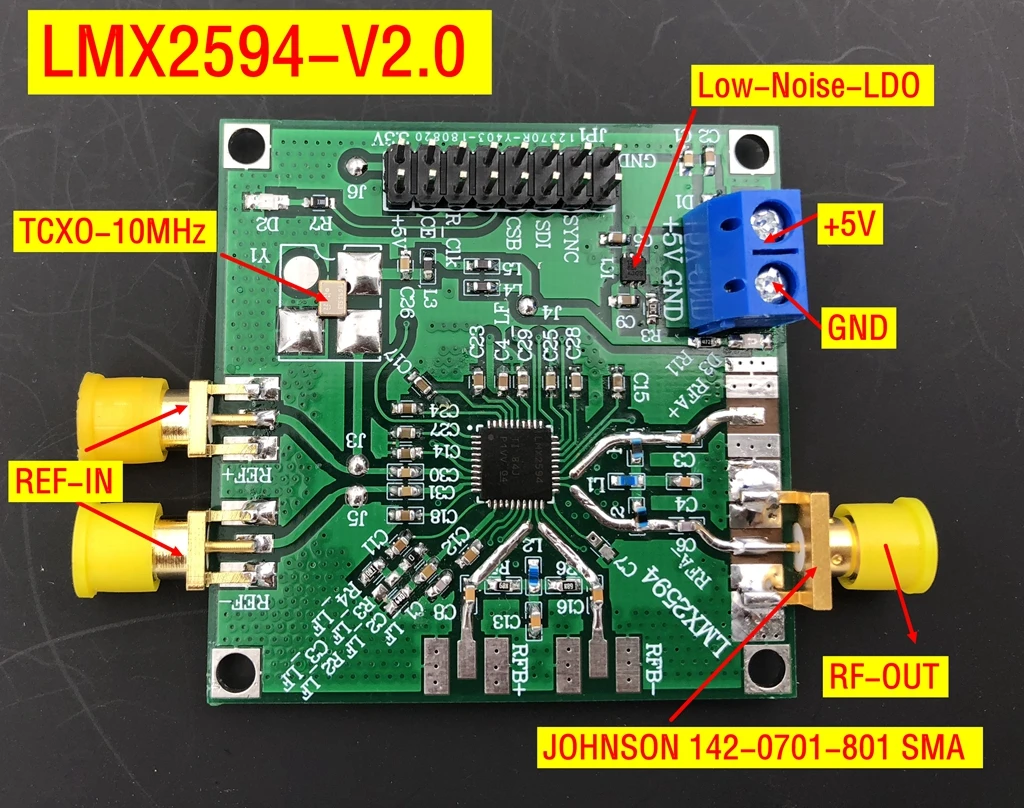

V2 version physical map

Technical indicators

1, power supply voltage: 5V DC (typical current value 340mA@ output power parameter is 1)

2, frequency range (10MHZ-15ghz)

3. Provide testing procedures and SCHEMATIC diagrams in PDF files

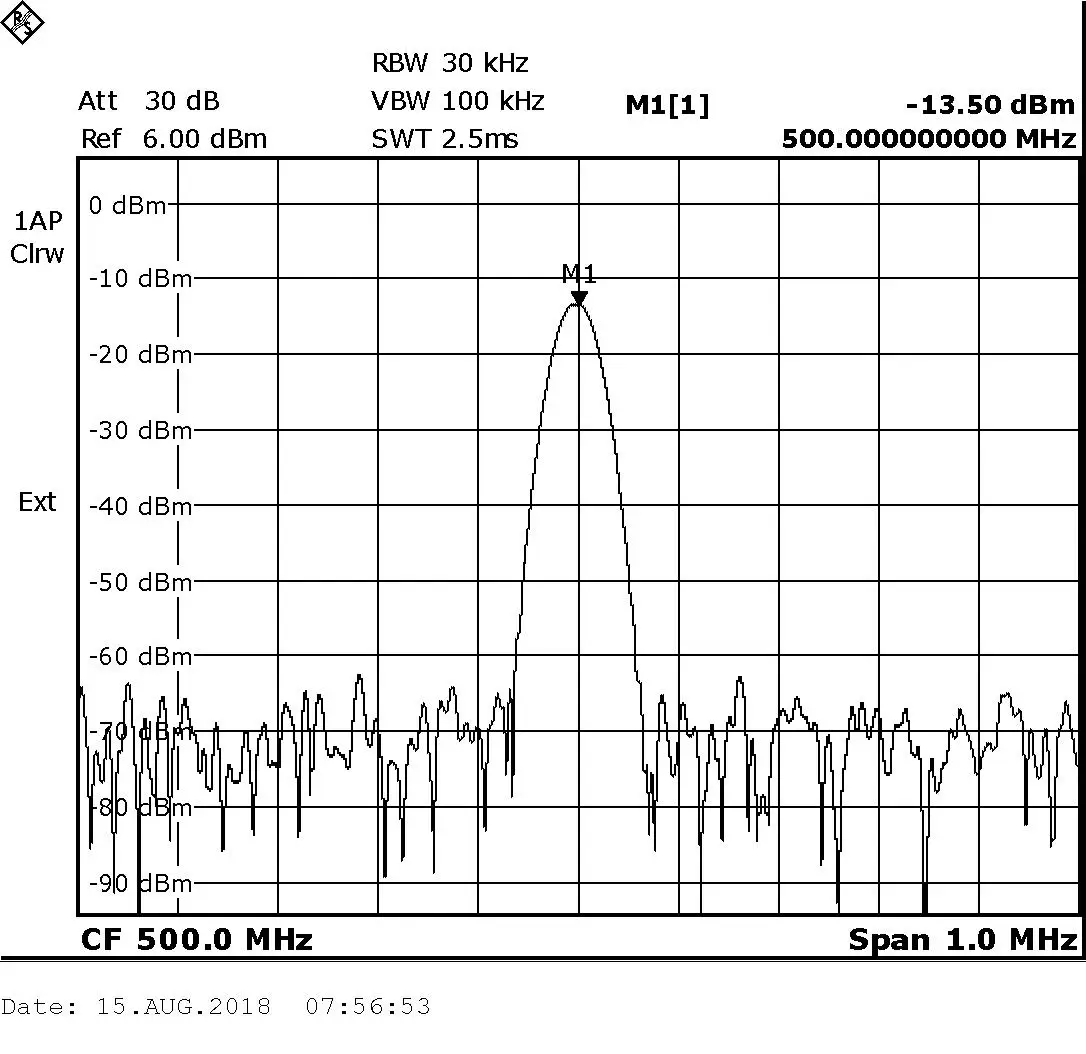

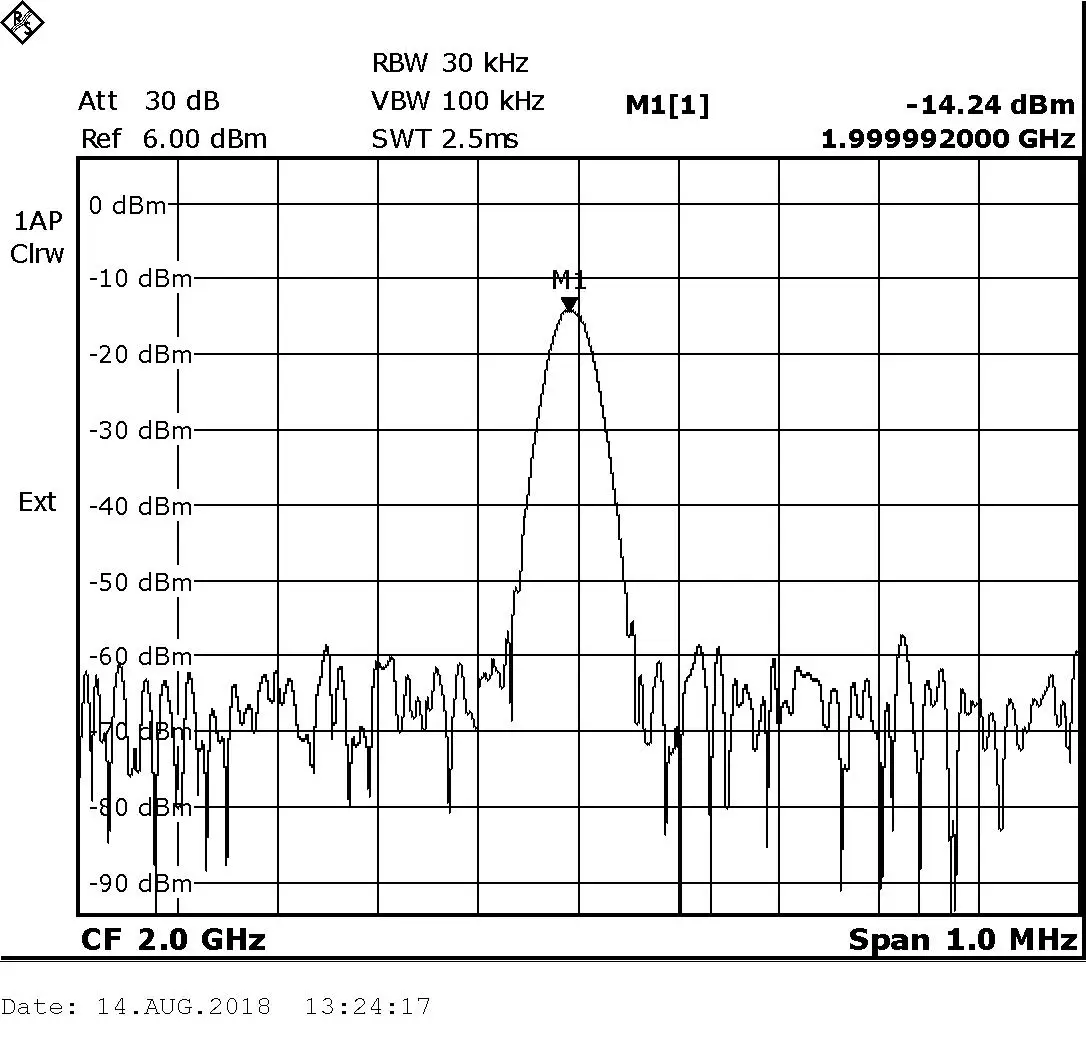

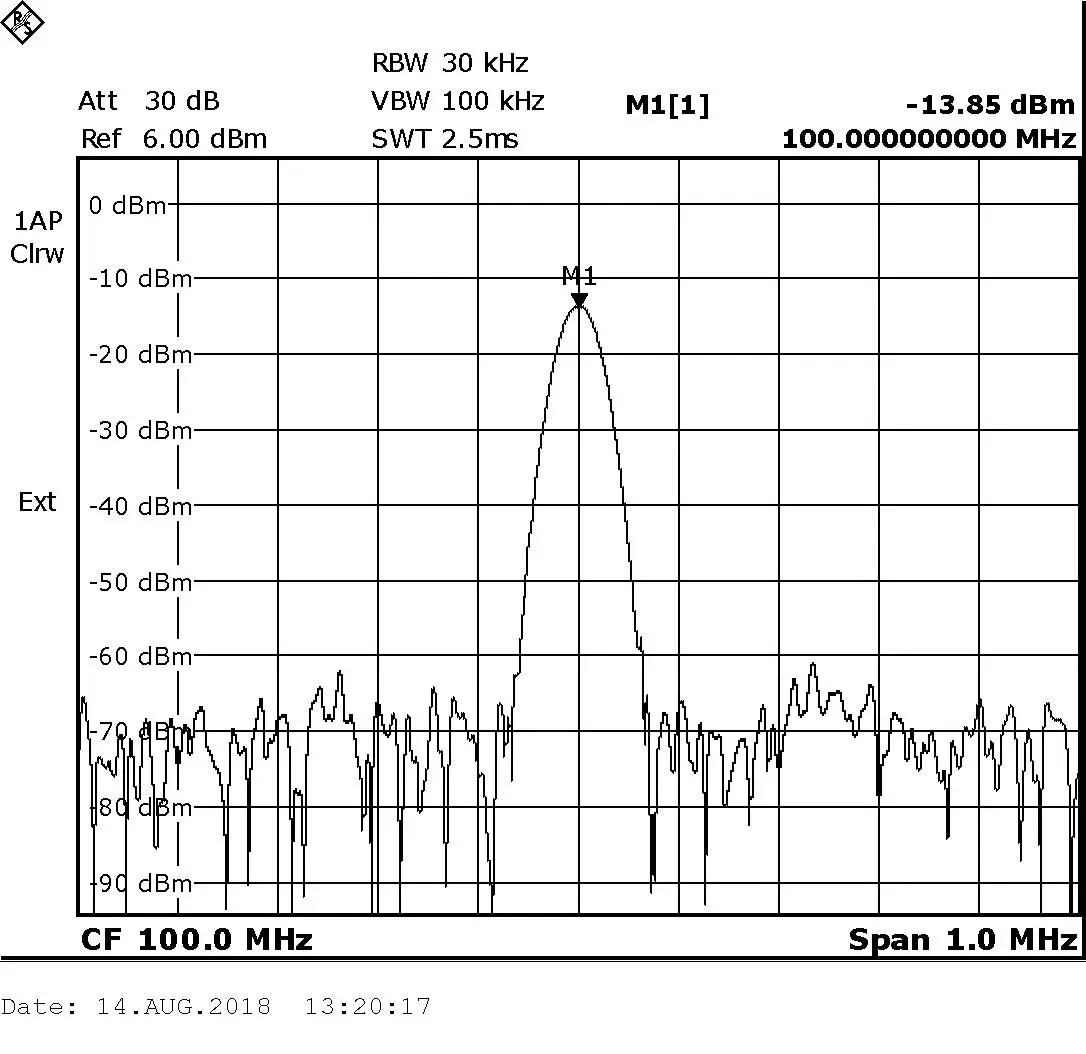

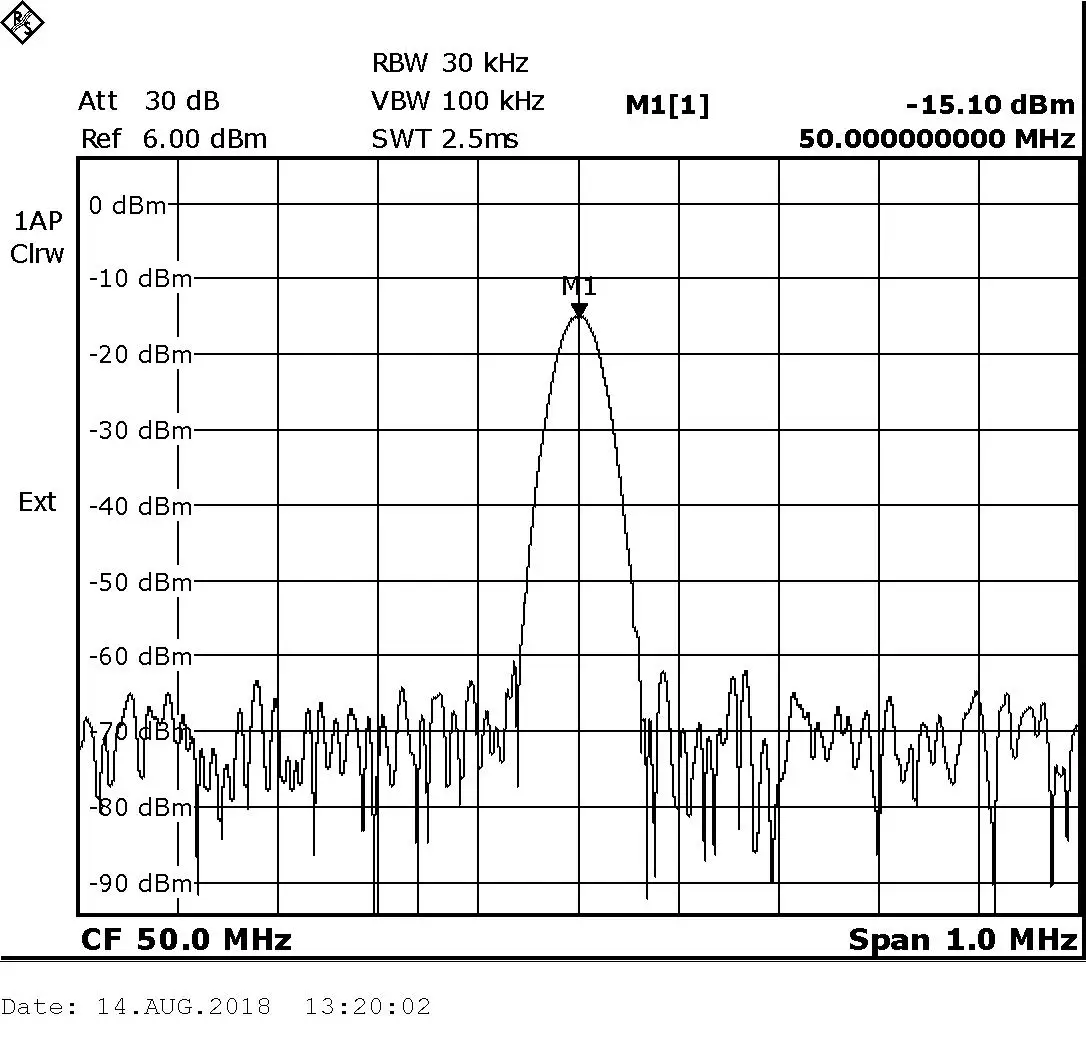

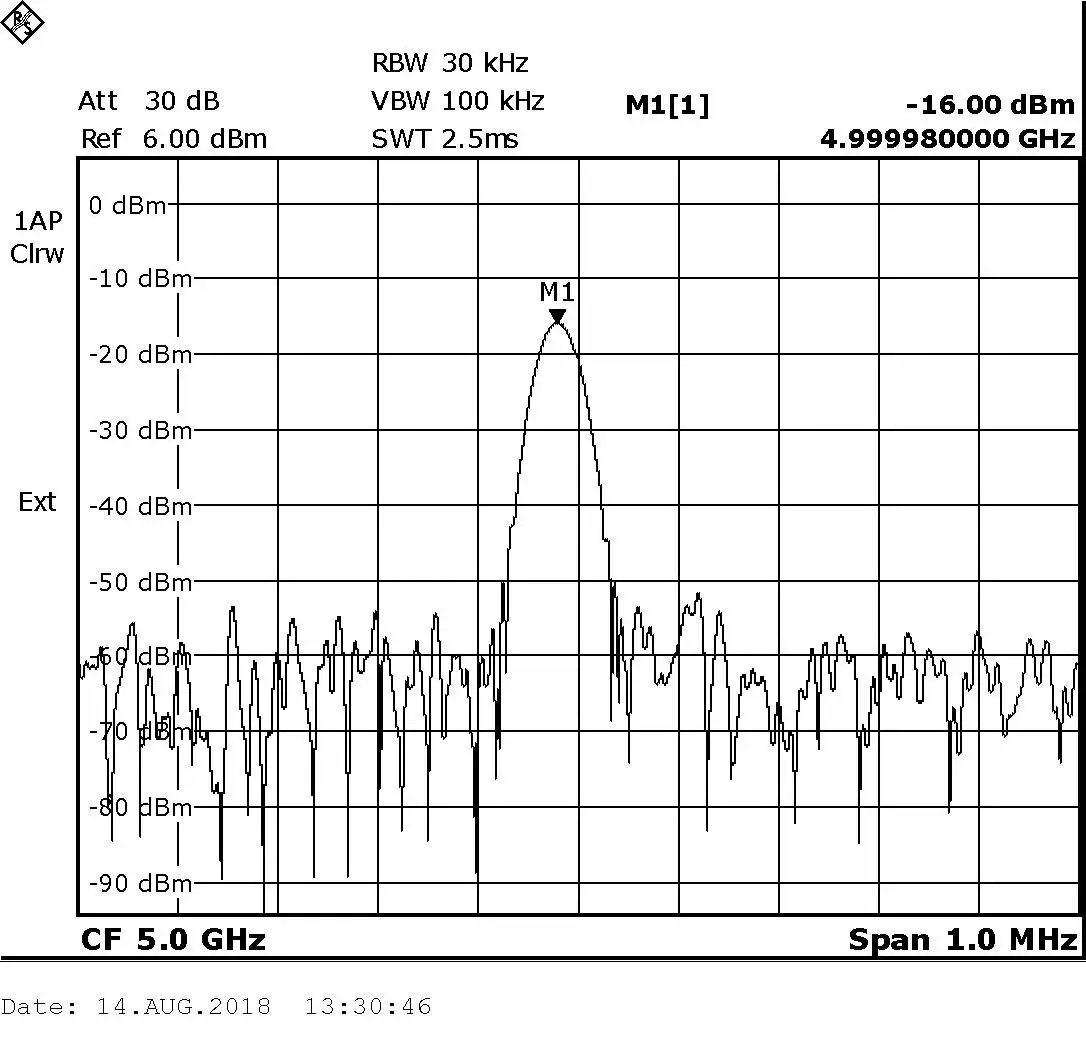

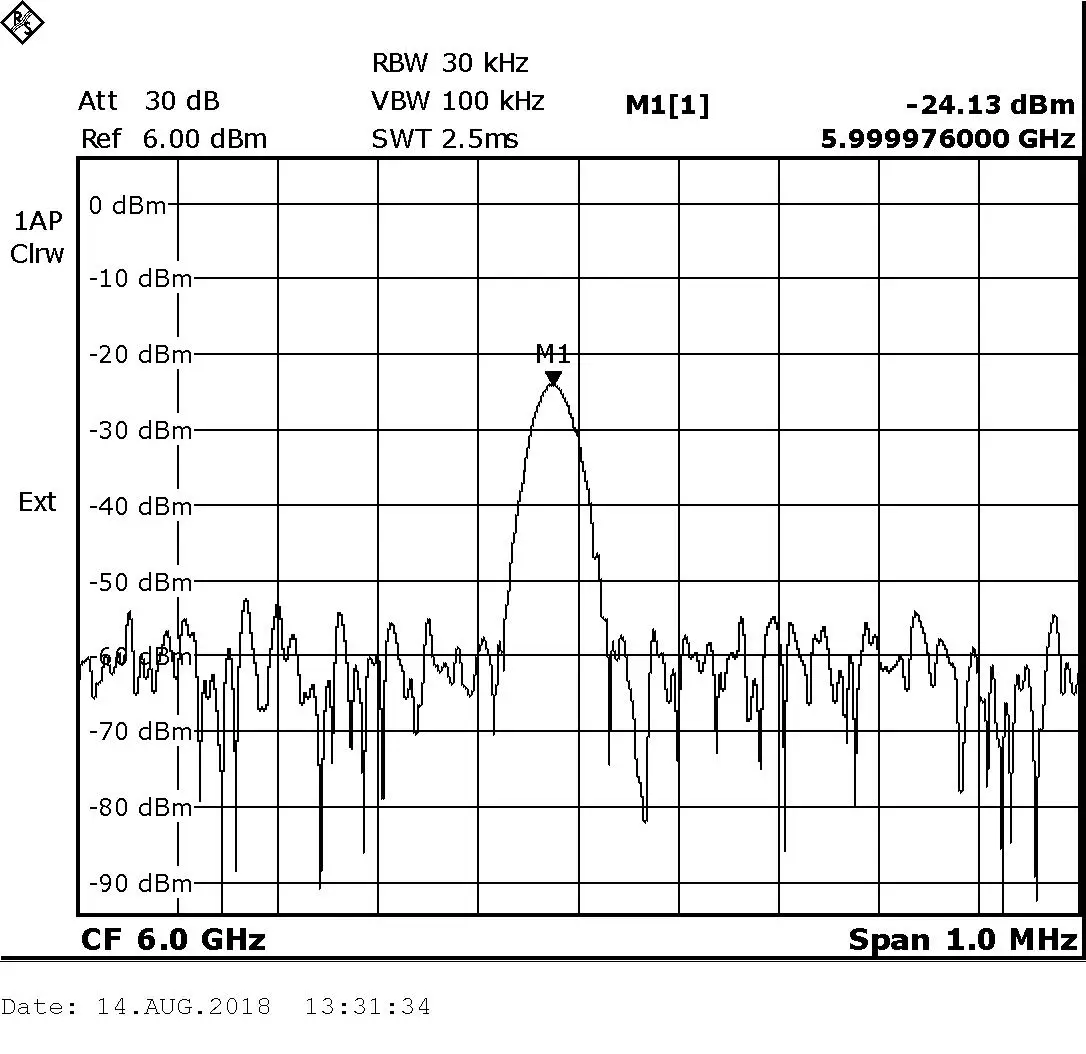

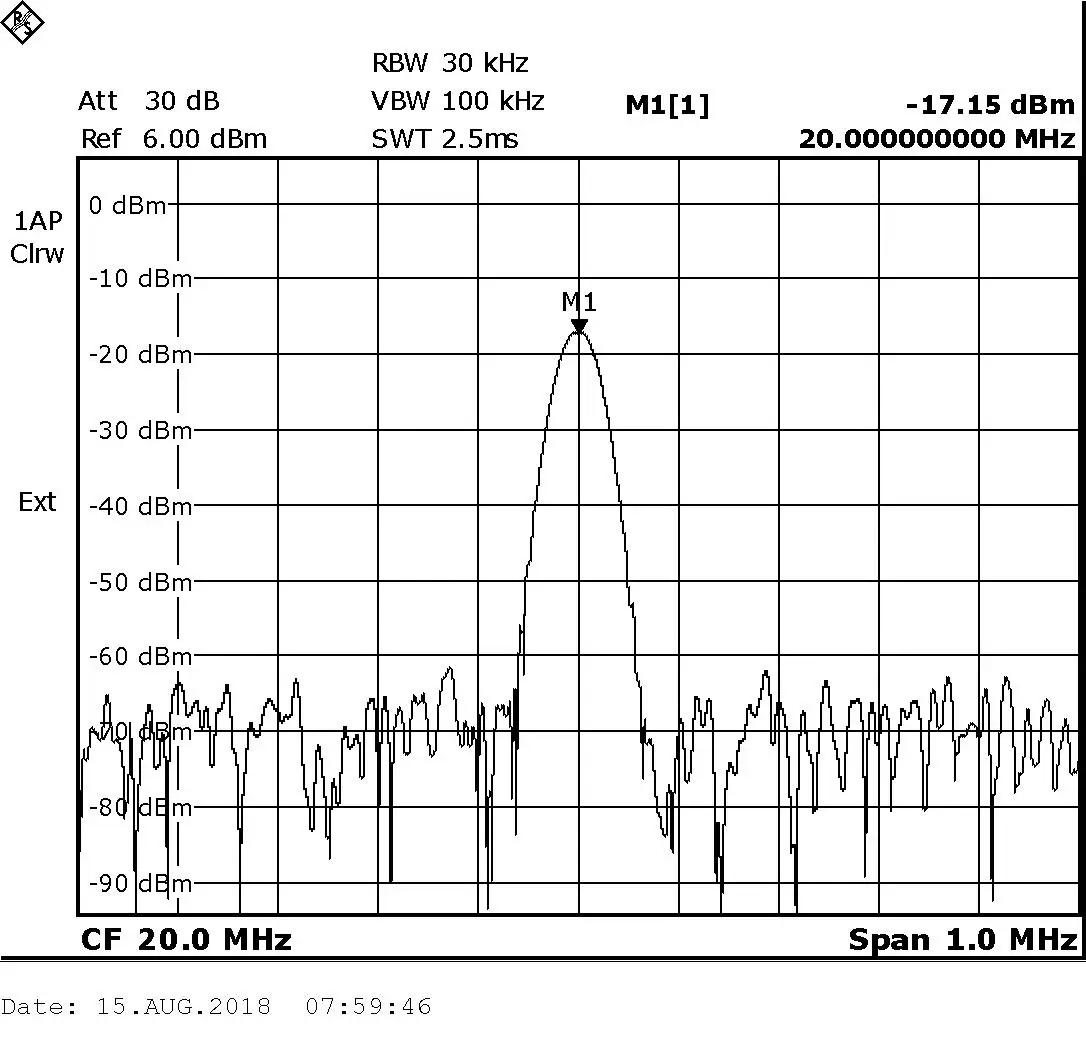

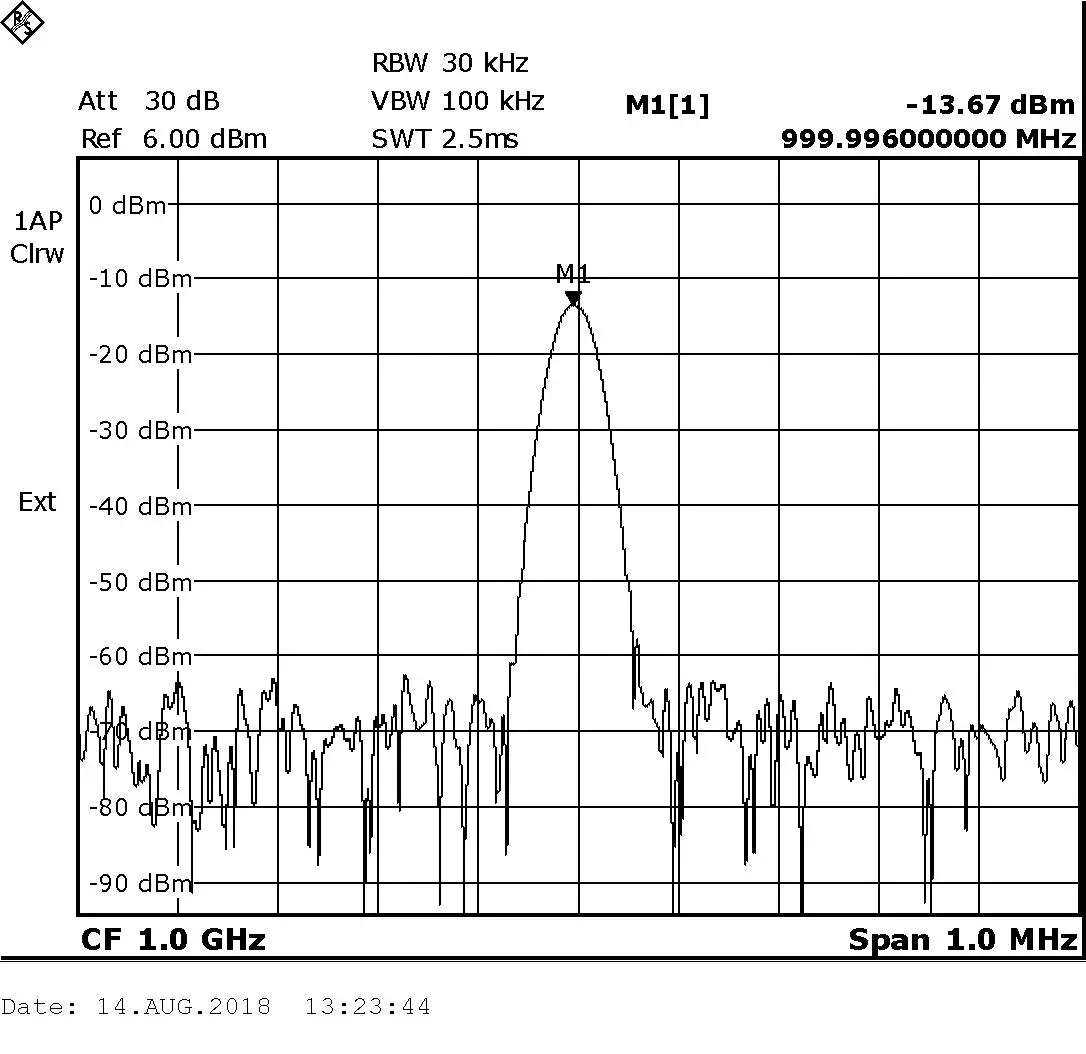

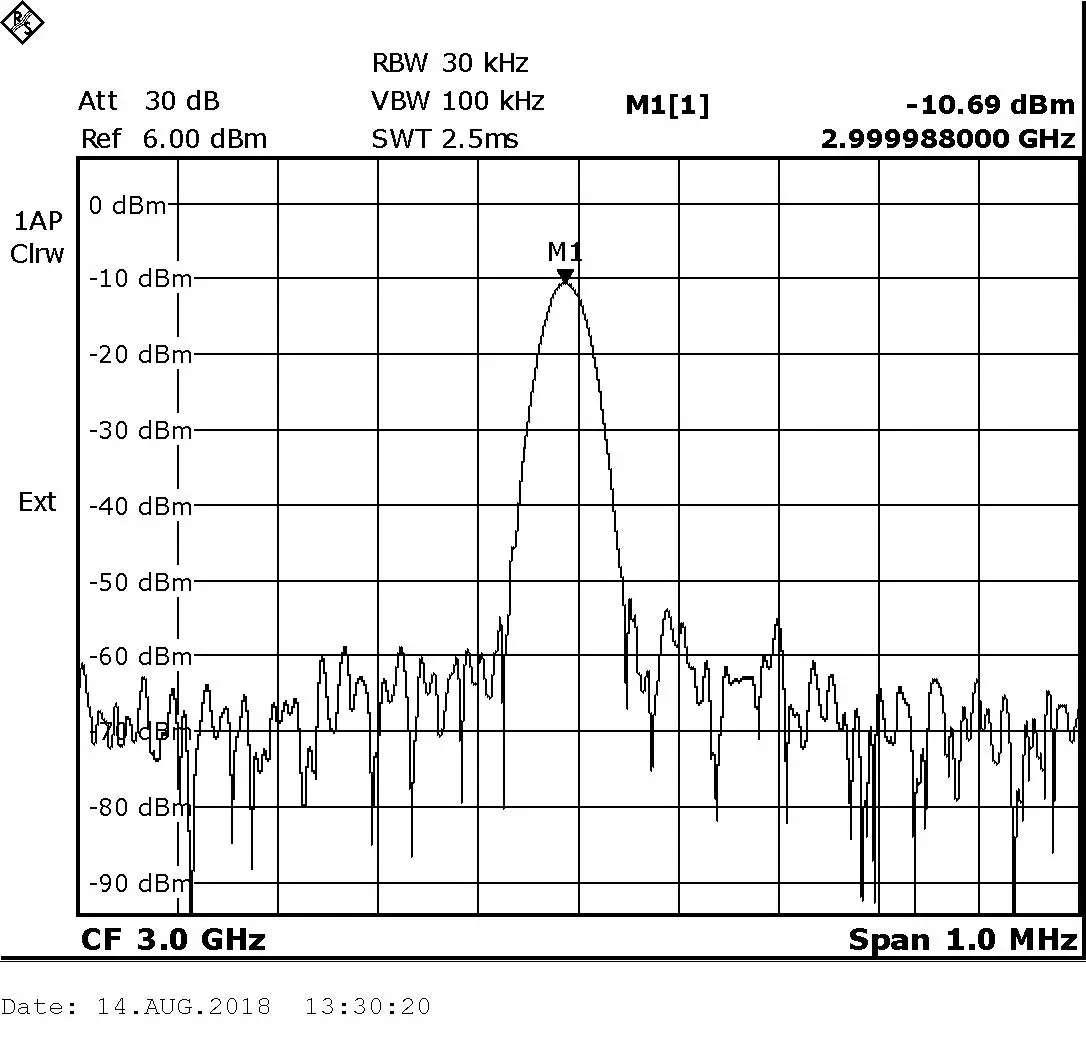

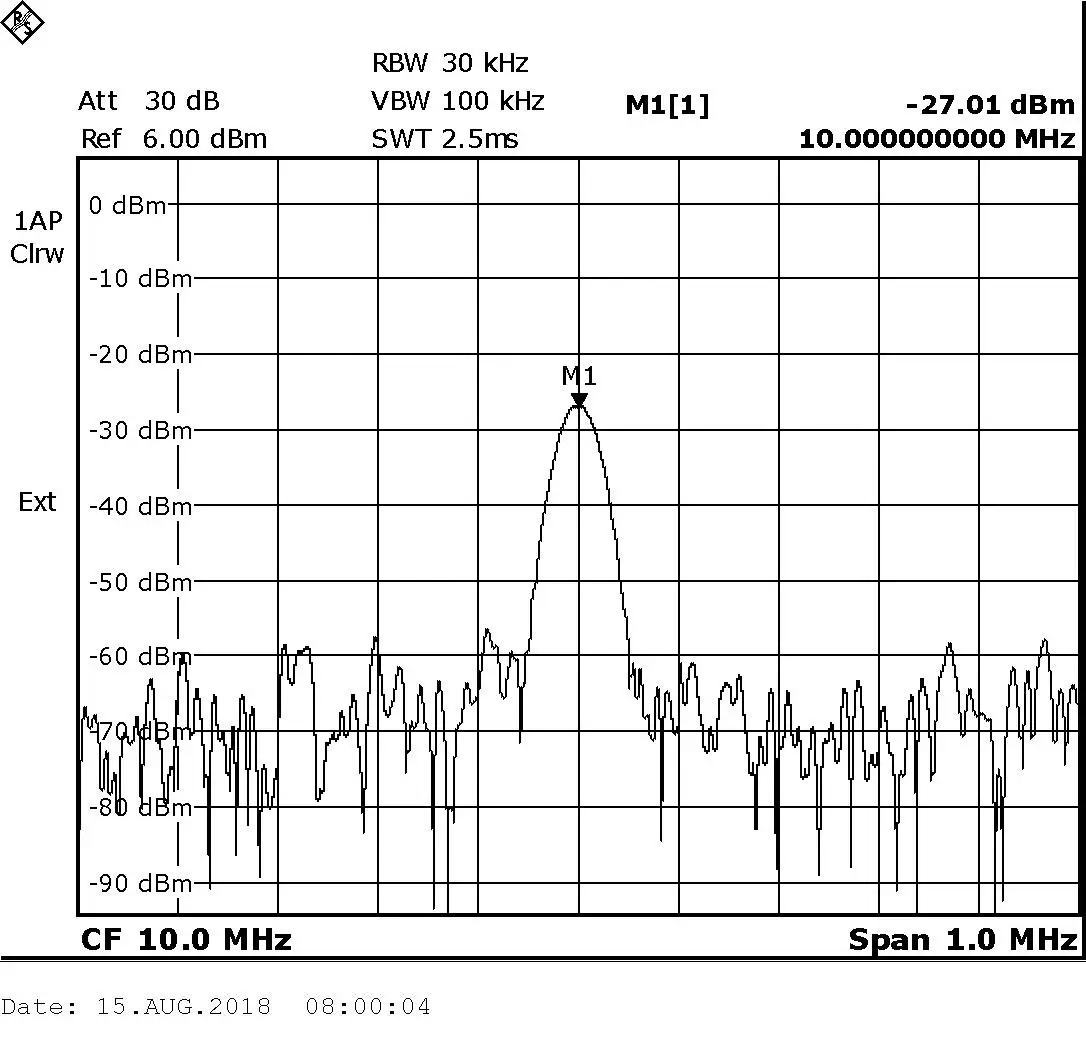

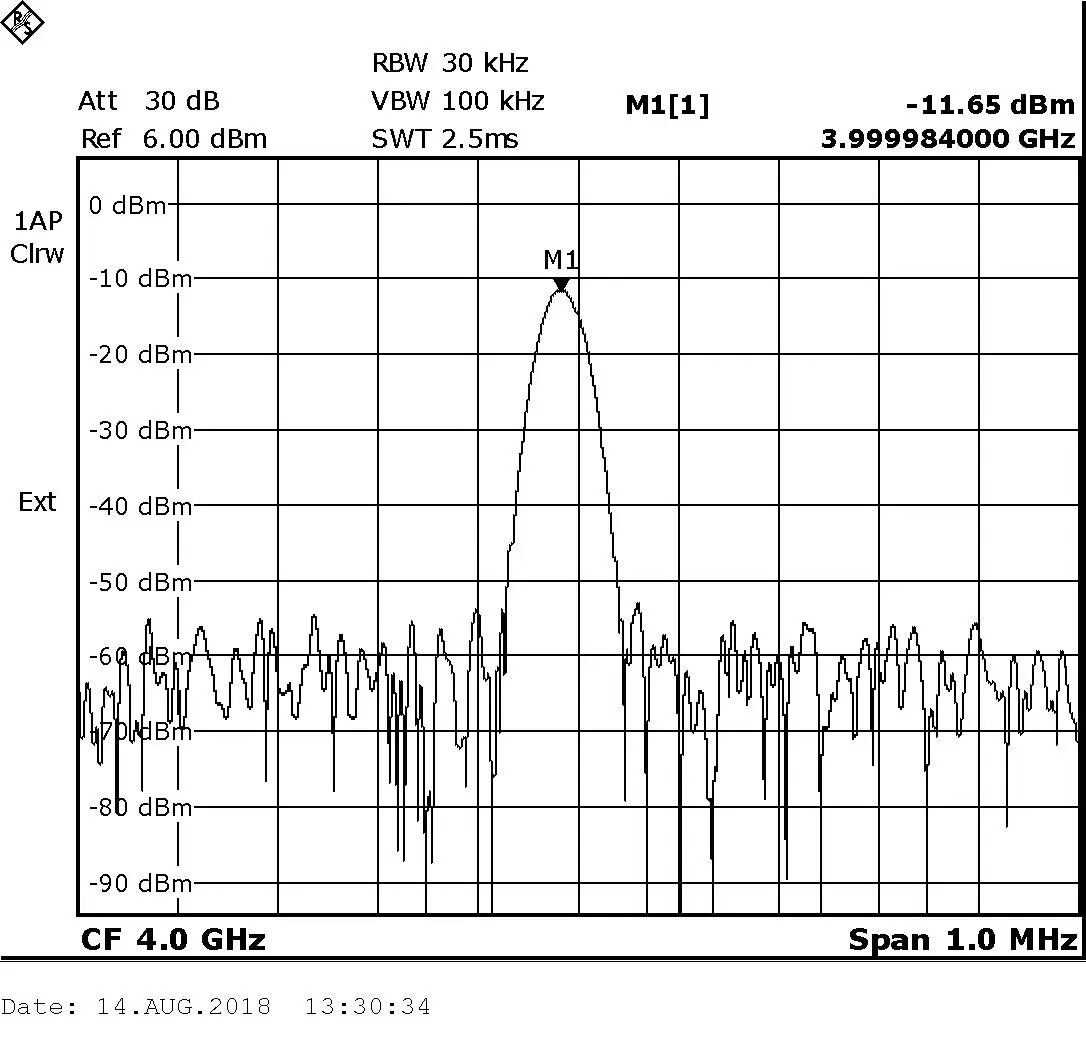

Seven, measured phase noise (FSL6) :

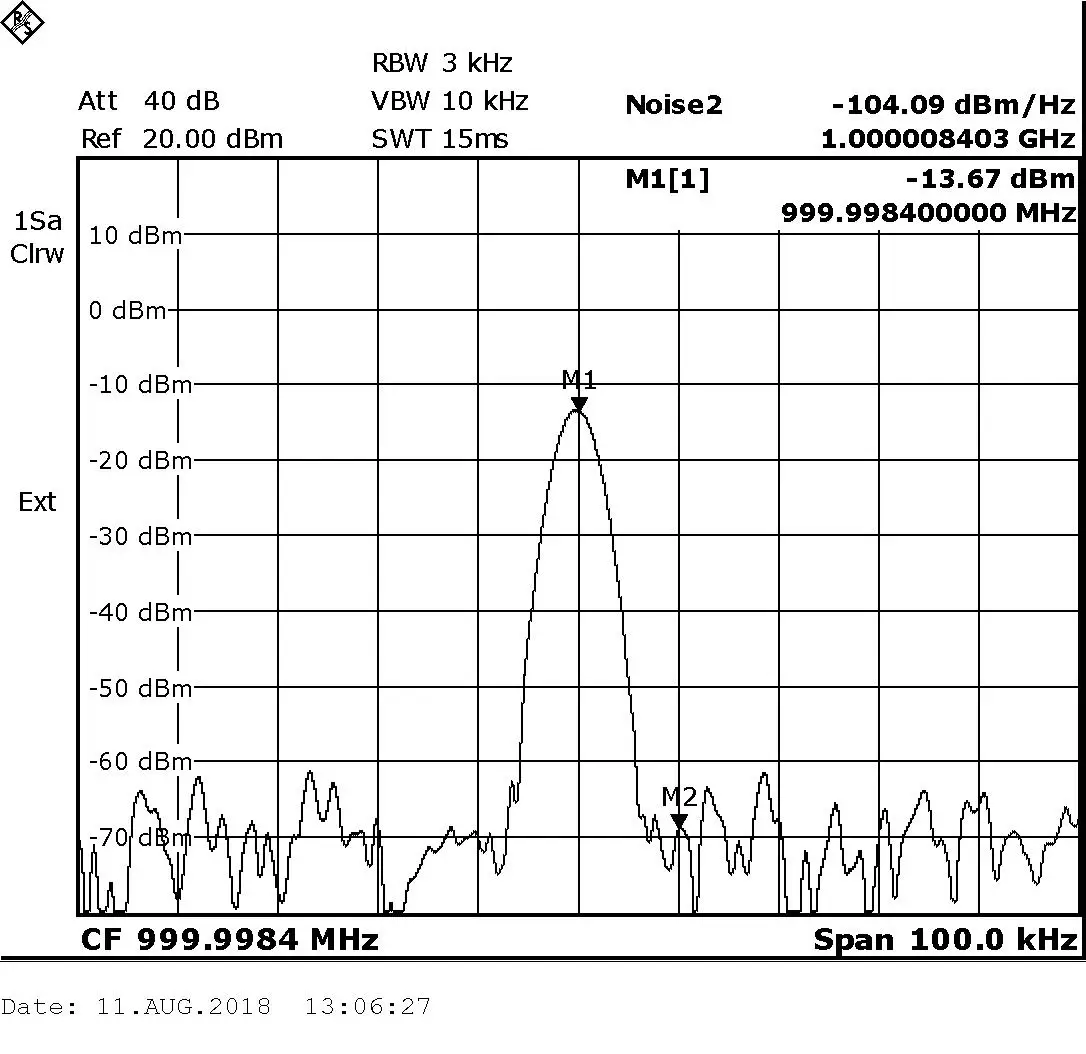

1 g @ 10 k: 104.09 dBc/Hz

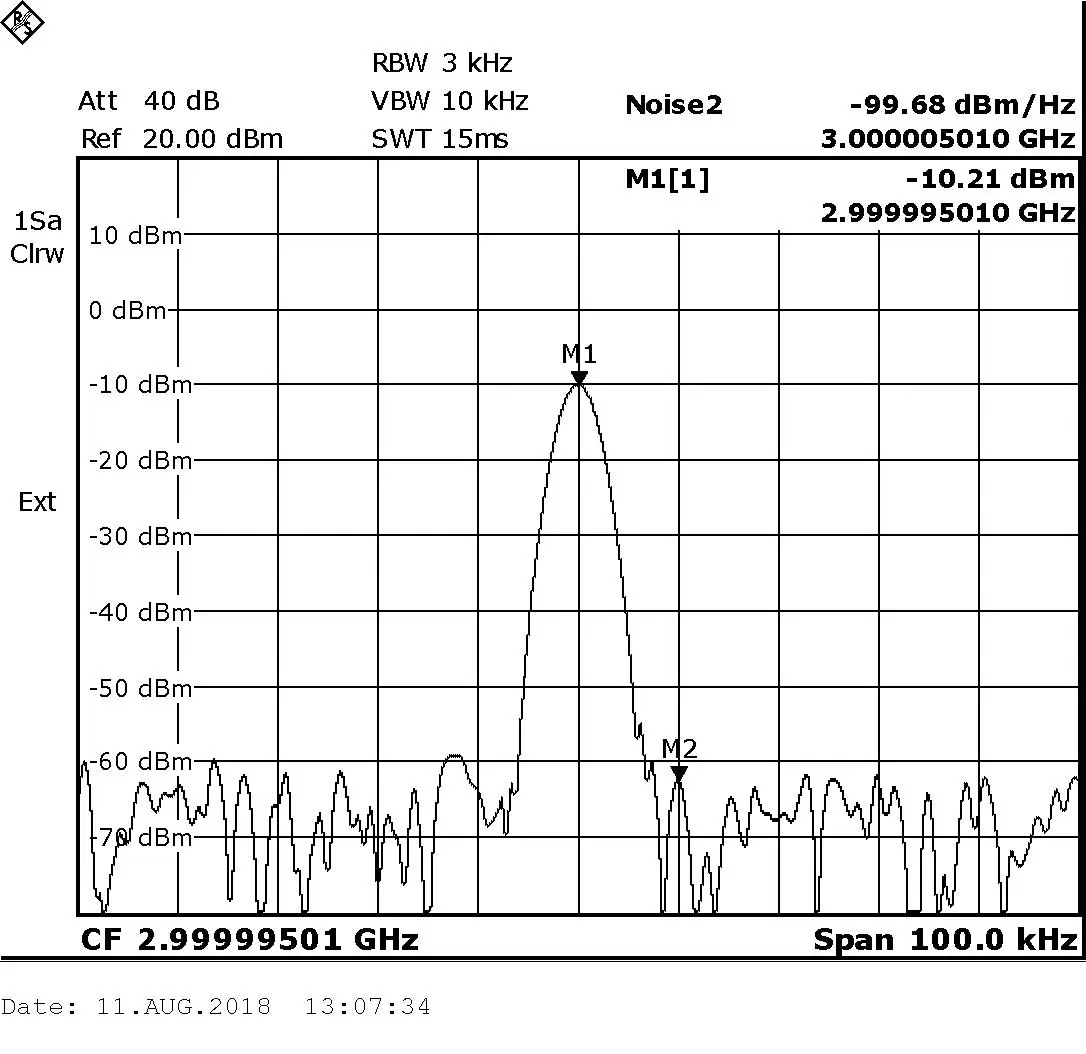

3G@ 10k -99.68dBc/Hz

'
